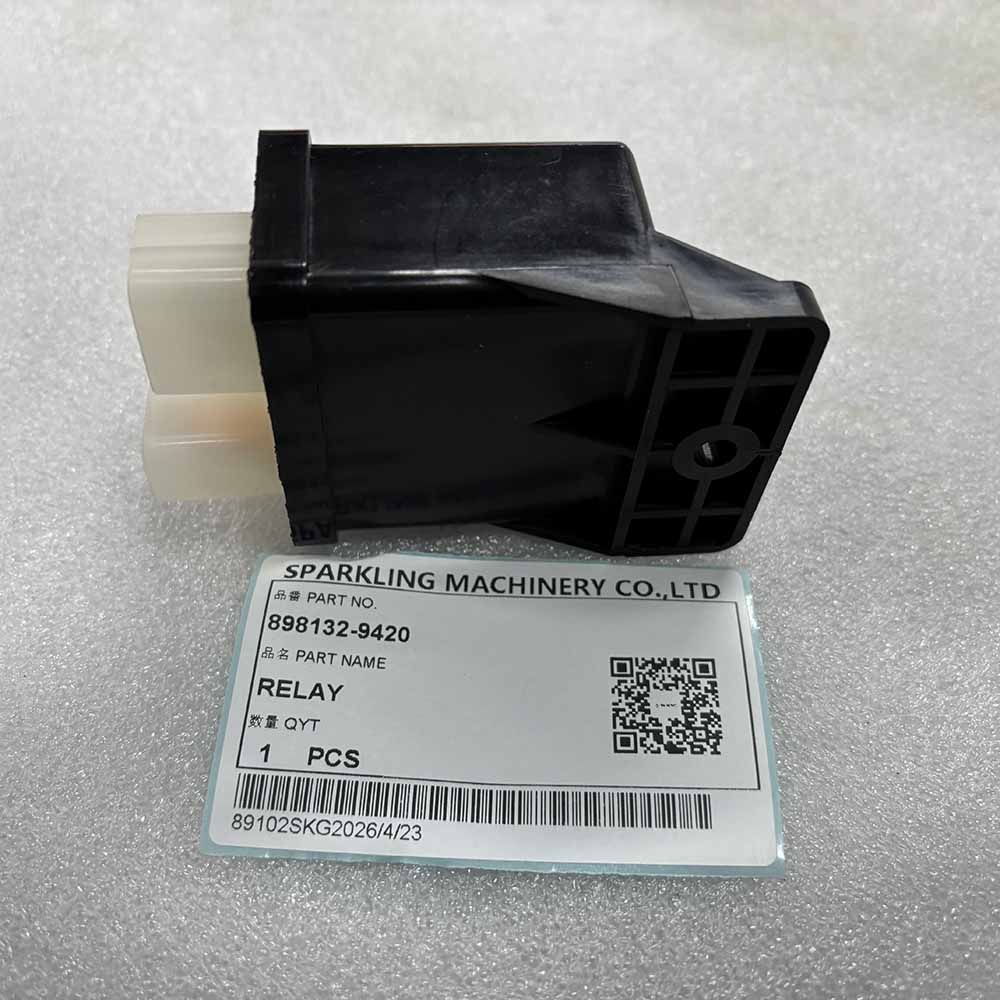

Heavy-duty-24VDC-relay-898132-9420-for-construction-machinery
ZX80LCK-3-excavator-starter-relay-898132-9420
John-Deere-ZX75US-3-excavator-power-relay-898132-9420
898132-9420-replacement-relay-for-Hitachi-ZX-series-excavators
Heavy-duty-24VDC-relay-898132-9420-for-construction-machinery
ZX80LCK-3-excavator-starter-relay-898132-9420

24V 898132-9420 Relay for John Deere ZX70-3, ZX75UR-3, ZX80LCK-3

  • The 898132-9420 Relay is a critical 24V electrical component designed for John Deere and Hitachi compact excavators.

  •

    Engine & Equipment Compatibility
    This component is highly specific to machines running Isuzu power plants—specifically the Isuzu 4LE2 engine. It is used across several heavy equipment brands:
    · John Deere Excavators: 75D and 85D models.
    · Hitachi Excavators: ZX70-3, ZX75UR-3, ZX75US-3, ZX80LCK-3, · ZX85US-3, and ZX85USB-3.Kobelco Excavators: SK75-8.
    · SANY Excavators: SY75.

Part Number
898132-9420
Quality
China made
Condition
New
Get a free quote
Details
Package Type
Mode of Transport
Payment Method
FAQS
   Dear Valued Partners,
   Thank you for choosing SPARKLING MACHINERY.

   The 898132-9420 is an industrial-grade relay engineered to withstand the harsh operating environments of compact excavators. Operating on a 24VDC system, it features high-conductivity copper contacts and a vibration-resistant housing. It is a vital link in the electrical harness, ensuring that high-draw components receive consistent voltage without damaging the operator’s control switches.

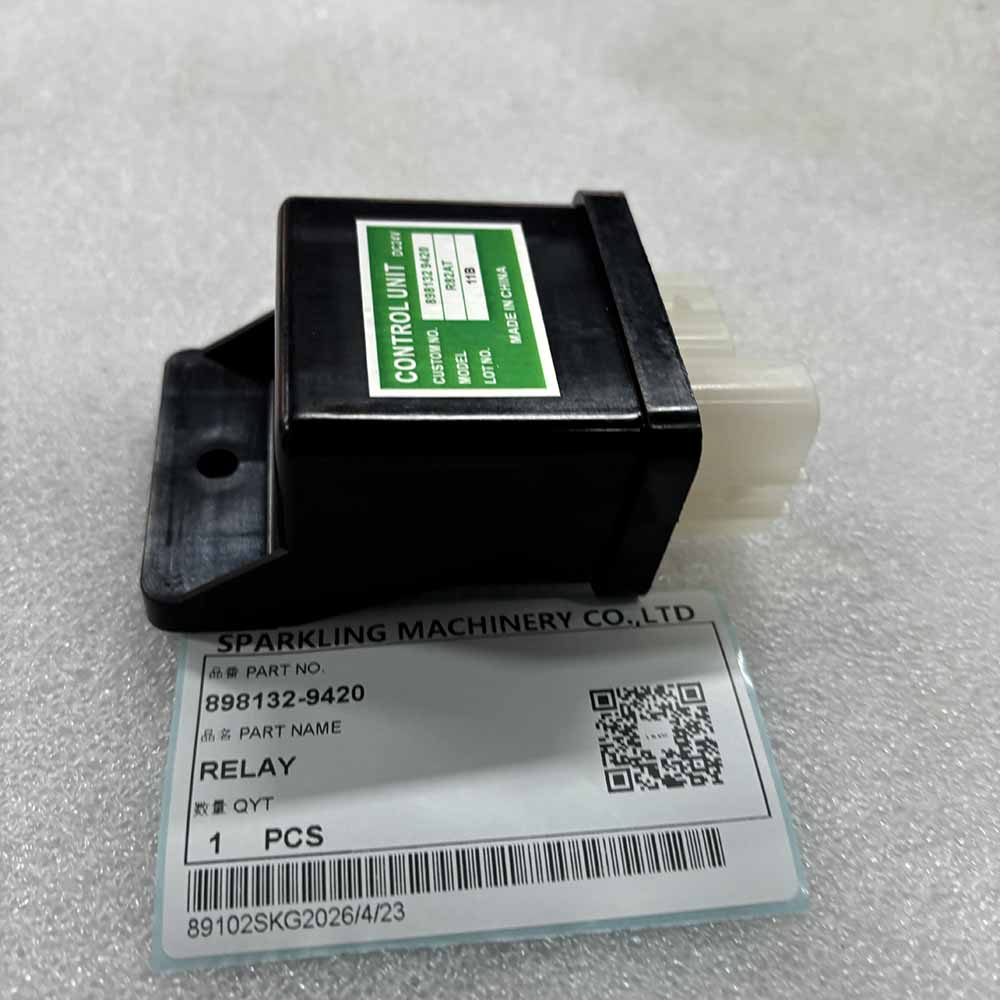

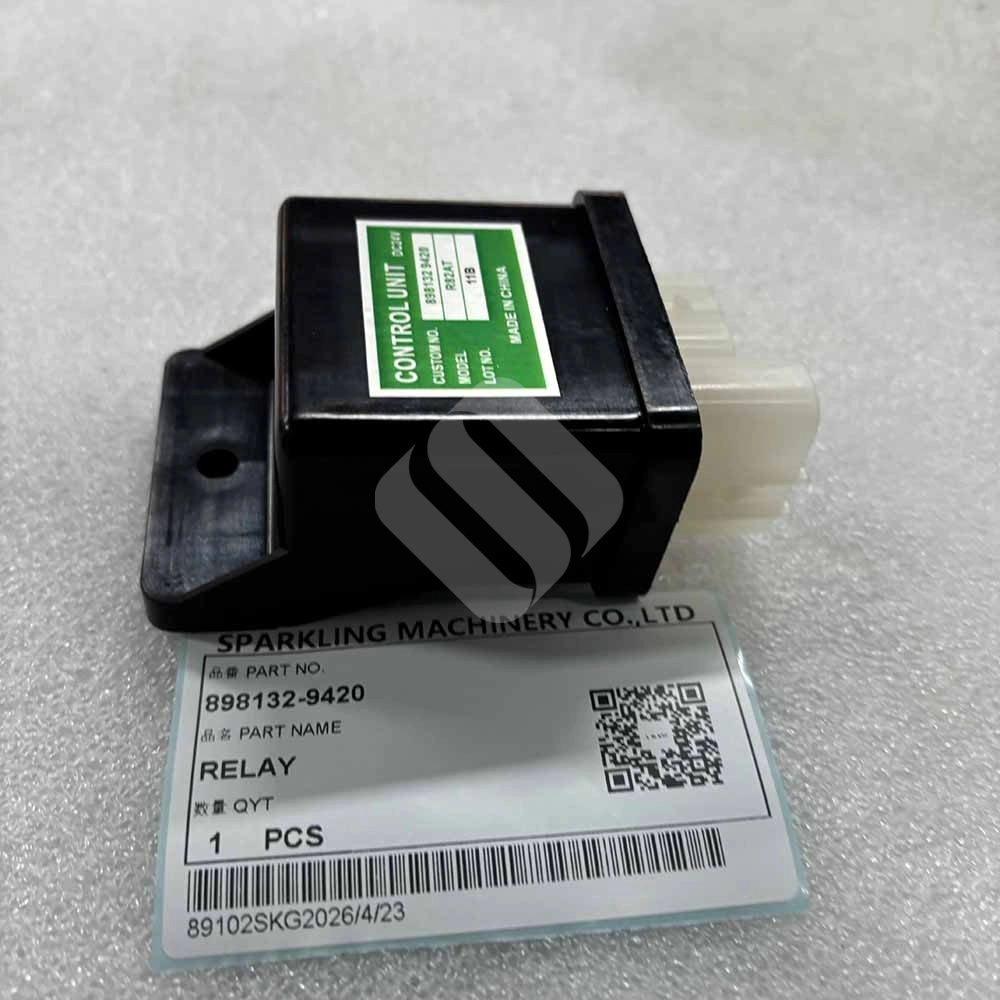

The SPARKLING MACHINERY NEW 898132-9420 Relay Photo:

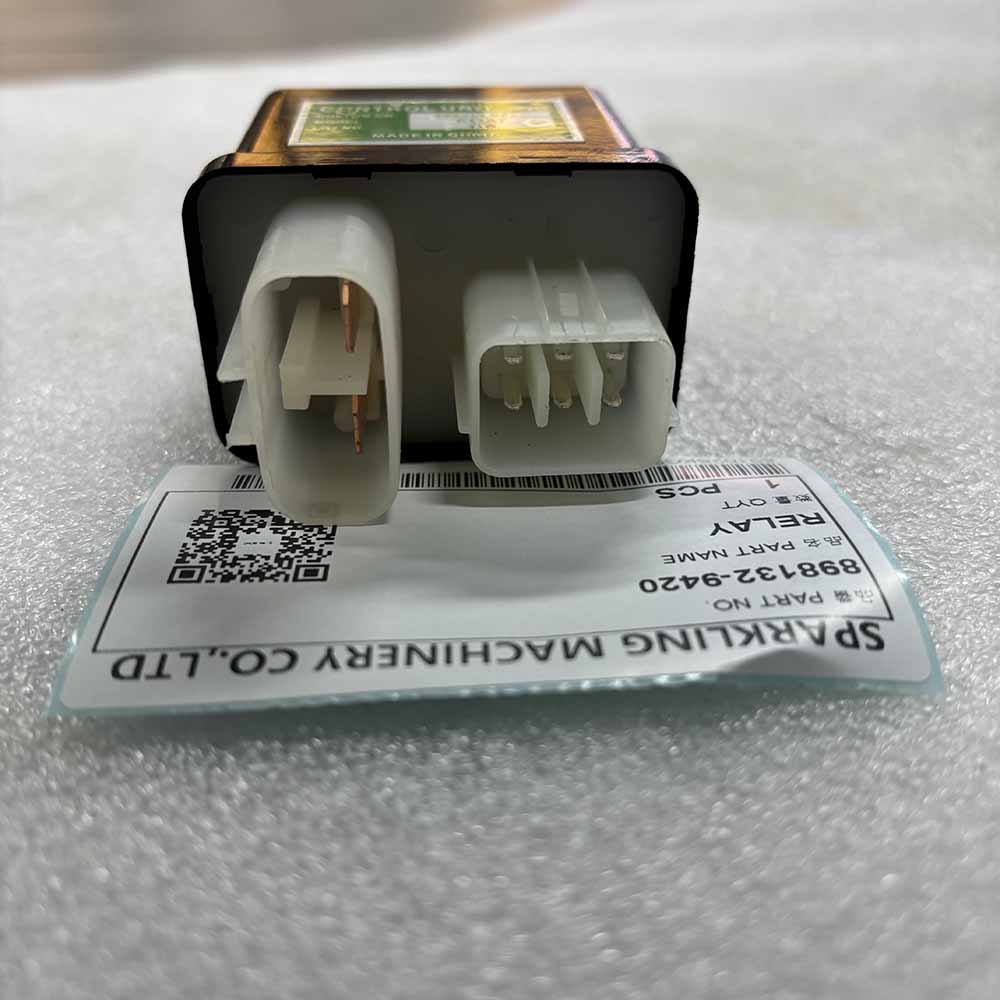

ZX80LCK-3-excavator-starter-relay-898132-9420

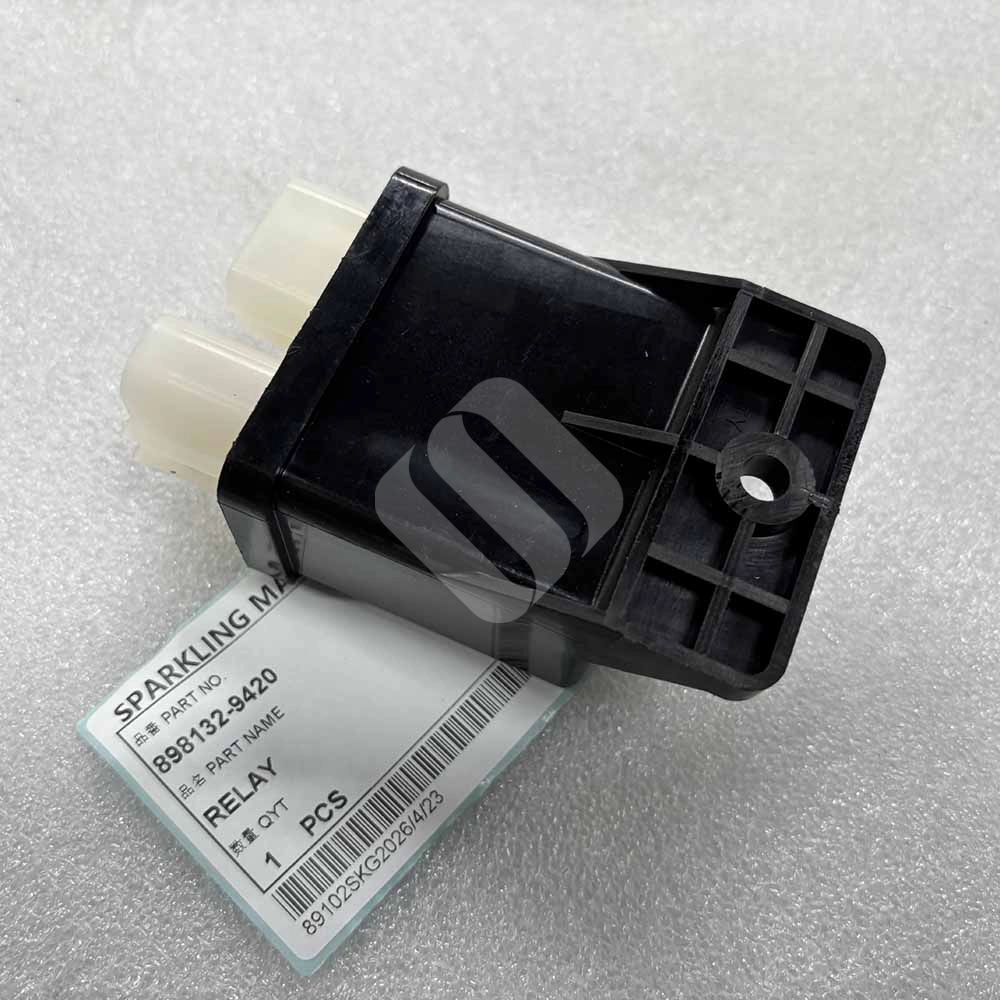

898132-9420-replacement-relay-for-Hitachi-ZX-series-excavators

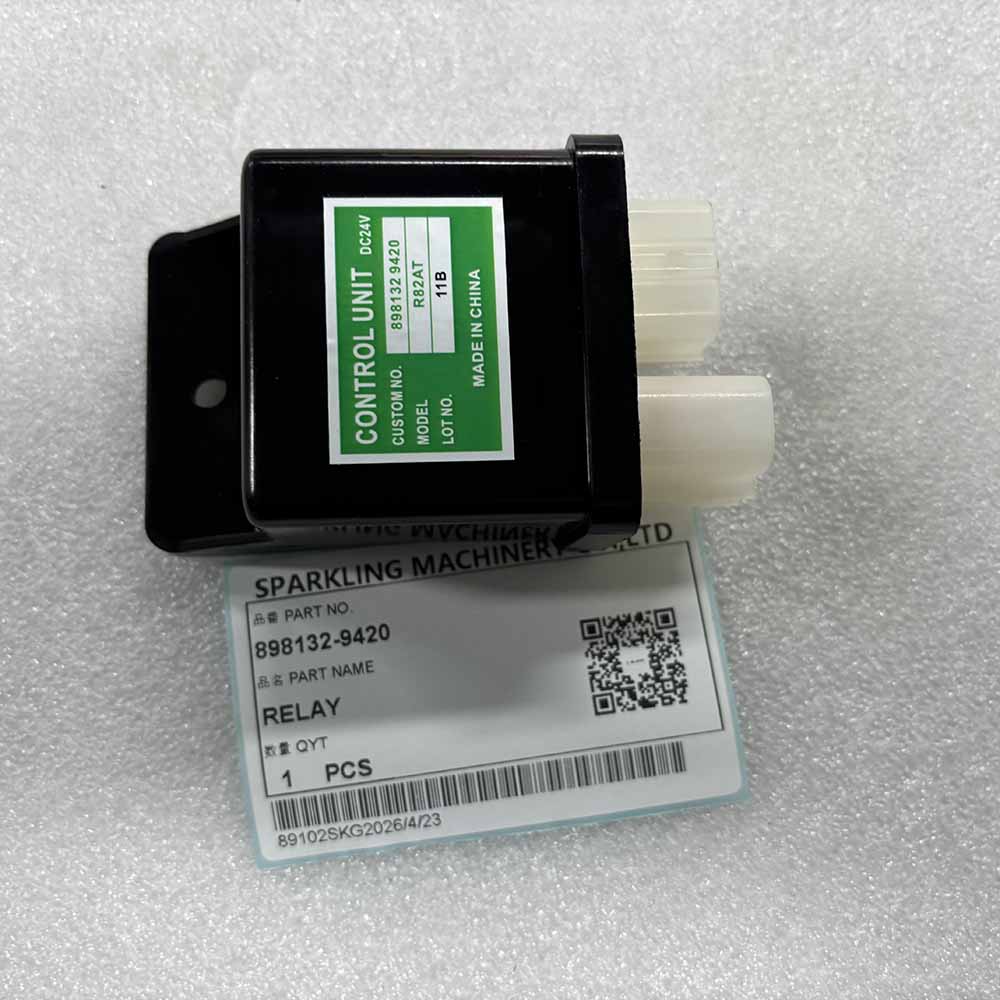

898132-9420-24V-electrical-relay-for-John-Deere-ZX70-3

Why Choose the SPARKLING 898132-9420 Relay?

                                                                  •    - High Load Capacity: Designed to handle the high in-rush currents typical of starter solenoids and hydraulic cooling fans.

                                                                  •    - Sealed Construction: The outer casing protects internal components from dust, grease, and moisture common in earthmoving jobsites.

                                                                  •    - Direct Fitment: Matches the original pin configuration for John Deere and Hitachi ZX-3 series, requiring no harness modification.

                                                                  •    - Thermal Stability: Engineered to maintain performance in engine compartment temperatures exceeding 85°C.

                                              •
                                    • Compatible Machine Models

                                      This relay is widely used in the following compact and mid-sized excavators:

                                      Brand Model Series
                                      John Deere ZX70-3, ZX75UR-3, ZX75US-3, ZX80LCK-3
                                      Hitachi ZX70-3, ZX75US-3, ZX80LCK-3, ZX85USB-3



                                    • Q&A Section

Q1: What are the signs that my 898132-9420 relay has failed?

A: Common symptoms include a "clicking" sound when trying to start the machine with no engine engagement, intermittent power to auxiliary lights, or the machine failing to shut down properly.

Q2: Can I use a standard 12V automotive relay instead?

A: No. These machines utilize a 24V electrical system. A 12V relay will burn out almost instantly if subjected to 24V. Always verify the voltage rating stamped on the side of the relay before installation.

Q3: Is this relay interchangeable with other Hitachi/Deere part numbers?

A: Yes, the 898132-9420 is often cross-referenced with various Hitachi parts. It is identical in function to many relays found in the "Zaxis" lineup. However, check the terminal layout (4-pin vs 5-pin) to ensure it matches your specific harness.

  1. 📦 Packing

  2.

1. Packaging methods: Carton box + Wooden case/Pallet + Anti-rust treatment

2. Export-standard packaging to ensure safety during transportation

3. Custom packaging available upon request

4. Dimensions and weight can be provided for freight calculation

302020

403030

454040

🚚 Shipping



1. Available shipping methods: Sea freight, Air freight, Express delivery (DHL, UPS, FedEx, etc.)

2. LCL (Less than Container Load) and FCL (Full Container Load) options are supported

3. For Russian clients, we can introduce the forwarder agent to you

4. Delivery time: Ships within 1-3 working days after payment (for items in stock)

💳 Payment


1. Accepted methods: T/T, Bank Transfer, PayPal, Alipay, WeChat Pay, Western Union
2. Deposit + balance payment available for large or custom orders
3. Flexible payment options—feel free to contact us for details

📌 Frequently Asked Questions (FAQs)


Q: Which excavator models is this part compatible with?
A: This product is compatible with major brands such as CAT, KOMATSU, HITACHI, and more. Custom specifications are also available.


Q: How can I make sure I’m selecting the correct part?
A: You can send us a photo of the old part, part number, or your excavator model, and we will help you confirm the right match.


Q: Is there a warranty for this product?
A: Yes, we offer a 6-month quality guarantee under normal use.
