31N8-12020 Hydraulic Swing Motor Assembly for Hyundai R300LC-7, R305LC-7

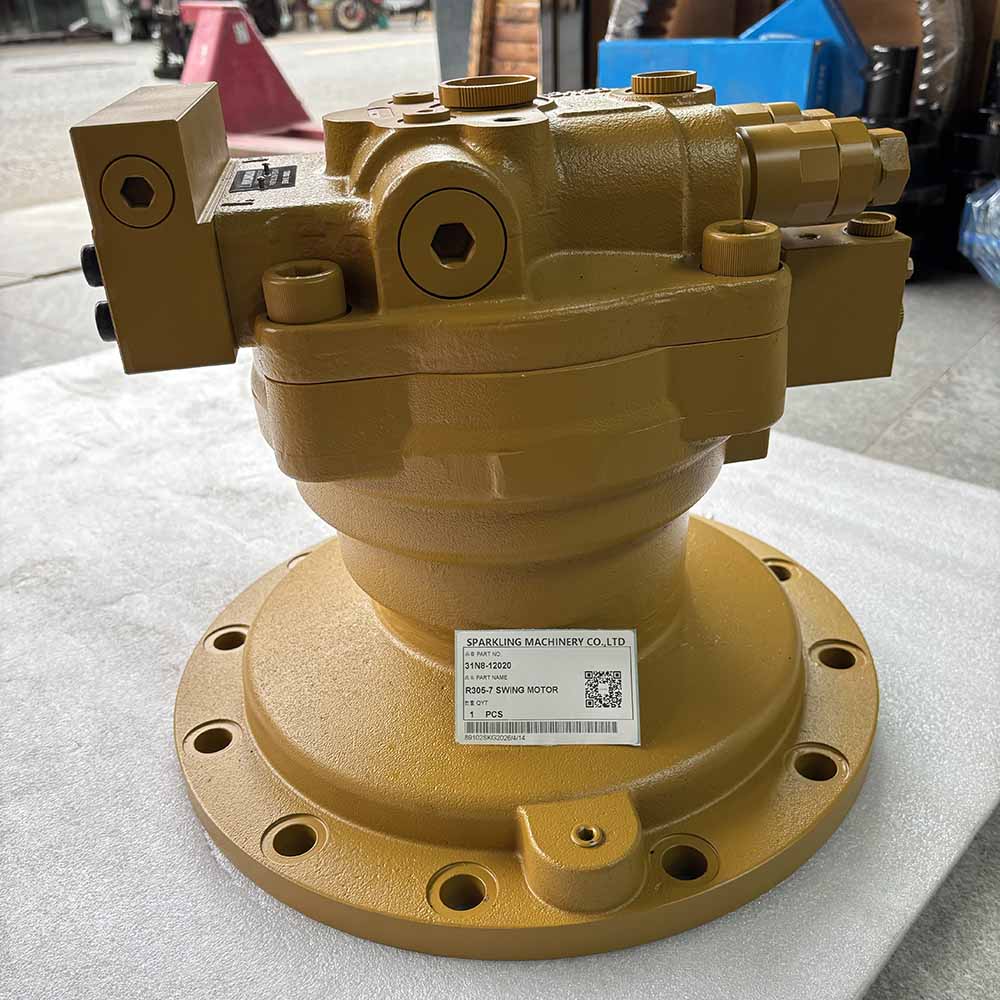

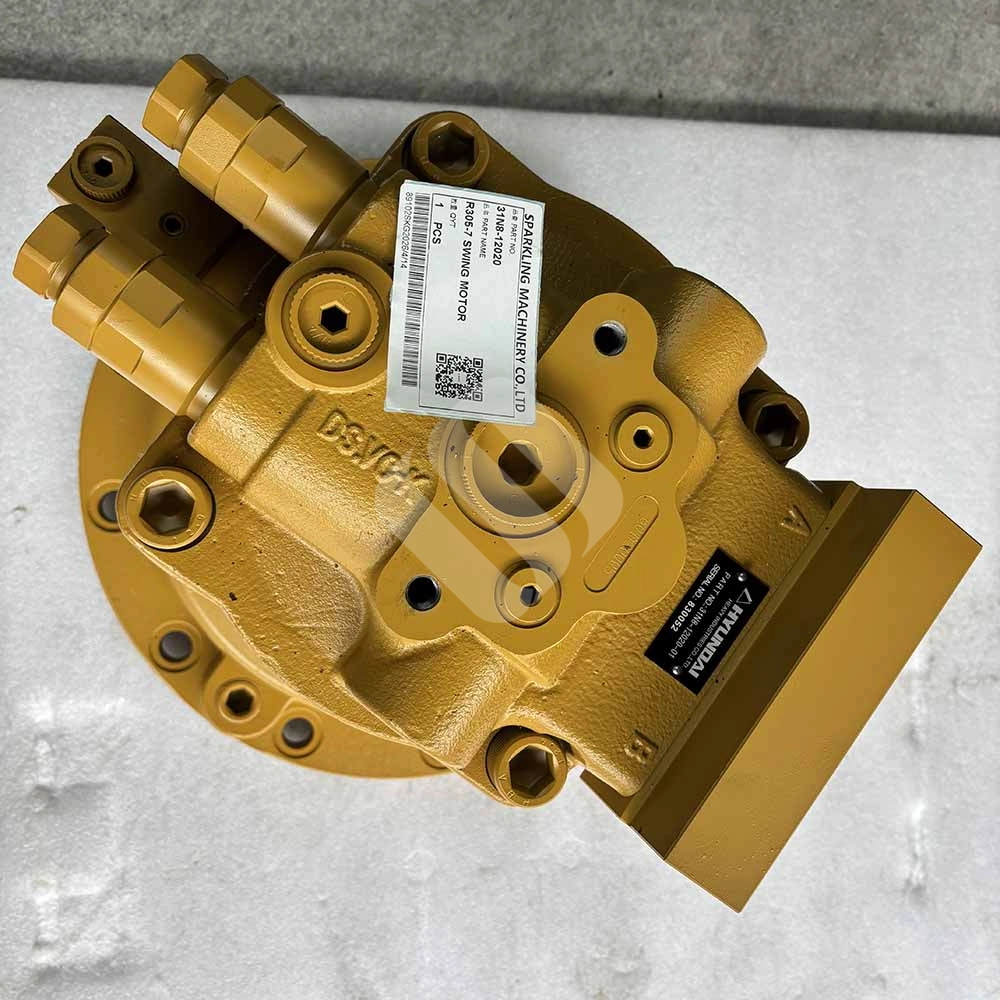

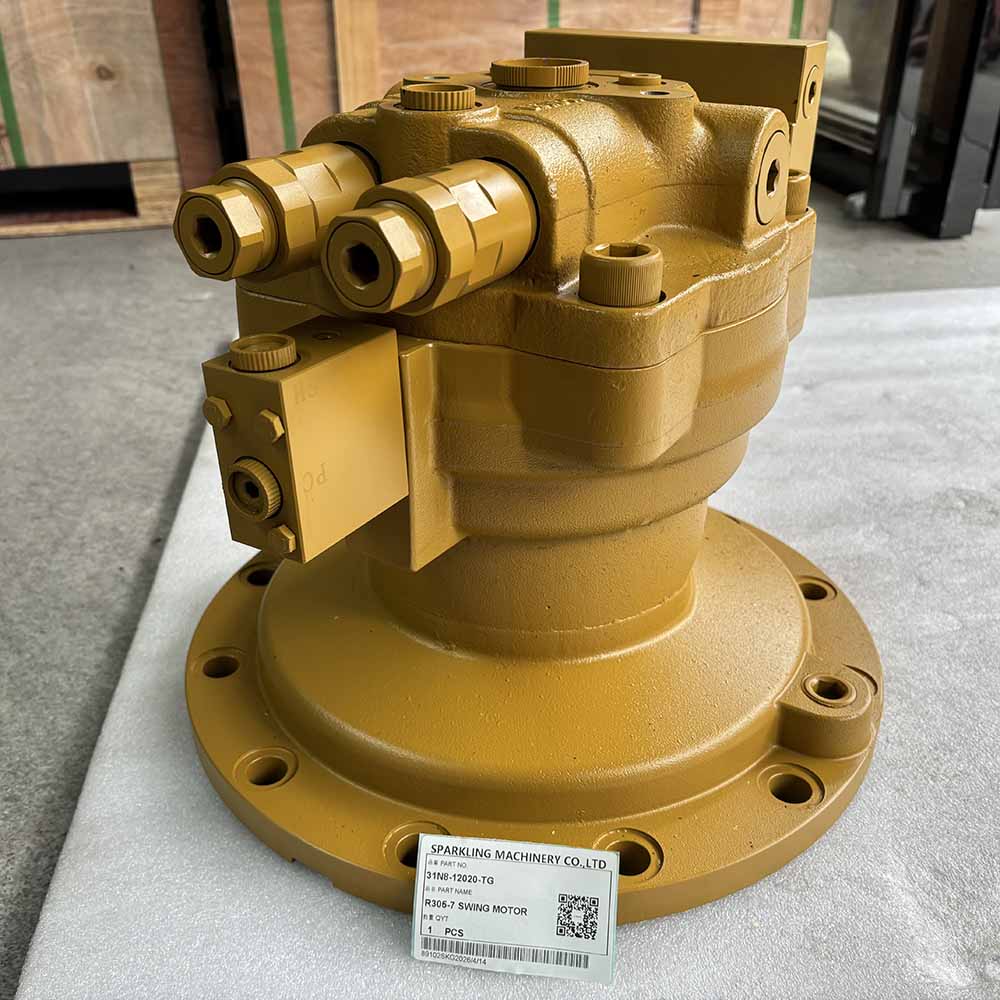

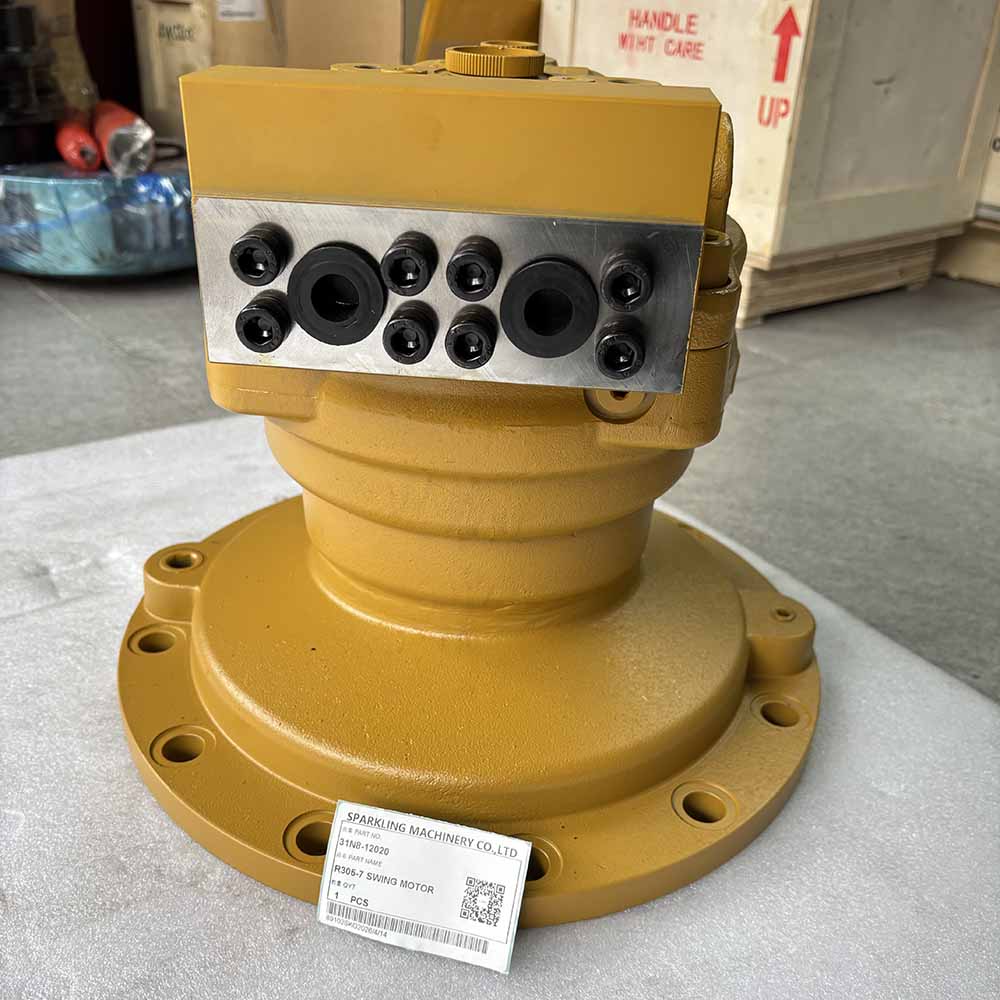

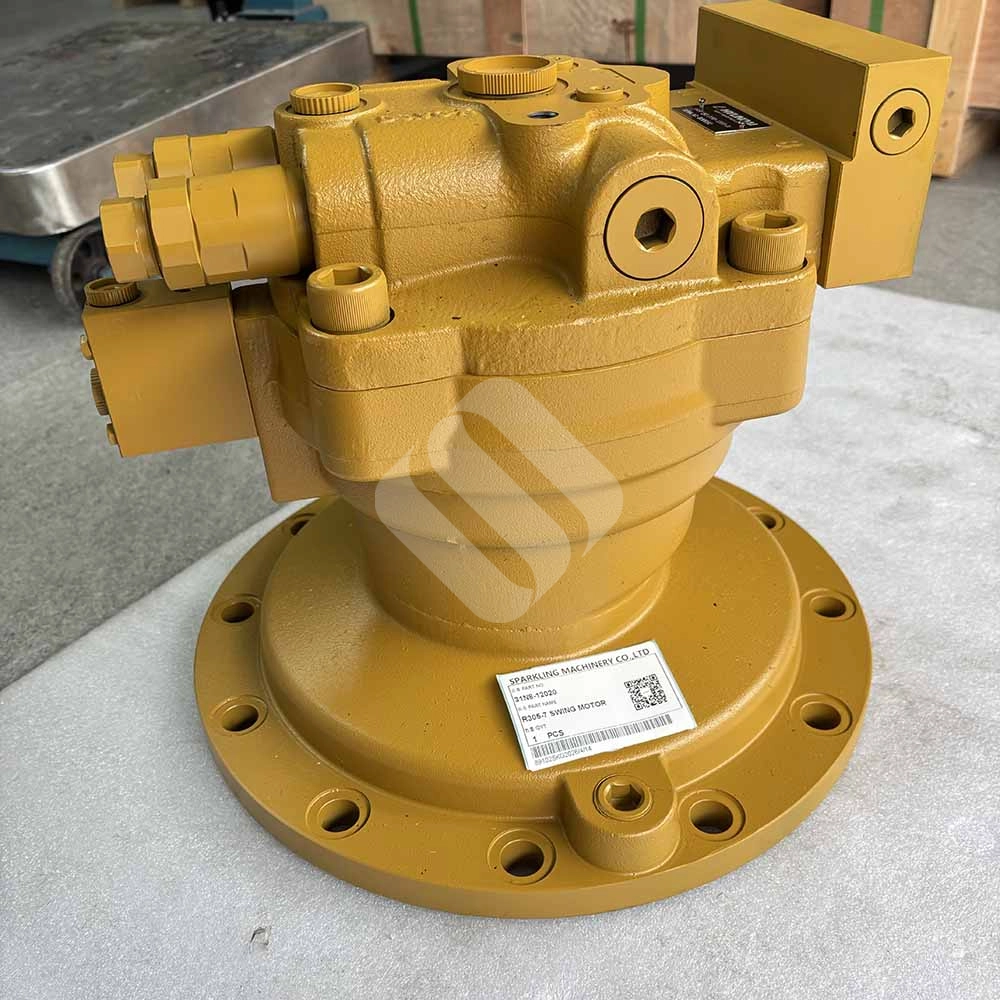

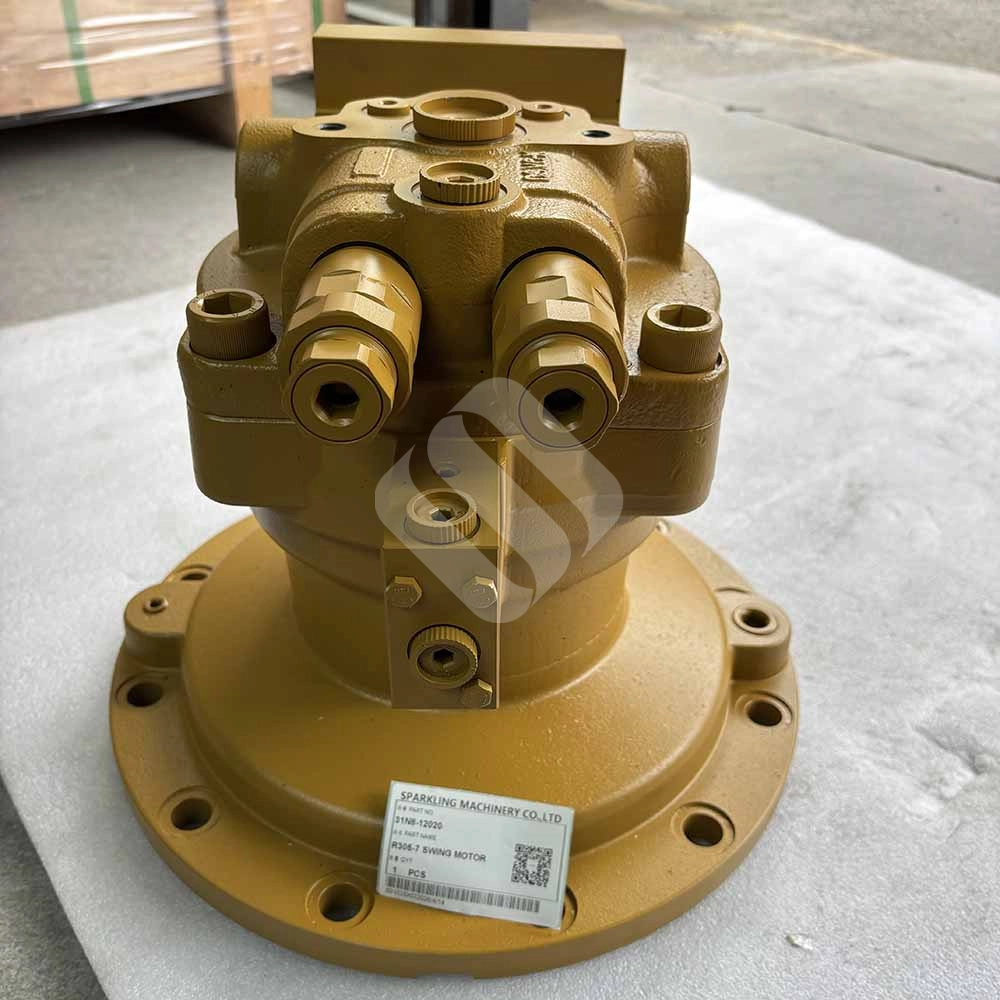

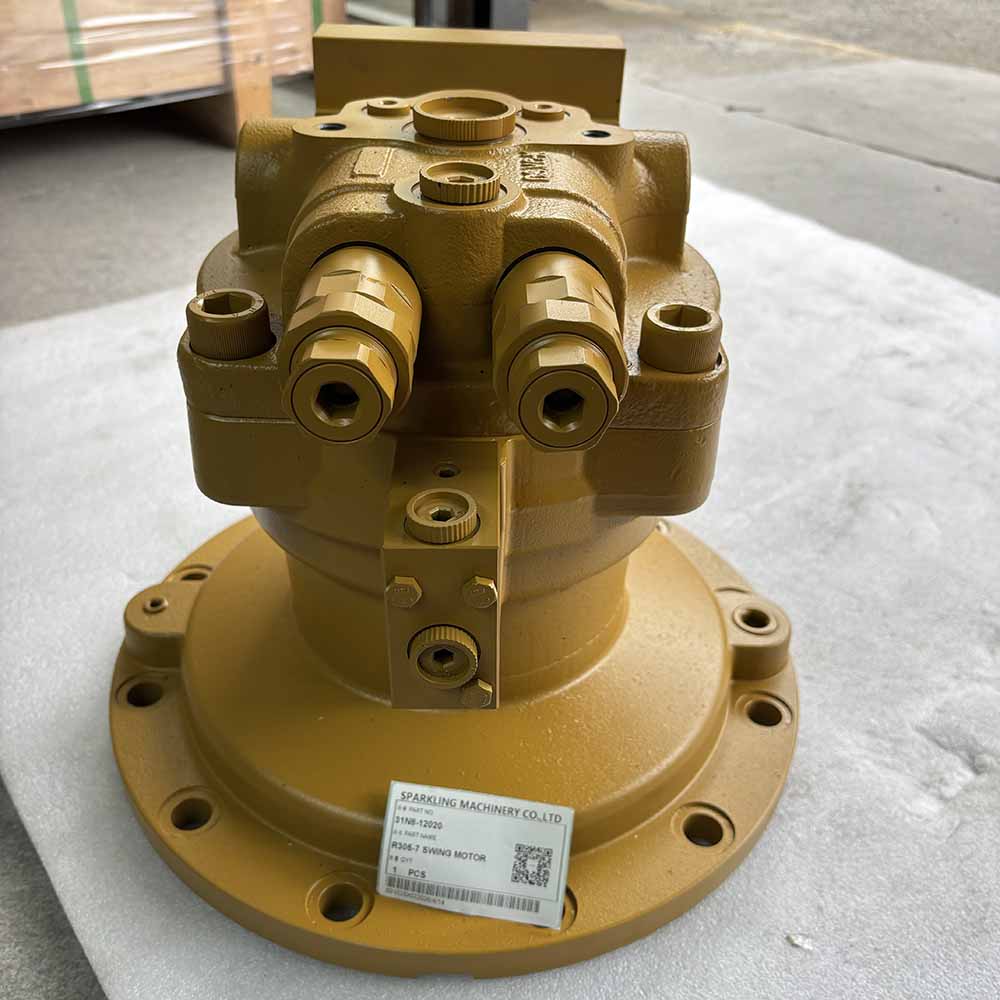

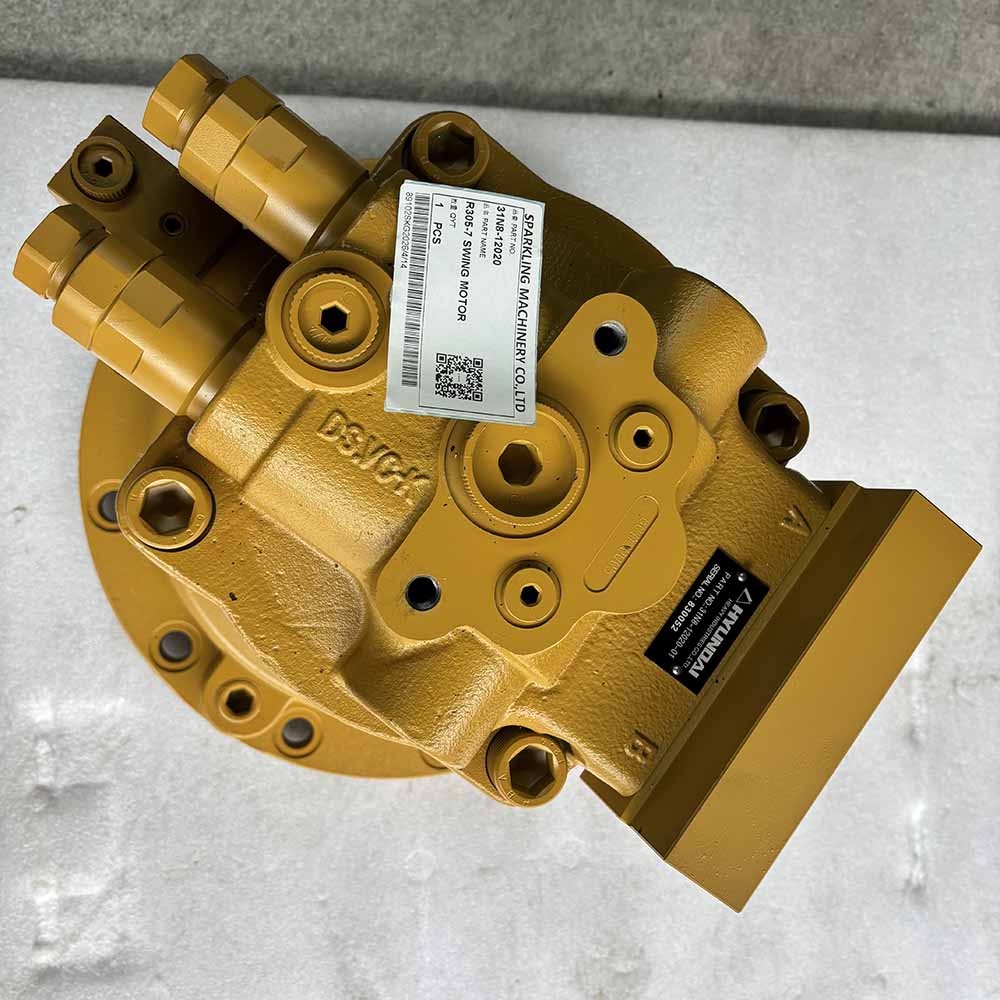

The SPARKLING MACHINERY NEW 31N8-12020 Swing Motor Photo:

Why Choose the SPARKLING 31N8-12020 Swing Motor?

• • • • • • • • • • • • • • • • • • • • • • • • • • • •    - Integrated Brake & Relief Valves: Features an onboard mechanical parking brake (spring-applied, hydraulically released) and dual cushion-relief valves to ensure smooth deceleration without straining the excavator's chassis.

                                                      •    - Bimetallic Cylinder Block Face: Engineered with high-wear alloy interfaces to minimize friction, reduce localized heat generation, and resist scoring under high-pressure tracking loads.

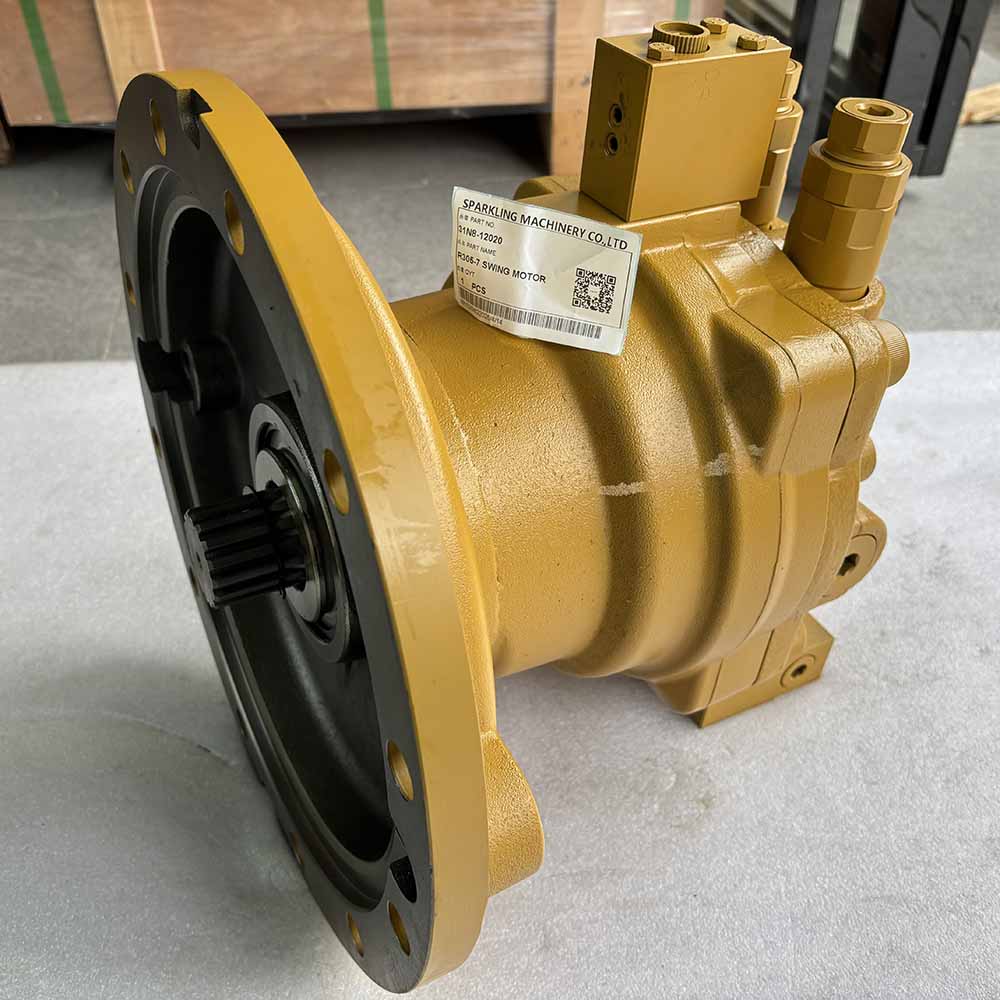

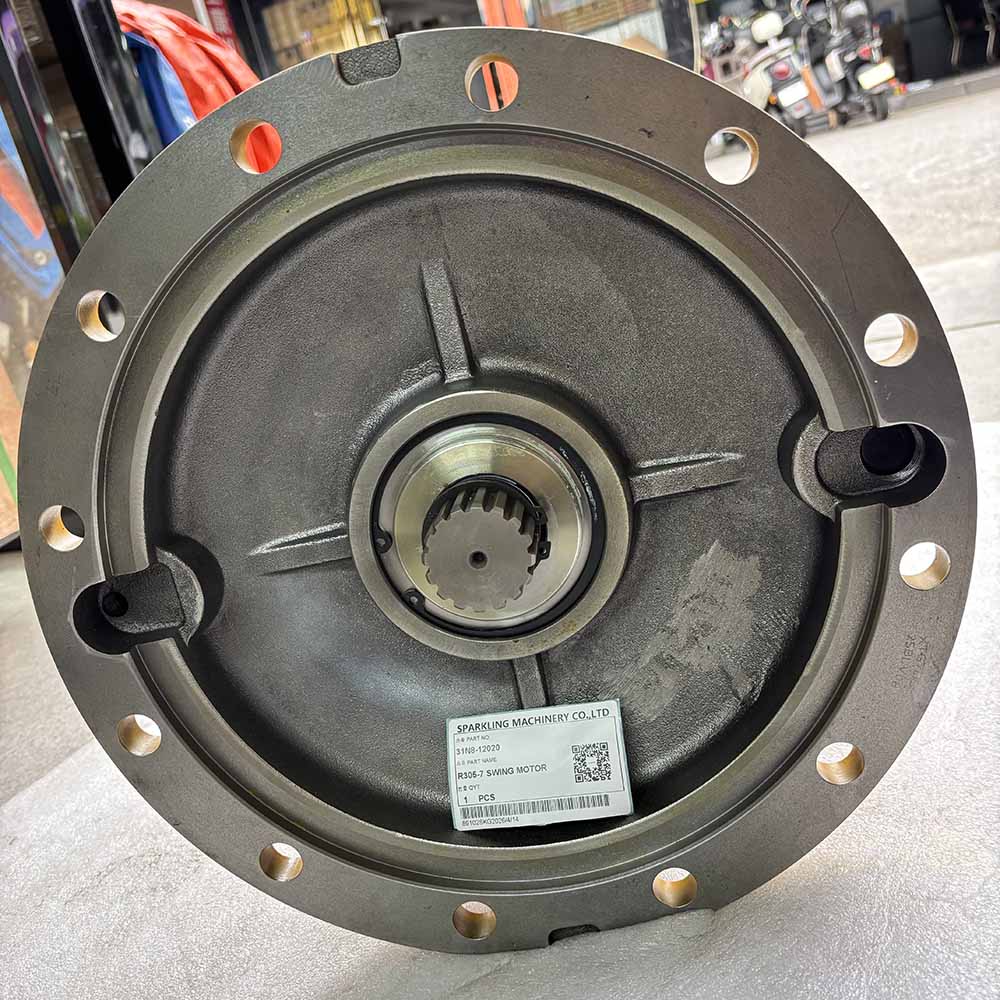

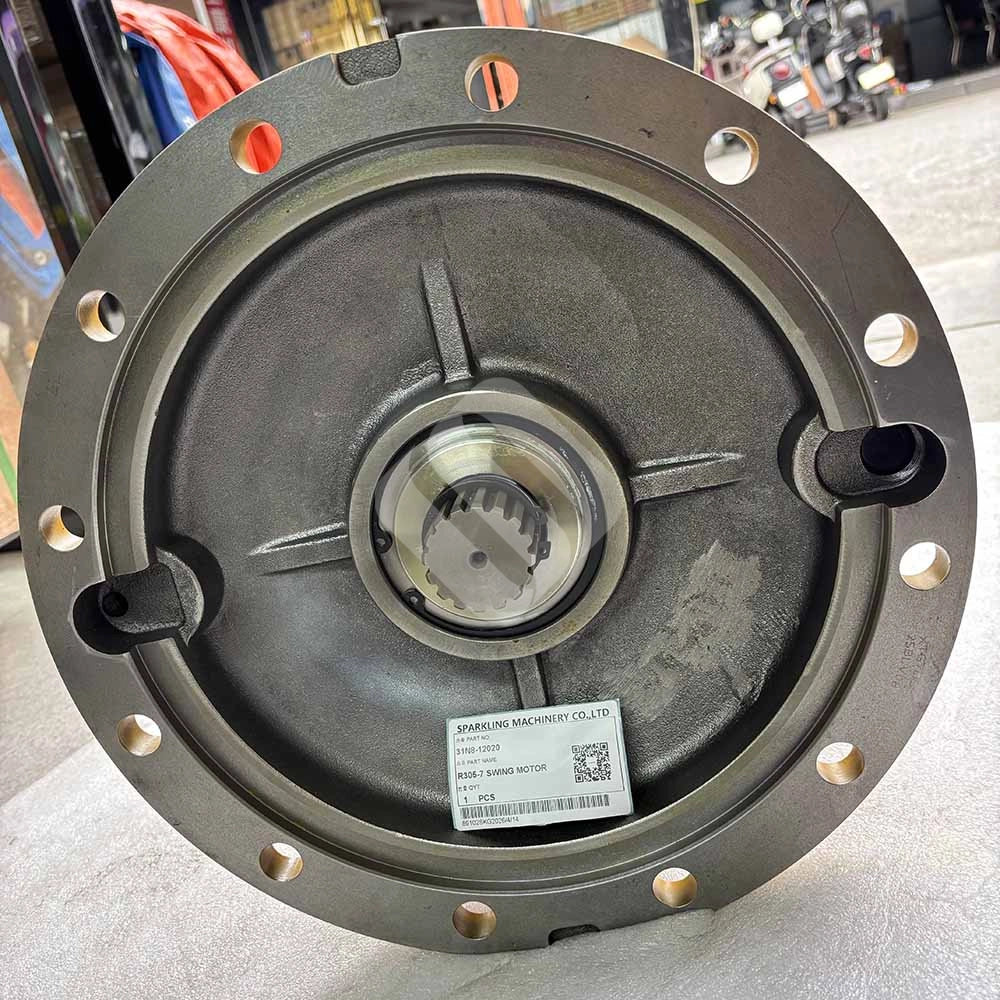

                                                      •    - Robust Multi-Spline Output Shaft: Machined to strict metric module tolerances to ensure full surface engagement with the input gear of the swing reducer, eliminating rotational backlash.

                                                      •    - Direct 7-Series Footprint: Designed with the exact hydraulic port layout, mounting flange bolt-hole pattern, and case-drain configuration specified by Hyundai OEM standard 31N8-12020.

                                                    •

Primary Machine Applications

This hydraulic slewing motor is standard factory fitment across Hyundai’s popular 7-Series and 7A-Series medium-to-heavy crawler excavator fleet:

Q&A Section

Q1: What are the primary signs that a Hyundai 31N8-12020 swing motor is failing?

A: Common warning signs include the excavator cabin "drifting" past where you centered the controls, a loud grinding or high-pitched squealing noise from directly under the operator's floor plate when rotating, a total loss of swing speed when working with a full bucket on an incline, or hydraulic fluid pushing out past the shaft seal into the swing reduction housing.

Q2: Why is the case drain line critical during the installation of this motor?

A: The case drain line is responsible for channeling the internal bypass oil (which lubricates the spinning pistons) back to the reservoir under zero pressure. If you do not connect this line, or if the line becomes kinked during installation, pressure will build up inside the motor casing instantly, blowing out the main shaft seal and potentially fracturing the motor housing.

Q3: Should I check the swing gearbox oil when replacing the swing motor?

A: Yes, absolutely. If the motor's lower shaft seal was leaking, it may have thinned out the heavy gear grease in the gearbox with hydraulic oil, or vice versa. Additionally, if the previous motor suffered a mechanical breakdown, small metal shards may have dropped directly down into the planetary gear set. Always inspect and clean the gear cavity before mounting the new motor.
