42N-6C-13330 Hydraulic Cylinder Seal Kit for Komatsu WB146-5, WB93R-5 Backhoes
The 42N-6C-13330 Hydraulic Cylinder Seal Kit is a high-grade performance packing kit designed for Komatsu rigid-frame backhoe loaders.
Common Compatible Models
This seal kit is highly specific to Komatsu's rigid and all-wheel-steer backhoe loader lines, primarily focusing on the utility-driven -5 generation variants:
· North American / Global Backhoe Models: WB146-5, WB146PS-5.
· European / Regional Backhoe Models: WB93R-5, WB93S-5, and related derivatives utilizing the 40mm/70mm telescopic cylinder configurations.
Dear Valued Partners,
Thank you for choosing SPARKLING MACHINERY.

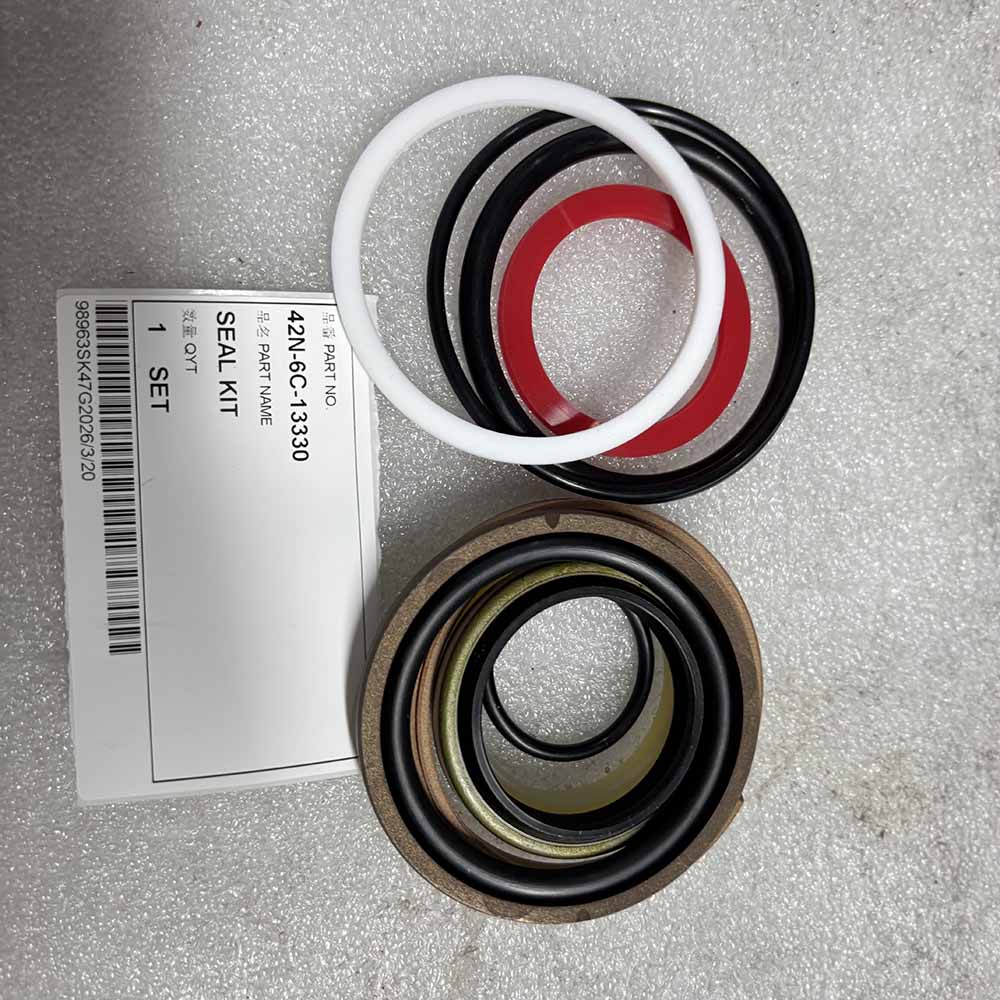

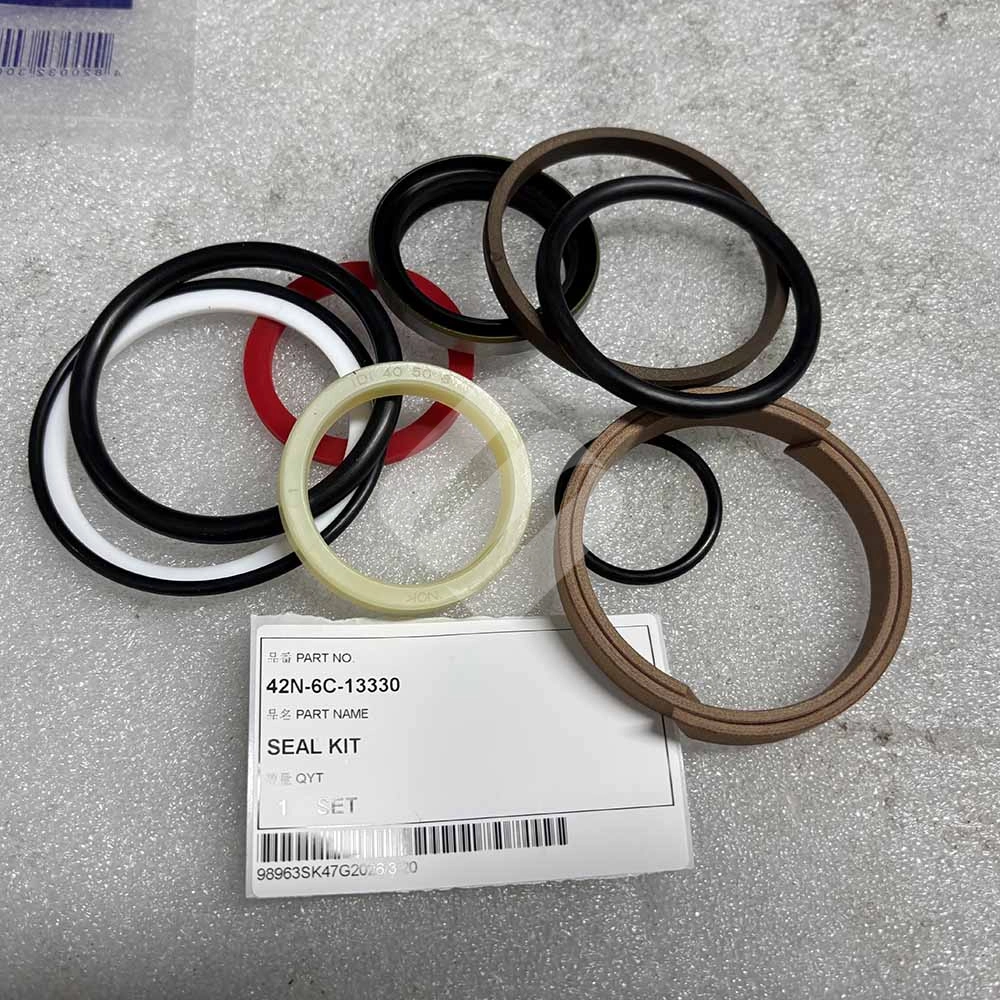

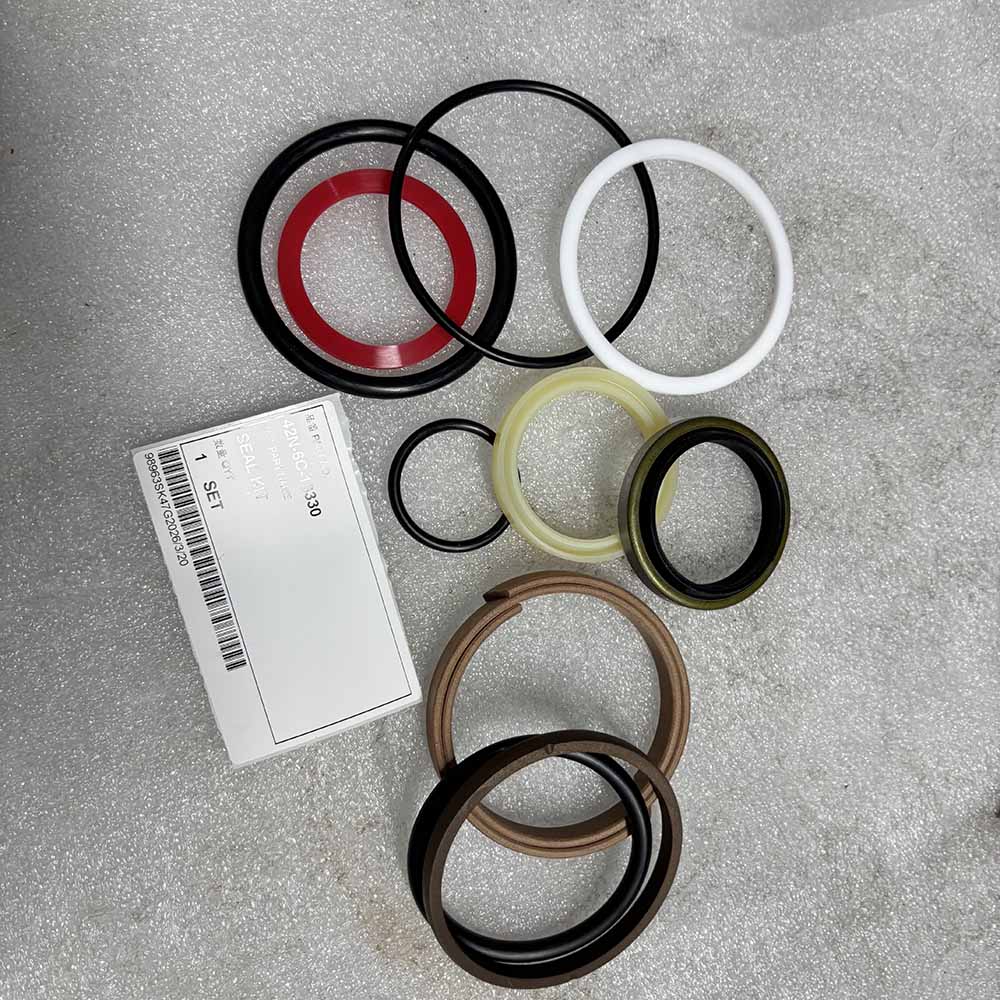

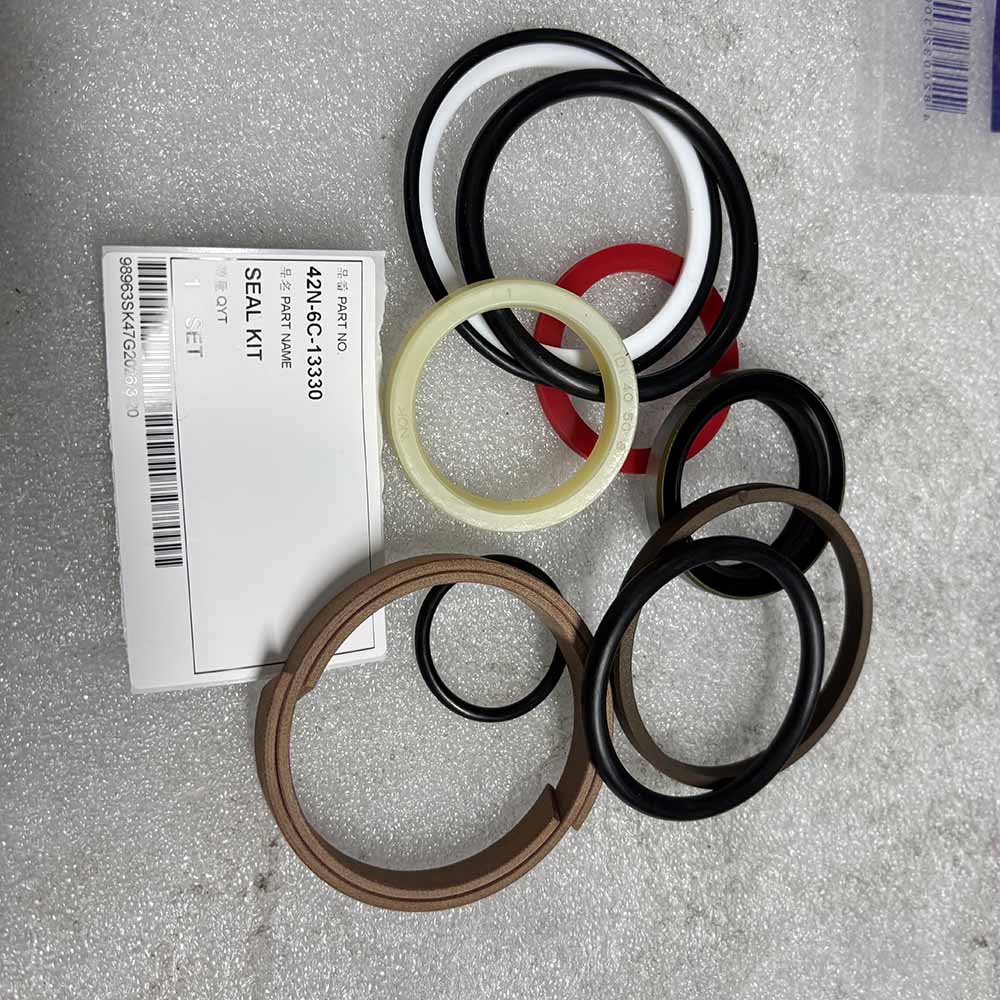

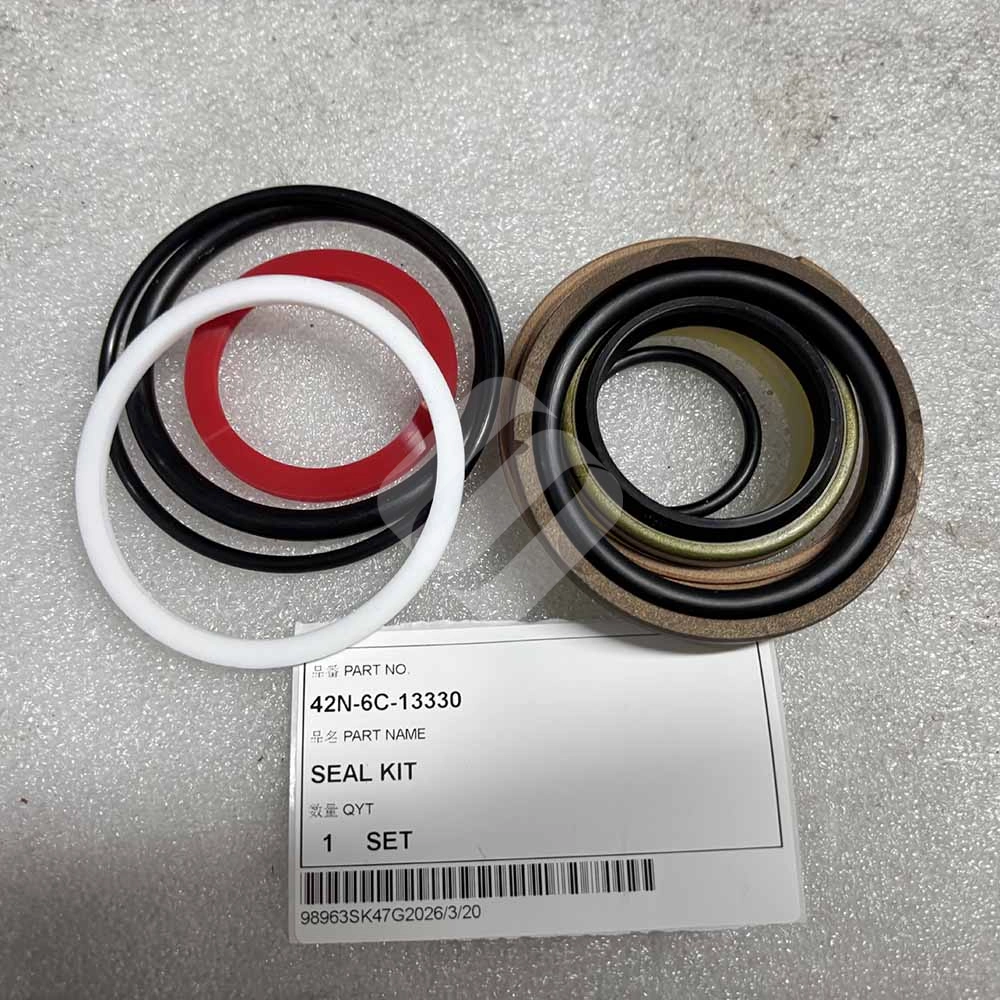

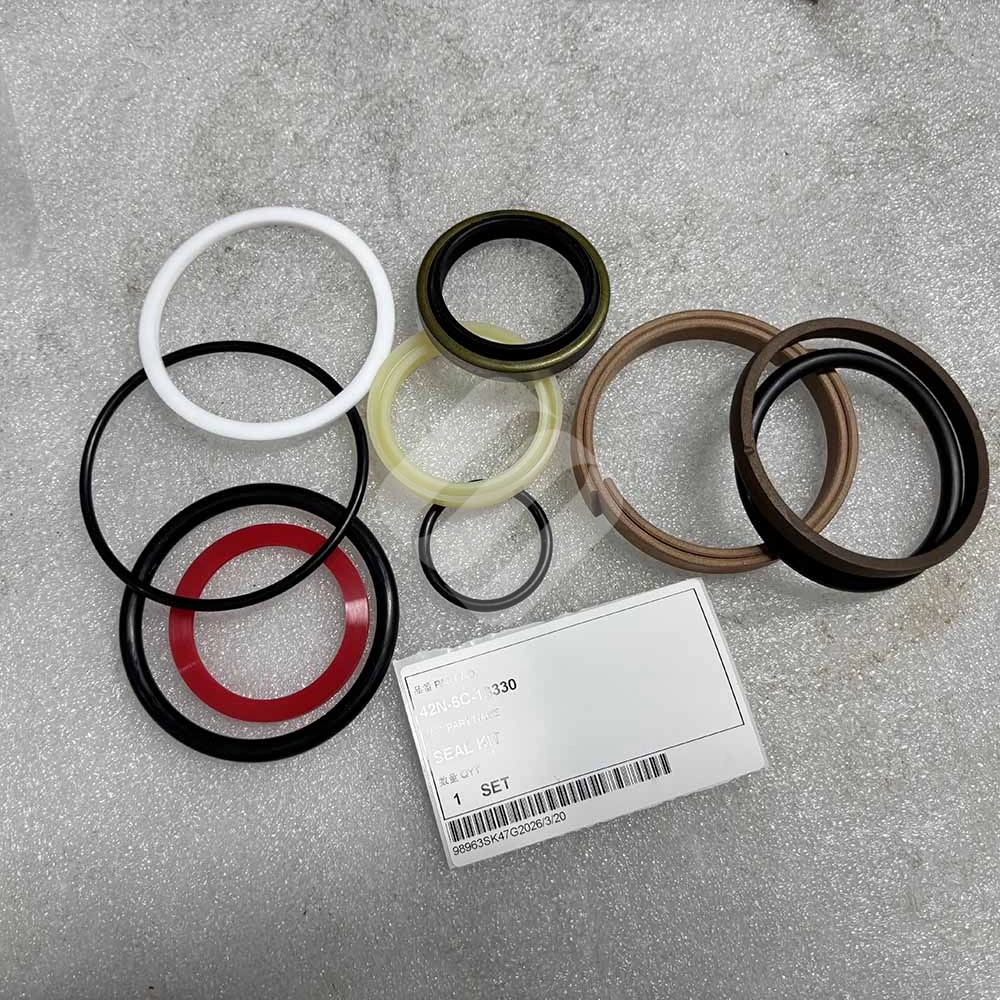

The SPARKLING MACHINERY NEW 42N-6C-13330 Seal Kit Photo:
-
-
-
-
-
-
-
- Reinforced Polyurethane Rod Wipers: Designed to scrape aggressive mud, clay, and frost away from the advancing cylinder rod before it can reach the internal high-pressure seals.
-
- Nitrile (NBR) Static Seals with Anti-Extrusion Backups: Formulated to handle sudden pressure spikes without twisting or blowing past the metal gland clearances.
-
- Wide Thermal Tolerance Window: Retains structural elasticity and lip pressure across severe operating parameters, ensuring tight sealing performance from cold morning startups to peak midday operations.
-
- Direct Drop-In Dimensions: Manufactured to the exact structural cross-sections and metric diameters designated by Komatsu part number 42N-6C-13330.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Primary Machine Applications
This hydraulic packing seal kit is a standard service item across Komatsu’s 5-Series backhoe loaders:
Machine Category Compatible Models Rigid-Frame & Four-Wheel-Steer Backhoes WB146-5, WB146PS-5, WB93R-5, WB93R-5E0, WB93S-5, WB93S-5E0
-
-
-
-
-
-
-
-
Q&A
-
-
-
-
-
-
Q1: What are the main signs that a hydraulic cylinder needs a new 42N-6C-13330 seal kit?
-
A: Key performance warning signs include a layer of hydraulic oil coating the chrome cylinder rod, an uncharacteristic collection of grime at the edge of the cylinder gland nut, or internal cylinder fluid bypassing (where the bucket or boom drifts out of its set position while the joystick controllers are centered).
Q2: Can I use this kit to reseal a scarred or dented cylinder rod?
-
A: No. If the chrome plating on the cylinder rod is deeply scratched, dented, or showing signs of rust pitting, installing a new seal kit will only offer a temporary fix. The jagged edges of the damaged chrome will tear the lips of the new polyurethane seals within the first few hours of cycling. Ensure the metal surfaces are micro-polished and straight before reassembly.
Q3: Is any specialized equipment required to install the internal U-cup seals?
-
A: While the seals can be carefully installed by hand or with standard pick sets, using a dedicated hydraulic seal installation tool (a "twister" tool) is highly recommended. This tool allows you to safely fold the rigid polyurethane U-cups into a kidney shape, making them easy to slide into the internal gland grooves without puncturing or nicking the critical sealing edge.
-
-
-
-
-
-
📦 Packing
1. Packaging methods: Carton box + Wooden case/Pallet + Anti-rust treatment
2. Export-standard packaging to ensure safety during transportation
3. Custom packaging available upon request
4. Dimensions and weight can be provided for freight calculation
🚚 Shipping
1. Available shipping methods: Sea freight, Air freight, Express delivery (DHL, UPS, FedEx, etc.)
2. LCL (Less than Container Load) and FCL (Full Container Load) options are supported
3. For Russian clients, we can introduce the forwarder agent to you
4. Delivery time: Ships within 1-3 working days after payment (for items in stock)
💳 Payment
1. Accepted methods: T/T, Bank Transfer, PayPal, Alipay, WeChat Pay, Western Union
2. Deposit + balance payment available for large or custom orders
3. Flexible payment options—feel free to contact us for details
📌 Frequently Asked Questions (FAQs)
Q: Which excavator models is this part compatible with?
A: This product is compatible with major brands such as CAT, KOMATSU, HITACHI, and more. Custom specifications are also available.
Q: How can I make sure I’m selecting the correct part?
A: You can send us a photo of the old part, part number, or your excavator model, and we will help you confirm the right match.
Q: Is there a warranty for this product?
A: Yes, we offer a 6-month quality guarantee under normal use.
