60307499 Heavy-Duty Mechanical Bearing for Sany SY485C, SY500H Excavators

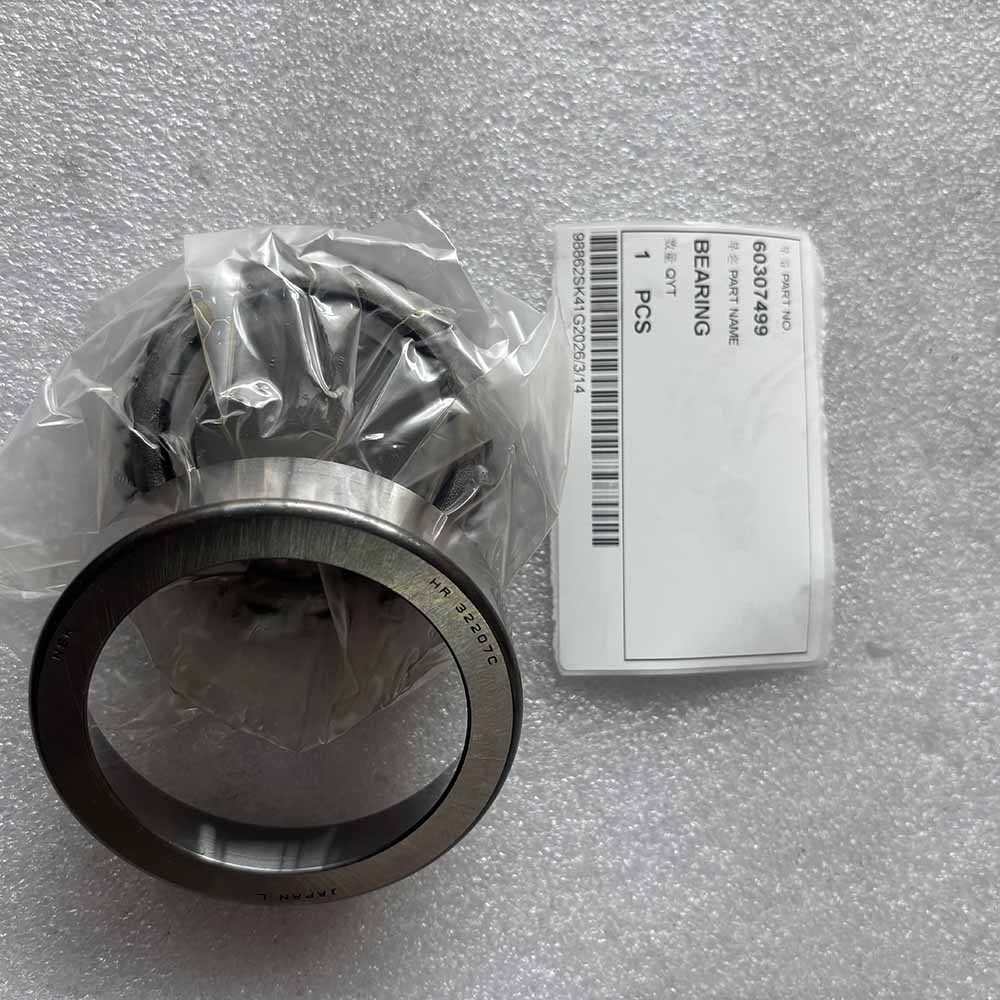

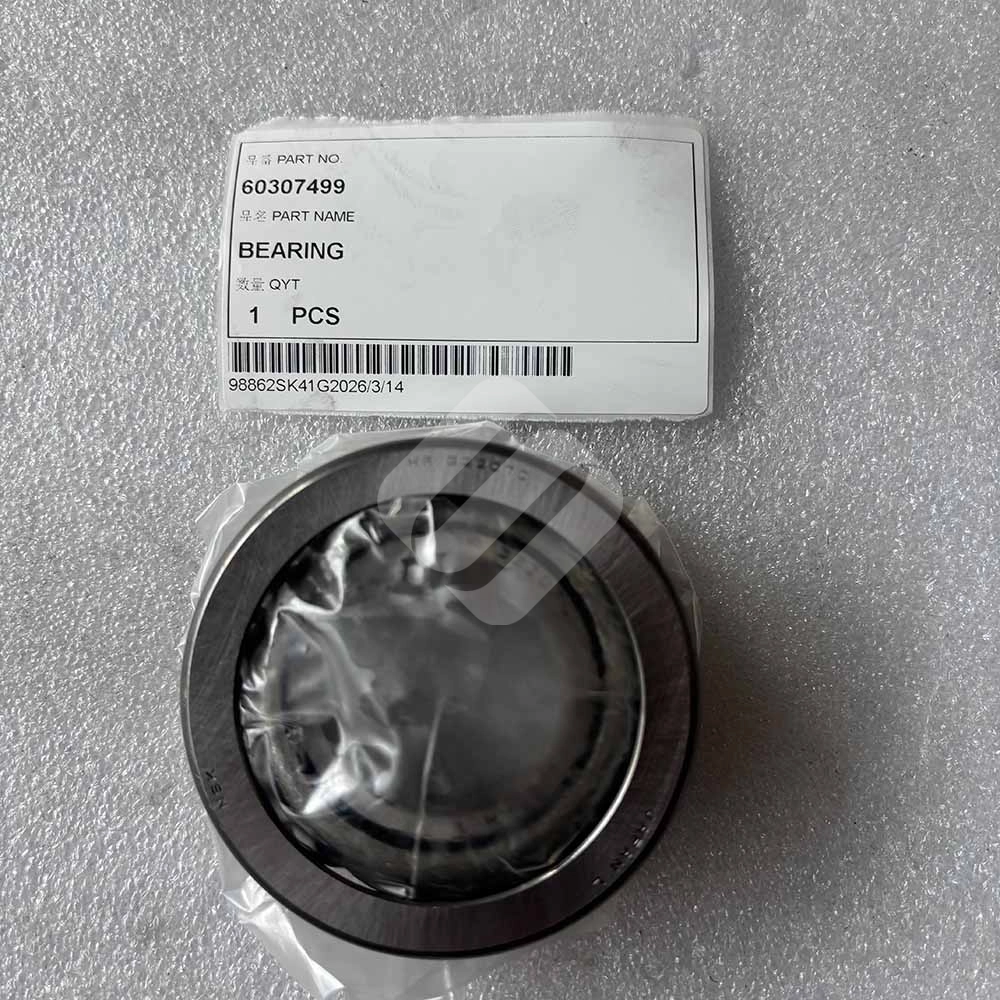

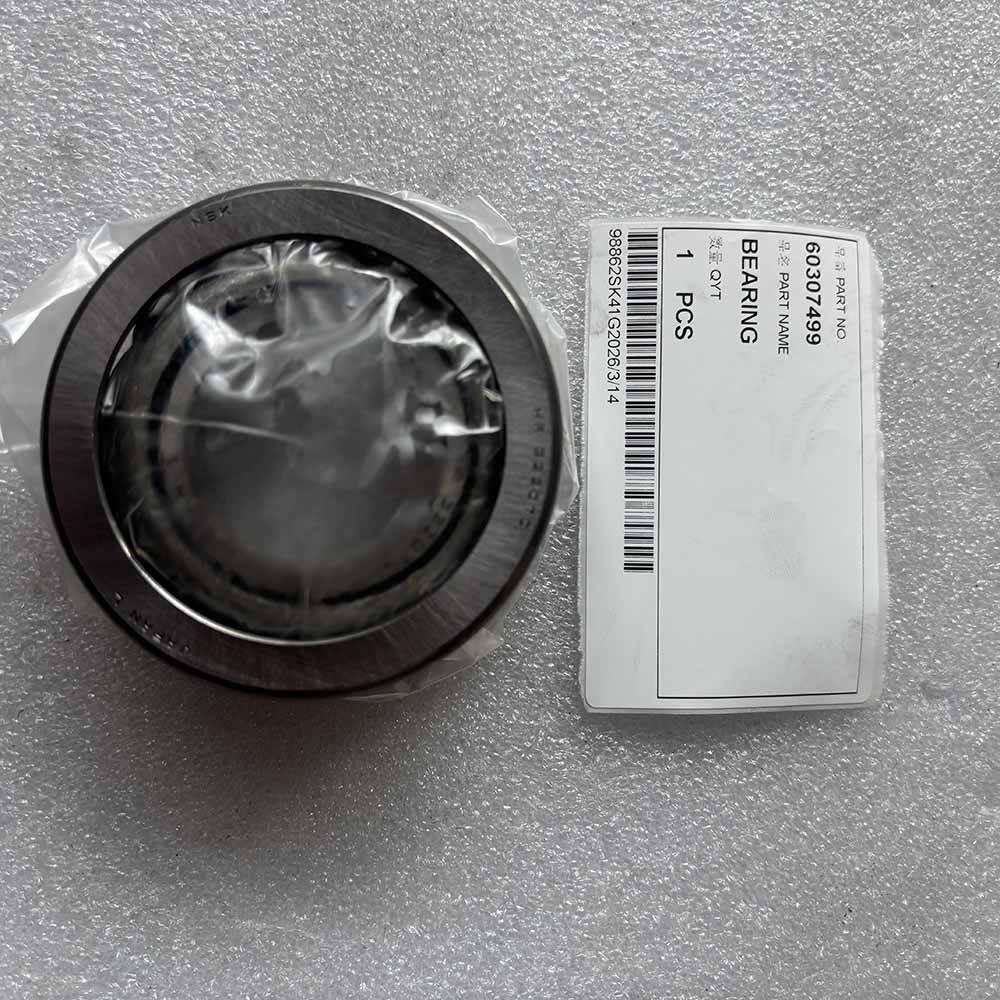

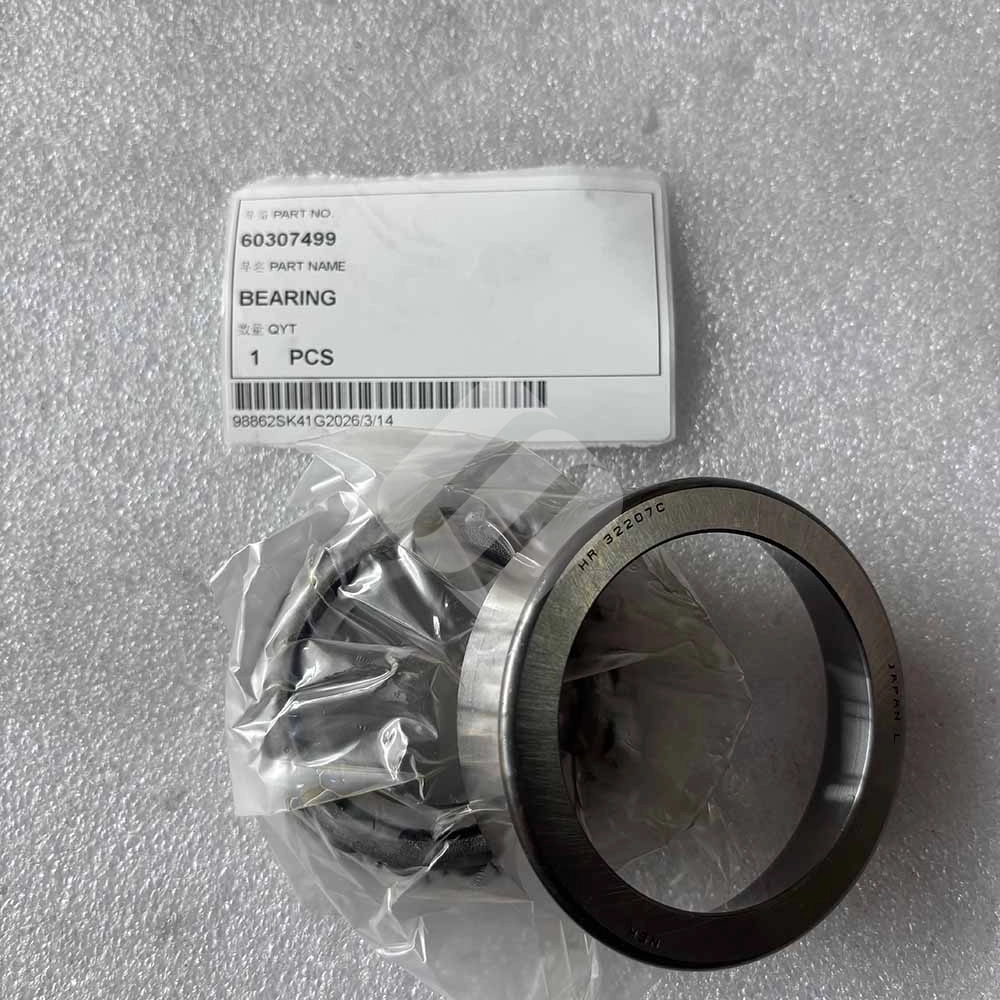

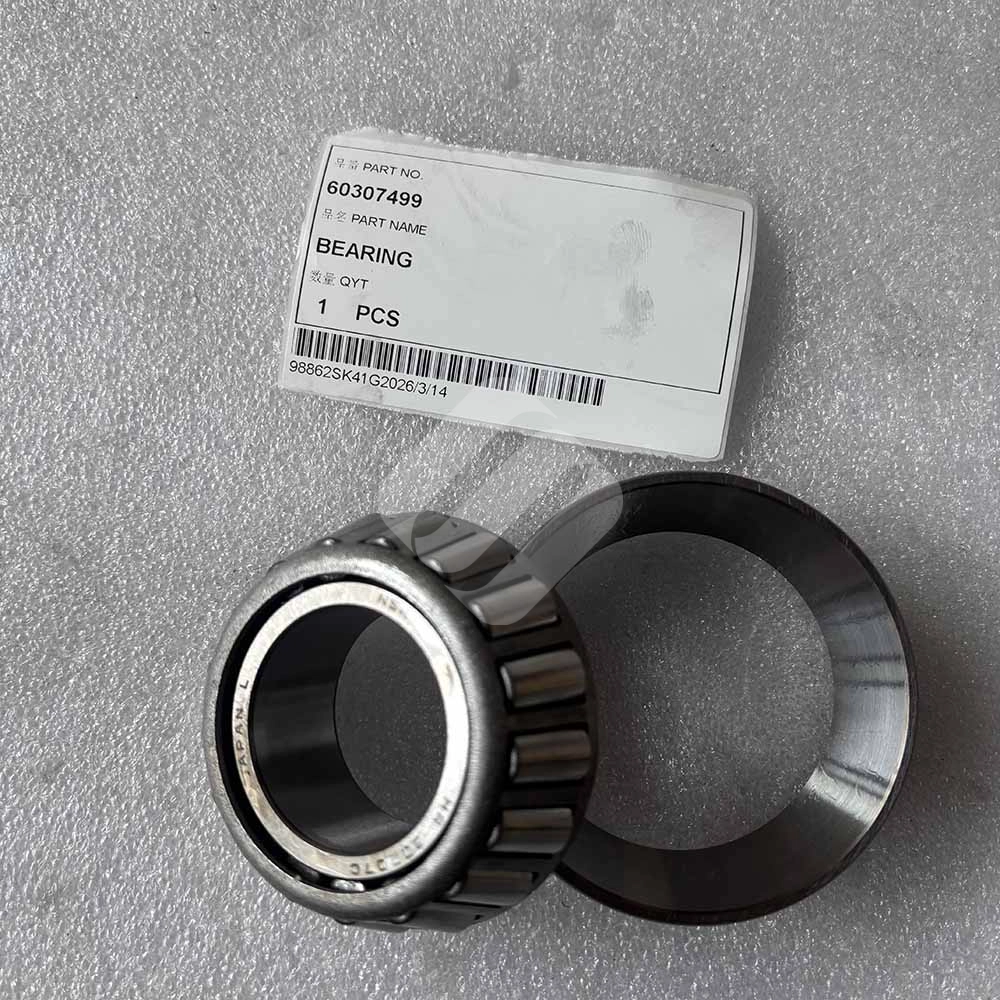

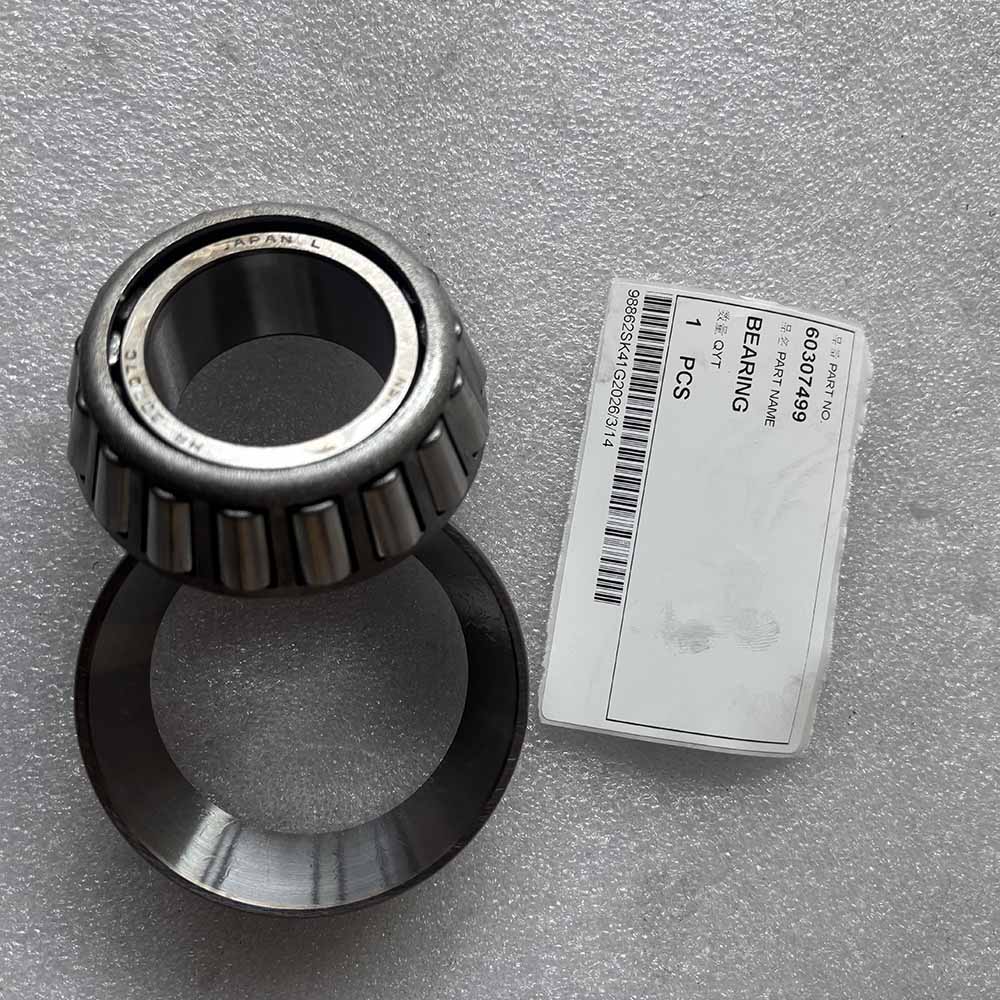

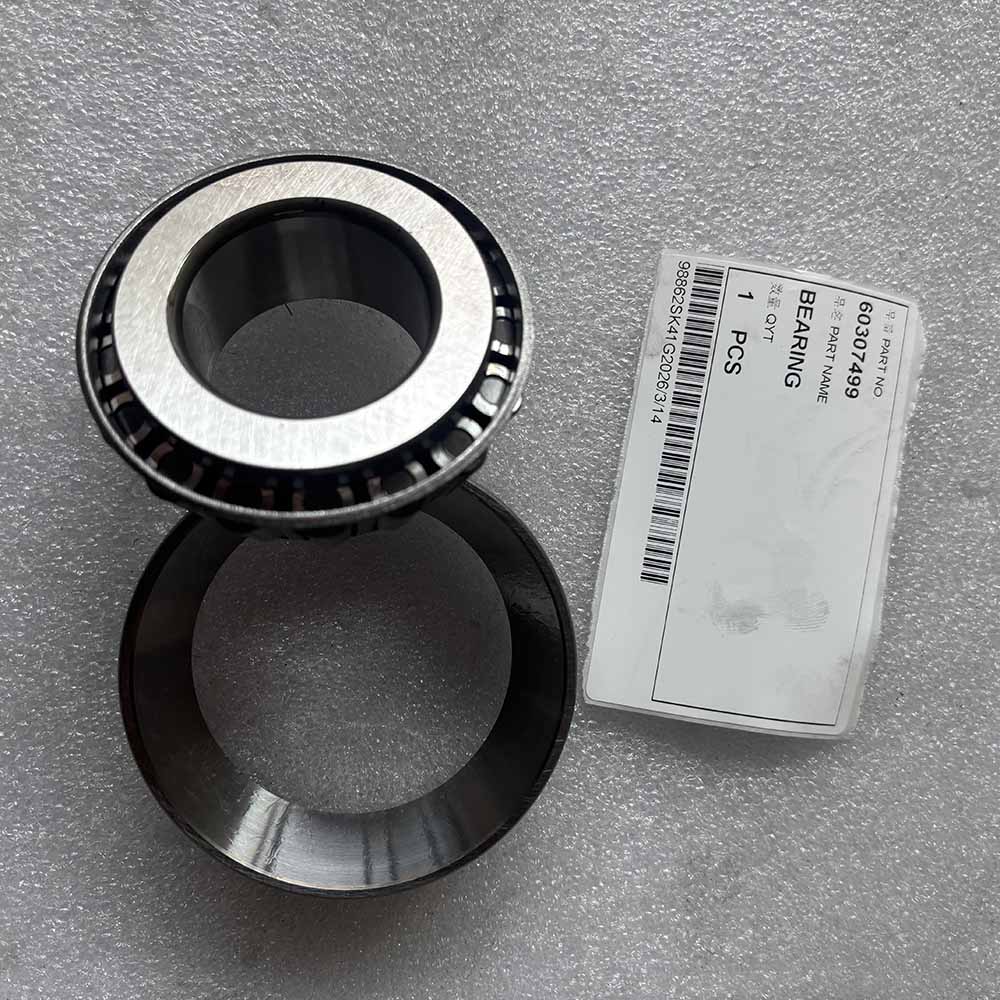

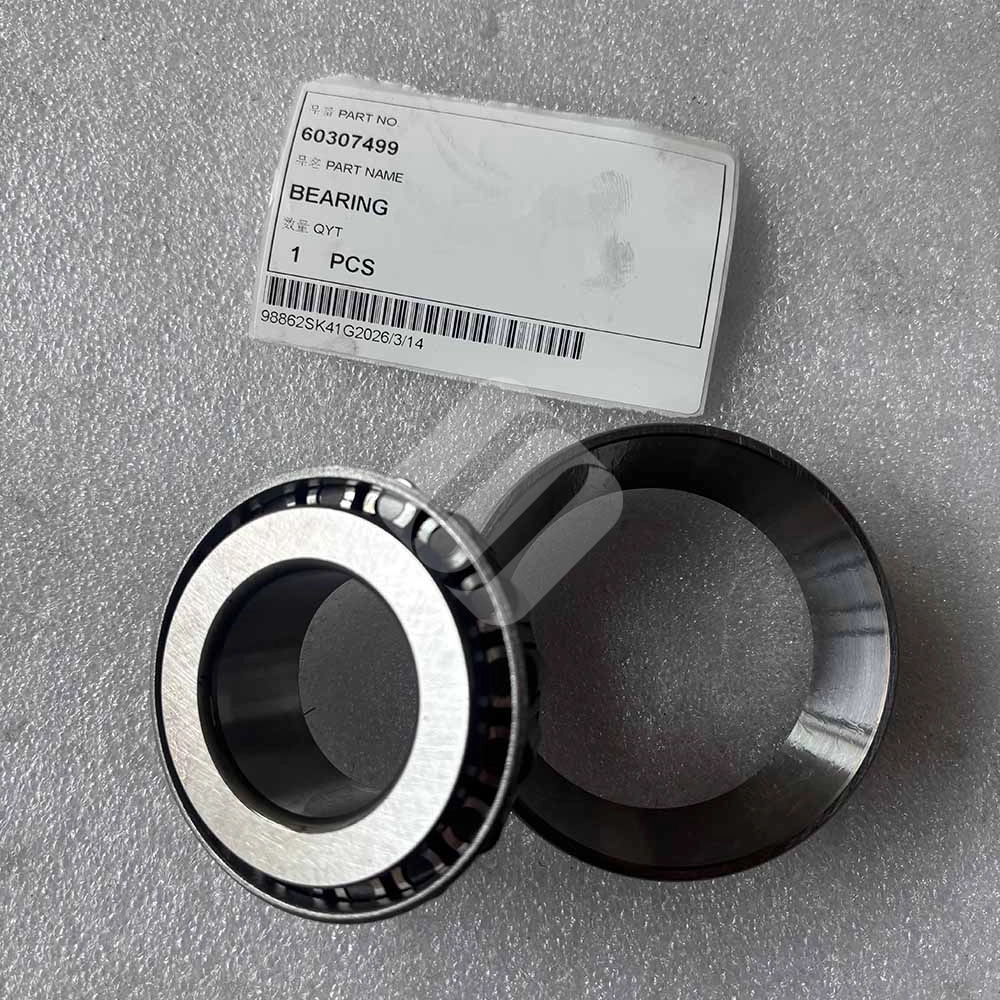

The SPARKLING MACHINERY NEW 60307499 Bearing Photo:

• • • • • • • • • Primary Machine Applications

                  This mechanical bearing functions across several variations of Sany's heavy-production crawler excavator line:

                  Machine Category	Compatible Models
                  Heavy Mining Excavators	SY485C, SY485C1I3KH, SY485H, SY500H

                  •

Q&A

• • • • • • Q1: What are the key warning signs that a heavy excavator bearing like the 60307499 is failing?

          • A: Pay attention to increased noise levels—such as a low-frequency rumbling, clicking, or high-pitched metallic screeching from the component housing. Other indicators include an unexpected spike in operating temperature in that specific housing, physical play or binding in the shaft, or a heavy concentration of metallic flakes found in the drained gear oil or hydraulic fluid filters.

            Q2: Why is proper lubrication so vital for the 60307499 bearing in mining applications?

          • A: Large excavators apply continuous, massive pressure on their internal components. Without proper lubrication (high-viscosity gear oil or heavy-duty EP grease, depending on its location), the micro-thin oil film between the rolling elements and the race will break down. This causes rapid friction spikes, accelerating metal-on-metal wear and leading to catastrophic structural seizure.

            Q3: Can standard hydraulic press parameters be used when installing this replacement core?

          • A: Yes, but with precise alignment. Due to the tight tolerances of large-scale heavy equipment components, the bearing must be pressed completely straight into its housing or onto its shaft. Never apply press force across the rolling elements (e.g., hitting the outer race to slide the inner race onto a shaft); always use driver sleeves that contact only the race experiencing the tight mechanical fit.
