60307507 Hydraulic Main Pump Coupling for Sany SY365H, SY465C Excavators

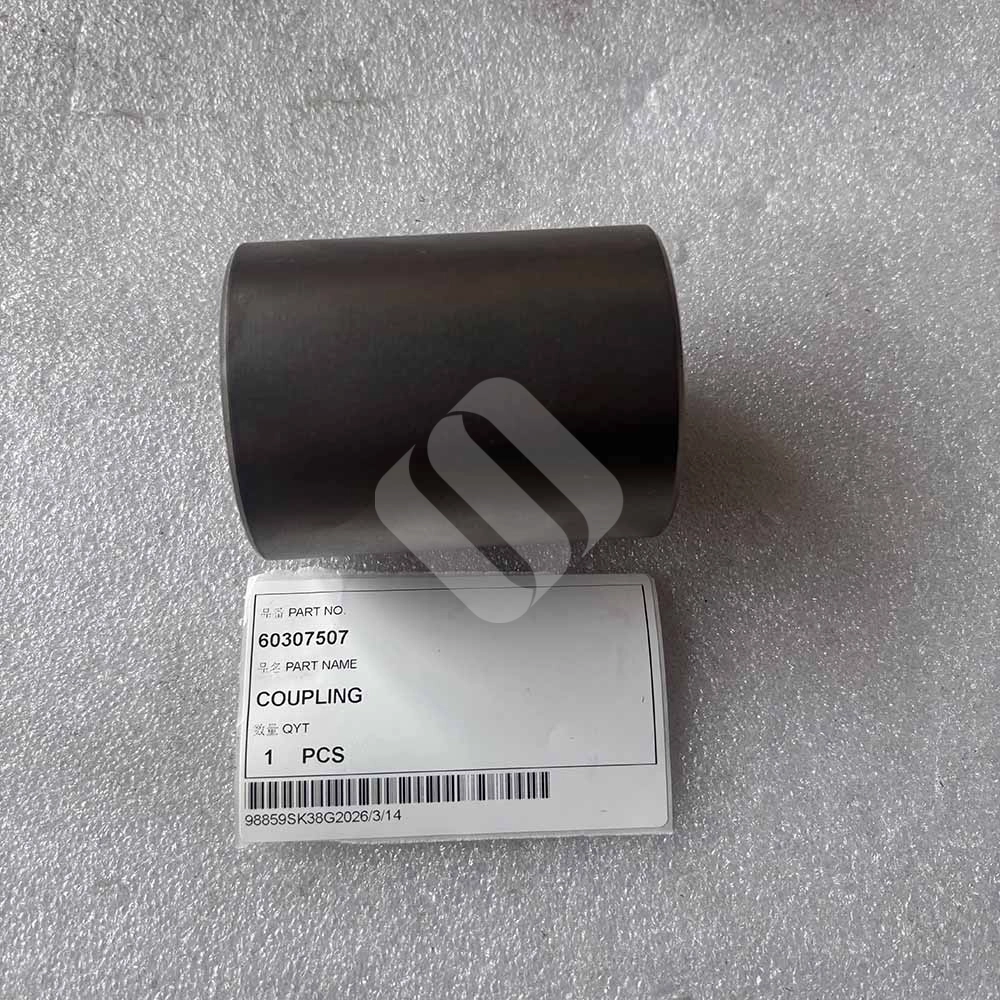

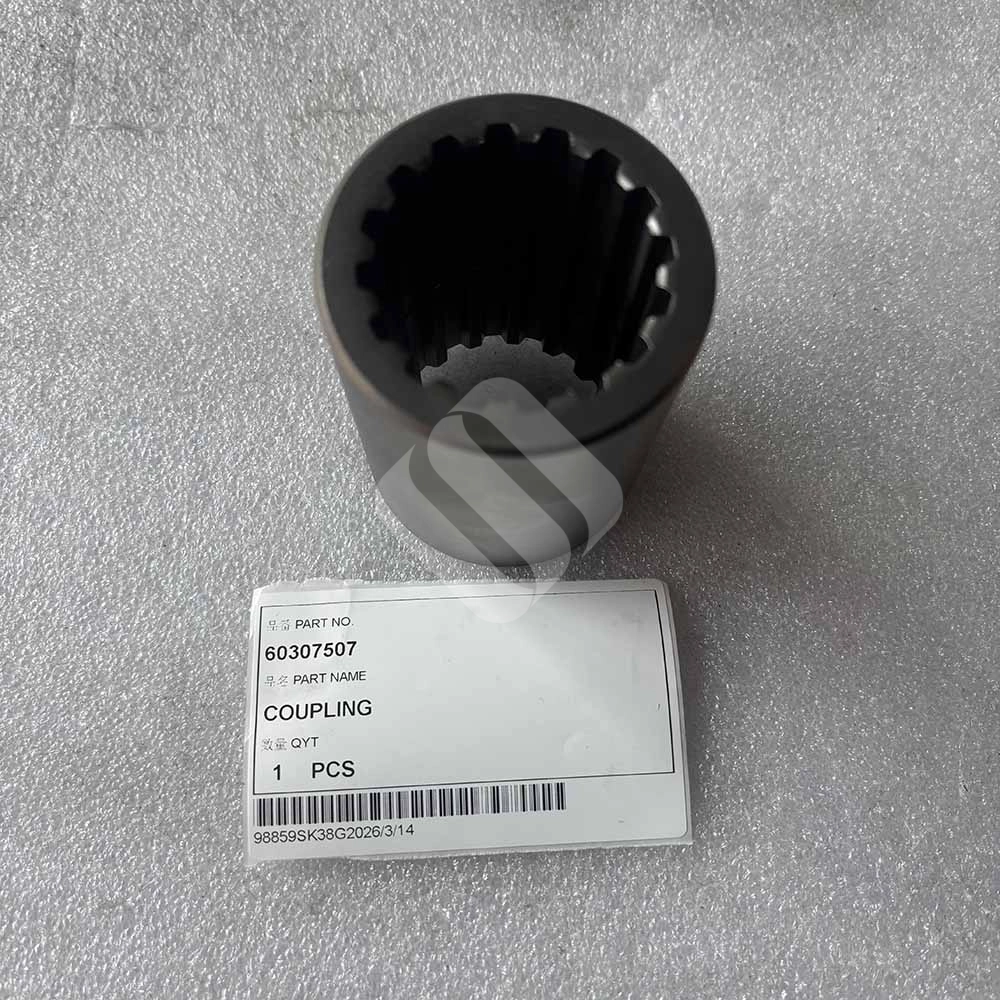

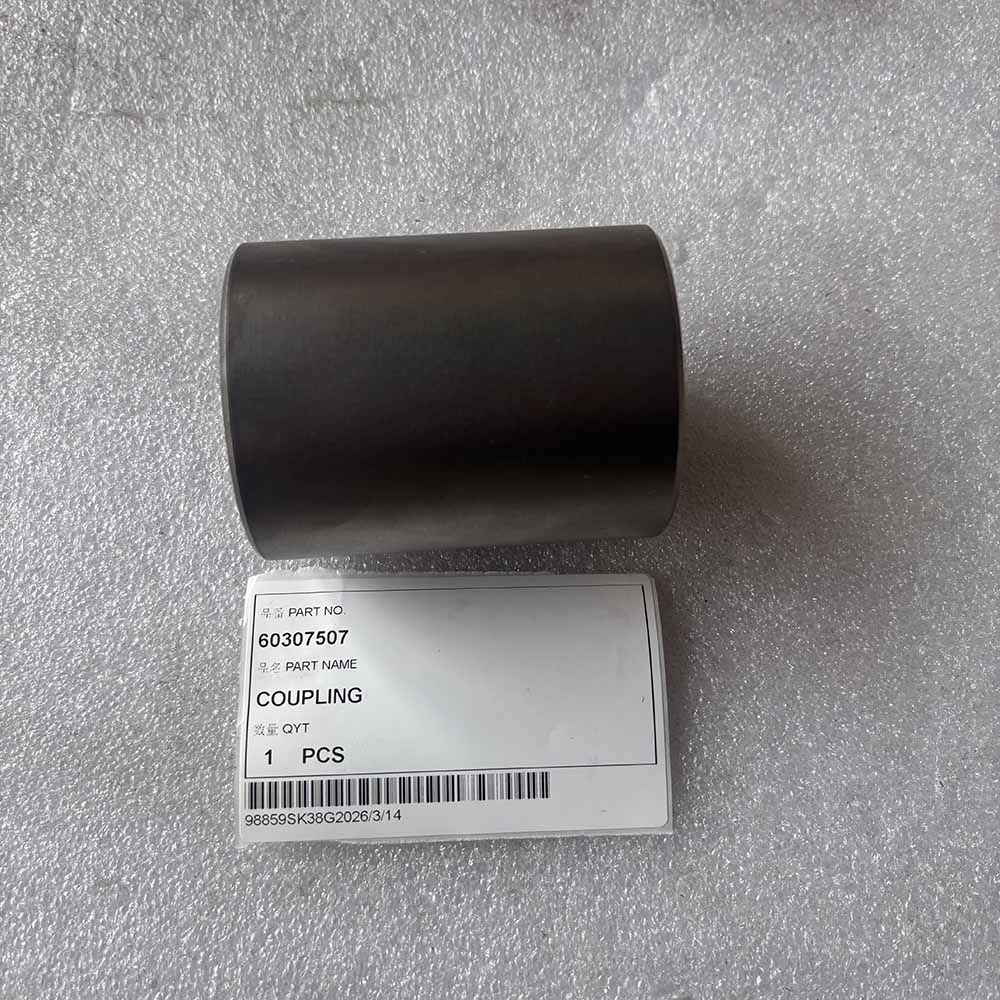

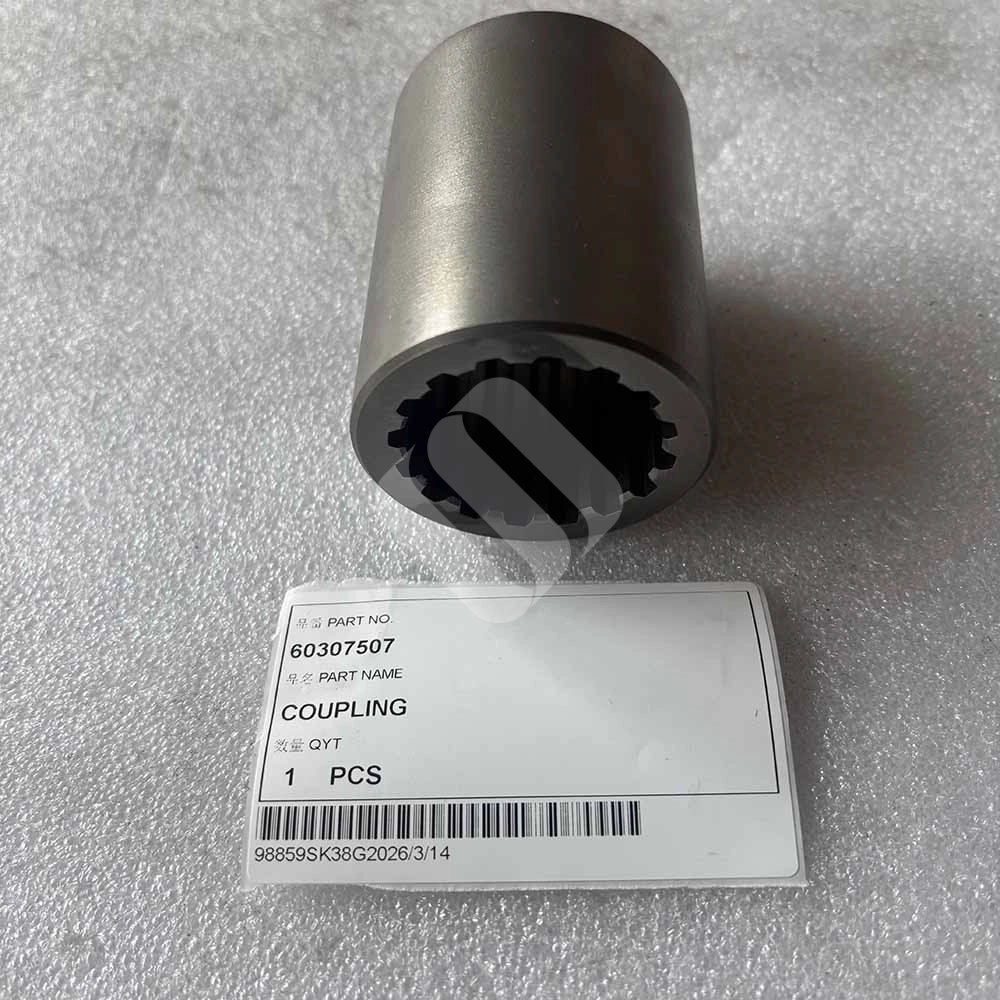

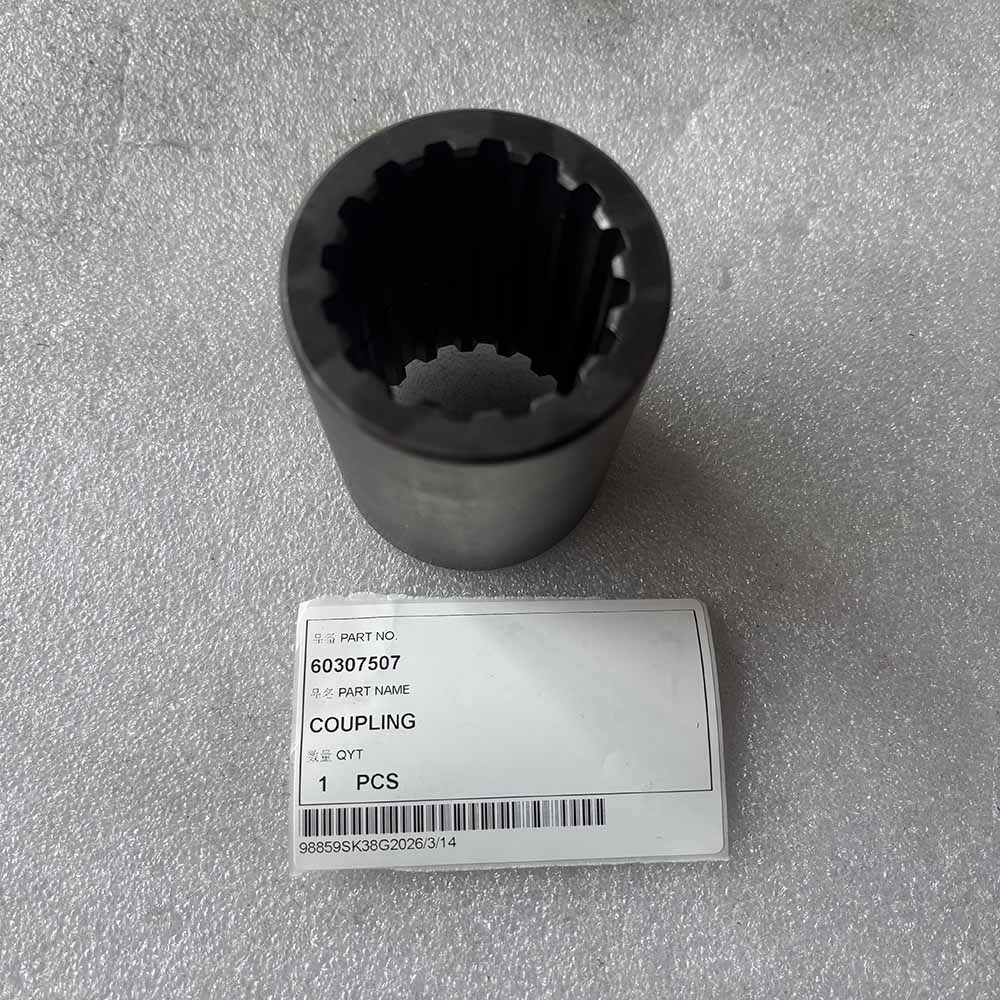

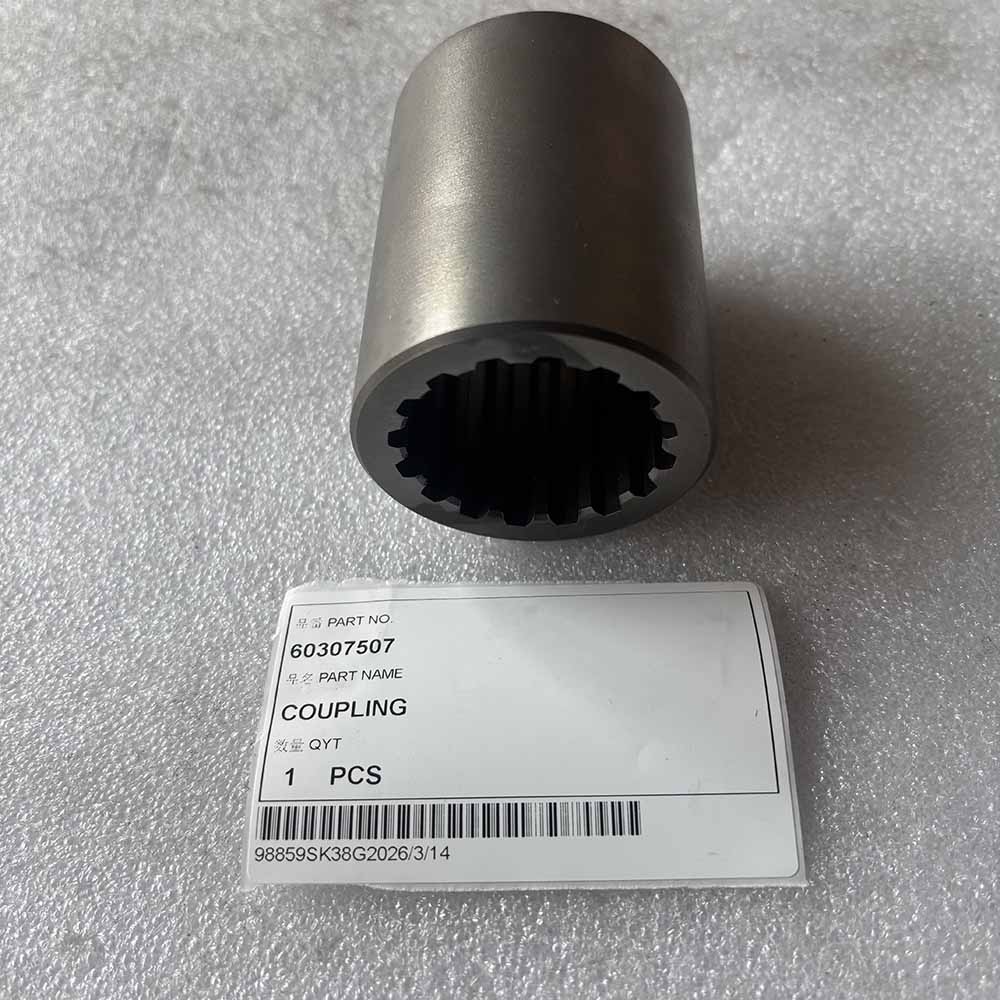

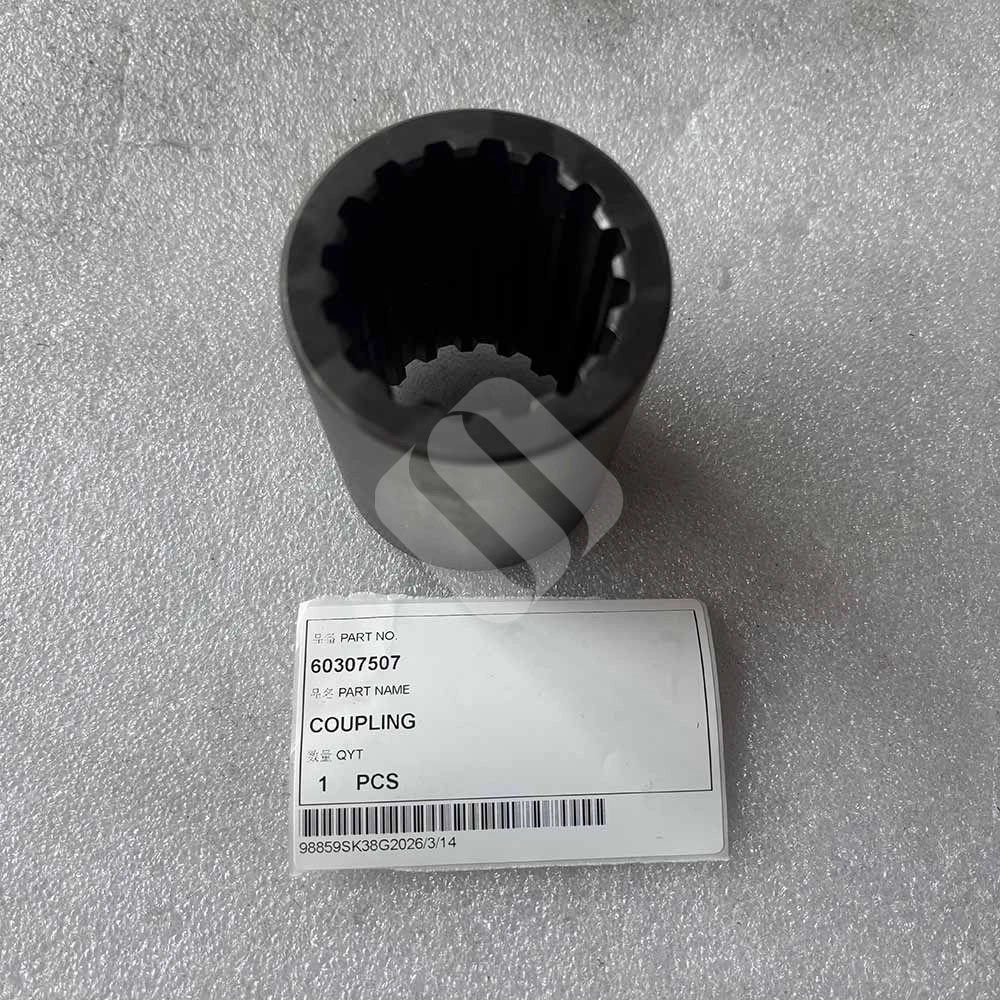

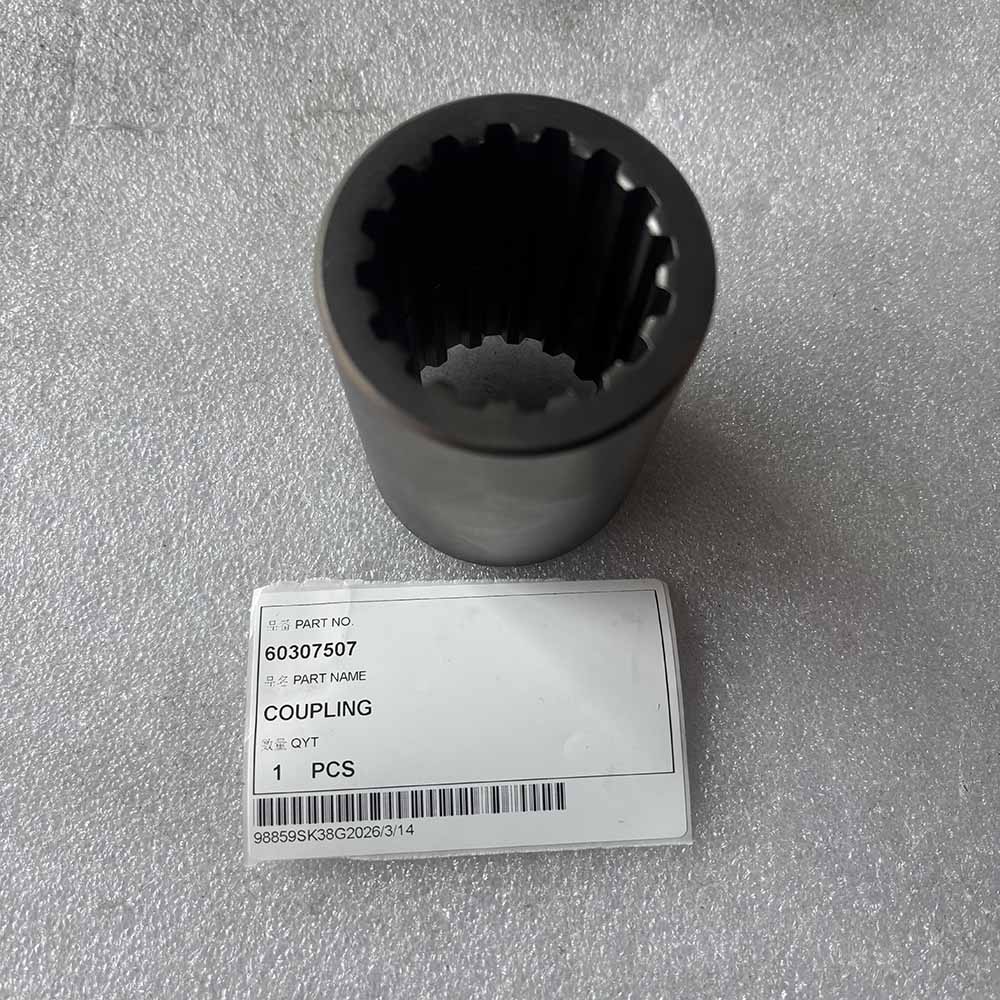

The SPARKLING MACHINERY NEW 60307507 Coupling Photo:

• • • • • • • • • Primary Machine Applications

                  This driving coupling is highly prevalent in Sany’s heavy earthmoving and mining excavator configurations:

                  Machine Category	Specific Models
                  Heavy Crawler Excavators	SY365H, SY365H-9, SY465C, SY485H (Verify Group Number)

                  •

Q&A

• • • • • • Q1: What are the primary indicators that my Sany SY365H main pump coupling is failing?

          • A: Common warning signs include abnormal clattering or knocking noises coming from the bellhousing area between the engine and the main hydraulic pump, increased cabin vibration during operation, or fine black rubber dust gathering at the bottom of the pump tower housing (indicating the flexible element is shedding material under stress).

            Q2: What happens if a flywheel coupling like the 60307507 fails completely during operation?

          • A: If the coupling shears or disintegrates completely, the mechanical connection between the engine and the hydraulic pumps is broken. The engine will still run, but the machine will suffer an immediate, total loss of all hydraulic functions (travel, swing, and boom movements). In worst-case scenarios, a violent structural failure can damage the pump input shaft or crack the aluminum pump mounting housing.

            Q3: Should I replace the mounting bolts when installing a new 60307507 coupling?

          • A: Yes, it is highly recommended. Flywheel and coupling bolts are subjected to high cycling loads and are often design-specified stretch bolts or require specific thread-locking compounds. Reusing old bolts increases the risk of backing out or shearing, which can cause catastrophic internal damage. Always torque new hardware to factory Sany specifications.
