CAT Excavator Tonnage Selection Guide: Match the Right Model for Various Construction Worksites

Saturday, July 11, 2026

Caterpillar excavators dominate the construction industry with full-tonnage coverage and reliable adaptive performance, capable of handling everything from delicate urban fine construction to heavy-duty mining earthmoving. Many fleet owners and contractors often fall into the misconception of “bigger is better” when selecting CAT excavators, resulting in wasted fuel, low operating efficiency, and unnecessary transportation costs. Based on diverse construction scenarios and actual job demands, this professional guide from Sparkling Machinery systematically analyzes the tonnage positioning, performance advantages and applicable working conditions of all CAT excavator series, helping you select the most cost-effective CAT excavator for your projects.

Table of Contents

≡

I. Tonnage Classification & Performance Positioning of CAT Excavators
1. CAT Excavator Model Coding & Tonnage Rules
II. Full-Spec CAT Excavator Tonnage & Performance Comparison
III. Scenario-Based Matching Rules for CAT Excavators
1. Match Tonnage According to Site Space Constraints
2. Select Models Based on Construction Intensity & Output Demand
3. Adapt Equipment Performance to Geological Conditions
4. Reserve Performance for Multi-Functional Attachment Operation
5. Select Equipment According to Project Operation Cycle
6. Optimize Model Based on Transportation & Mobility Needs
IV. Summary & Equipment Maintenance Tips

I. Tonnage Classification & Performance Positioning of CAT Excavators

Caterpillar classifies its full line of excavators into four core tonnage grades: mini, small, medium, and large. Each grade is independently optimized in terms of body size, hydraulic output, digging force and operational flexibility, forming a clear performance gradient. Mini and small models focus on flexible fine operation, while medium and large units prioritize high-load, high-efficiency continuous construction. The reasonable tonnage grading covers all construction scenarios, laying a solid foundation for scenario-based equipment matching.

1. CAT Excavator Model Coding & Tonnage Rules

CAT adopts a unified 300-series digital coding system, where the model number directly corresponds to equipment tonnage and comprehensive performance. Low-digit models in the 300 series represent compact mini excavators with flexible maneuverability; mid-range models cover small and medium-sized engineering excavators with balanced performance for mainstream construction; high-digit models are heavy-duty large excavators configured with high-power engines and reinforced hydraulic systems, exclusively built for high-intensity, large-volume earthwork and mining operations.

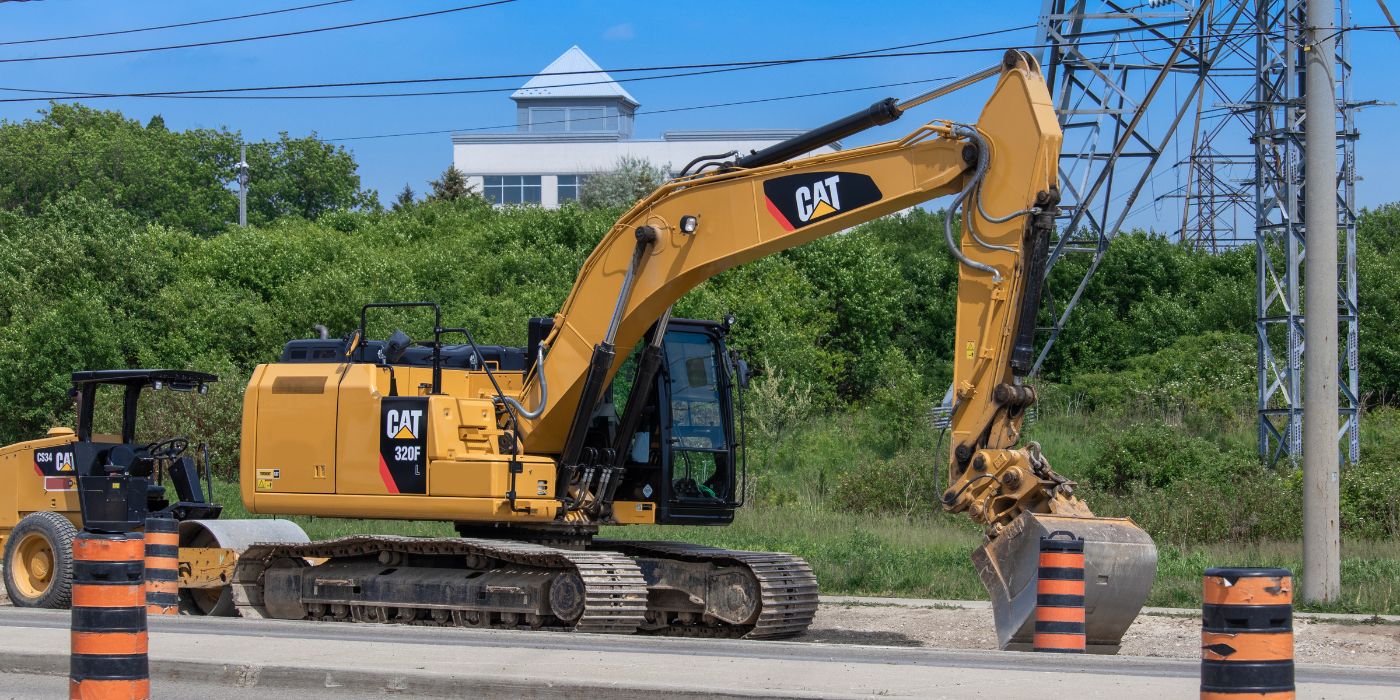

cat 320f with bucket

II. Full-Spec CAT Excavator Tonnage & Performance Comparison

The table below summarizes the core operating parameters, classic mainstream models and scenario positioning of all CAT excavator tonnage segments. It provides intuitive data support for rapid job-site equipment matching:

Size Class	Operating Weight	Net Power	Max Dig Depth	Popular Models	Core Job Positioning
Mini Excavator	1 to 6 tons 2,000 to 12,000 pounds	13 to 55hp	6 to 8 feet	CAT 303, 304, 305, 305.5, 306, 300.9D	Narrow-space fine construction, including urban greening, municipal pipe repair, indoor demolition, residential yard renovation and small-scale shallow earthwork
Small Excavator	6 to 12 tons 12,000‑24,000 pounds	55 to 100hp	19.8 to 21 feet	CAT 308, 308B, 308E	Civil auxiliary construction, such as community development, road slope trimming, farmland renovation, light demolition and small infrastructure supporting projects
Medium Excavator	12 to 35 tons 24,000 to 70,000 pounds	100 to 275hp	22 to 23.8 feet	CAT 310, 315, 320	Mainstream urban engineering construction, covering commercial building foundation excavation, municipal key projects, long-distance pipe laying and medium-scale demolition operations
Large Excavator	35 tons and above over 70,000 pounds	275 to 542hp	26 to 31.9 feet	CAT 336, 349	Heavy-duty large-scale projects, including open-pit mining, quarry exploitation, mass earthwork transfer, large infrastructure and continuous truck-loading operations

III. Scenario-Based Matching Rules for CAT Excavators

The core of excavator selection is "matching performance with working conditions". Only by combining site constraints, construction intensity, geological environment and operational demands can we avoid over-equipment or insufficient power. The following six dimensional matching standards help you accurately select the best-fit CAT excavator for exclusive working scenarios.

1. Match Tonnage According to Site Space Constraints

Construction site space is the primary restrictive condition for equipment selection. Confined working areas such as urban streets, residential communities, green belt projects and indoor renovation have strict limits on equipment body size and turning radius, making flexible mini and small CAT excavators the optimal choice. For open sites including mines, new urban areas, and highway foundation projects, medium and large excavators can give full play to their high-power and high-efficiency advantages without space restrictions. Always verify site access width and overhead obstacles to ensure smooth equipment entry and flexible operation.

2. Select Models Based on Construction Intensity & Output Demand

Different project output requirements determine the required equipment power grade. Low-intensity, fine construction work such as shallow trenching, ground leveling and landscape shaping is completely competent for mini excavators, with lower fuel consumption and more flexible operation. Medium-intensity continuous operations including municipal engineering and foundation excavation are most suitable for medium excavators with balanced power and flexibility. For high-intensity, large-output projects such as mine stripping and large-area earthwork filling, high-power large CAT excavators are essential to guarantee construction progress and operating efficiency.

3. Adapt Equipment Performance to Geological Conditions

Site geological conditions directly determine the equipment’s breakout force and hydraulic performance requirements. Complex working conditions such as hard rock layers, compacted soil and abrasive gravel require strong excavation force and high-pressure hydraulic systems, so medium and large CAT excavators with sufficient power reserves are prioritized. For loose soil, silt foundations and shallow fine excavation scenarios, small and mini excavators can complete construction efficiently, effectively avoiding power waste and equipment wear caused by excessive tonnage.

4. Reserve Performance for Multi-Functional Attachment Operation

Modern construction requires multi-functional equipment to meet diverse operation demands. CAT excavators support diversified operations by replacing attachments like breakers, material grapples, quick couplers and compactors. When selecting a model, reserve sufficient hydraulic performance according to subsequent expansion needs. Heavy-duty attachments such as hydraulic breakers require medium and large excavators with high hydraulic flow; while light attachments for landscaping and fine sorting are perfectly matched with mini and small models.

5. Select Equipment According to Project Operation Cycle

The project operation cycle and business layout determine whether to purchase or rent equipment and select tonnage. For long-term, fixed-type municipal, landscaping and civil construction projects, purchasing small and medium excavators with high cost performance can maximize long-term benefits. For short-term, temporary high-intensity projects such as mine trial excavation and large-scale demolition, renting large excavators can avoid equipment idle loss and reduce overall project costs.

6. Optimize Model Based on Transportation & Mobility Needs

Equipment mobility and transportation costs are key factors affecting project profitability. Mini and small CAT excavators feature lightweight body and convenient transportation, adaptable for frequent site transfers in urban scattered projects with low transfer costs. Medium and large excavators are suitable for long-term fixed-site heavy construction; due to their large size and heavy weight, professional transportation equipment and road permits are required, making them unsuitable for frequent migration scenarios.

IV. Summary & Equipment Maintenance Tips

There is no universal best CAT excavator, only the most scenario-matched one. Mini/small models excel in flexible fine construction, medium models adapt to mainstream urban engineering, and large units dominate heavy-duty high-output projects. Reasonable tonnage matching can greatly improve construction efficiency and reduce comprehensive operating costs. When your CAT excavator encounters downtime and failure during high-intensity operation, Sparkling Machinery provides full-series OEM-quality replacement parts for CAT excavators, covering engine, hydraulic, electrical and chassis components. We support global fast delivery and professional after-sales service, helping clients quickly restore equipment operation and ensure on-time project completion.
