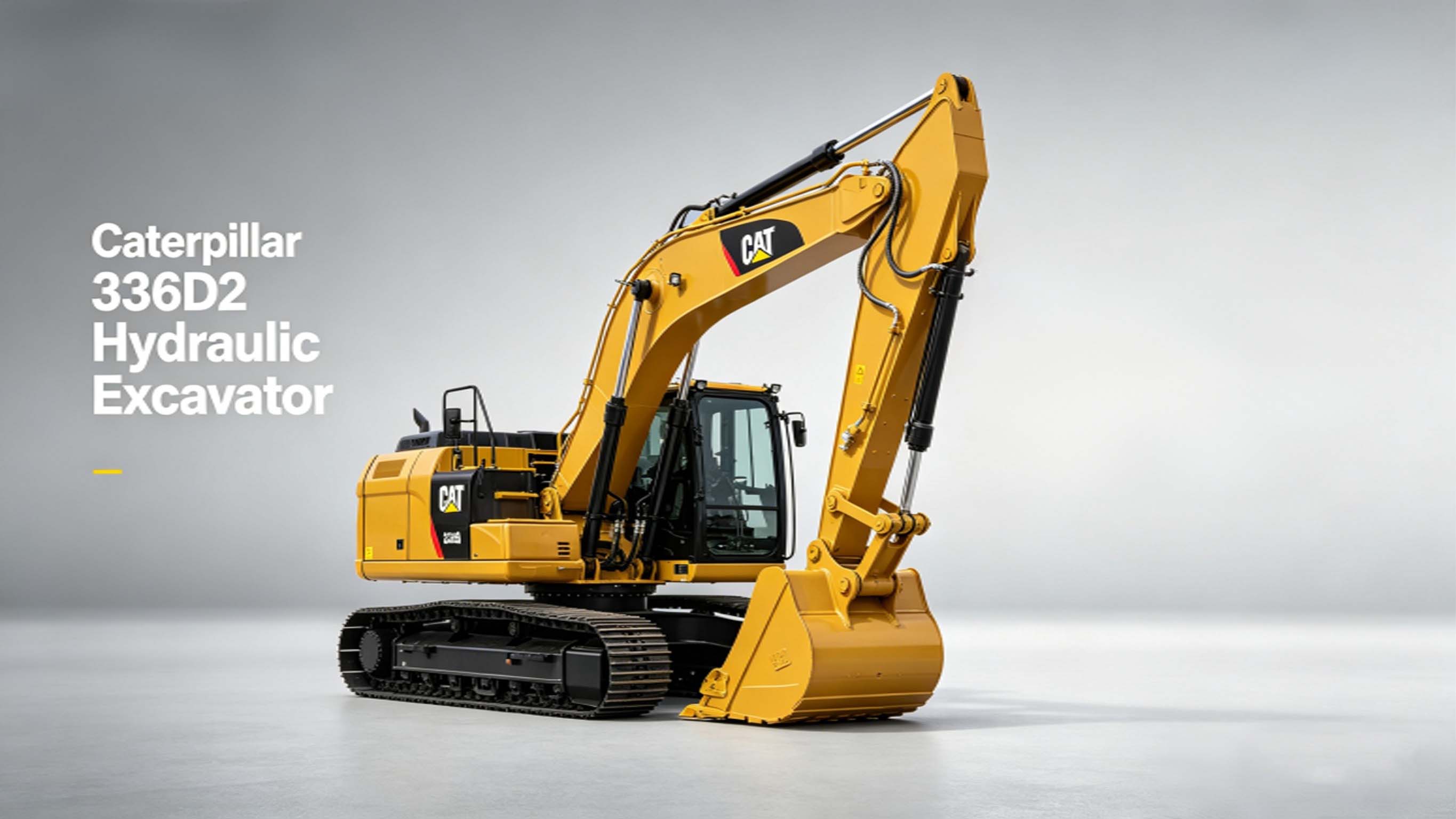

   This page provides complete specifications and technical information for the Caterpillar 336D2 hydraulic excavator, including working weight, engine data, hydraulic system performance, fuel and oil capacities, and body dimensions. We also offer a convenient part numbers lookup for genuine and aftermarket components, helping operators, technicians, and equipment owners quickly find the right spare parts, service information, and reference data for the Cat 336D2 excavator.

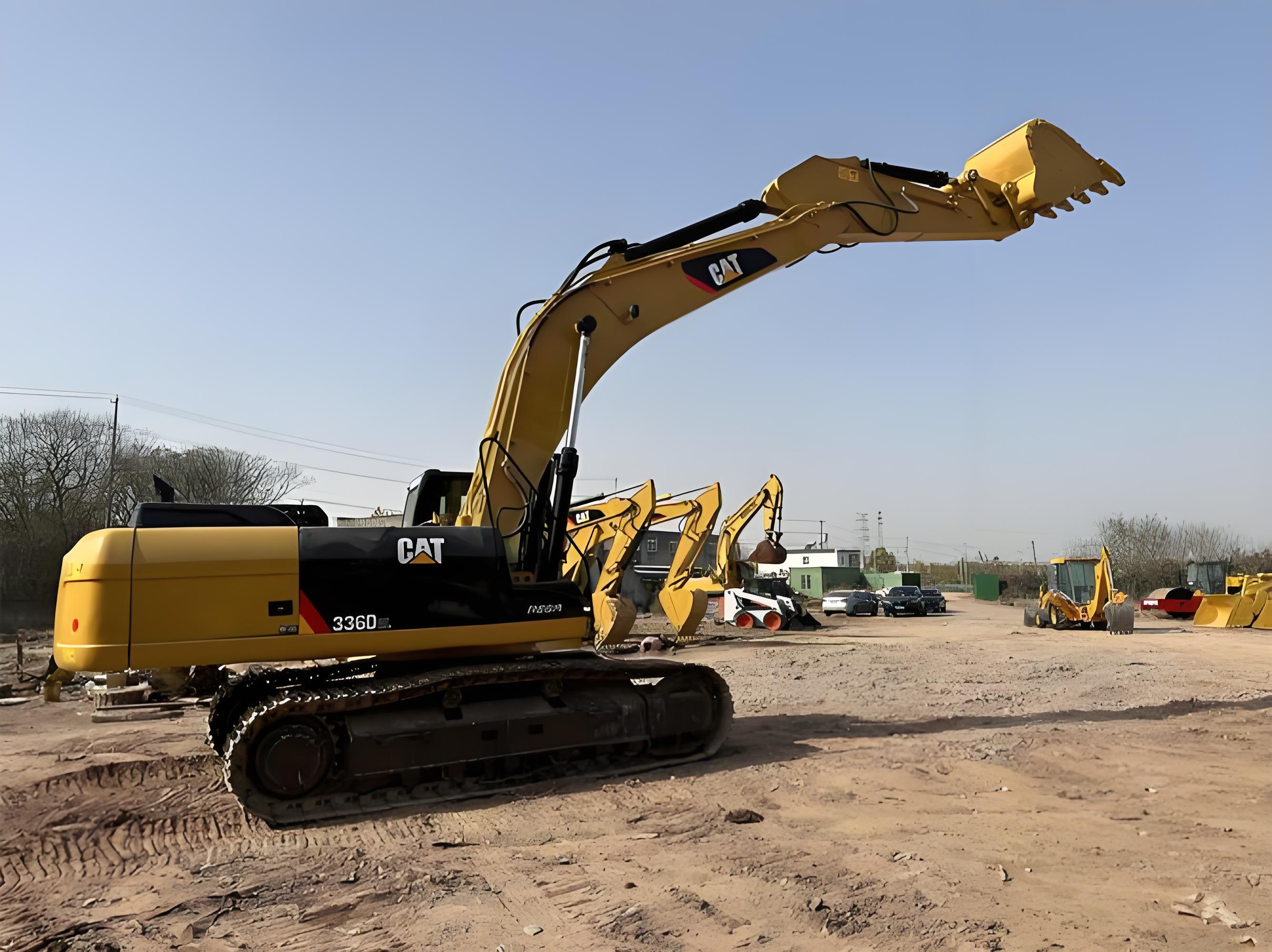

downloaded-image



Category Specification Value
Specification Power traditional power
  Bucket Backhoe
  Tonnage (tons) 36
  Working weight of the whole machine (kg) 34600
  Bucket capacity (m³) 1.88
  Boom length (mm) 6500
  Stick length (mm) 2800
Performance Rotation speed (rpm) 8.3
  Swing torque (kN/m) 109
  Walking speed (km/h) 4.6
  Gradeability (%) 70
  Maximum traction force (kN) 300
Power System Engine model Cat C9 ACERT
  Rated power (kw/rpm) 208
  Displacement (L) 8.8
  Bore diameter × stroke (mm) 112×149
Hydraulic System Travel hydraulic motor type 35
  Swing hydraulic motor type 28
  Maximum flow of main pump (l/min) 281
  Pilot pump flow (L/min) 40
  Pilot oil circuit (MPa) 4
  Main relief set pressure (Mpa) 35
  Boom Cylinder-Number×Cylinder Bore×Stroke(mm) 150×1440
  Stick Cylinder-Number×Cylinder Bore×Stroke(mm) 170×1738
  Bucket Cylinder-Number×Cylinder Bore×Stroke(mm) 150×1151
Oil Capacity Fuel tank (L) 620
  Hydraulic tank (L) 175
  Hydraulic system (L) 410
  Engine oil replacement amount (L) 41
  Coolant (L) 40
Body Size Total length of transport (mm) 11210
  Overall width for transportation (mm) 3190
  Overall transport height (mm) 3670
  Overall height of cab (mm) 3140
  Total length of track(mm) 4590
  Track shoe width (mm) 600
  Track gauge (mm) 2590
  Minimum ground clearance (mm ) 510
  Counterweight Ground Clearance (mm) 1220
  Back end turning radius (mm ) 3490
