Do You Understand Planetary Gear Systems in Construction Heavy Machinery?

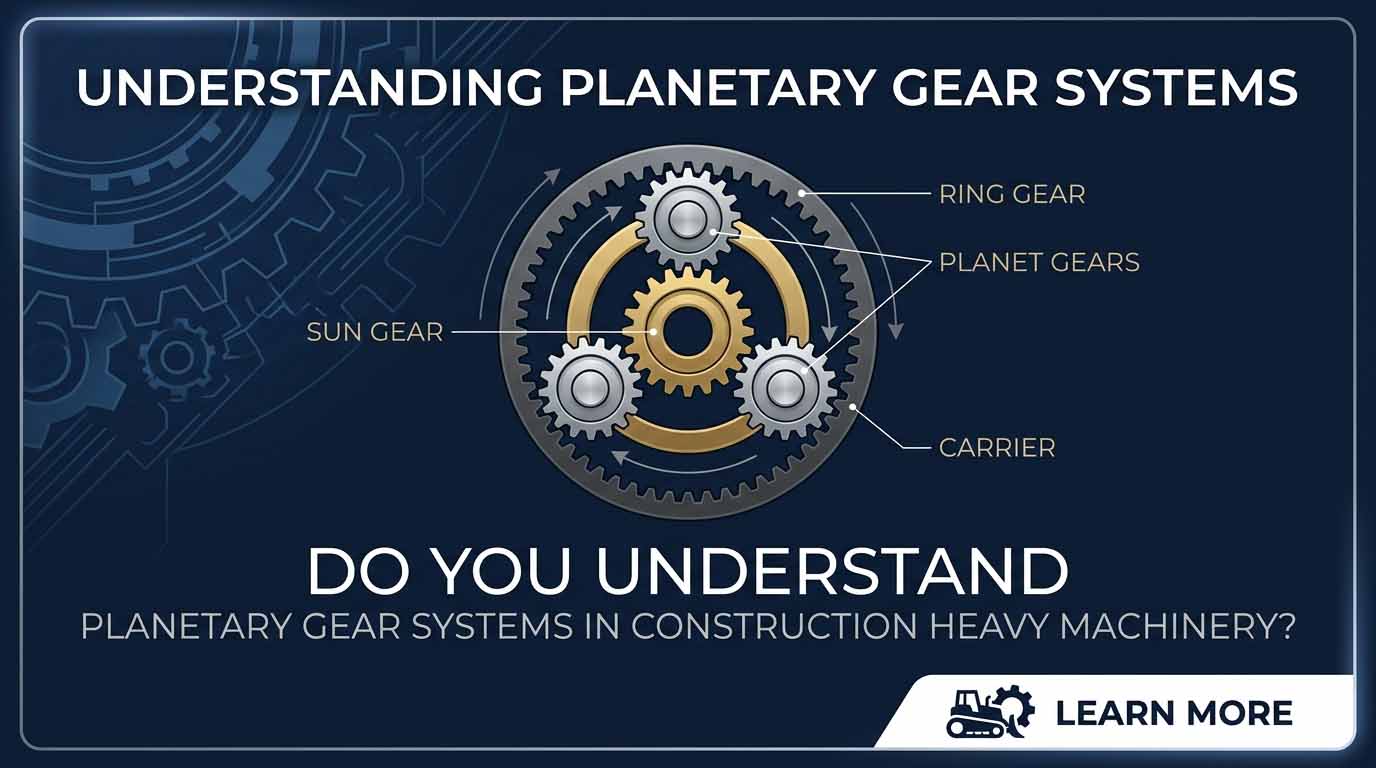

I. What Exactly Is a Planetary Gear Assembly?

II. Working Principle of Planetary Gear Mechanisms

III. Core Functions of Planetary Gears on Heavy Equipment

• · Final Drive Unit: Built-in planetary gears of final drives receive power from travel motors, lower rotating speed while amplifying output torque, and transmit powerful driving force to drive sprockets to propel tracked machines on all construction terrains.
• · Swing Drive Assembly: Excavator swing drives integrate planetary reduction gear systems, which support stable, high-torque 360° rotation of the machine’s upper body. Hydraulic swing motors alone cannot generate enough torque to rotate fully loaded excavators without planetary gear reduction.
• · Travel Motor Assembly: The built-in planetary reduction stage inside travel motors controls traveling speed and tractive force, allowing operators to flexibly adjust machine movement when crossing muddy, rocky or sloped ground.
• · Winch & Lifting Hoist Equipment: For tower cranes and lifting machinery, planetary gear reduction systems are mandatory. They provide steady, precise pulling and lifting power to guarantee safe material hoisting and load handling.
•

IV. Typical Failure Symptoms of Worn Planetary Gears

1. 1. Grinding, buzzing or intermittent clicking sounds coming from final drive or swing drive housings
2. 2. Hydraulic oil leakage around drive housings triggered by aging or damaged sealing components
3. 3. Slower traveling speed or automatic unilateral deviation when the machine moves forward
4. 4. Unsmooth, jittery or noisy rotation of the excavator upper swing structure
5. 5. Visible metal abrasive particles mixed in gearbox lubricating oil during oil inspection
6. 6. Noticeable rise in fuel consumption and hydraulic oil loss rate

V. Standard Troubleshooting Steps After Planetary Gear Malfunction

1. 1. Shut down the machine right away: Continuing to operate equipment with damaged planetary gears will worsen internal faults. Broken gear tooth fragments circulate with lubricating oil and scratch other precision transmission components.
2. 2. Complete disassembly inspection of the planetary system: Remove the shell of final drive or swing drive to fully check wear conditions of all sun, planet and ring gears.
3. 3. Replace the full planetary gear set as a whole: Single worn planet gears mean all other gears have endured identical heavy load stress and will break down shortly. Full set replacement delivers far better cost performance than repeated partial part repairs.
4. 4. Choose premium aftermarket planetary gears: While OEM original parts are an option, high-quality aftermarket planetary gears from Sparkling Machinery offer reliable performance with more competitive pricing. Browse our full range of Planetary Gears here.
5. 5. Refill matched specification gear lubricant after reassembly: Strictly follow the equipment manual’s standard for oil grade and filling volume. Using unsuitable lubricant ranks top among leading causes of premature planetary gear failure.
6.

VI. Daily Maintenance Tips to Extend Planetary Gear Service Life

1. 1. Drain and replace final drive lubricating oil every 1,000 working hours, at minimum once per calendar year
2. 2. Periodically check oil seals for aging, cracking or damage to stop dirt, water and impurities entering the gearbox
3. 3. Avoid long-time track slipping operation under heavy load, which accelerates planetary gear abrasion
4. 4. Check gear oil level before every shift to prevent gear damage caused by insufficient lubrication
5. Stop machine operation and inspect components immediately once abnormal noises emerge from drive systems
6.

VII. Final Summary
