DEUTZ BF4M1013EC Diesel Engine for SANY | 4.76L Turbocharged Intercooled Motor | Part No. 60328623

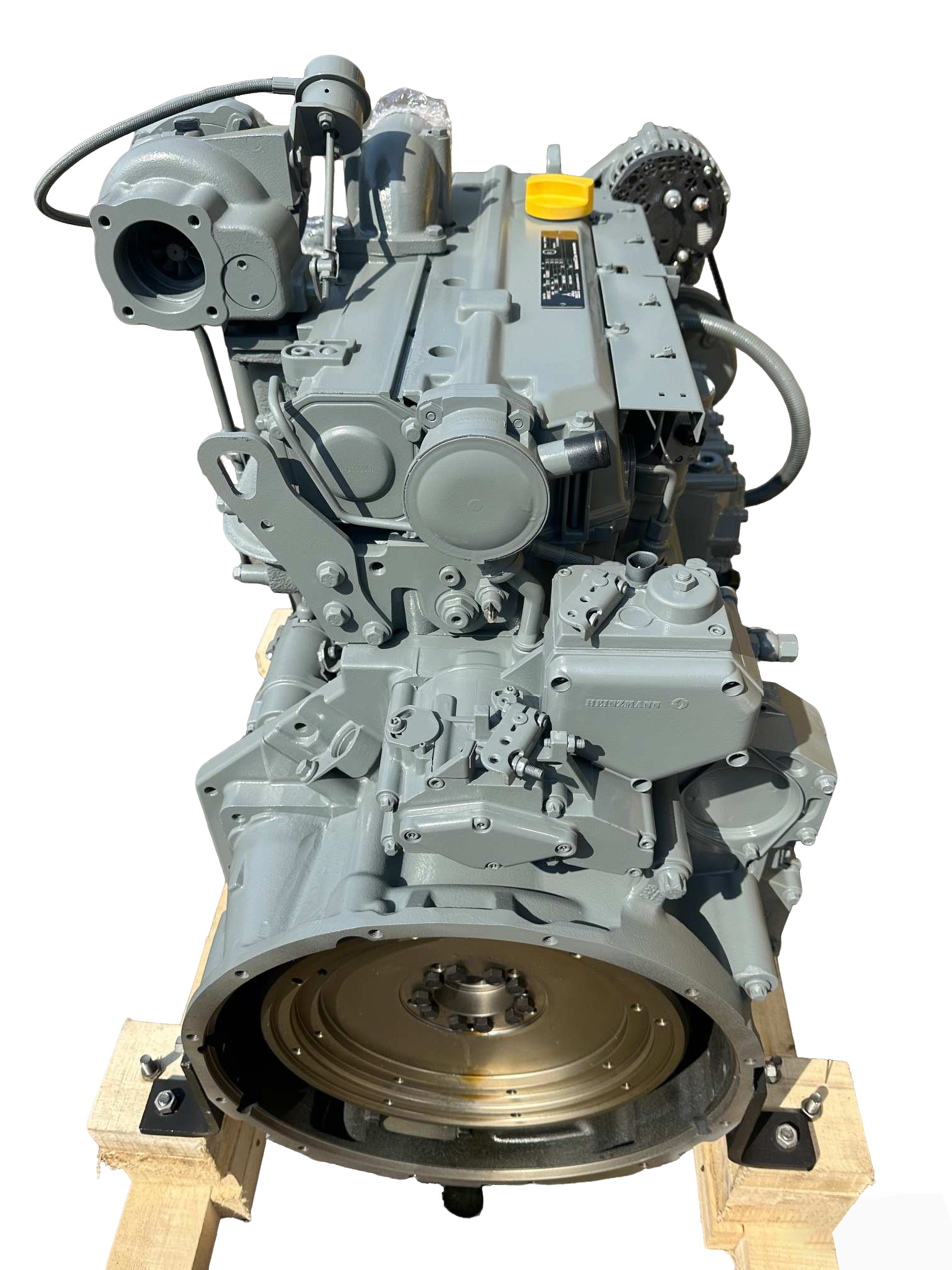

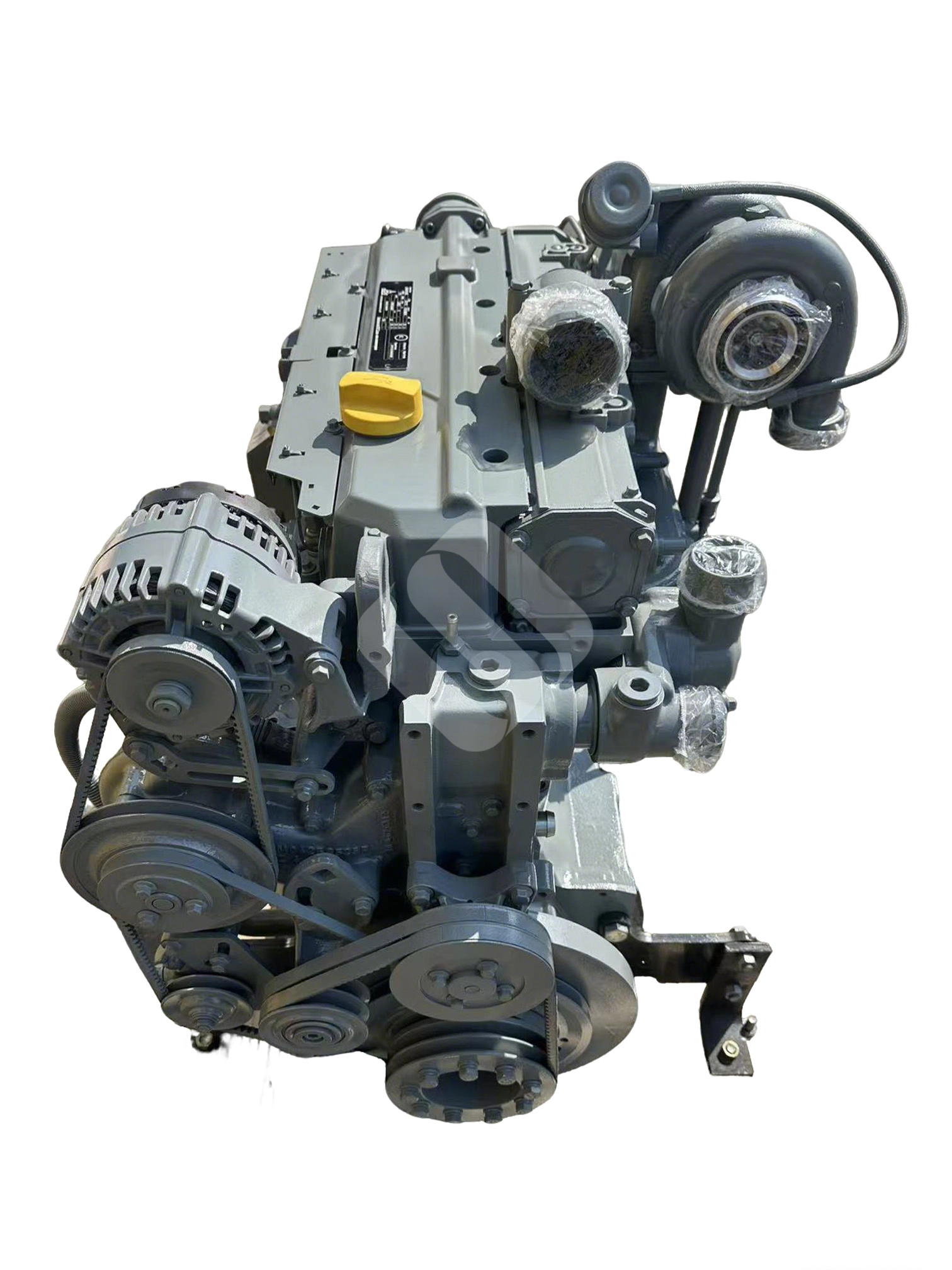

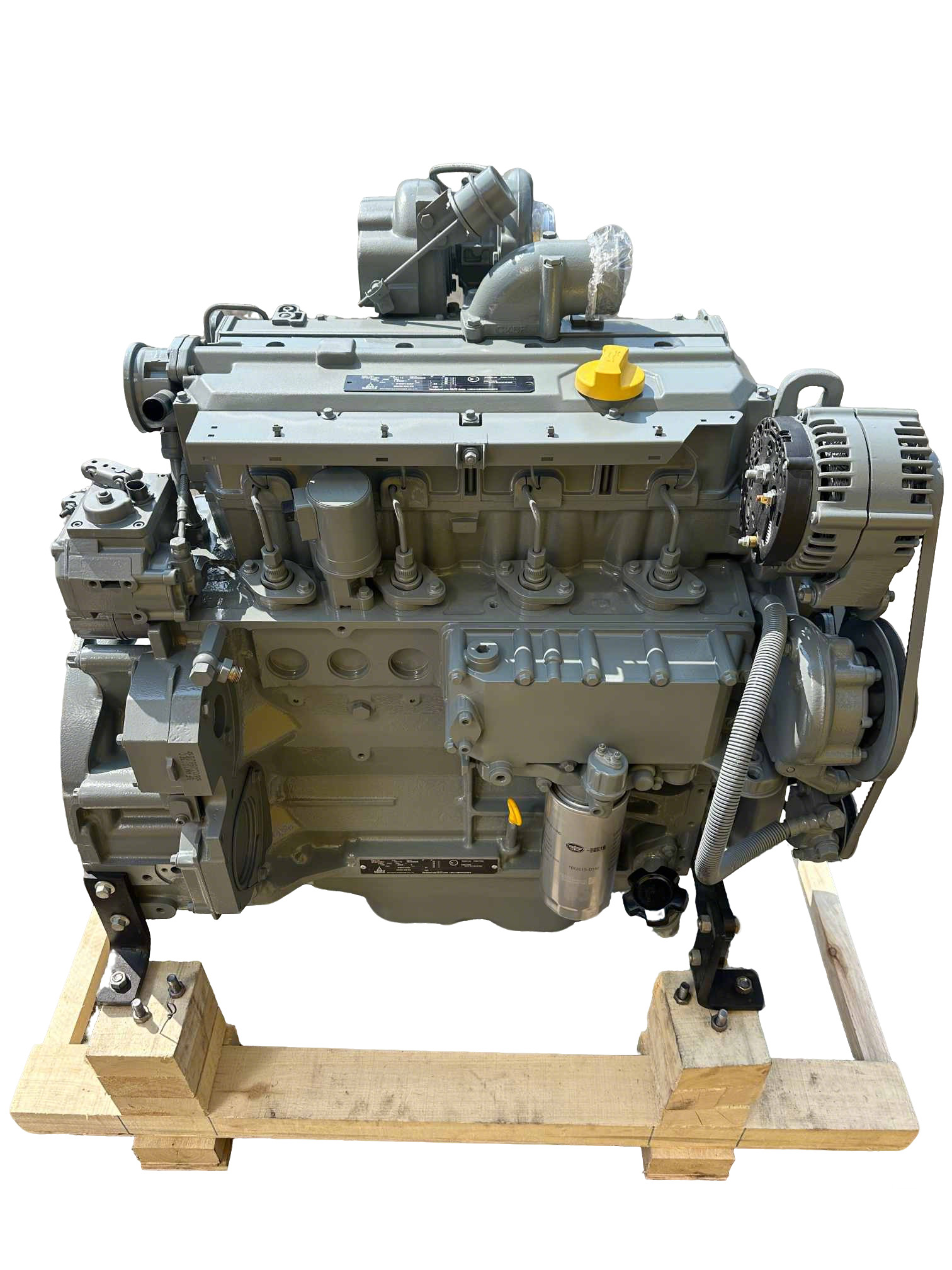

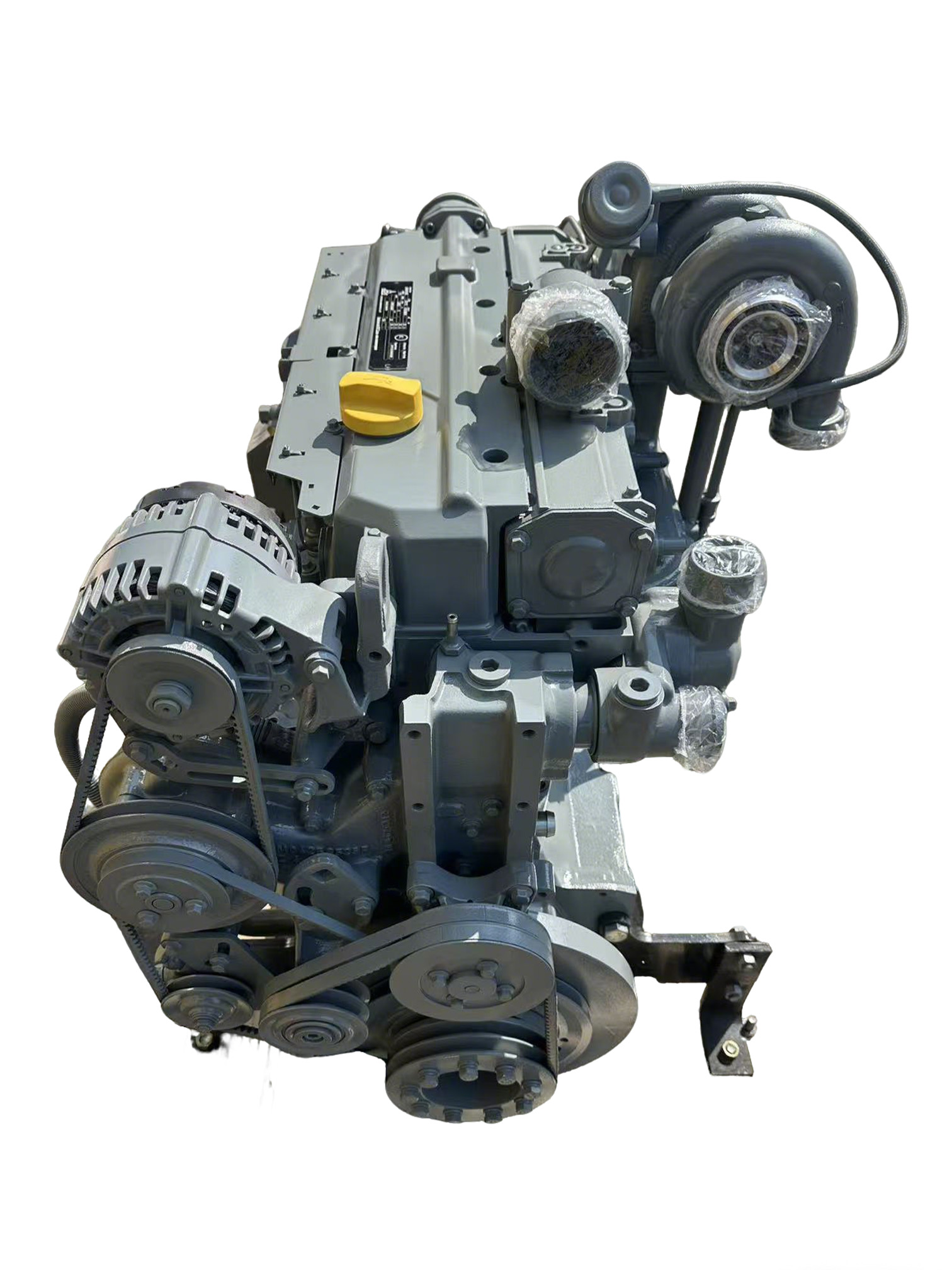

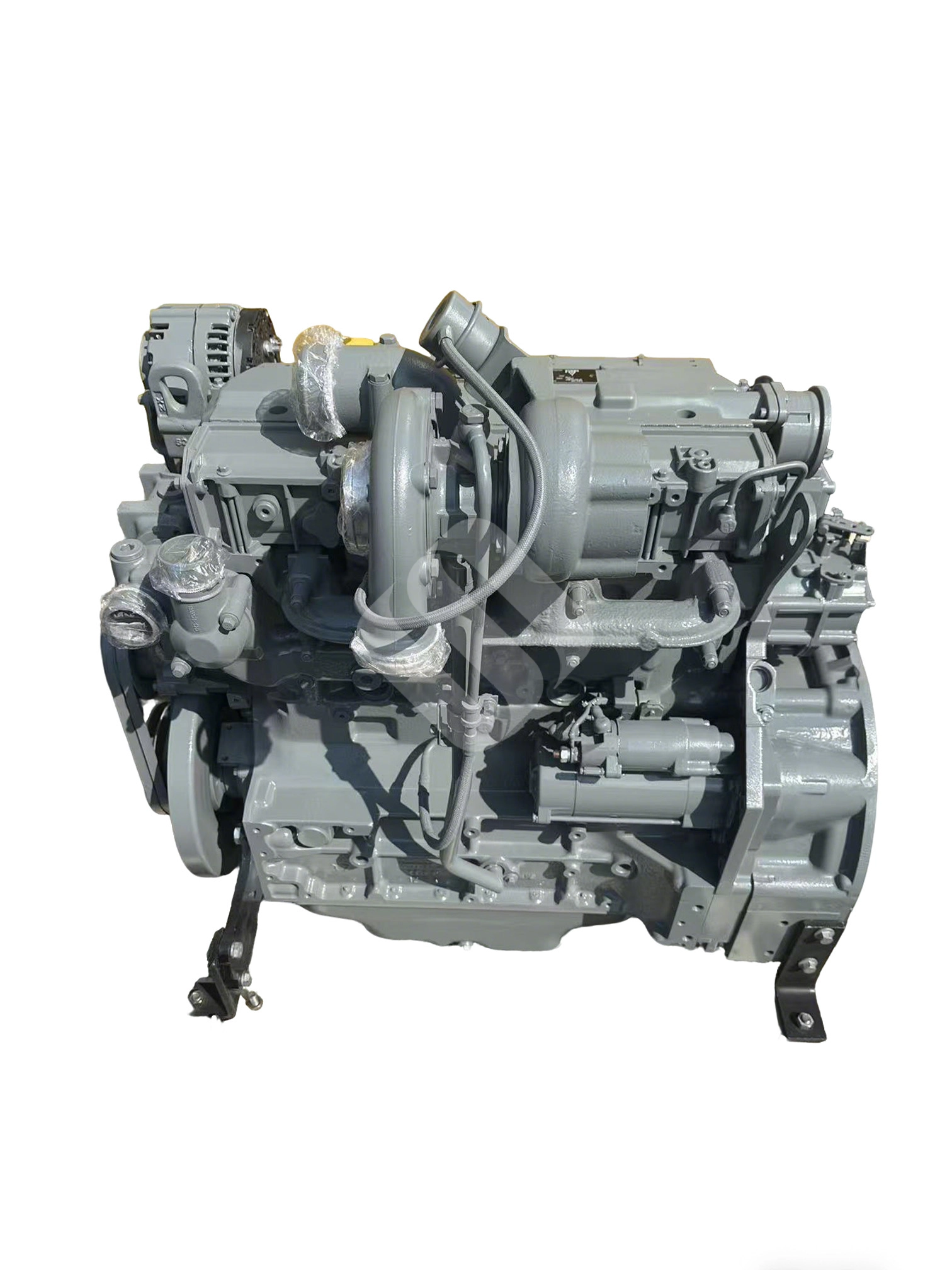

The SPARKLING MACHINERY NEW DEUTZ BF4M1013EC diesel engine Photo:

• • • • • • • • • Common Applications

                  This engine is a versatile workhorse commonly found in:

                  • SANY Machinery: Specifically optimized for excavators and specialized construction units.

                  • Construction: Pavers, rollers, and mid-to-large wheel loaders.

                  • Agriculture: High-horsepower tractors and harvesters.

                  • Power Gen: 100kVA–125kVA generator sets (G-Drive configuration).

                  •

• • • • • • Q&A

          • Q1: What is the main difference between the 1012 and 1013 series?

          • A: While both are 4-cylinder water-cooled engines, the 1013 series has a larger displacement (4.76L vs 3.19L). This allows the 1013EC to produce significantly more torque (577 Nm vs ~400 Nm), making it suitable for larger machinery like SANY excavators.

            Q2: Is the SANY 60328623 a direct "drop-in" replacement?

          • A: Yes, part number 60328623 is specifically configured with the correct flywheel housing, oil pan, and cooling attachments required for SANY OEM installations.

            Q3: How do I identify if I need the "EC" or "FC" model?

          • A: The "EC" model is typically rated up to 115kW, while the "FC" is a higher-output version (up to 129kW) with different turbocharging maps. Always check your engine ID plate or consult us with your serial number.

          • Q4: Can I upgrade a mechanical governor to an electronic one?
          • A: Yes, the 1013EC can be equipped with an Electronic Motor Regulator (EMR) for better integration into modern digital control systems and CAN-Bus monitoring.
