DEUTZ TCD2012L042V Diesel Engine | 4.04L 4-Cylinder Turbocharged Industrial Motor
The DEUTZ TCD2012L042V is engineered for high reliability and a long service life. Its 4.04-liter displacement makes it an ideal power source for mobile machinery that requires high torque in a restricted engine bay.
Equipped with an Electronic Motor Regulator (EMR 3), the engine adapts its performance to varying load conditions in real-time. This ensures that the machine operates at peak efficiency, whether it’s powering a hydraulic system in an excavator or maintaining steady speed in a soil compactor.
Dear Valued Partners,
Thank you for choosing SPARKLING MACHINERY, your professional supplier for construction machinery brake and transmission parts.

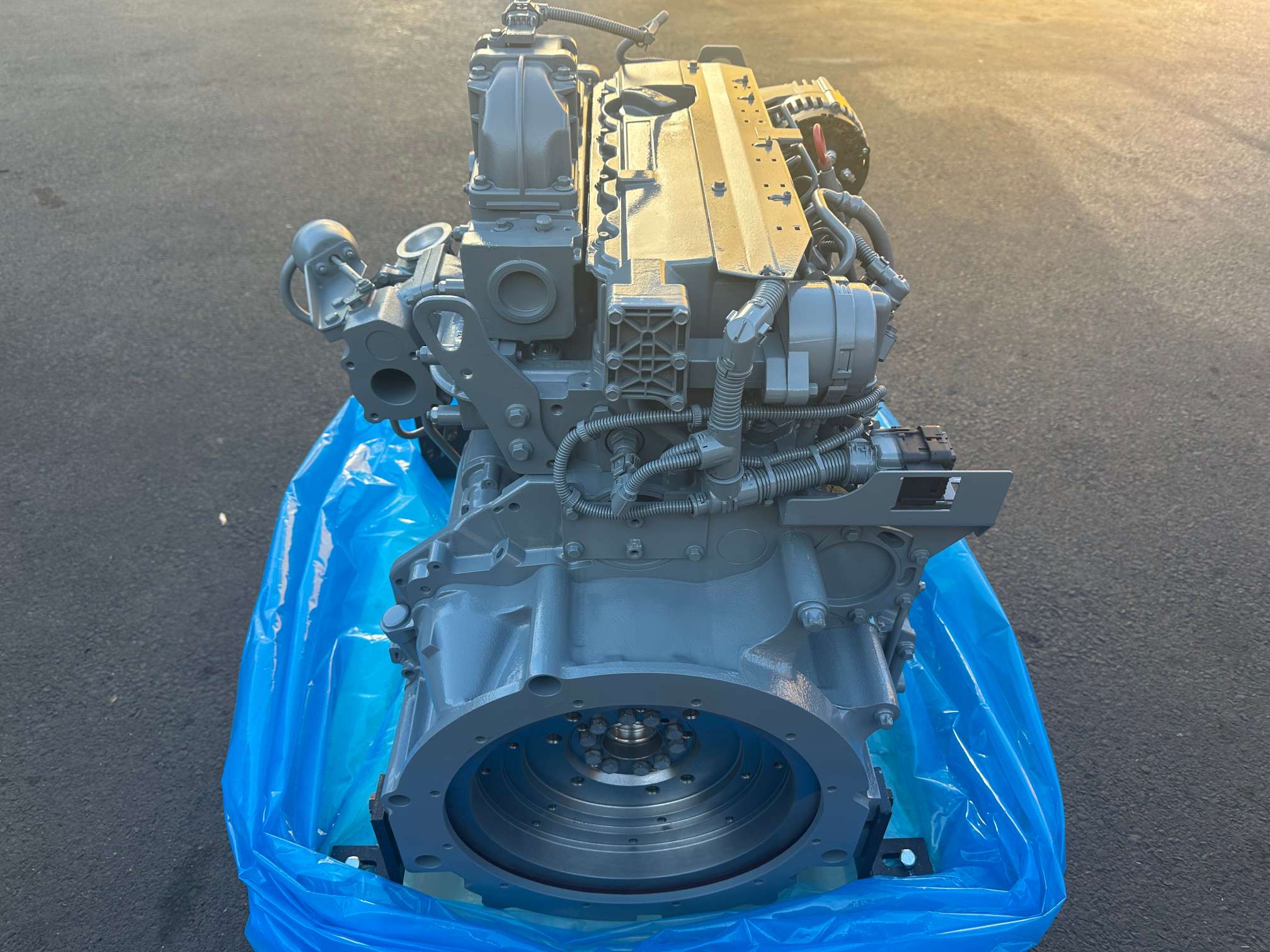

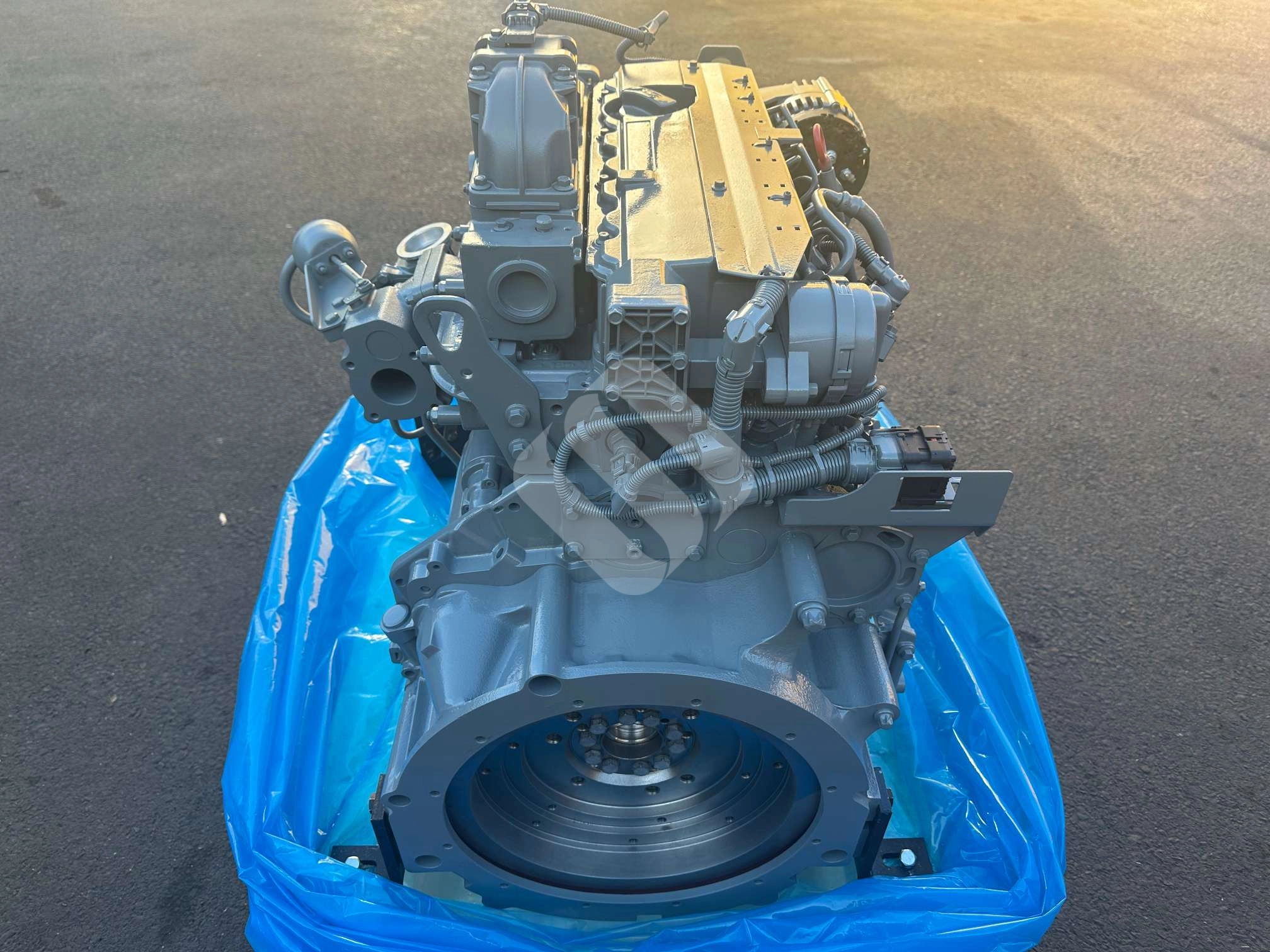

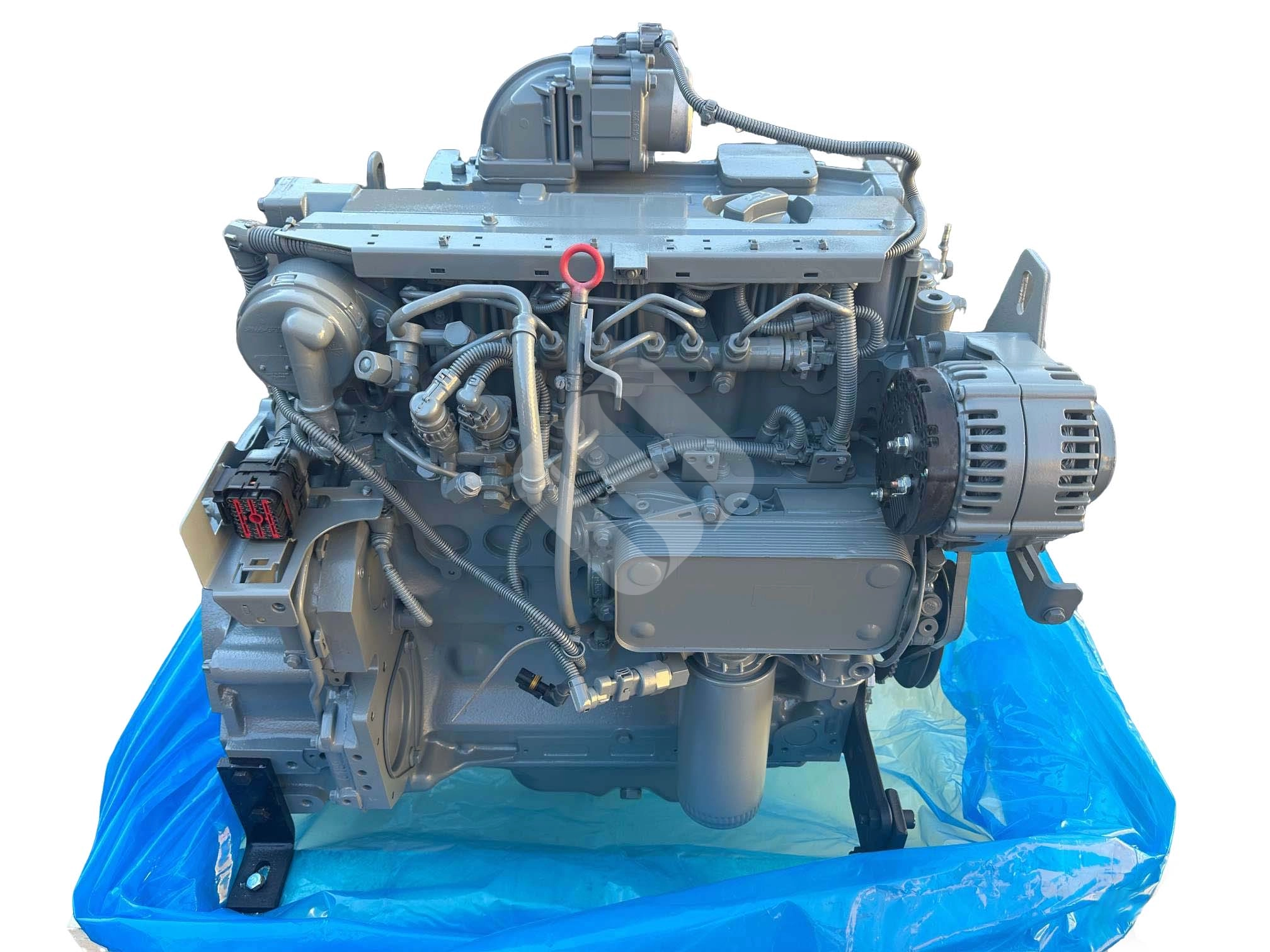

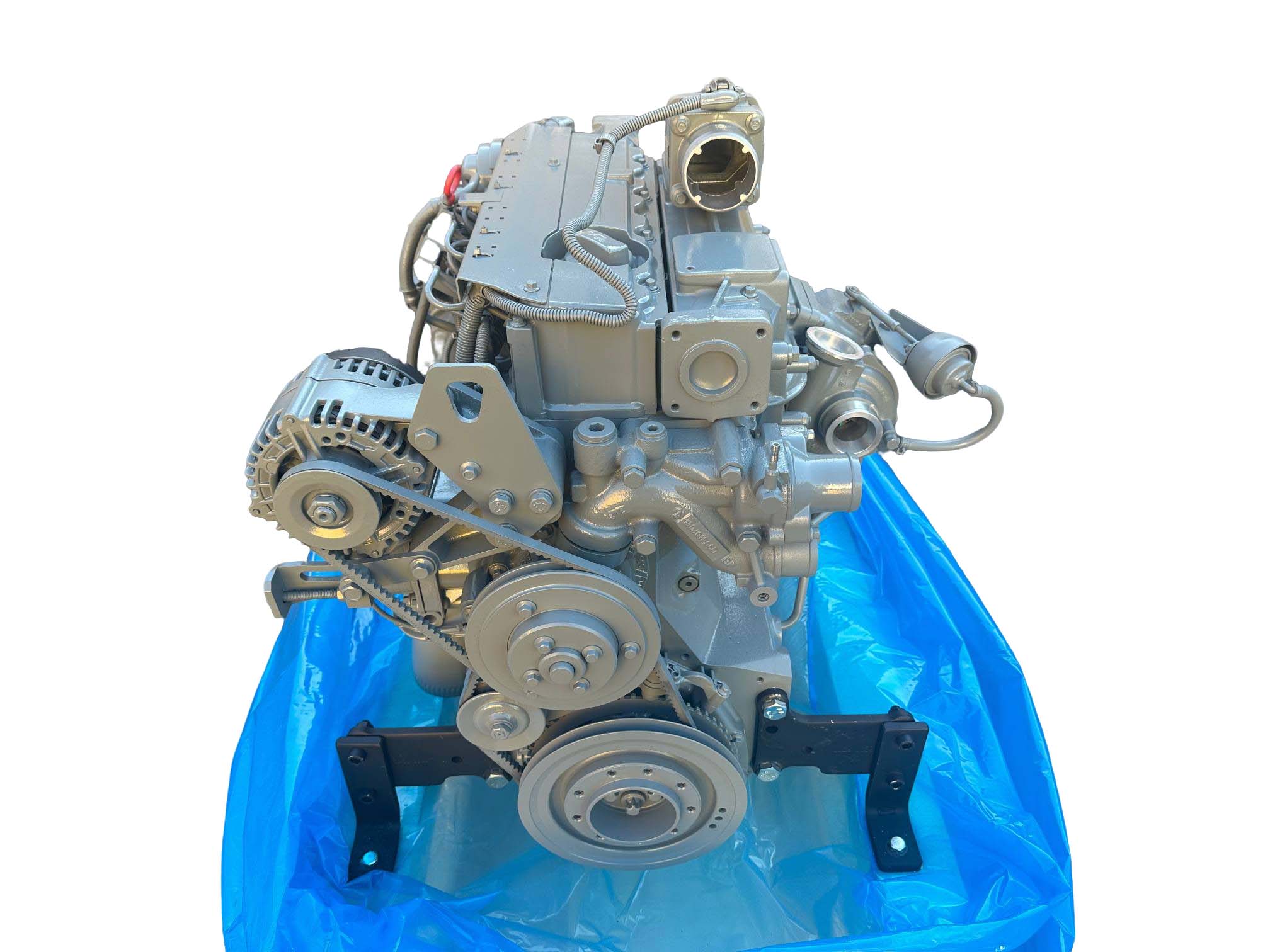

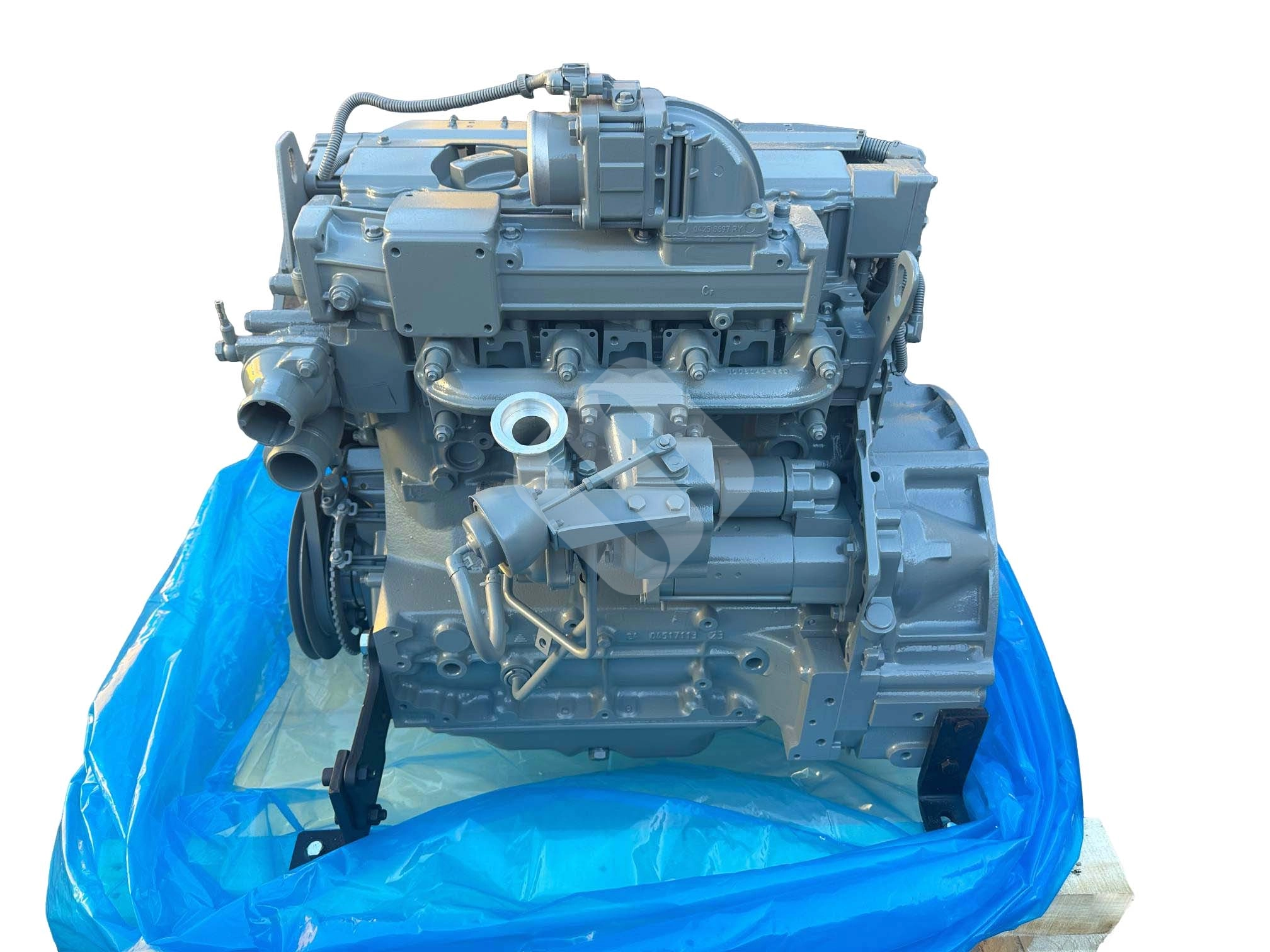

The SPARKLING MACHINERY NEW DEUTZ TCD2012L042V diesel engine Photo:
Product Features & Advantages
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
· Optimized Power Density: One of the most powerful engines in its size class, providing high breakout force for smaller construction equipment.
-
· Fuel Efficiency: The DCR® high-pressure injection system ensures superior fuel atomization, reducing consumption and lowering exhaust soot.
-
· Low Maintenance Costs: Features a modular design and long service intervals (up to 500 hours), reducing total cost of ownership.
-
· Smooth Operation: Strategically designed engine block and components reduce structural noise and vibration, improving operator comfort.
-
· Versatile PTO: Offers power take-off options at both the front and rear of the engine for various hydraulic pump configurations.
-
-
-
-
-
-
-
-
Feature Details Engine Model TCD2012L042V Configuration Inline 4-Cylinder, 4-Stroke Displacement 4.04 Liters Bore / Stroke 101 mm / 126 mm Aspiration Turbocharged & Intercooled Max Power Output Up to 103 kW (138 hp) @ 2400 RPM Max Torque 520 Nm @ 1450 RPM Injection System DEUTZ Common Rail (DCR®) Emission Standard US EPA Tier 3 / EU Stage IIIA Weight (Dry) Approx. 390 kg
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Common Applications
-
-
· Construction: Compact excavators, telehandlers, and skid-steer loaders.
-
· Road Work: Vibratory soil compactors, asphalt rollers, and small pavers.
-
· Industrial: High-pressure water pumps and mobile air compressors.
-
· Agriculture: Specialized orchard tractors and harvesters.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Q&A
-
Q: What is the main difference between the BF4M2012 and the TCD2012L042V?
-
A: The "BF" series is generally a Tier 2 engine with a mechanical fuel system. The TCD2012L042V is a Tier 3 engine featuring a fully electronic Common Rail injection system and electronic governor (EMR 3).
Q: Does this engine require an Electronic Control Unit (ECU) to run?
-
A: Yes. The TCD2012L042V is an electronically controlled engine. It requires the DEUTZ EMR 3 controller and a compatible wiring harness to manage fuel injection and engine protection.
Q: Can this engine be used in Tier 4 regulated markets?
-
A: No, this engine is Tier 3 / Stage IIIA. In strictly regulated markets (like the USA or EU), it is usually sold as a "like-for-like" replacement engine for machines originally built with Tier 3 engines.
-
-
-
-
-
-
