DEUTZ TCD2013V06 Diesel Engine | 11.9L V6 Turbocharged Industrial Motor
The DEUTZ TCD2015V06 is a powerhouse in the 12-liter class. Its V6 design allows for a significantly shorter engine length compared to inline engines, making it an excellent fit for machines with tight engine compartments. Utilizing the DEUTZ Multi-Parallel Injection system (MVS) and electronic engine control (EMR), it provides a perfect balance of high torque and low fuel consumption.
Built to meet Tier 3 / Stage IIIA emission standards, the TCD2015V06 is renowned for its reliability in extreme conditions, featuring individual cylinder heads and a robust crankcase designed for high-hour duty cycles.
Dear Valued Partners,
Thank you for choosing SPARKLING MACHINERY, your professional supplier for construction machinery brake and transmission parts.

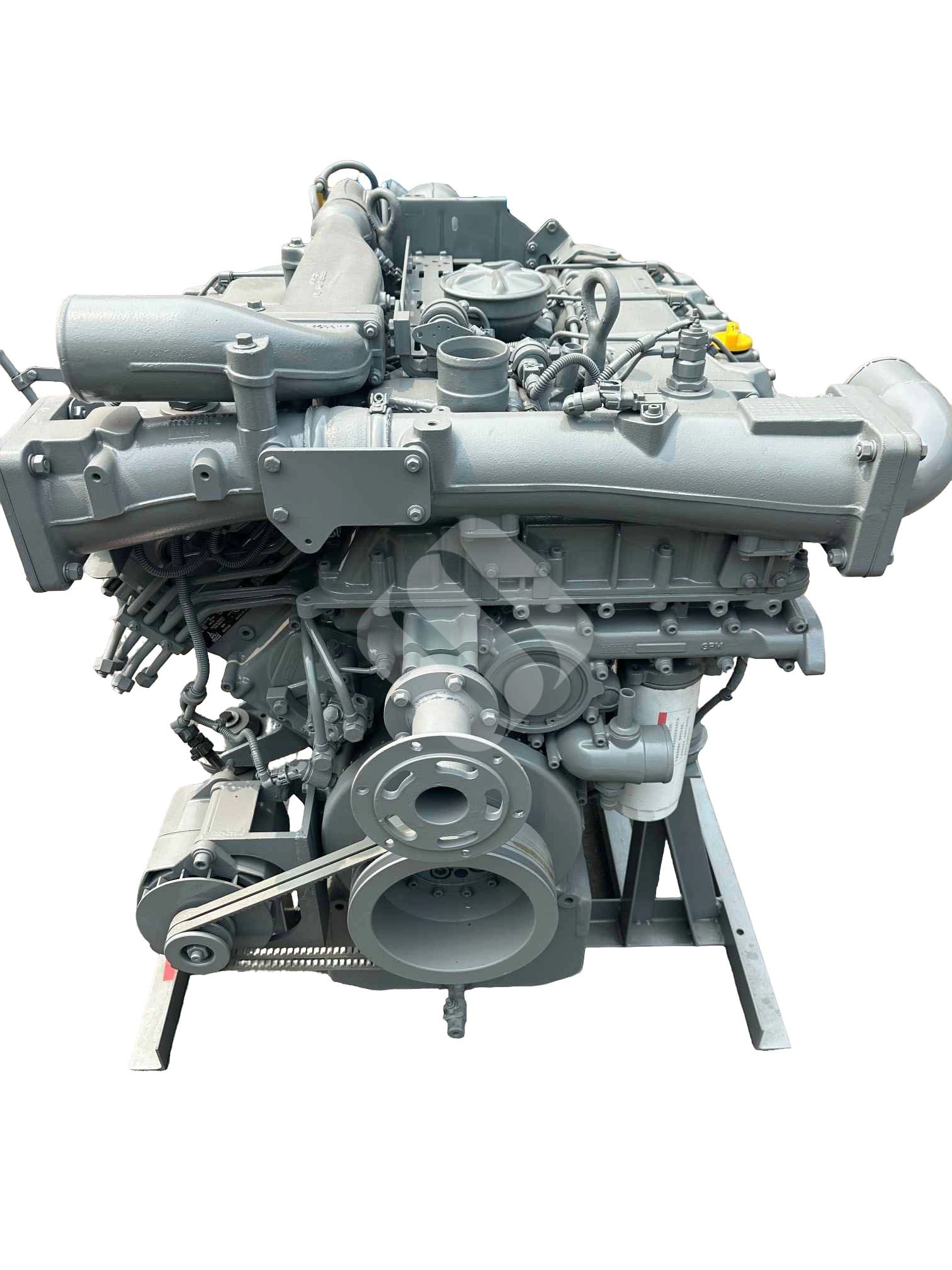

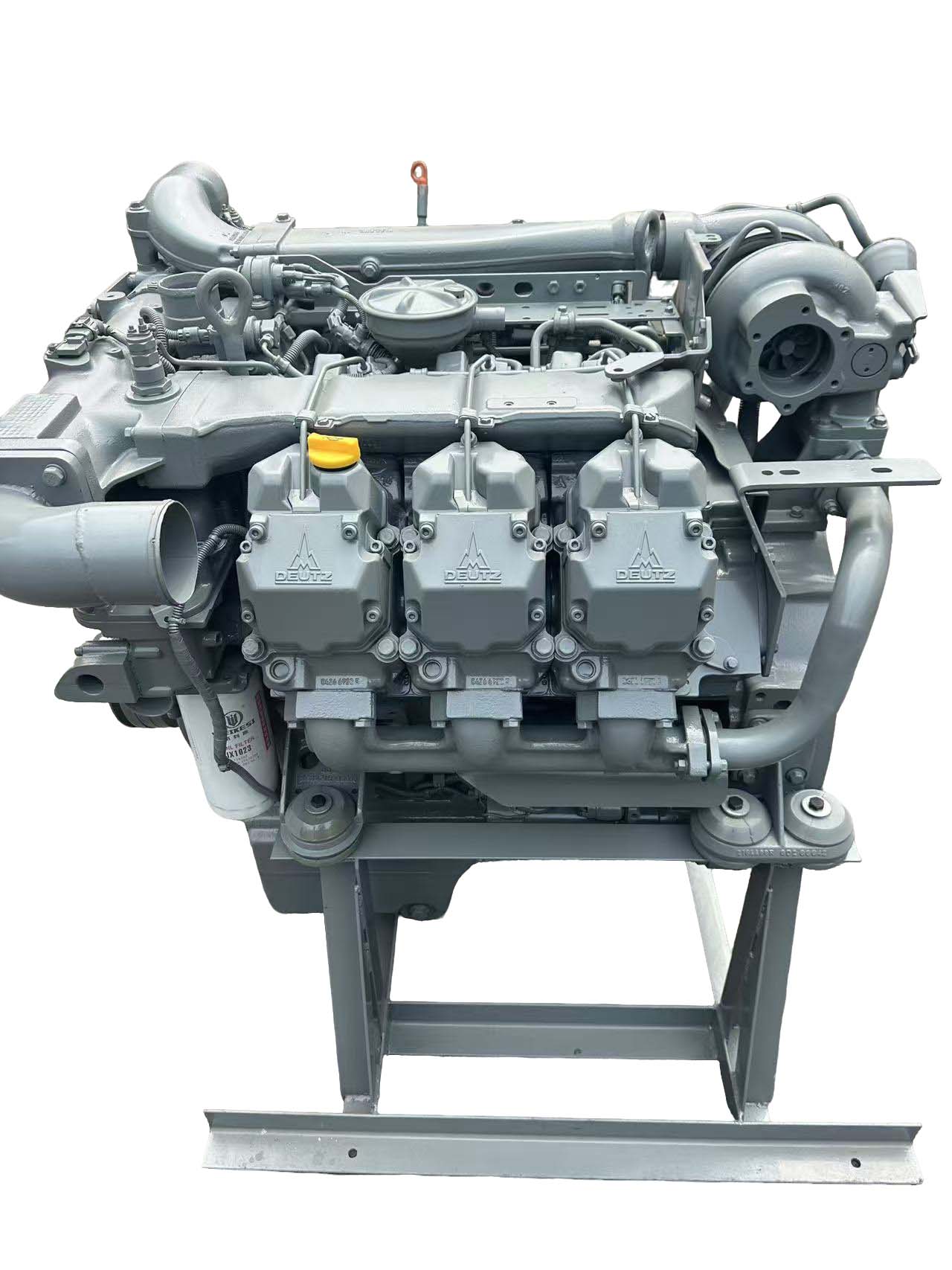

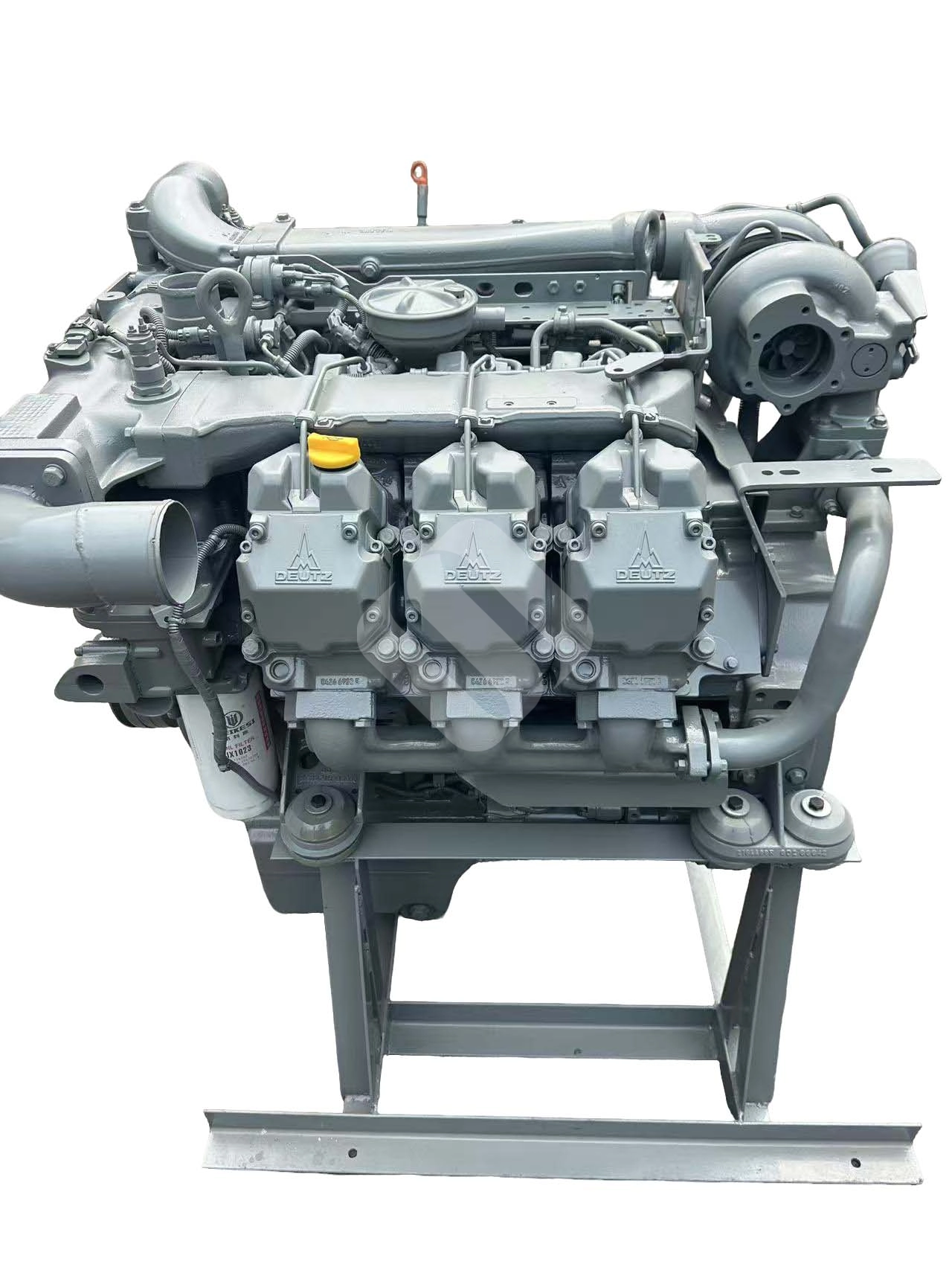

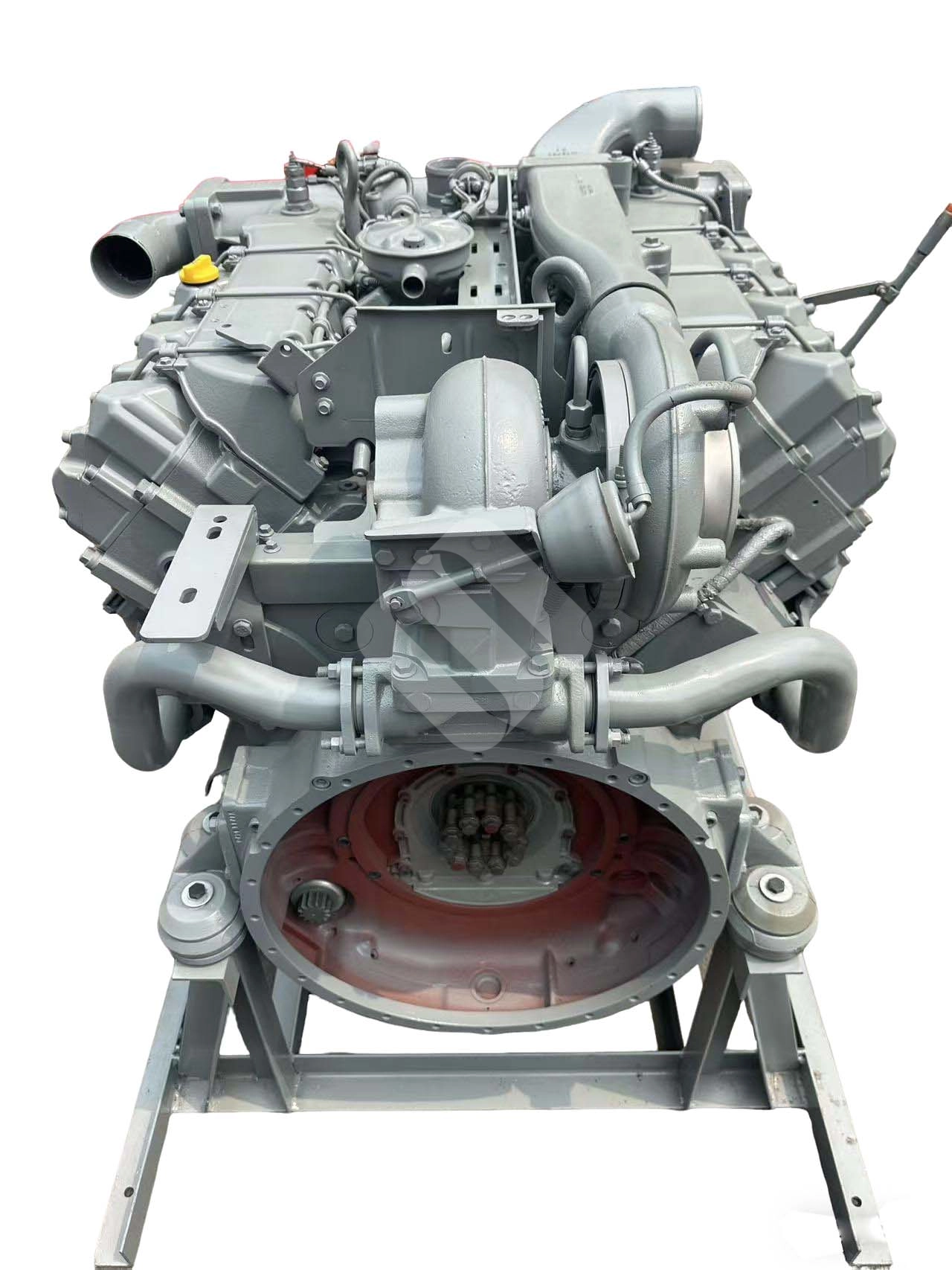

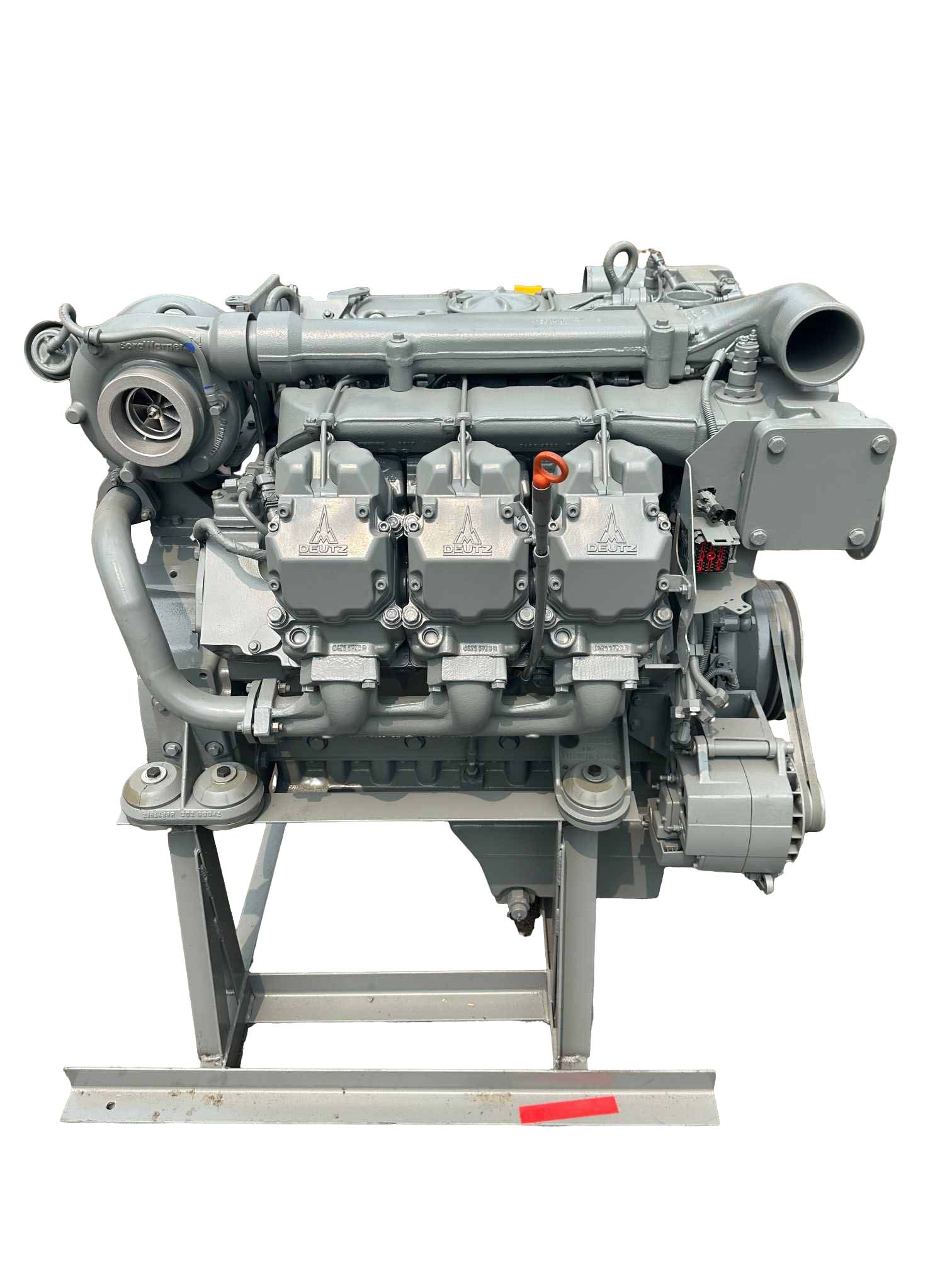

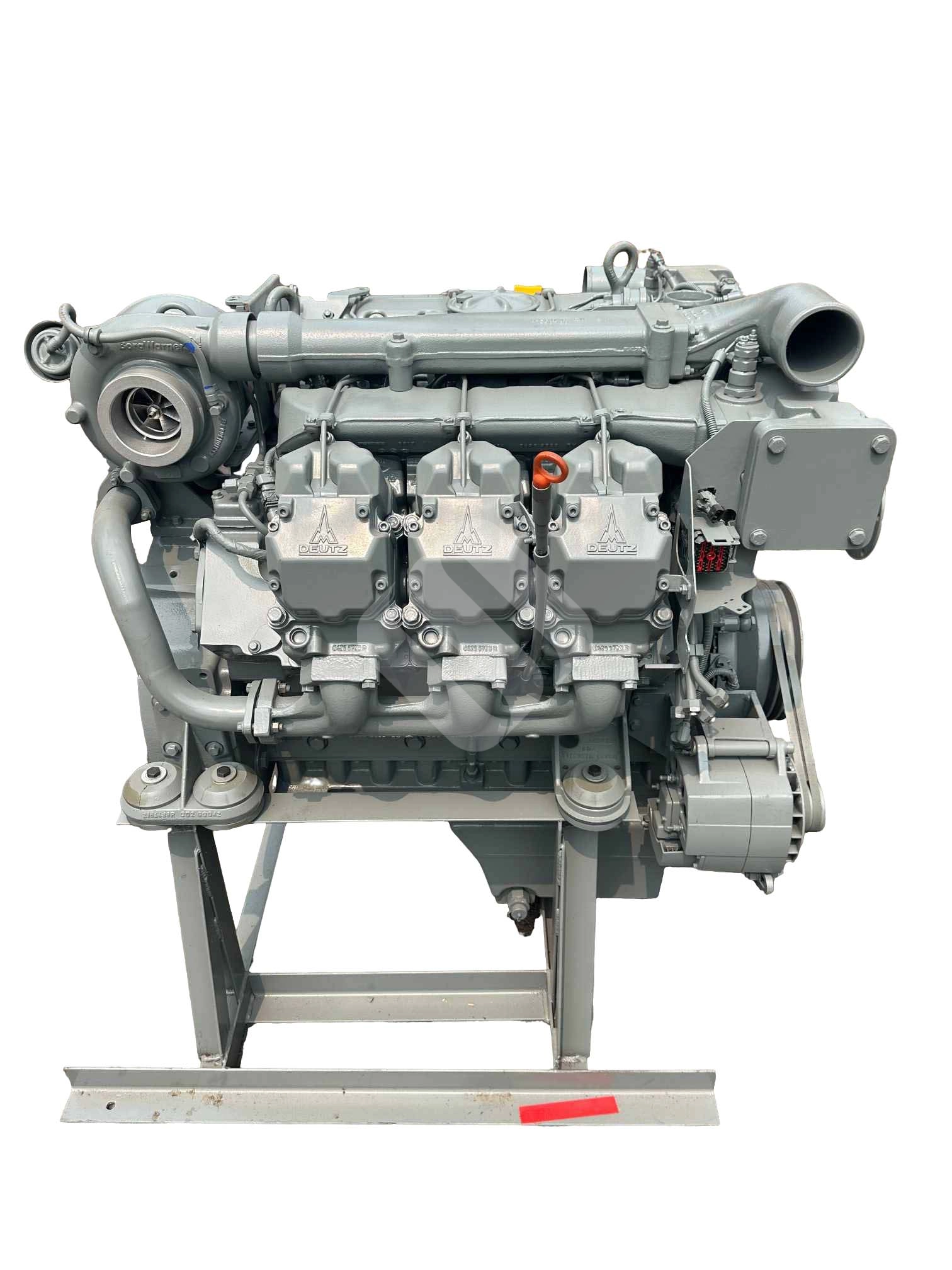

The SPARKLING MACHINERY NEW DEUTZ TCD2013V06 diesel engine Photo:
-
-
-
-
-
-
-
-
-
-
-
-
· Compact V-Design: The $90^\circ$ V-angle reduces the overall footprint, simplifying installation in mobile machinery and generator sets.
-
· Advanced Injection: Features electronically controlled individual injection pumps for each cylinder, ensuring precise fuel metering and high efficiency.
-
· Superior Torque: Delivers a massive 2000 Nm of torque at low RPMs, providing the "lugging" power needed for heavy excavation and lifting.
-
· Modular Construction: Individual cylinder heads and easy-access service points significantly reduce the time and cost associated with maintenance and overhauls.
-
· Electronic Control (EMR): The engine is fully integrated with digital monitoring systems, providing real-time data and safety shutdown features to prevent catastrophic failure.
-
-
-
-
Feature Details Engine Model TCD2015V06 Configuration $90^\circ$ V6 Cylinder, 4-Stroke Displacement 11.9 Liters Bore / Stroke 132 mm / 145 mm Aspiration Turbocharged & Intercooled Max Power Output 240 kW – 330 kW (322 hp – 442 hp) Max Torque 2000 Nm @ 1300 RPM Emission Standard US EPA Tier 3 / EU Stage IIIA Weight (Dry) Approx. 910 kg Cooling System Liquid Cooled
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Common Applications
-
-
· Heavy Construction: Large excavators, high-capacity wheel loaders, and stone crushers.
-
· Material Handling: Mobile harbor cranes and large-capacity container handlers.
-
· Mining: Underground haul trucks and specialized surface mining equipment.
-
· Power Generation: High-output stationary and mobile generator sets.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Q&A
-
Q: What is the main difference between the TCD2015 and the older 1015 series?
-
A: The TCD2015 series features upgraded electronics (EMR3), a more advanced injection system, and internal engine measures to meet Tier 3 / Stage IIIA emission standards, whereas the 1015 series is generally Tier 2.
Q: Does this engine require high-sulfur or low-sulfur diesel?
-
A: While the engine is robust, to maintain the longevity of the injection system and meet emission targets, it is recommended to use high-quality, low-sulfur diesel.
Q: Can the TCD2015V06 be used for marine applications?
-
A: Yes, there are specific marine-certified versions of this engine available, usually featuring different cooling (heat exchangers) and specialized safety equipment.
-
-
-
-
-
-
