205-1252 Engine Wiring Harness for Caterpillar C15 C16 & 385B 385C Excavator
The 205-1252 (2051252) Wiring Harness is a critical electrical assembly designed for Caterpillar C15 and C16 diesel engines. Specifically built for heavy-duty 385B and 385C Excavators, this harness ensures reliable signal transmission between the ECU and engine sensors, maintaining peak performance in extreme mining and construction environments.
Dear Valued Partners,
Thank you for choosing SPARKLING MACHINERY, your professional supplier for construction machinery brake and transmission parts.
We proudly offer the 205-1252 Engine Wiring Harness, designed for large C15/C16 engines and 385B/385C mining excavators. As the central nervous system of the engine, this harness ensures stable power supply and accurate data transmission between the ECM, sensors, injectors, and actuators.

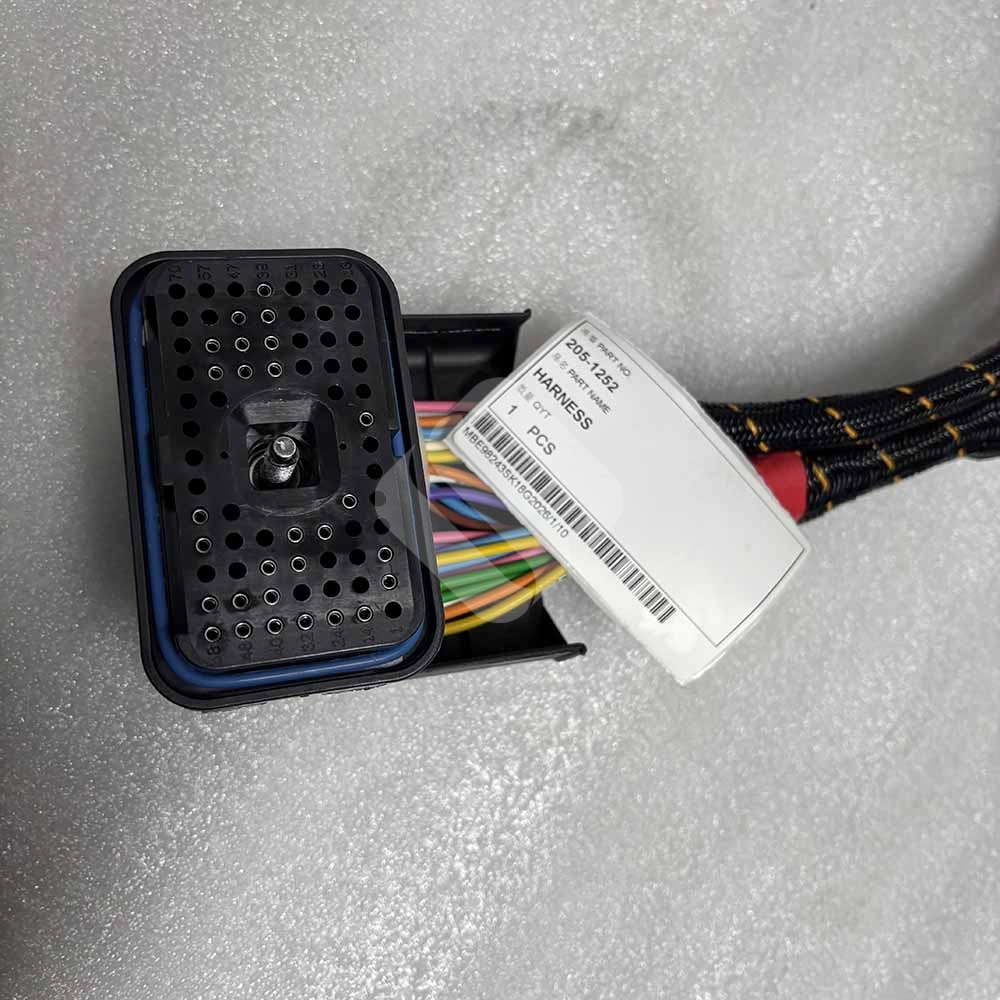

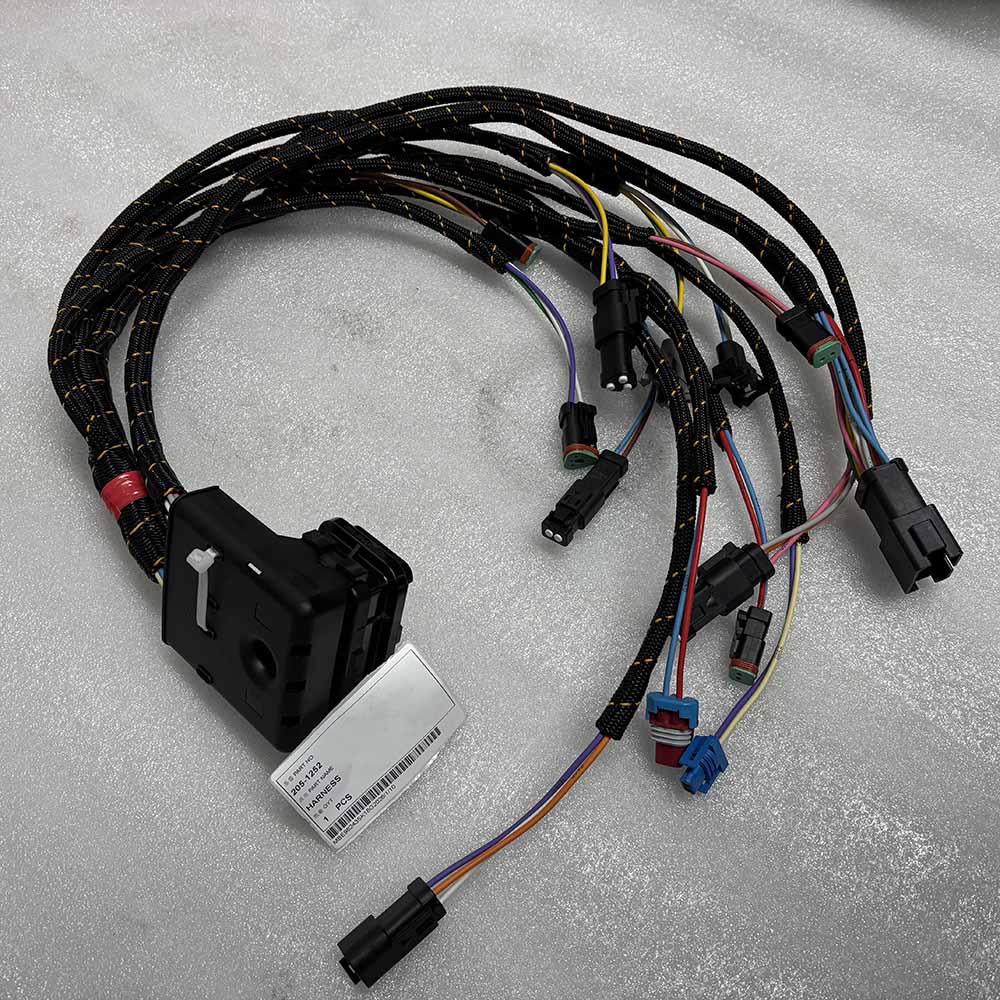

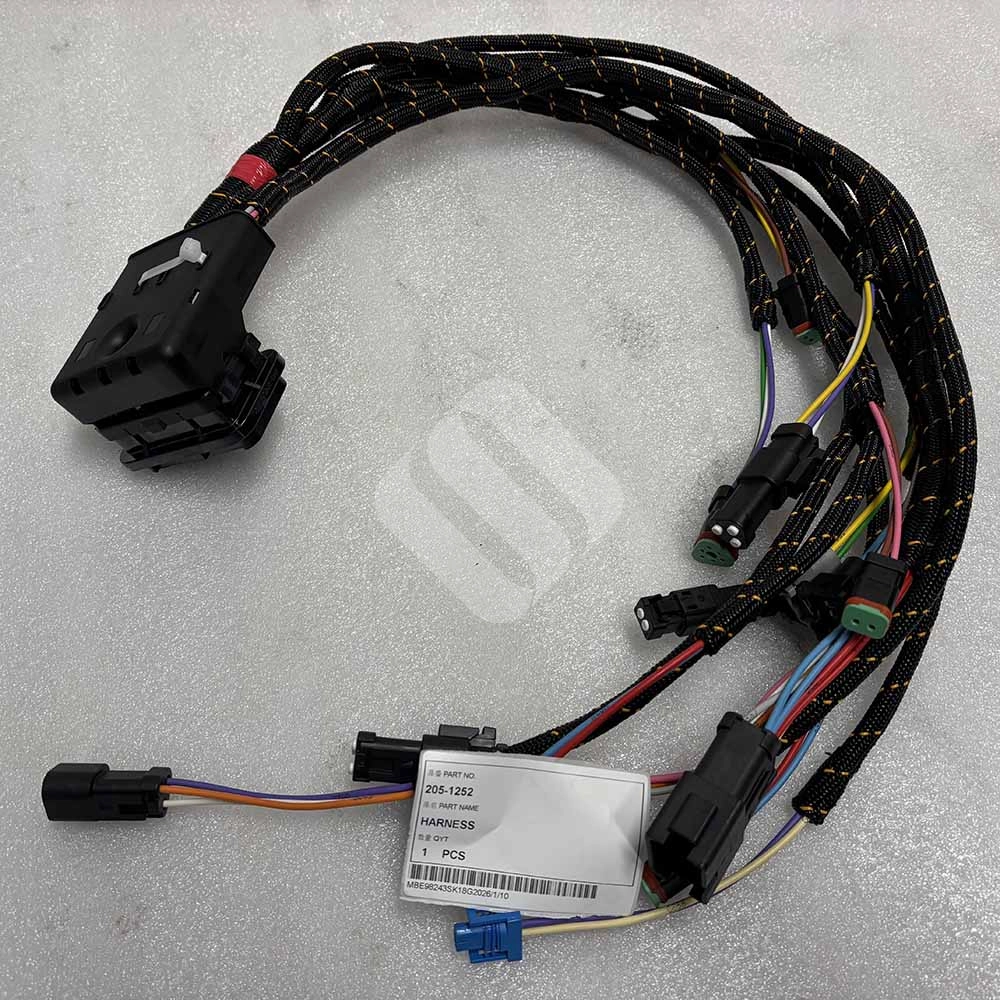

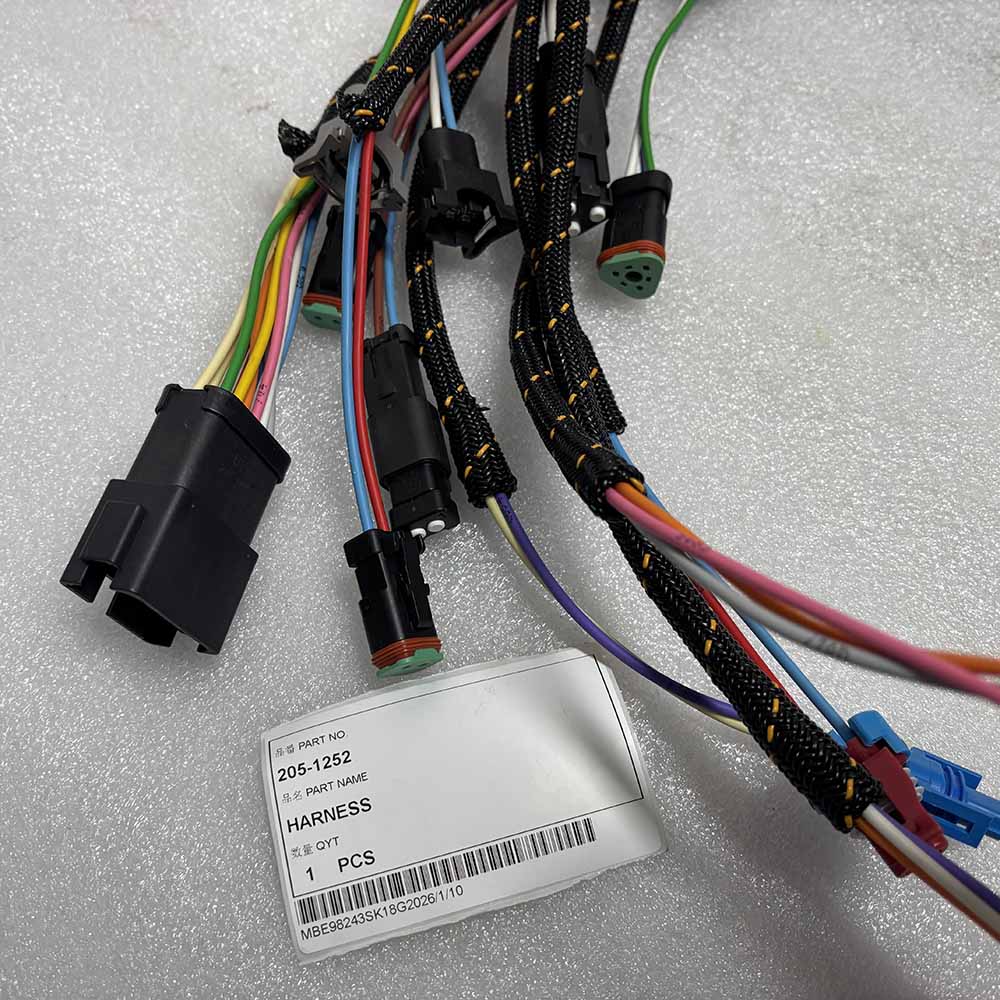

The SPARKLING MACHINERY NEW 205-1252 Harness Photo:
-
-
-
-
Heat & Oil Resistance: Constructed with high-temperature insulation and professional-grade braided looming to resist engine heat and chemical degradation.
-
Precision Connectors: Features OEM-grade gold-plated or nickel-plated terminals to prevent corrosion and ensure stable connectivity under vibration.
-
Plug-and-Play Fit: 100% matched to Caterpillar 205-1252 specifications for fast, error-free installation and reduced downtime.
-
Heavy-Duty Protection: Extra-thick casing protects internal wiring against high-frequency vibration and friction common in large-scale excavators.
-
100% Continuity Tested: Every harness undergoes rigorous electrical testing to ensure zero defects and prevent engine fault codes (CEL).
-
-
-
-
-
-
-
-
-
-
-
- Spare Parts Table for CAT 385B / 385C (C15/C16 Engine)：
-
-
-
-
-
-
-
| Category | Description | Part Number |
| Fuel System | Fuel Injector (C15) | 211-3023 / 10R-1273 |
| Sensors | Boost Pressure Sensor | 194-6724 |
| Sensors | Camshaft Speed Sensor | 191-8305 |
| Cooling | Engine Water Pump | 161-5719 |
| Turbo | Turbocharger Assembly | 231-6616 / 232-1811 |
Q&A
-
Q1: Does this harness include the injector plugs?
-
A: Yes, the 205-1252 is a comprehensive engine-side harness that includes all necessary connectors for the injectors and primary engine sensors.
Q2: Will this part solve "Intermittent Signal" or "Sensor Fault" codes?
-
A: If your current codes are caused by brittle or cracked original wiring, this high-quality replacement will restore proper communication and clear those fault codes.
Q3: Is this an original CAT part or aftermarket?
-
A: We offer both Premium Aftermarket versions (manufactured to OEM standards) and Genuine CAT options. Please specify your preference when requesting a quote.
-
📦 Packing
1. Packaging methods: Carton box + Wooden case/Pallet + Anti-rust treatment
2. Export-standard packaging to ensure safety during transportation
3. Custom packaging available upon request
4. Dimensions and weight can be provided for freight calculation
🚚 Shipping
1. Available shipping methods: Sea freight, Air freight, Express delivery (DHL, UPS, FedEx, etc.)
2. LCL (Less than Container Load) and FCL (Full Container Load) options are supported
3. For Russian clients, we can introduce the forwarder agent to you
4. Delivery time: Ships within 1-3 working days after payment (for items in stock)
💳 Payment
1. Accepted methods: T/T, Bank Transfer, PayPal, Alipay, WeChat Pay, Western Union
2. Deposit + balance payment available for large or custom orders
3. Flexible payment options—feel free to contact us for details
📌 Frequently Asked Questions (FAQs)
Q: Which excavator models is this part compatible with?
A: This product is compatible with major brands such as CAT, KOMATSU, HITACHI, and more. Custom specifications are also available.
Q: How can I make sure I’m selecting the correct part?
A: You can send us a photo of the old part, part number, or your excavator model, and we will help you confirm the right match.
Q: Is there a warranty for this product?
A: Yes, we offer a 6-month quality guarantee under normal use.
