DEUTZ BF6M1013EC Diesel Engine | 7.15L 6-Cylinder Turbocharged Intercooled Motor
The DEUTZ BF6M1013EC is a water-cooled, 6-cylinder inline engine featuring turbocharging and charge air cooling (intercooling). With a massive 7.15-liter displacement, it is engineered for heavy-duty applications that demand high continuous power and extreme durability.
Utilizing the proven DEUTZ Unit Pump System (UPS), this engine offers superior fuel atomization, resulting in lower emissions and high fuel efficiency. Its modular design and high degree of parts commonality with the 4-cylinder version make it a cost-effective choice for fleet owners.
Dear Valued Partners,
Thank you for choosing SPARKLING MACHINERY, your professional supplier for construction machinery brake and transmission parts.

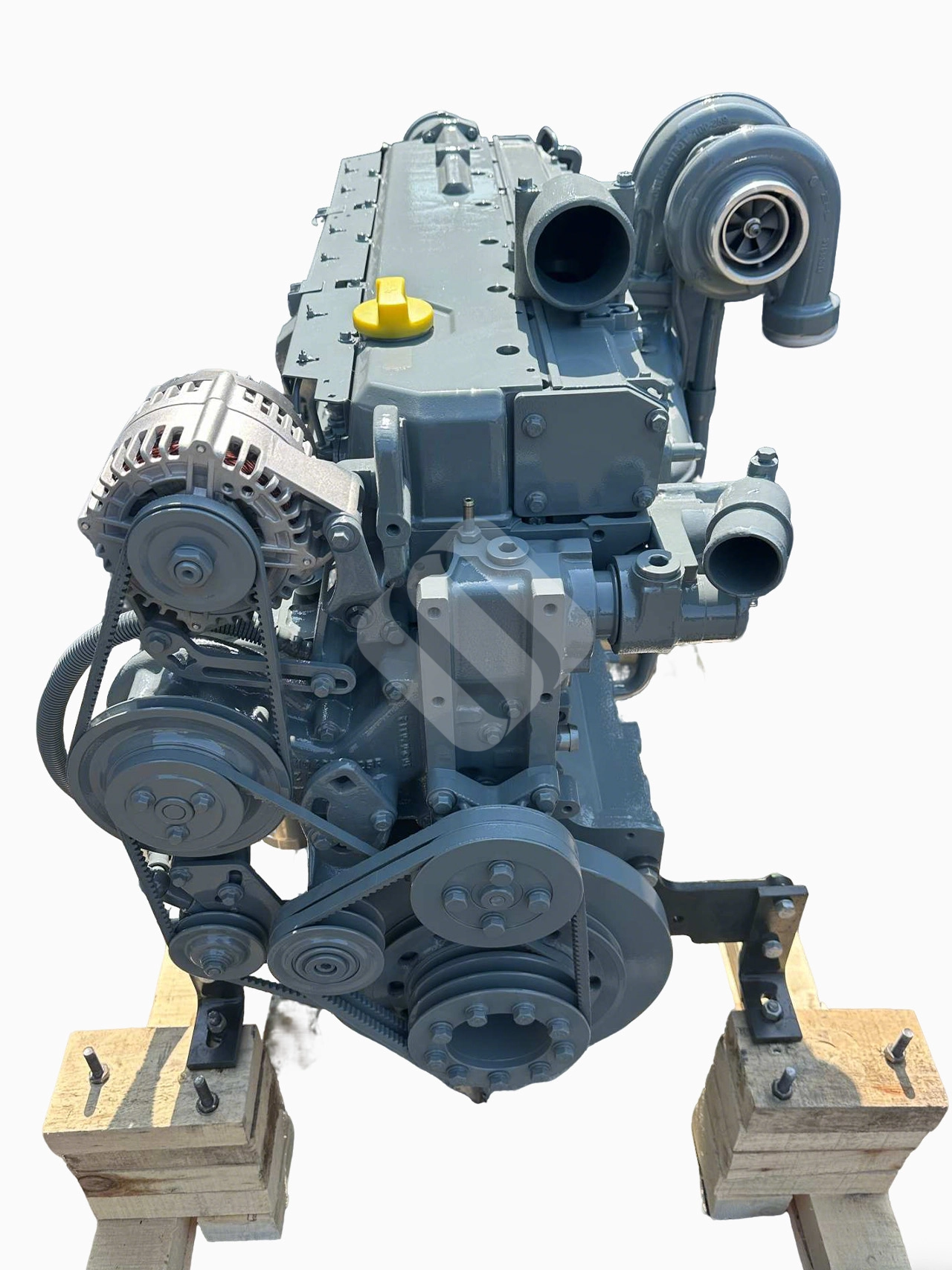

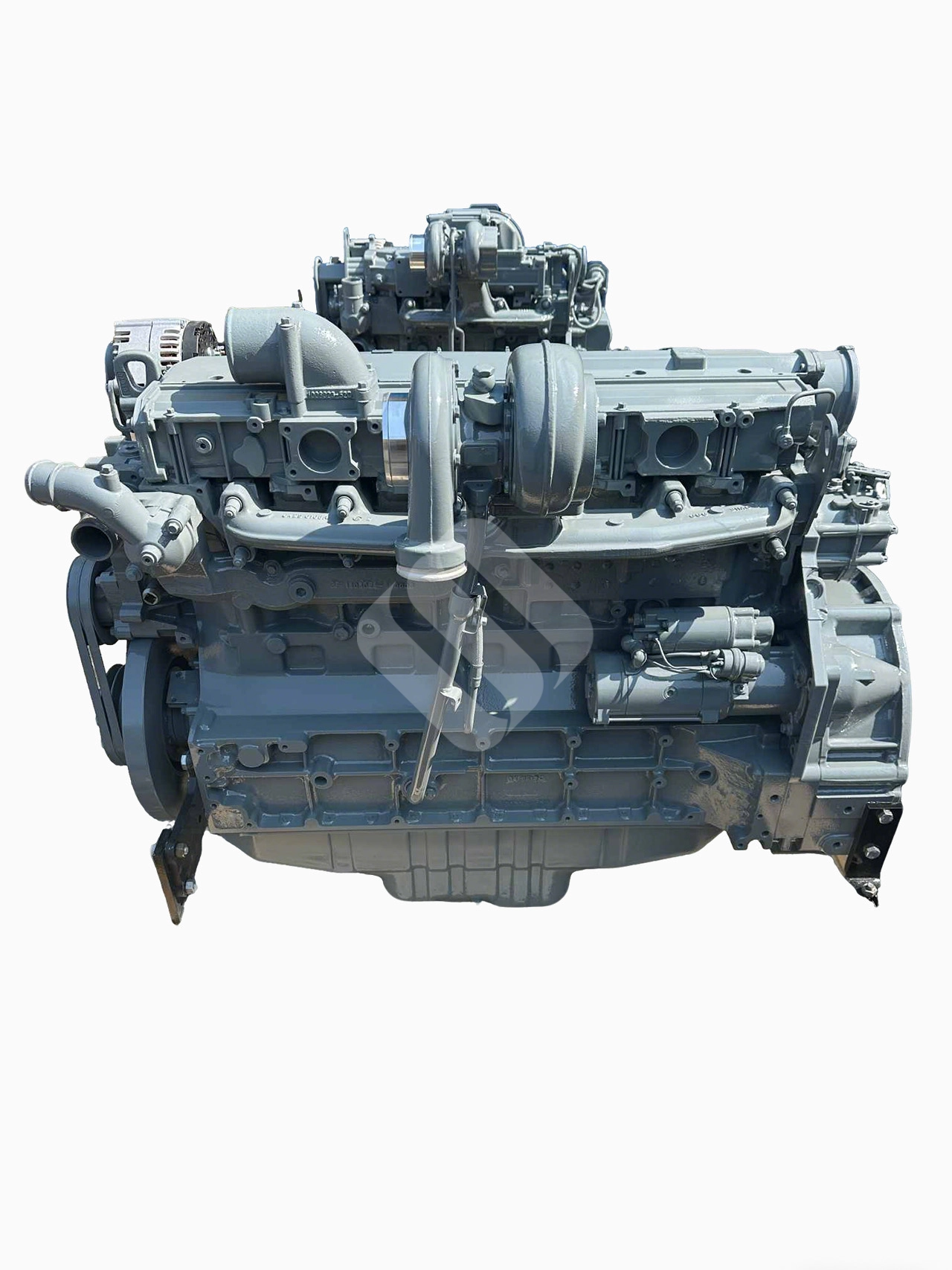

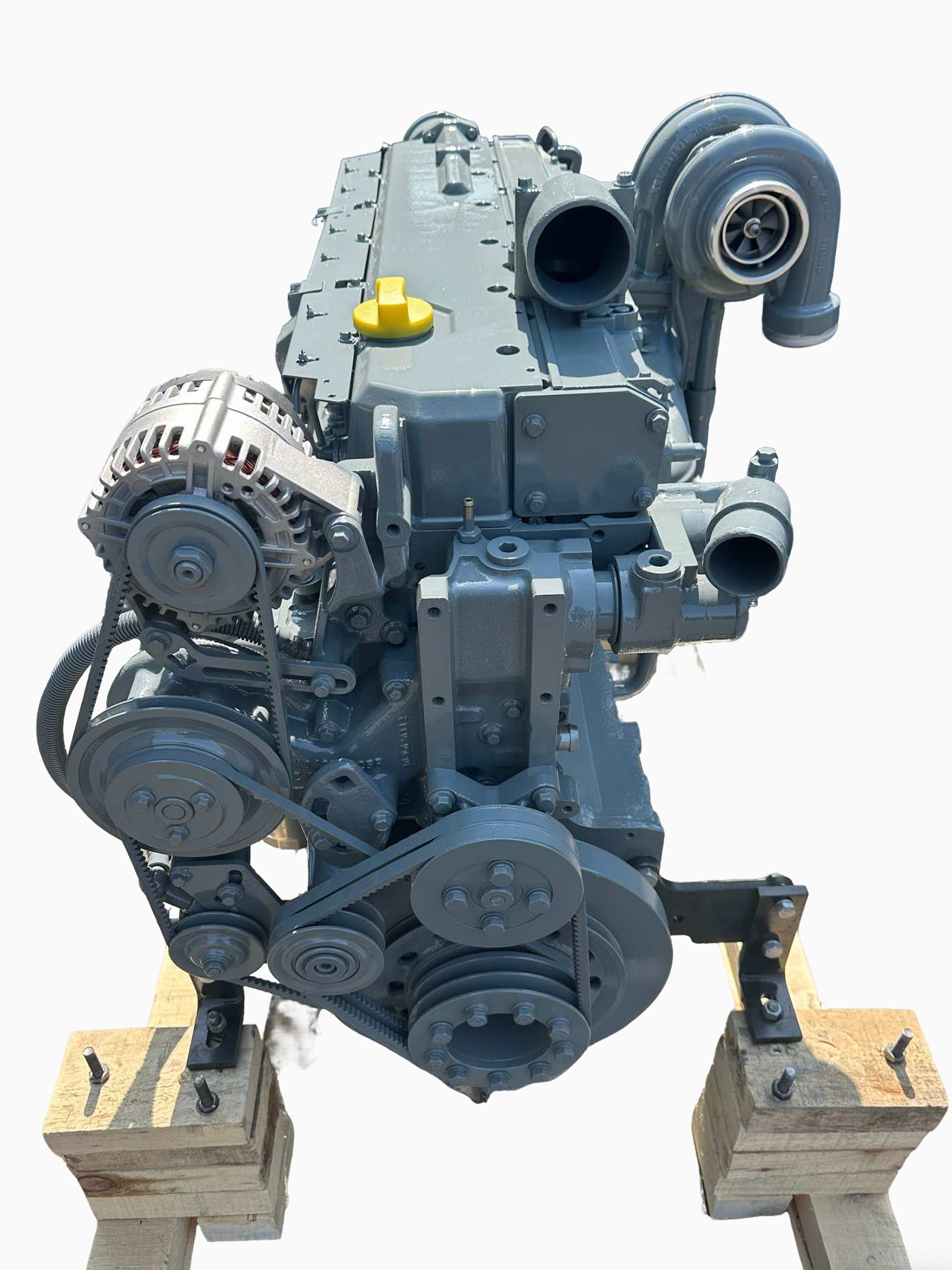

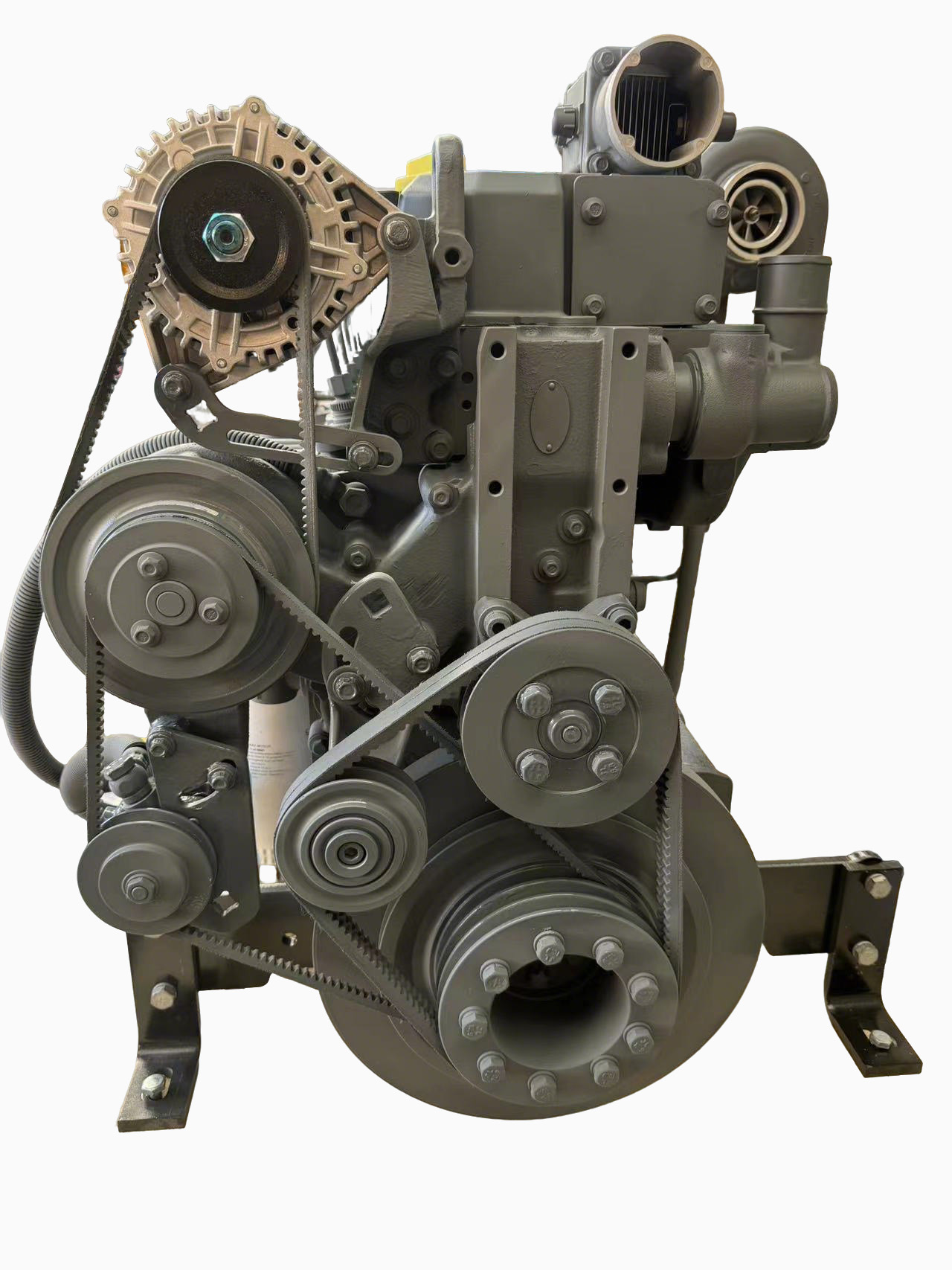

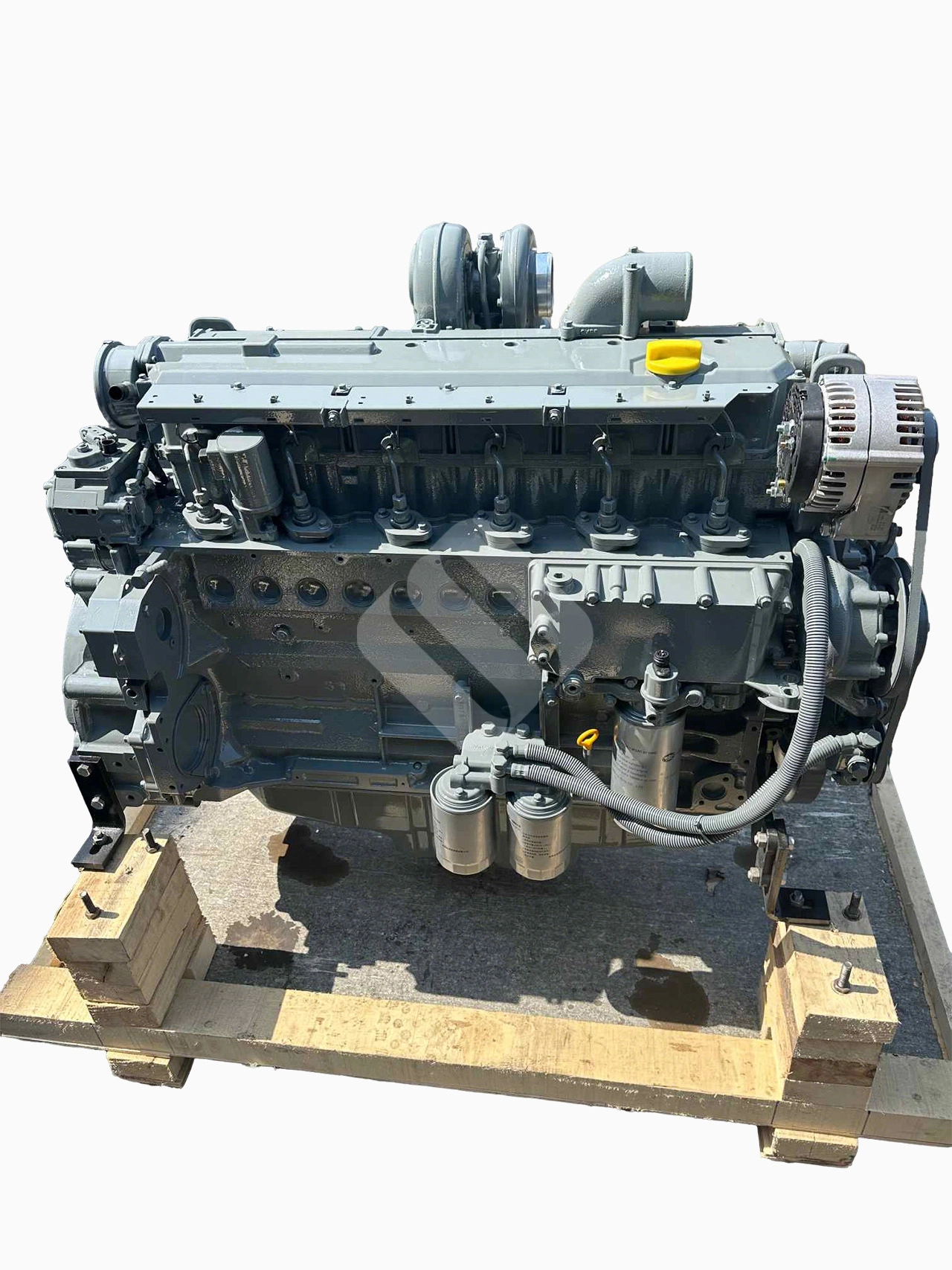

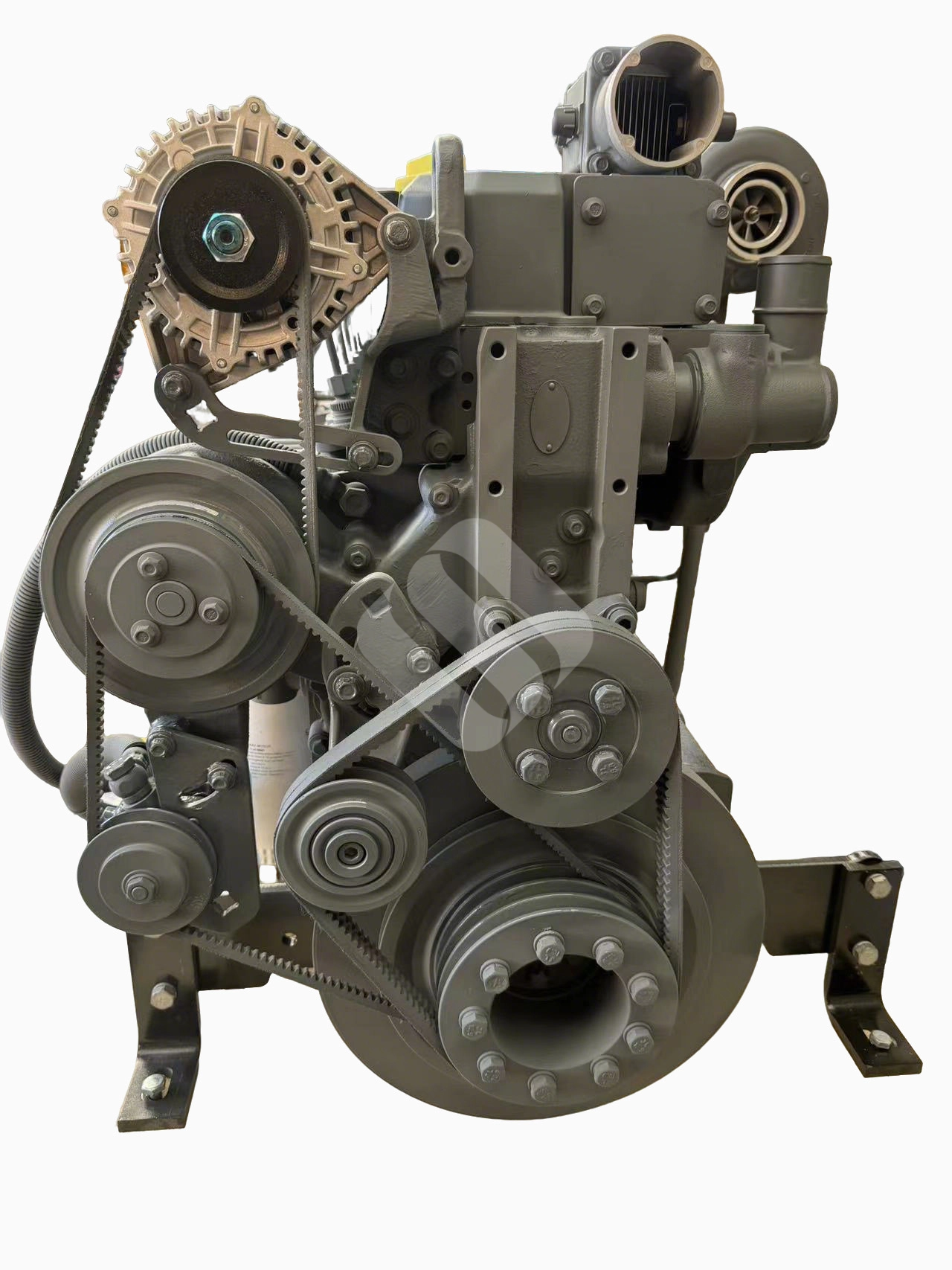

The SPARKLING MACHINERY NEW DEUTZ BF6M1013EC diesel engine Photo:
-
-
-
-
-
-
-
-
-
-
-
-
-
-
· High Torque Reserves: Exceptional low-end torque (1050 Nm) provides the "lugging" power needed for heavy excavation and climbing steep grades.
-
· Advanced Fuel Injection: Individual high-pressure unit pumps for each cylinder ensure optimal performance even under fluctuating loads.
-
· Low Operating Costs: Long service intervals and a design focused on easy access to maintenance points reduce total cost of ownership.
-
· Robust Engine Block: Noise-optimized, high-strength cast iron block reduces vibration and extends the mechanical life of the engine.
-
· Integrated Cooling Option: Available with a space-saving integrated cooling system for easier installation in diverse equipment frames.
-
-
-
-
-
-
Feature Details Engine Model BF6M1013EC Configuration Inline 6-Cylinder, 4-Stroke Displacement 7.15 Liters Bore / Stroke 108 mm / 130 mm Aspiration Turbocharged & Intercooled (CAC) Max Power Output 190 kW (255 hp) @ 2300 RPM Max Torque 1050 Nm @ 1400–1500 RPM Cooling System Liquid Cooled Weight (Dry) Approx. 570 kg
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Common Applications
The BF6M1013EC is a staple in the heavy equipment industry:
-
· Excavators: Volvo EC240B, EC290B, and SANY heavy excavator series.
-
· Construction: Large asphalt pavers, high-capacity crushers, and screeners.
-
· Power Generation: 150kVA to 250kVA generator sets (G-Drive).
-
· Agriculture: High-horsepower harvesters and specialized tractors.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Q&A
-
Q1: What is the fuel consumption like for the BF6M1013EC?
-
A: Thanks to the Unit Pump System and intercooling, this engine is highly efficient for its size, typically consuming approx. 200-210 g/kWh at optimum load.
Q2: How does the "EC" version differ from the "FC" version?
-
A: The EC version is the standard high-performance intercooled model. The FC version is often a higher-rated power variant (up to 223kW) used in applications requiring even more extreme output, often featuring different turbocharger mapping.
Q3: Is this engine compliant with modern emission standards?
-
A: The BF6M1013EC is generally compliant with Euro II / Tier 2 standards. It is a mechanical-injection-based engine, making it ideal for markets where high-sulfur fuel is common or where electronic complexity needs to be minimized.
-
-
-
-
-
-
