VOE14726298 Control Panel Printed Circuit Board for Volvo EC380D, EC480D
The VOE14726298 Main Display & Switch Matrix Printed Circuit Board (PCB) is a high-grade cabin electronic control board engineered specifically for Volvo D-Series crawler excavators and heavy pipelayers.
Compatible Models and Main Function
Volvo excavator models:
· EC140DL / EC170D / EC180D
· EC200D / EC220DLEC250DL / EC300DL
· EC350DL / EC380DL / EC480DL
Thank you for choosing SPARKLING MACHINERY.
The VOE14726298 printed circuit board is manufactured using high-grade multi-layer substrate materials engineered to withstand the harsh environment inside a heavy production excavator. To cope with continuous diesel engine vibrations and intense ambient temperature shifts, the board features heavy-duty solder joints, surface-mounted components, and an insulated protective coating. Replacing a cracked or burnt-out board fixes unresponsive switches, restores erratic cabin functions, and stops communication errors on the main dashboard screen.

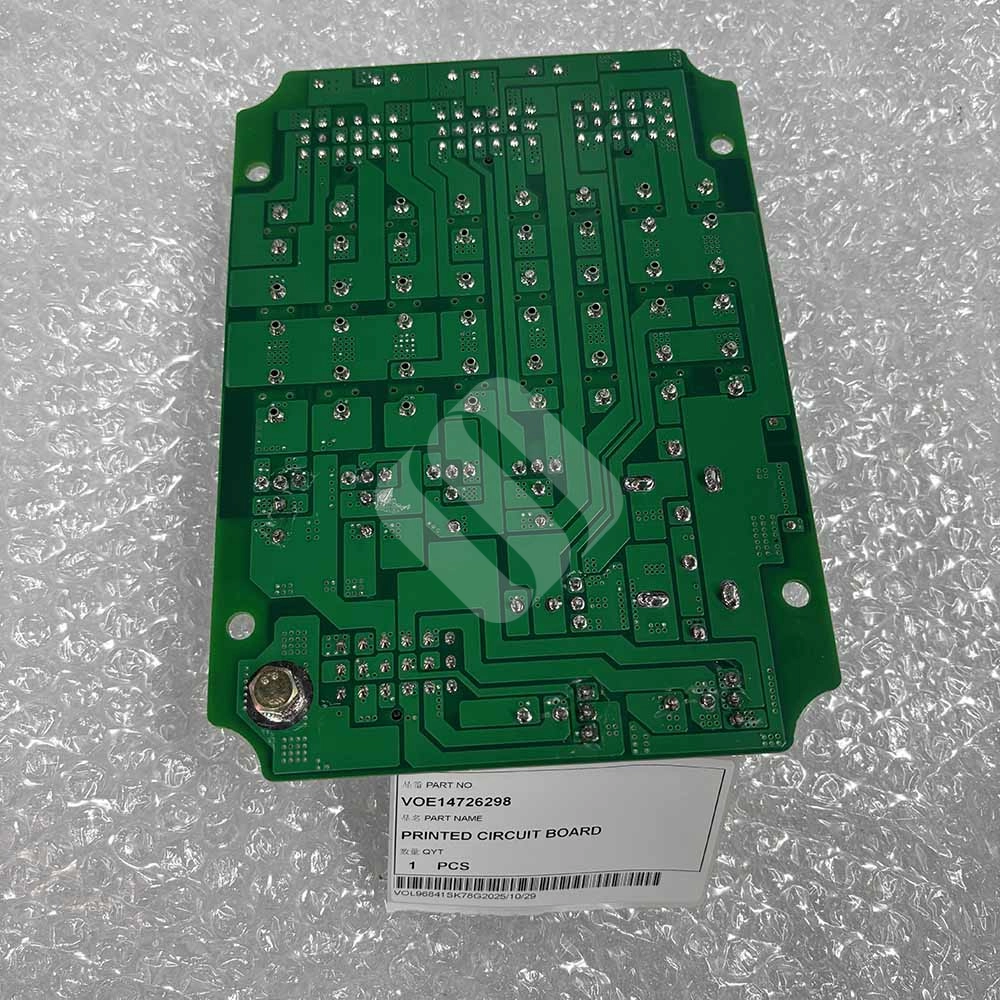

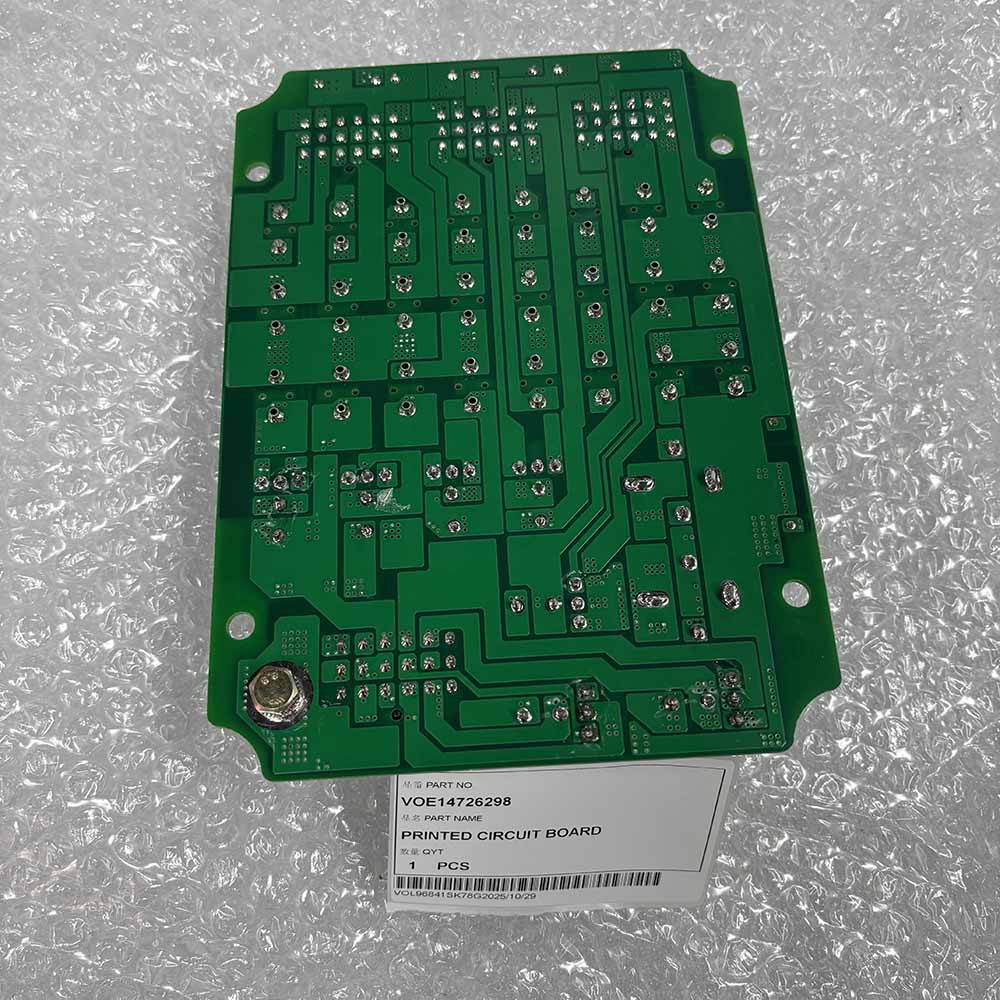

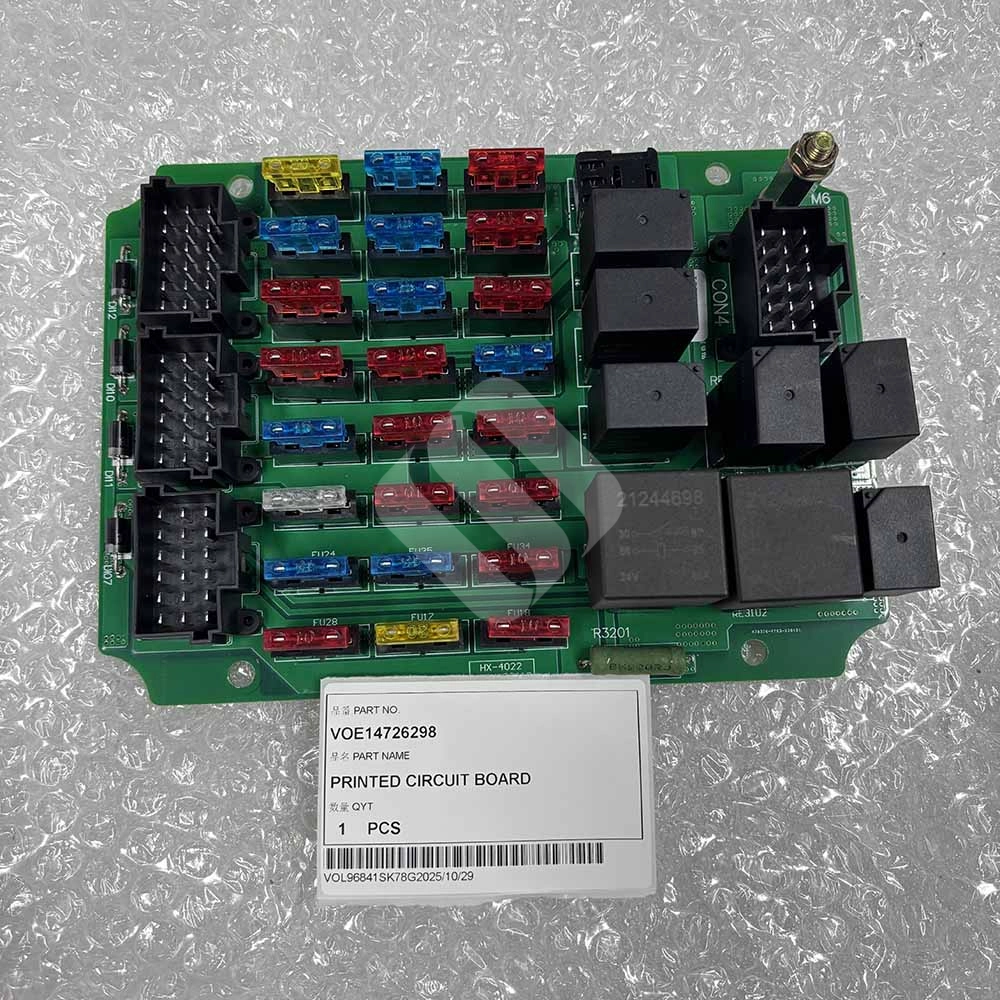

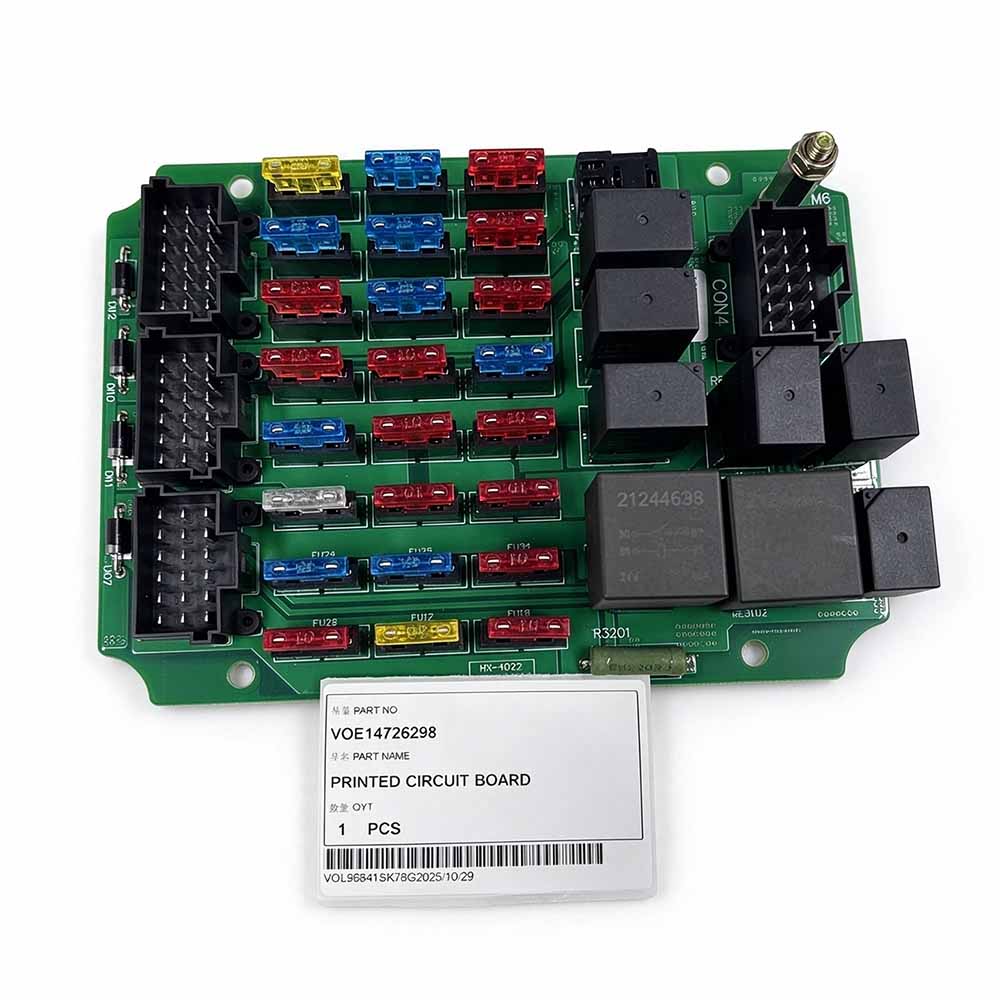

The SPARKLING MACHINERY NEW VOE14726298 Printed Circuit Board Photo:
Why choose the SPARKLING NEW EC480D EC380D EC300D EC250D EC220D PL3005D VOE14726298 Printed Circuit Board?
-
- Conformal Protective Coating: Shielded with an anti-moisture coating that locks out humid air, fine cabin floor dust, and corrosion from spilled drinks.
-
- Gold-Plated Keypad Contacts: Engineered with premium contact pads to ensure zero-resistance signal transmission every time a button is pressed.
-
- High Vibration Resilience: Built with reinforced mounting holes and vibration-dampened circuitry elements to prevent hairline micro-cracks from structural track shock.
-
- Direct Pin-to-Pin Integration: Features a factory-matched wire harness plug location for a true plug-and-play install into the original console box housing.
FAQ
What are the main warning signs that the cabin console circuit board is failing?
The most common indicators are when multiple buttons in a single console section suddenly stop working, or when a button activates a completely different function than intended. You may also experience intermittent power drops where the console panel goes completely dead and then turns back on after hitting a rough bump, or see CAN-bus data communication fault codes on your main gauge display.
What causes heavy equipment circuit boards like the VOE14726298 to short out or burn?
The primary culprits are liquid intrusion and voltage surges. If water leaks past the cab door seals or an operator accidentally spills a beverage directly onto the console switches, the liquid can seep down onto the live board, causing a dead short. Additionally, jump-starting the machine incorrectly or a failing alternator voltage regulator can send an electrical spike through the harness, frying delicate micro-components.
Is any special software programming required after installing this new board?
For standard physical switch matrix boards like the VOE14726298, the unit acts as a hardware encoder and typically does not require dedicated system reprogramming or flashing. However, always turn off the main battery disconnect master switch before installation. Swapping electronic components while live battery power is coursing through the harness can cause accidental static discharge or arc short circuits.
-
📦 Packing
1. Packaging methods: Carton box + Wooden case/Pallet + Anti-rust treatment
2. Export-standard packaging to ensure safety during transportation
3. Custom packaging available upon request
4. Dimensions and weight can be provided for freight calculation
🚚 Shipping
1. Available shipping methods: Sea freight, Air freight, Express delivery (DHL, UPS, FedEx, etc.)
2. LCL (Less than Container Load) and FCL (Full Container Load) options are supported
3. For Russian clients, we can introduce the forwarder agent to you
4. Delivery time: Ships within 1-3 working days after payment (for items in stock)
💳 Payment
1. Accepted methods: T/T, Bank Transfer, PayPal, Alipay, WeChat Pay, Western Union
2. Deposit + balance payment available for large or custom orders
3. Flexible payment options—feel free to contact us for details
📌 Frequently Asked Questions (FAQs)
Q: Which excavator models is this part compatible with?
A: This product is compatible with major brands such as CAT, KOMATSU, HITACHI, and more. Custom specifications are also available.
Q: How can I make sure I’m selecting the correct part?
A: You can send us a photo of the old part, part number, or your excavator model, and we will help you confirm the right match.
Q: Is there a warranty for this product?
A: Yes, we offer a 6-month quality guarantee under normal use.
