How a High-Performance Oil Cooler Extends JCB Engine Life

Summary for : The 333/C3850 engine oil cooler is a high-performance replacement oil cooler for JCB JS210 (also compatible with JS200 and JS220) that maintains optimal oil temperature, prevents oil oxidation and viscosity breakdown, and reduces wear on bearings, pistons, and turbochargers. Designed to OEM matched precision with a 12-row fin aluminum core and 10-bar pressure testing, this oil cooler offers superior heat dissipation and durability for heavy-duty excavator applications.

Why oil temperature control matters for JCB excavator engines

Engine oil cooler: the unsung protector of engine life

The engine oil cooler is a critical component in the cooling chain. Its job is to extract excess heat from engine oil so the lubricant maintains proper viscosity and chemical stability. When oil runs too hot, it oxidizes faster and loses its ability to protect metal surfaces, resulting in increased wear of bearings, camshafts, piston rings, and turbocharger bearings. For heavy machinery like JCB JS210 excavators that operate under continuous load, maintaining stable oil temperature directly translates into longer engine life and reduced downtime.

Consequences of poor oil temperature control

Excessive oil temperature leads to several interrelated problems: accelerated oil oxidation, viscosity breakdown (thinning), formation of varnish and sludge, and reduced film strength. These changes increase metal-to-metal contact and wear. Research and industry analyses (see Machinery Lubrication on oil oxidation and temperature) show that oil life is highly dependent on operating temperature—every 10°C rise can significantly accelerate oxidation reactions that degrade oil performance (Machinery Lubrication).

How the 333/C3850 oil cooler design improves performance

OEM-matched precision for plug-and-play replacement

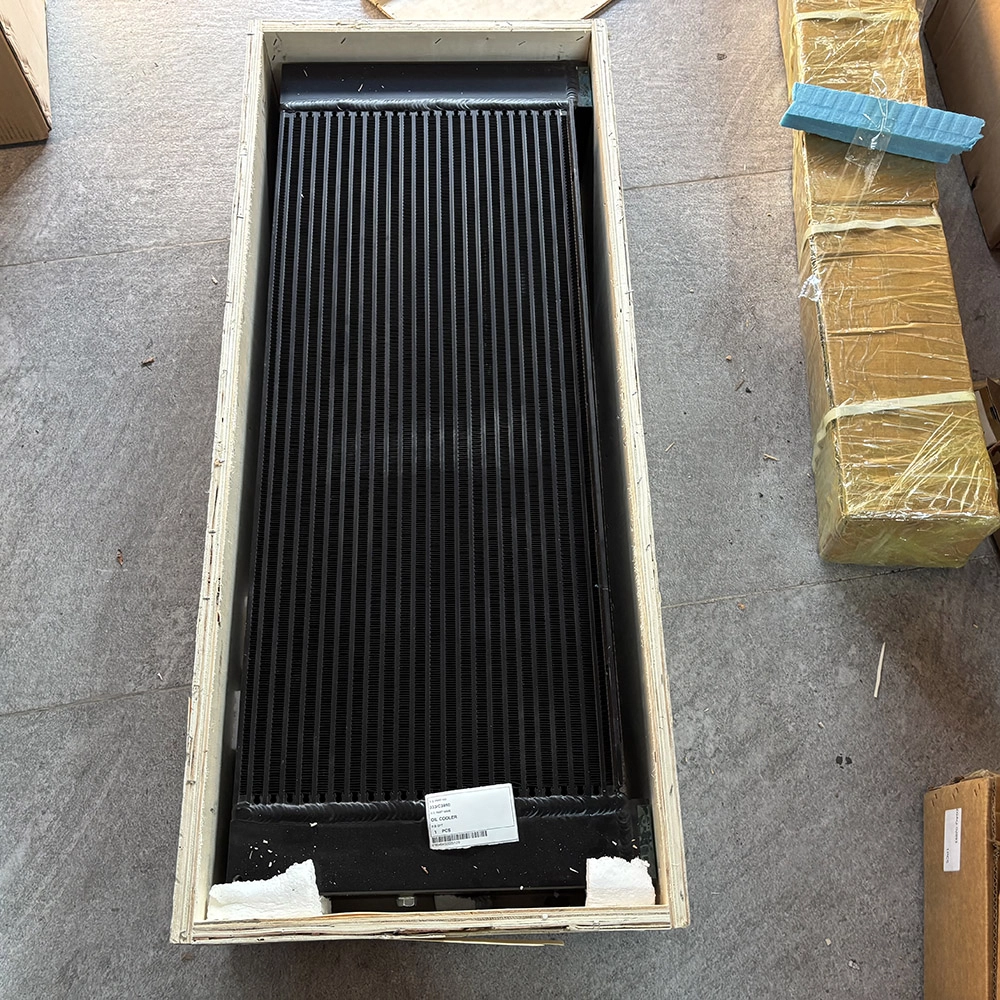

The 333/C3850 Engine Oil Cooler for JCB Excavator JS210 | High-Performance Replacement Oil Cooler is manufactured to match core size, mounting hole positions, and oil inlet/outlet interfaces of the original unit. This ensures a plug-and-play installation without modification. Correct fitment prevents installation-induced leaks and flow restrictions that could otherwise reduce heat transfer efficiency and increase oil temperature.

Superior heat dissipation: materials and fin design

Heat transfer performance depends on material thermal conductivity and surface area. The 333/C3850 uses a high-quality aluminum alloy core and tubes, materials with excellent thermal conductivity. Its 12-row fin design increases surface area for air-side convection, improving heat rejection even under heavy-duty working conditions. Aluminum cores also reduce conductive resistance between oil and ambient air, helping maintain a stable oil temperature during prolonged operation.

Durability and pressure integrity

The core is pressure-tested to 10 bar to ensure oil leak prevention under pressure spikes. An anti-corrosion surface coating protects against dust, moisture, and chemicals commonly encountered on construction sites. Durable construction reduces the risk of leaks that can contaminate oil or reduce cooling performance, extending both oil and engine service life.

Real-world benefits: performance, maintenance, and cost

Reduced wear and extended component life

Keeping oil within an optimal temperature window preserves additive chemistry and viscosity, which maintains a robust lubricating film on bearings, piston skirts, and cam followers. This reduces metal fatigue and scoring, and delays component failure. For JCB JS210 and similar excavators, the impact can be substantial: fewer forced replacements of turbochargers, bearings, and seals, and extended intervals between major overhauls.

Improved uptime and lower operating costs

An effective engine oil cooler reduces the frequency of oil changes (by slowing oxidation) and minimizes unplanned downtime due to overheating-related failures. For fleet operators, this translates to higher machine availability and lower total cost of ownership (TCO). A high-performance replacement like the 333/C3850 helps maintain oil temperature stability even in hot ambient climates or during long heavy-load cycles, typical in construction and quarry applications.

Case comparison: stock oil cooler vs 333/C3850

Installation, maintenance, and diagnostics

Installation best practices

Even a high-quality cooler requires correct installation to perform. Follow these steps: ensure the oil passages are flushed before fitting the new cooler to avoid debris lock, confirm all mounting holes and gaskets are OEM-compatible (the 333/C3850 is designed for direct fitment with JCB JS210/JS200/JS220), and torque fittings to manufacturer specifications to prevent leaks. After installation, start the engine and check for leaks and correct oil pressure and temperature behavior.

Monitoring oil temperature and health

Use the excavator's oil temperature gauge and -- where available -- oil analysis (spectrometric oil analysis, viscosity check, and acid number) to monitor oil condition. Frequent high oil temperatures, rapid viscosity loss, and rising oxidation/acid numbers indicate the cooling system or oil quality is compromised. Industry resources emphasize the importance of oil analysis for predictive maintenance (ISO standards and guidance).

Common signs of a failing oil cooler

Watch for the following: unexplained oil temperature increases under normal load, oil contamination (coolant in oil or oil in coolant), sudden drops in oil pressure, visible leaks around oil cooler connections, and engine overheating episodes. If any of these appear, inspect and, if necessary, replace the oil cooler with a quality replacement like the 333/C3850 to restore proper cooling function.

Compatibility and selection guidance for JCB excavators

Which machines fit the 333/C3850?

The 333/C3850 Engine Oil Cooler is specifically designed for the JCB JS210 excavator and is also compatible with JS200 and JS220 models. Interchangeable part numbers include 333/C3850, 333C3850, and 333/J7193, making it straightforward to source the correct unit for these machines.

How to choose a replacement oil cooler

Select a cooler that matches core dimensions, mounting points, and inlet/outlet interfaces to avoid installation issues. Consider material quality (aluminum alloy is preferred for thermal conductivity), fin density (higher rows can improve heat rejection), and manufacturing quality (pressure testing and protective coatings). The 333/C3850 meets these criteria and is designed for heavy-duty excavator environments.

When to replace your oil cooler

Replace the oil cooler if you observe persistent overheating, contamination events (coolant in oil), physical damage, or leaks that cannot be repaired. Proactive replacement during major engine overhauls or after a prolonged period of heavy use in dusty or corrosive environments can protect your investment and maintain oil life.

Authoritative references and further reading

For technical background on oil coolers and engine cooling systems, see the following authoritative resources:

• Oil cooler — Wikipedia (overview of types and functions)
• JCB JS210 product information — JCB (machine compatibility and specifications)
• Temperature and oil oxidation — Machinery Lubrication (effects of temperature on oil life)
• ISO standards and guidance — ISO (standards context for maintenance and testing)

Frequently Asked Questions (FAQ)

Q1: Will the 333/C3850 fit my JCB JS210 without modification?

A1: Yes. The 333/C3850 is manufactured to OEM-matched precision — core size, mounting holes, and inlet/outlet interfaces align with the original, enabling plug-and-play installation on JCB JS210 (also compatible with JS200 and JS220).

Q2: How does a better oil cooler extend engine life?

A2: By keeping oil within an optimal temperature range, a high-performance oil cooler reduces oil oxidation and viscosity breakdown. This preserves lubricating film strength and additive effectiveness, reducing wear on bearings, pistons, and turbochargers and delaying component failure.

Q3: What are the signs that my excavator's oil cooler is failing?

A3: Signs include rising oil temperature under normal conditions, unexplained drops in oil pressure, visible leaks, contamination between oil and coolant, and recurring engine overheating episodes. If you see these, inspect the cooler and consider replacement.

Q4: How often should the oil cooler be replaced?

A4: There is no fixed interval — replacement depends on operating conditions. Replace after physical damage, confirmed leaks, contamination events, or as part of a major engine overhaul. In severe environments (dusty, corrosive, high-temperature), inspect more frequently and plan for earlier replacement.

Q5: Does the 333/C3850 reduce the frequency of oil changes?

A5: By maintaining lower and more stable oil temperatures, the 333/C3850 slows oil oxidation and can help extend oil drain intervals within the limits recommended by the engine manufacturer and oil supplier. Always follow OEM and oil supplier guidance and confirm any extension with oil analysis.

Need help selecting or ordering? Contact our sales team or view the product page for the 333/C3850 Engine Oil Cooler for JCB JS210 (compatible with JS200/JS220) to get technical specs, pricing, and availability. For direct assistance, contact customer service or request a quote today.

Product highlight: The 333/C3850 engine oil cooler is a high-performance replacement part specifically designed for JCB JS210 excavators (also compatible with JS200/JS220 models). It effectively dissipates excess heat from the engine oil to maintain optimal operating temperature, prevent oil oxidation and viscosity breakdown, and extend the engine's service life. Key features include OEM-matched precision, superior heat dissipation with a 12-row aluminum core, and durable construction with 10-bar pressure testing and anti-corrosion coating.
