DEUTZ BF6M2012C Diesel Engine | 6.06L 6-Cylinder Turbocharged Industrial Motor
The DEUTZ BF6M2012C is a 6.06-liter, four-stroke diesel engine engineered for maximum reliability in the most demanding environments. Featuring turbocharging and charge air cooling (intercooling), this engine is designed to provide high constant torque and rapid power response.
Its modular design and integrated cooling system make it exceptionally compact for its power class, allowing for easier integration into mobile machinery frames. The BF6M2012C is widely recognized for its robust cast-iron block and the precise DEUTZ Unit Pump System (UPS), which ensures high fuel efficiency and Tier 2 / Stage II compliance.
Dear Valued Partners,
Thank you for choosing SPARKLING MACHINERY, your professional supplier for construction machinery brake and transmission parts.

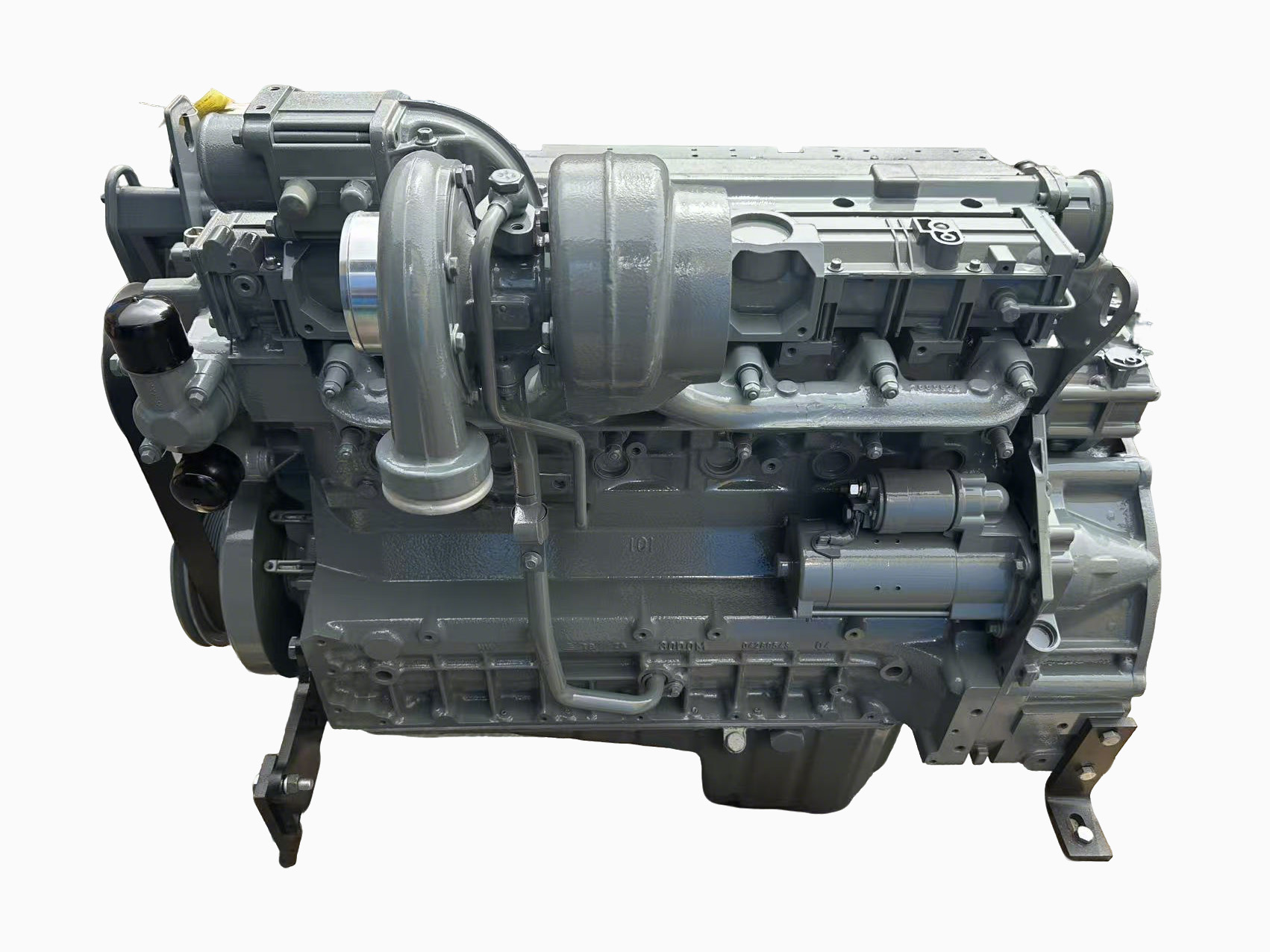

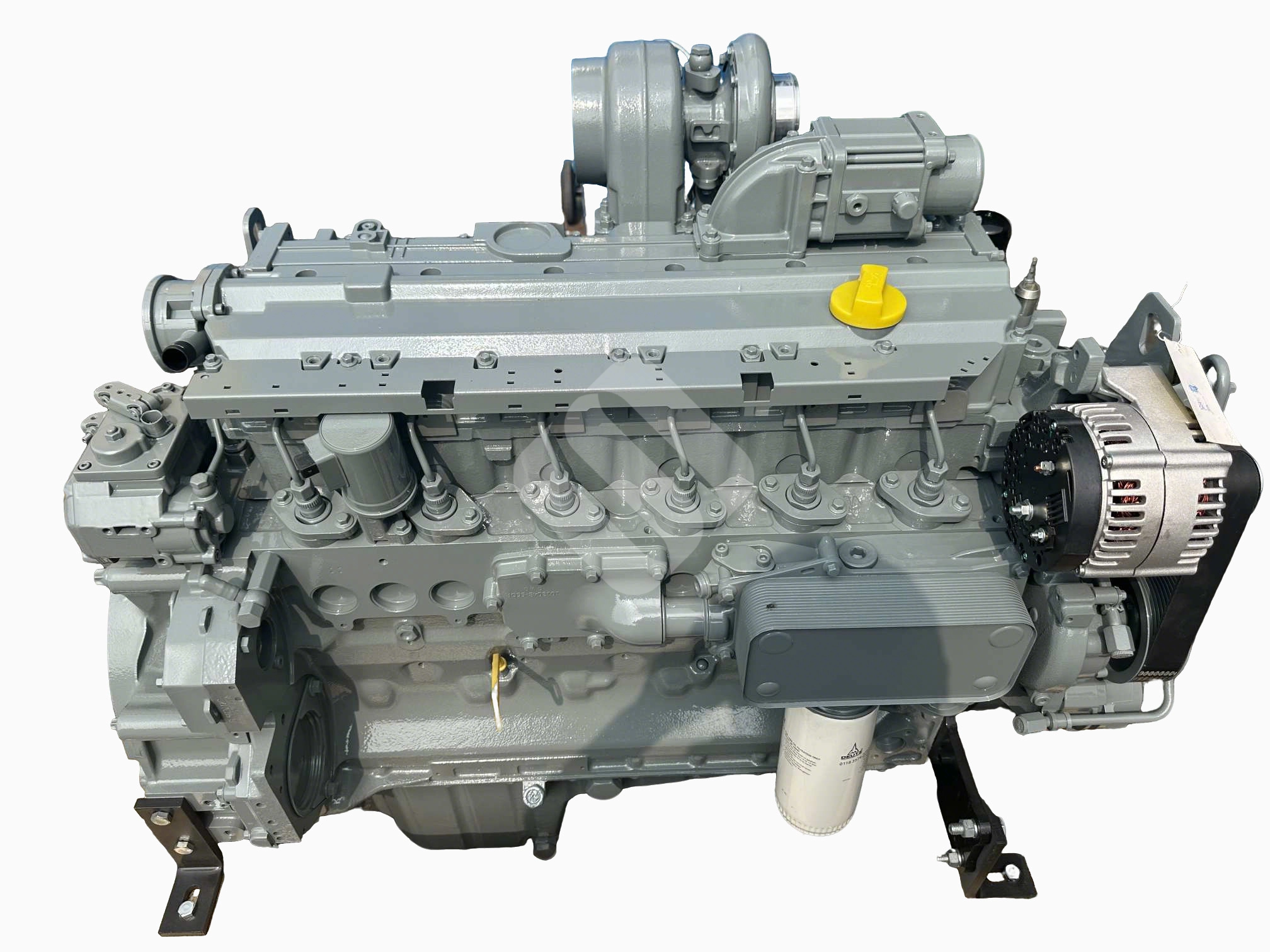

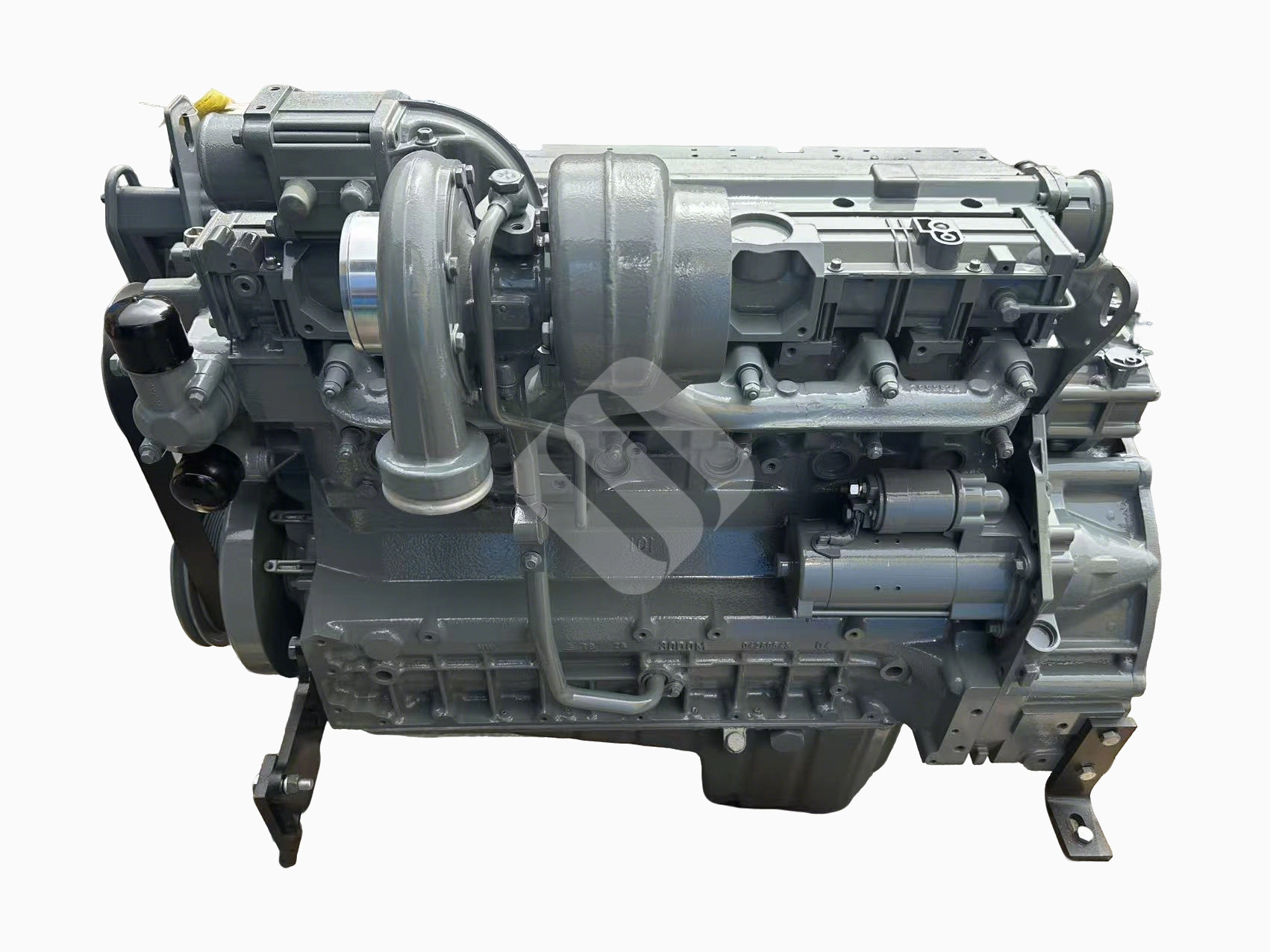

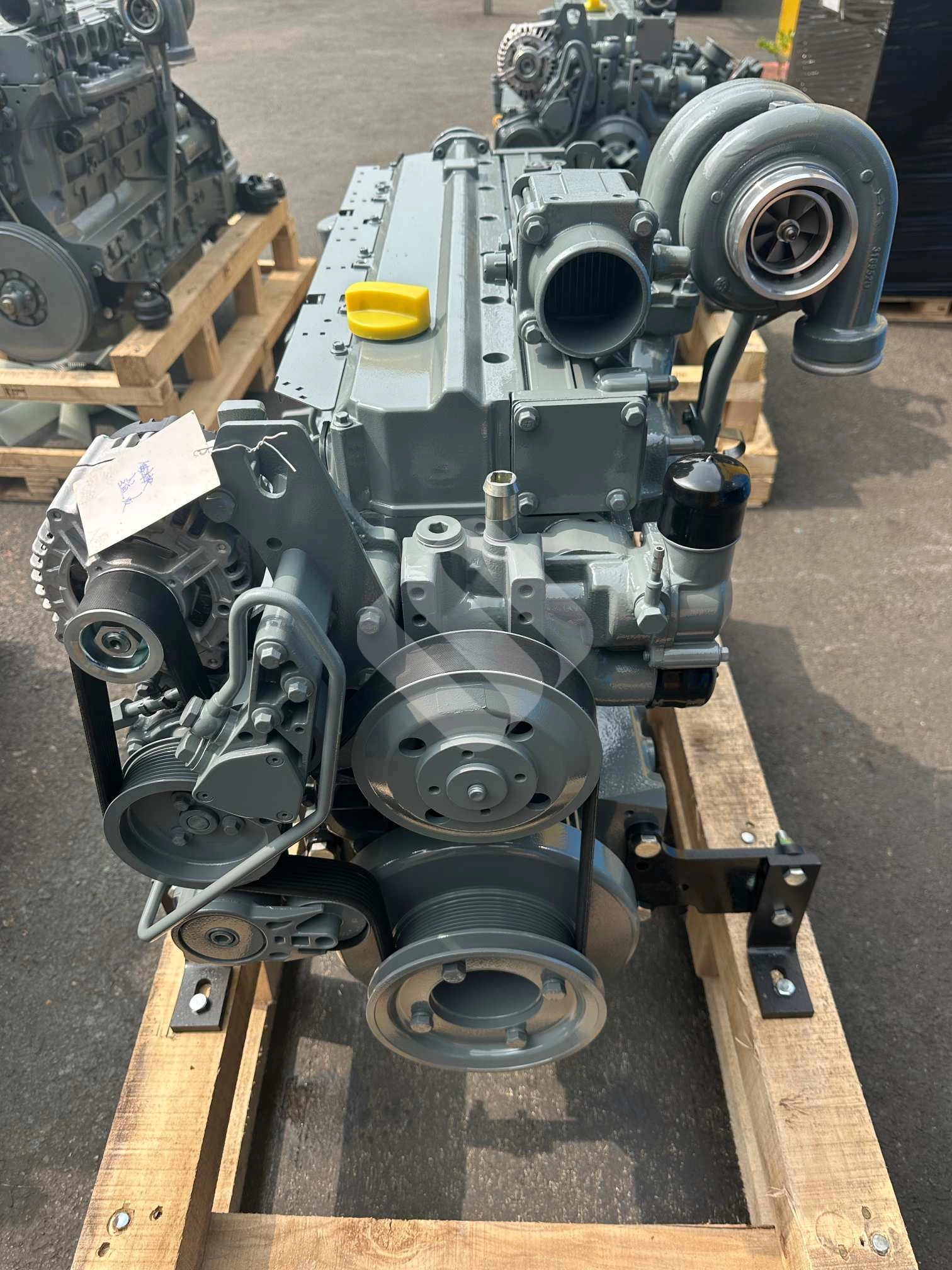

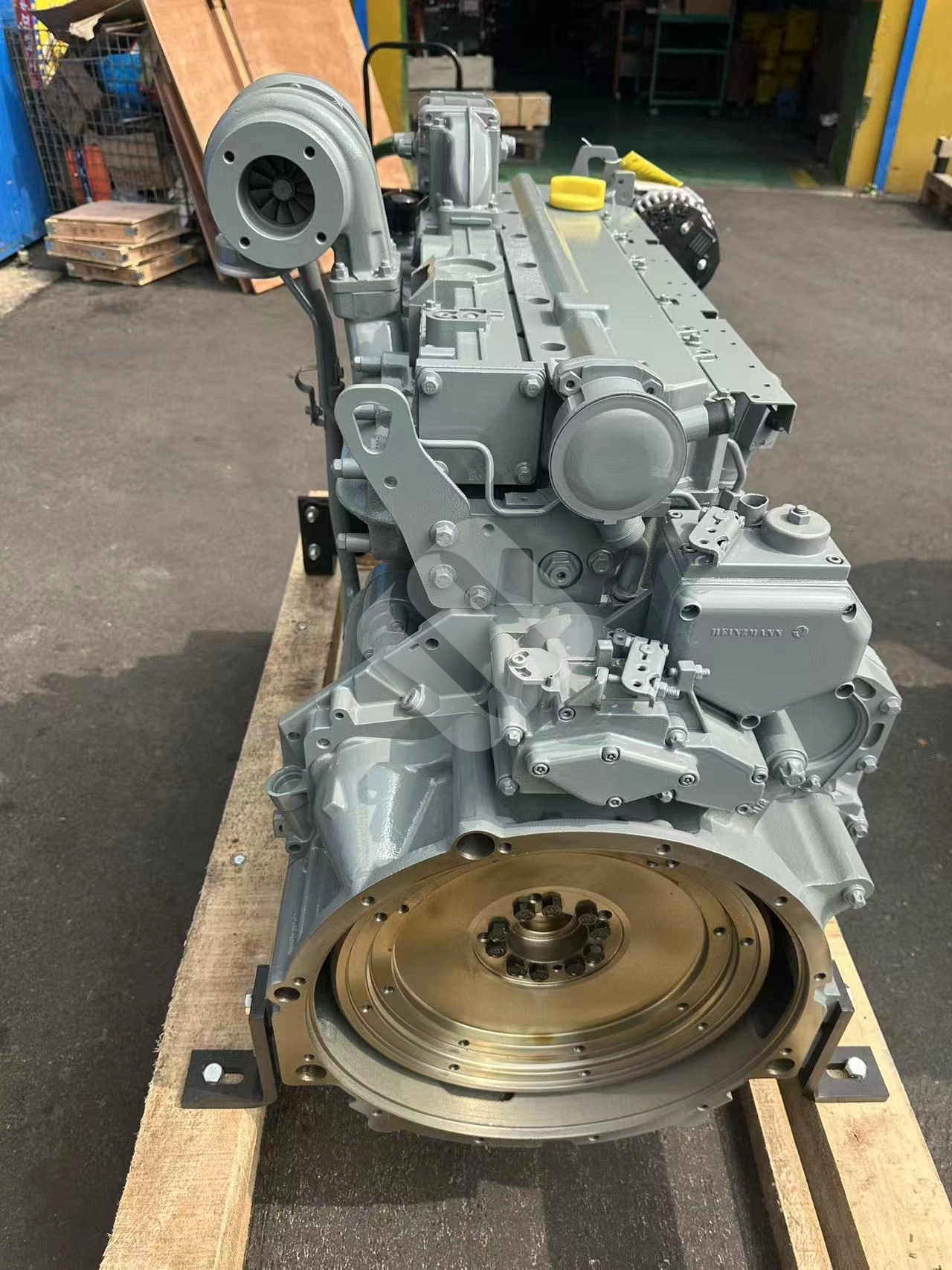

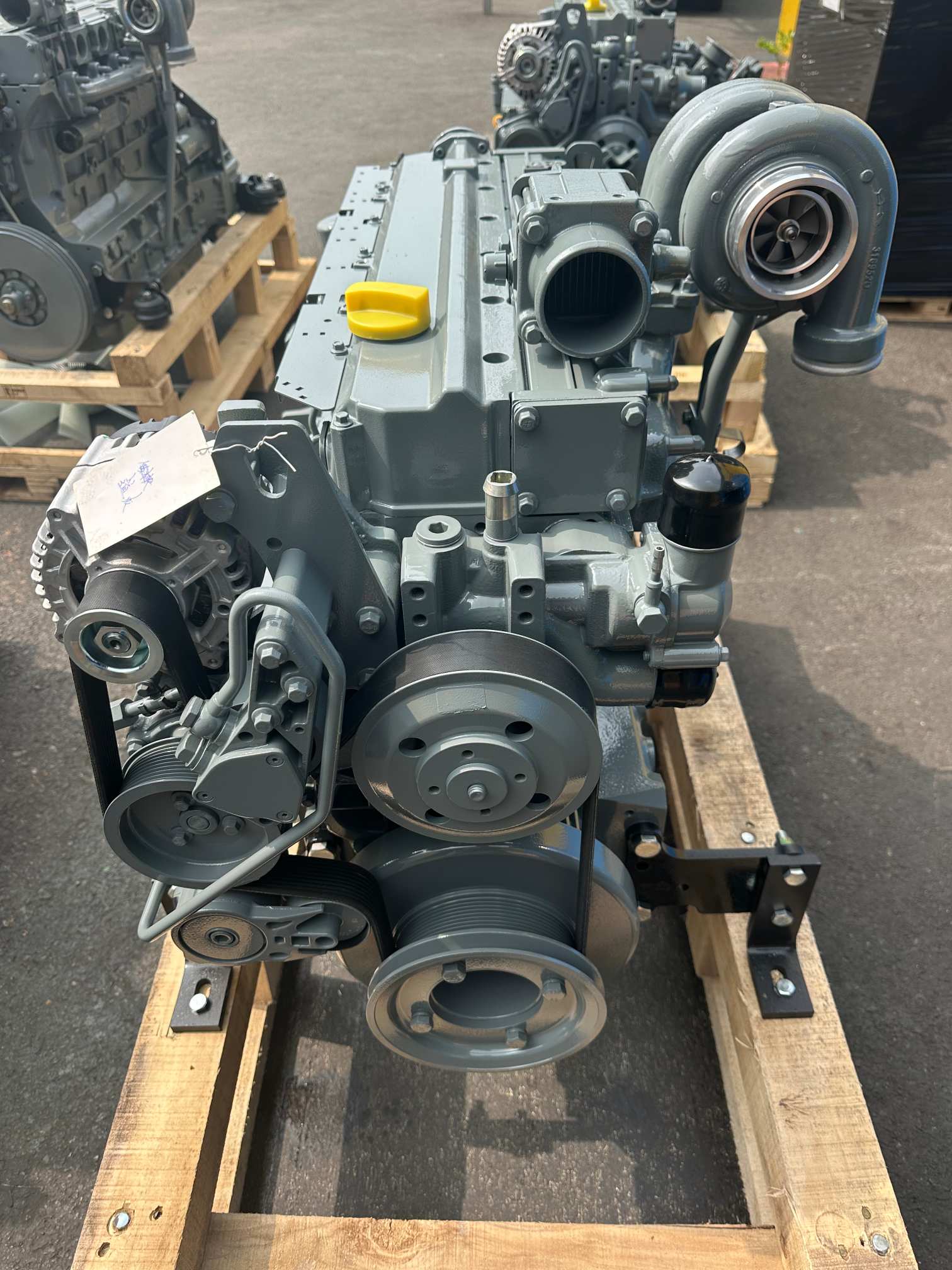

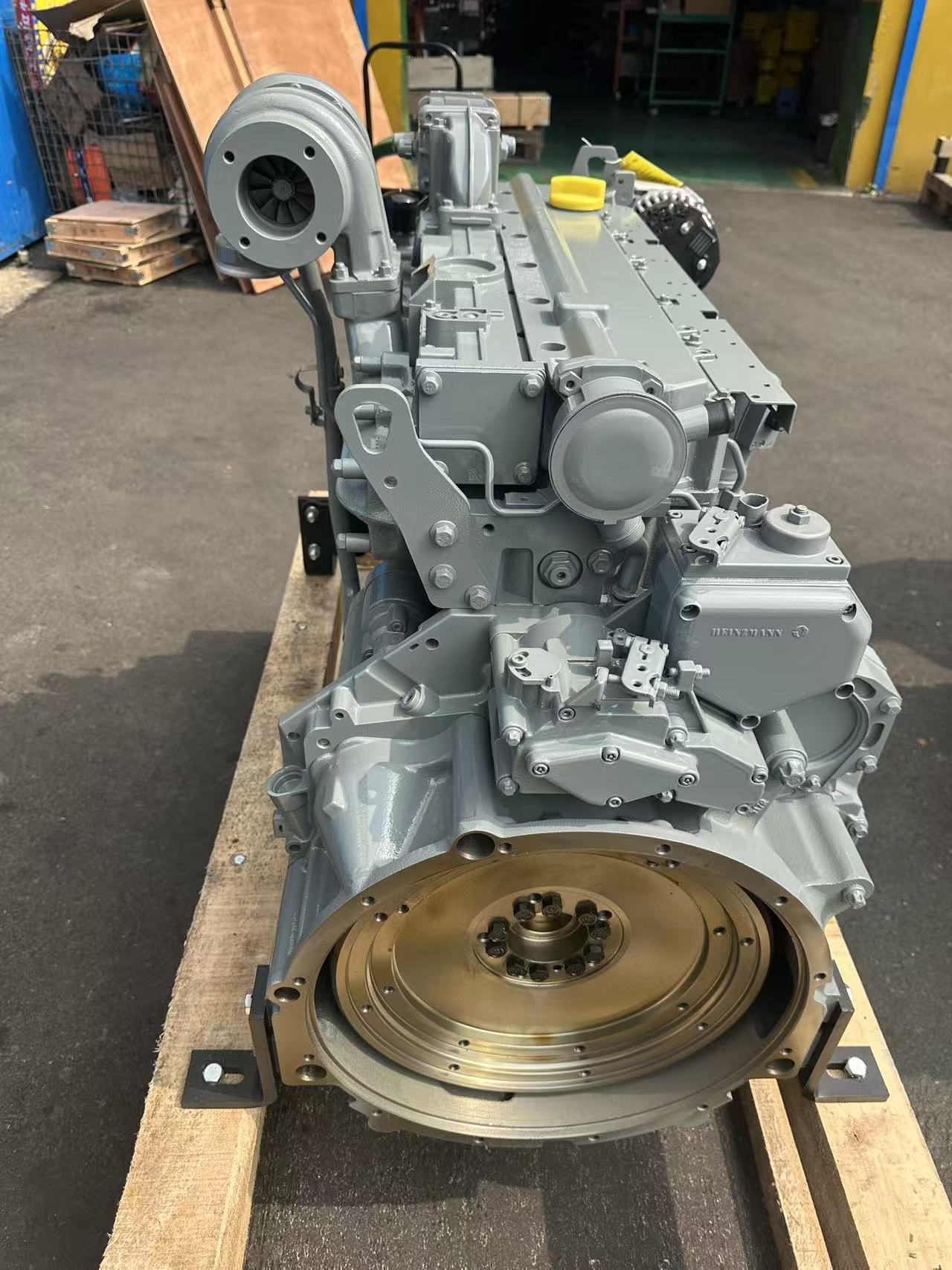

The SPARKLING MACHINERY NEW DEUTZ BF6M2012C diesel engine Photo:
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
· High Power Density: Delivers up to 155kW from a 6-liter displacement, offering a superior power-to-weight ratio for mobile equipment.
-
· Individual Unit Pumps: Each cylinder has its own high-pressure injection pump, ensuring optimal fuel delivery and simplifying repairs.
-
· Low Operating Noise: Optimized crankcase design and high-quality combustion reduce structural noise and vibration.
-
· Maintenance Friendly: All service points are located on one side of the engine, reducing downtime during routine maintenance.
-
· Durability: Features a noise-optimized, stiffened crankcase and wet cylinder liners for efficient cooling and long service intervals.
-
-
-
-
-
-
-
-
Parameter Data / Specification Engine Model BF6M2012C Engine Type Water-cooled, 6-Cylinder Inline Combustion System 4-Stroke Direct Injection Aspiration Turbocharged with Charge Air Cooling (Intercooled) Number of Cylinders 6 Displacement 6.06 Liters ($6057\text{ cm}^3$) Bore 101 mm Stroke 126 mm Compression Ratio 18.4:1 Max Power Output 155 kW (208 hp) @ 2500 RPM Max Torque 735 Nm @ 1500 RPM Specific Fuel Consumption ~202 g/kWh Direction of Rotation Counter-clockwise (looking at flywheel) Oil Capacity Approx. 8.5 - 12 Liters (varies by oil pan) Dry Weight Approx. 513 kg (1,131 lbs) Emission Standard EU Stage II / US EPA Tier 2
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Common Applications
The BF6M2012C is a versatile workhorse used in:
-
· Construction Machinery: Mid-to-large excavators (e.g., Volvo, Atlas), road pavers, and large soil compactors (Hamm, Bomag).
-
· Agricultural Equipment: High-horsepower tractors and combines.
-
· Industrial Use: High-capacity water pumps, air compressors, and specialized material handling units.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Q&A
-
Q1: How does the BF6M2012C compare to the BF6M1013EC?
-
A: The 2012 series has a smaller displacement (6.06L vs 7.15L). While the 1013 series offers more raw torque for the heaviest applications, the 2012C is more compact and fuel-efficient for mid-heavy duty tasks.
Q2: Is the BF6M2012C electronically controlled?
-
A: Most standard models utilize a mechanical governor for maximum reliability in harsh conditions. However, electronic versions (EMR) are available for applications requiring complex digital integration or CAN-Bus monitoring.
Q3: Can this engine be used in stationary generator sets?
-
A: Yes, the BF6M2012C is available in a G-Drive configuration, typically powering generator sets in the 130kVA to 170kVA range.
-
-
-
-
-
-
📦 Packing
1. Packaging methods: Carton box + Wooden case/Pallet + Anti-rust treatment
2. Export-standard packaging to ensure safety during transportation
3. Custom packaging available upon request
4. Dimensions and weight can be provided for freight calculation
🚚 Shipping
1. Available shipping methods: Sea freight, Air freight, Express delivery (DHL, UPS, FedEx, etc.)
2. LCL (Less than Container Load) and FCL (Full Container Load) options are supported
3. For Russian clients, we can introduce the forwarder agent to you
4. Delivery time: Ships within 1-3 working days after payment (for items in stock)
💳 Payment
1. Accepted methods: T/T, Bank Transfer, PayPal, Alipay, WeChat Pay, Western Union
2. Deposit + balance payment available for large or custom orders
3. Flexible payment options—feel free to contact us for details
📌 Frequently Asked Questions (FAQs)
Q: Which excavator models is this part compatible with?
A: This product is compatible with major brands such as CAT, KOMATSU, HITACHI, and more. Custom specifications are also available.
Q: How can I make sure I’m selecting the correct part?
A: You can send us a photo of the old part, part number, or your excavator model, and we will help you confirm the right match.
Q: Is there a warranty for this product?
A: Yes, we offer a 6-month quality guarantee under normal use.
