DEUTZ F8L413FW Air-Cooled Diesel Engine | V8 Mining & Industrial Power Unit
The DEUTZ F8L413FW is a naturally aspirated, air-cooled V8 engine. Unlike standard industrial engines, the FW variant features a specialized indirect injection (two-stage) combustion process. This significantly reduces the concentration of nitrogen oxides and carbon monoxide , making it the industry standard for underground mining equipment where air quality is critical.
Because it is air-cooled, there are no radiators, water pumps, or hoses to leak or freeze, ensuring maximum uptime in the harshest conditions on earth.
Dear Valued Partners,
Thank you for choosing SPARKLING MACHINERY, your professional supplier for construction machinery brake and transmission parts.

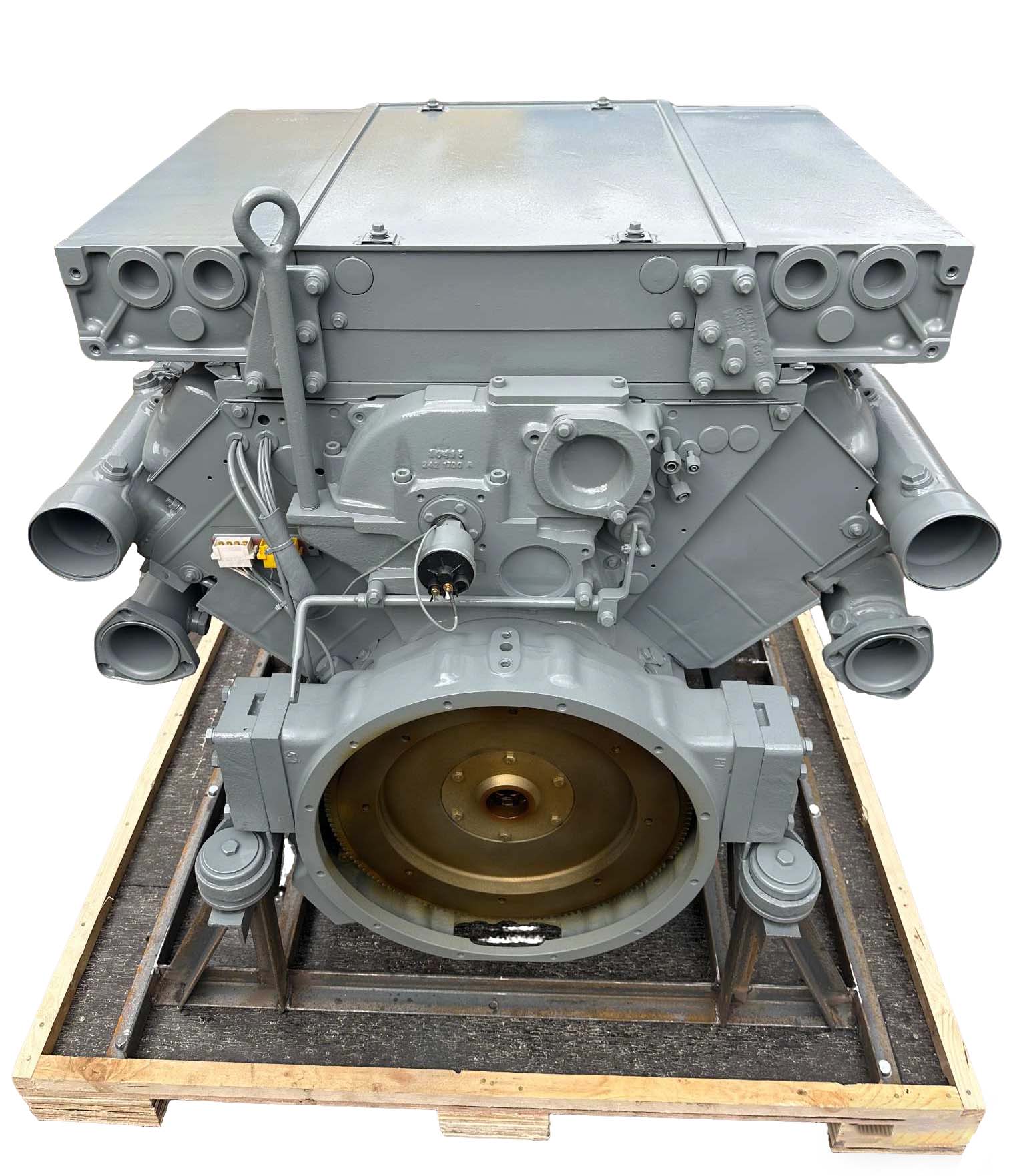

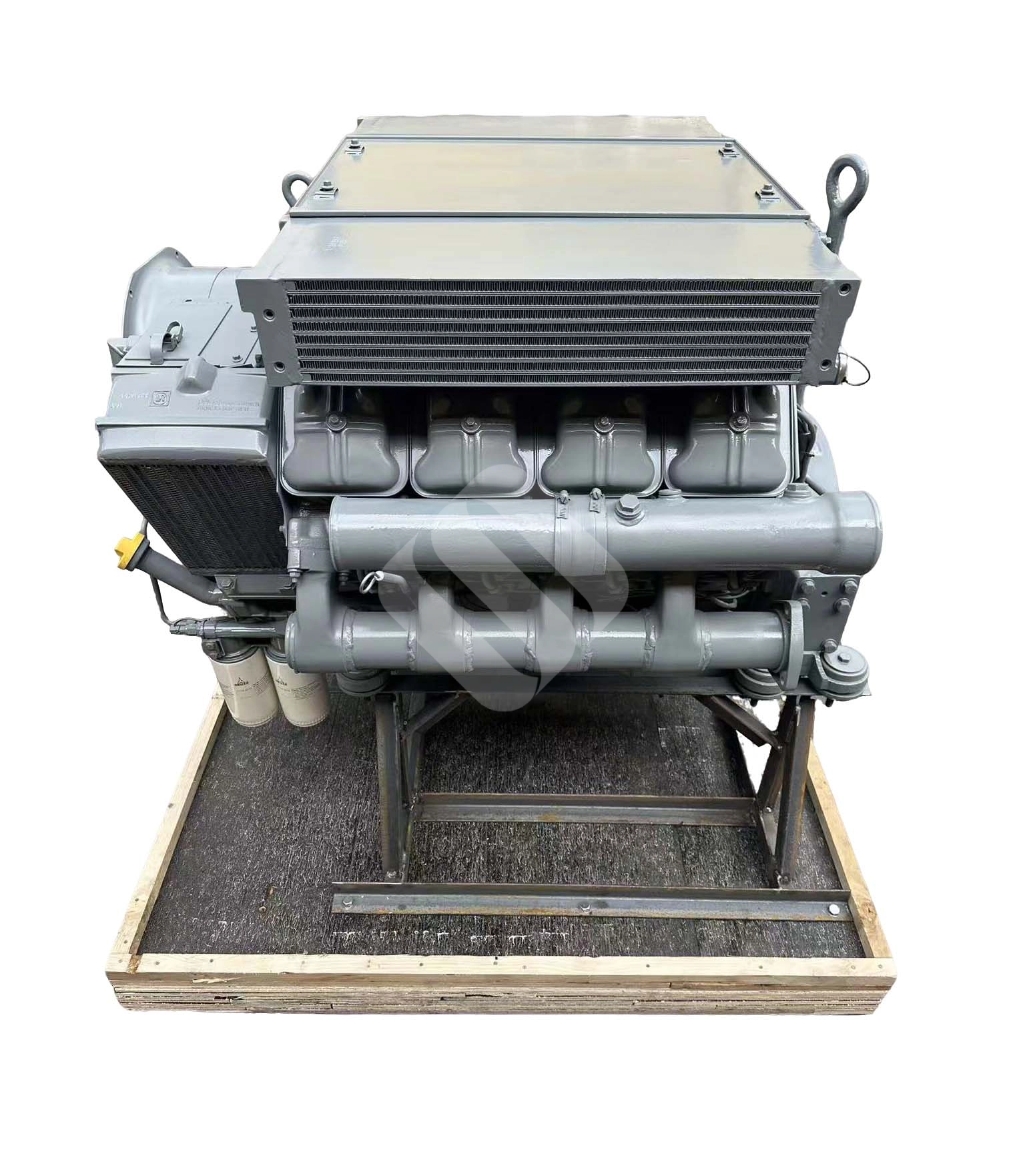

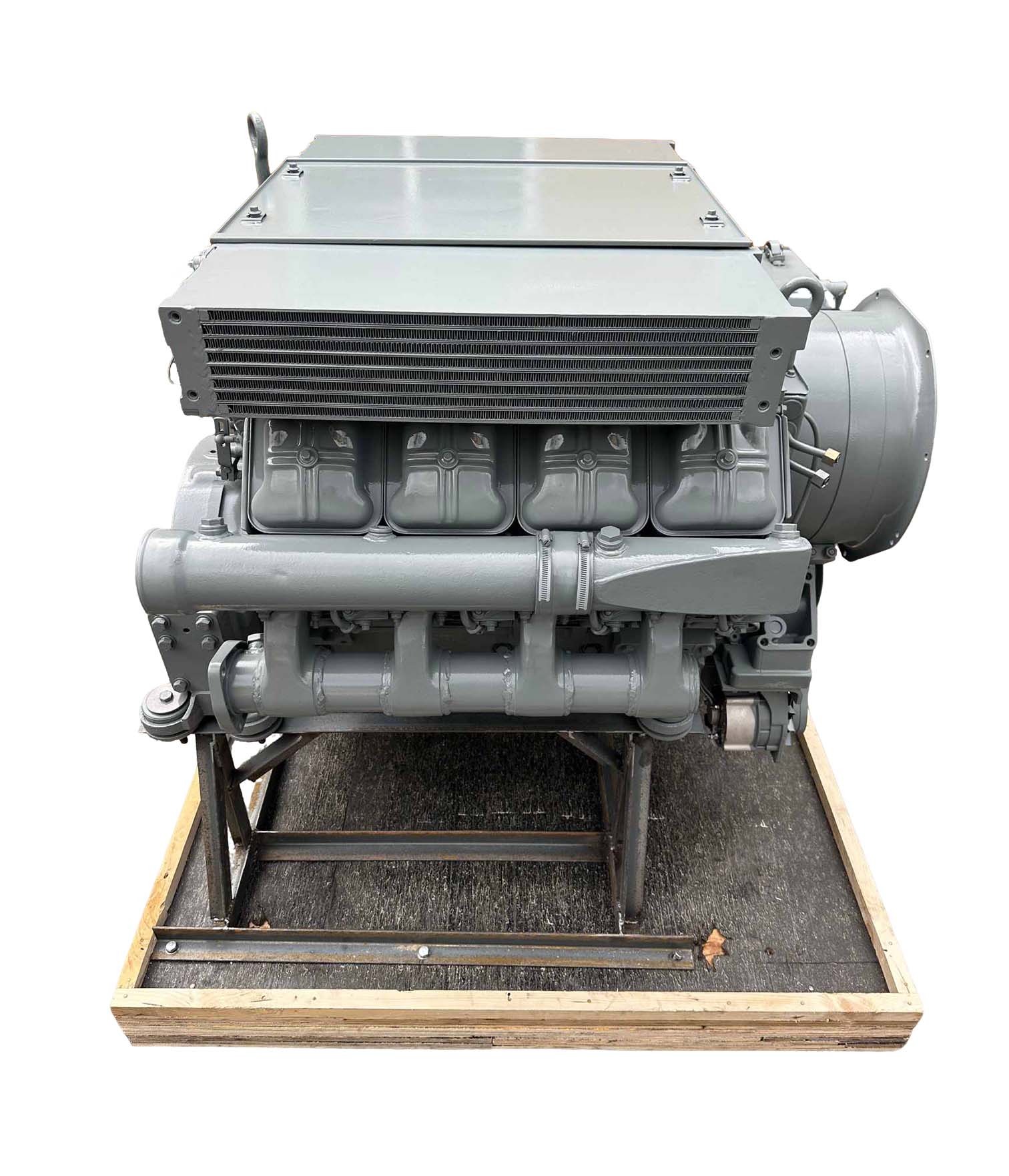

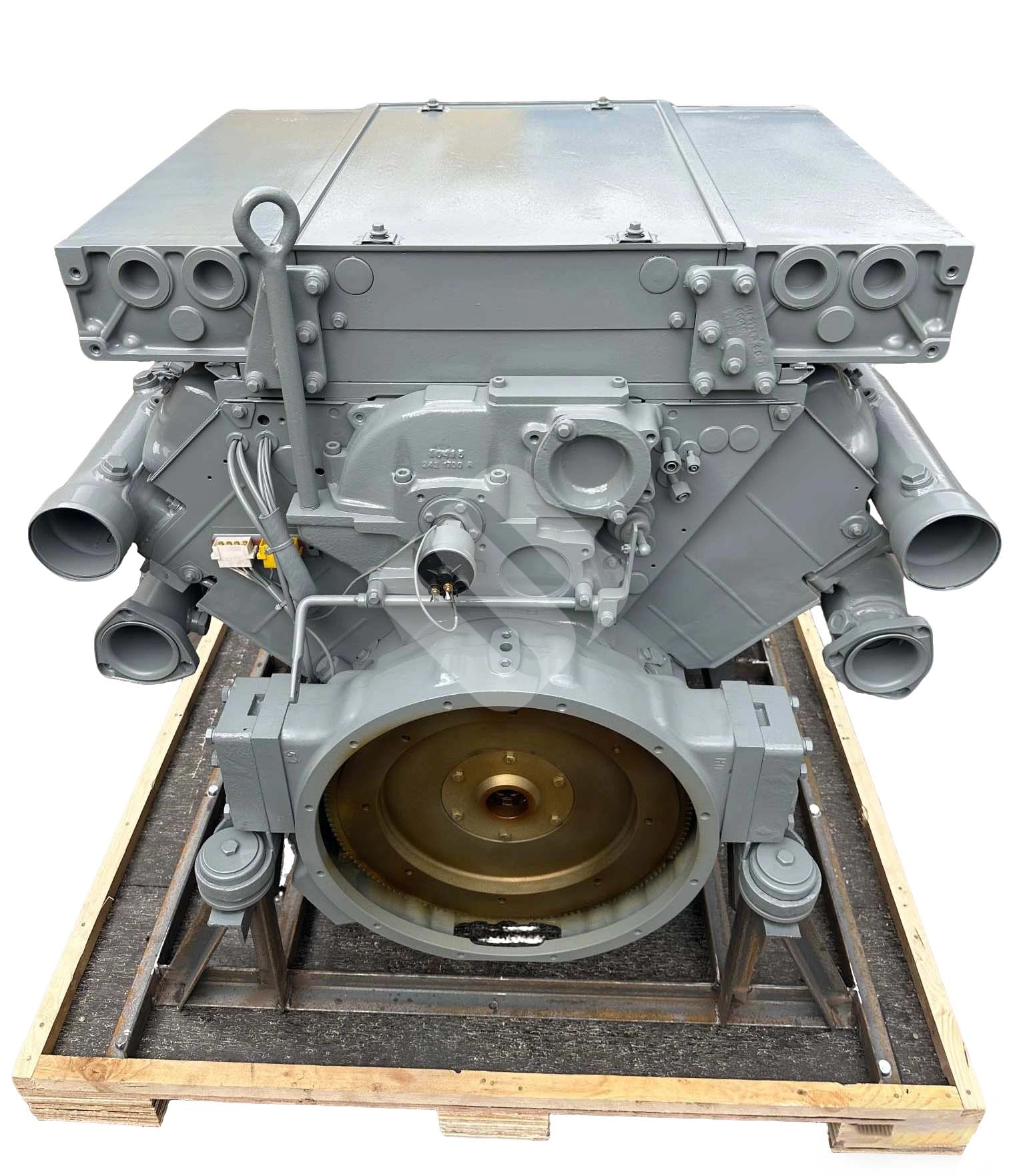

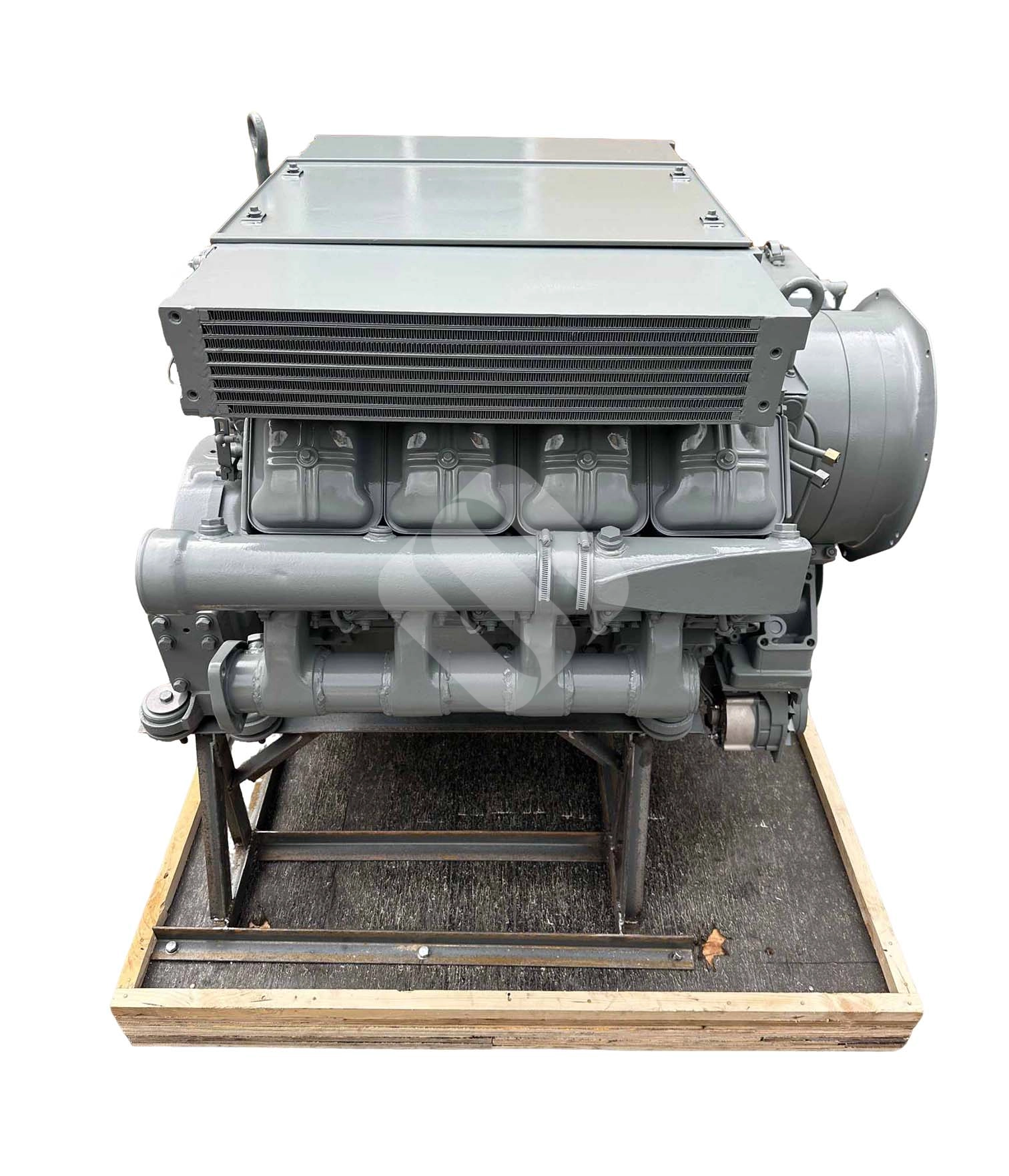

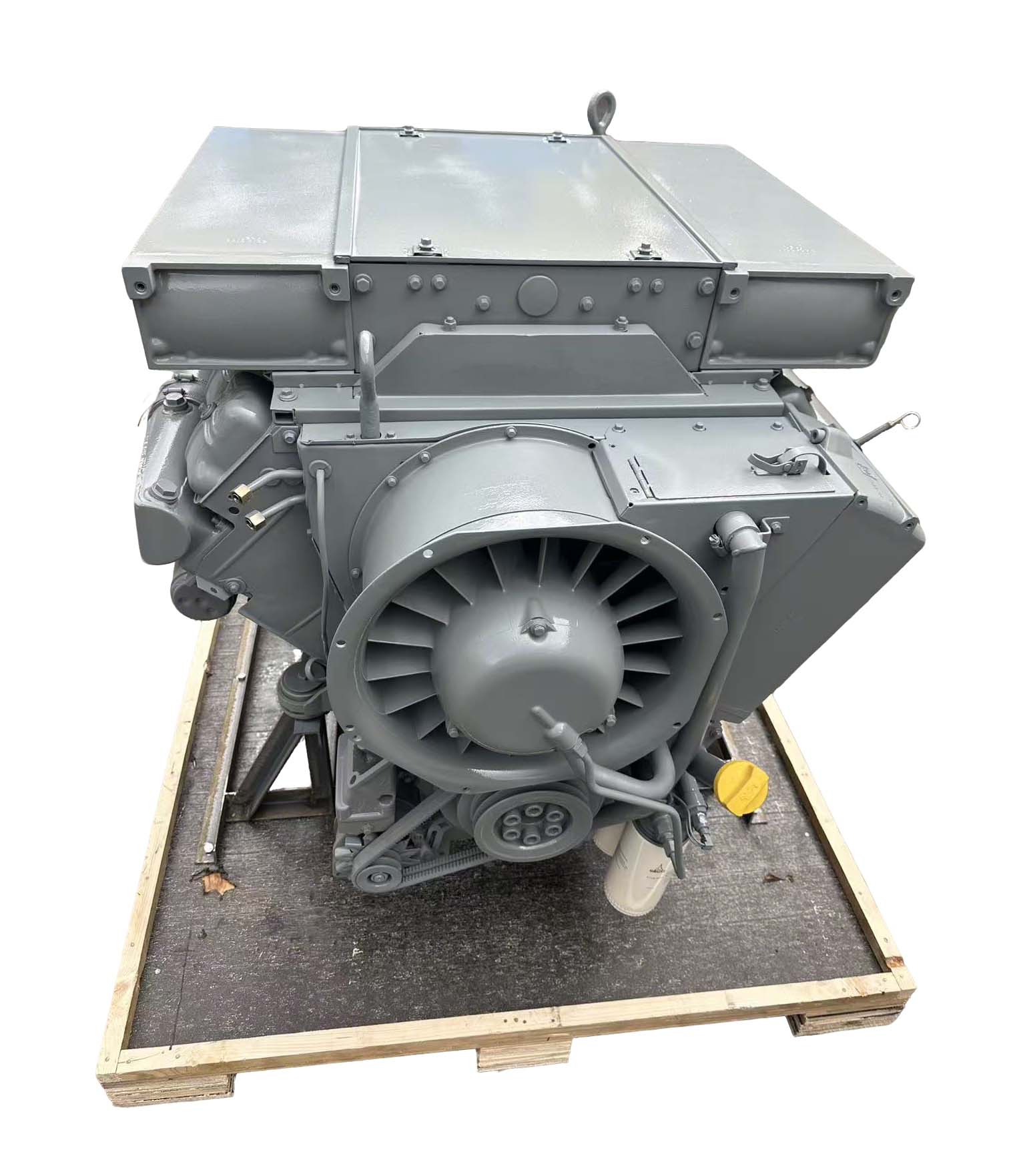

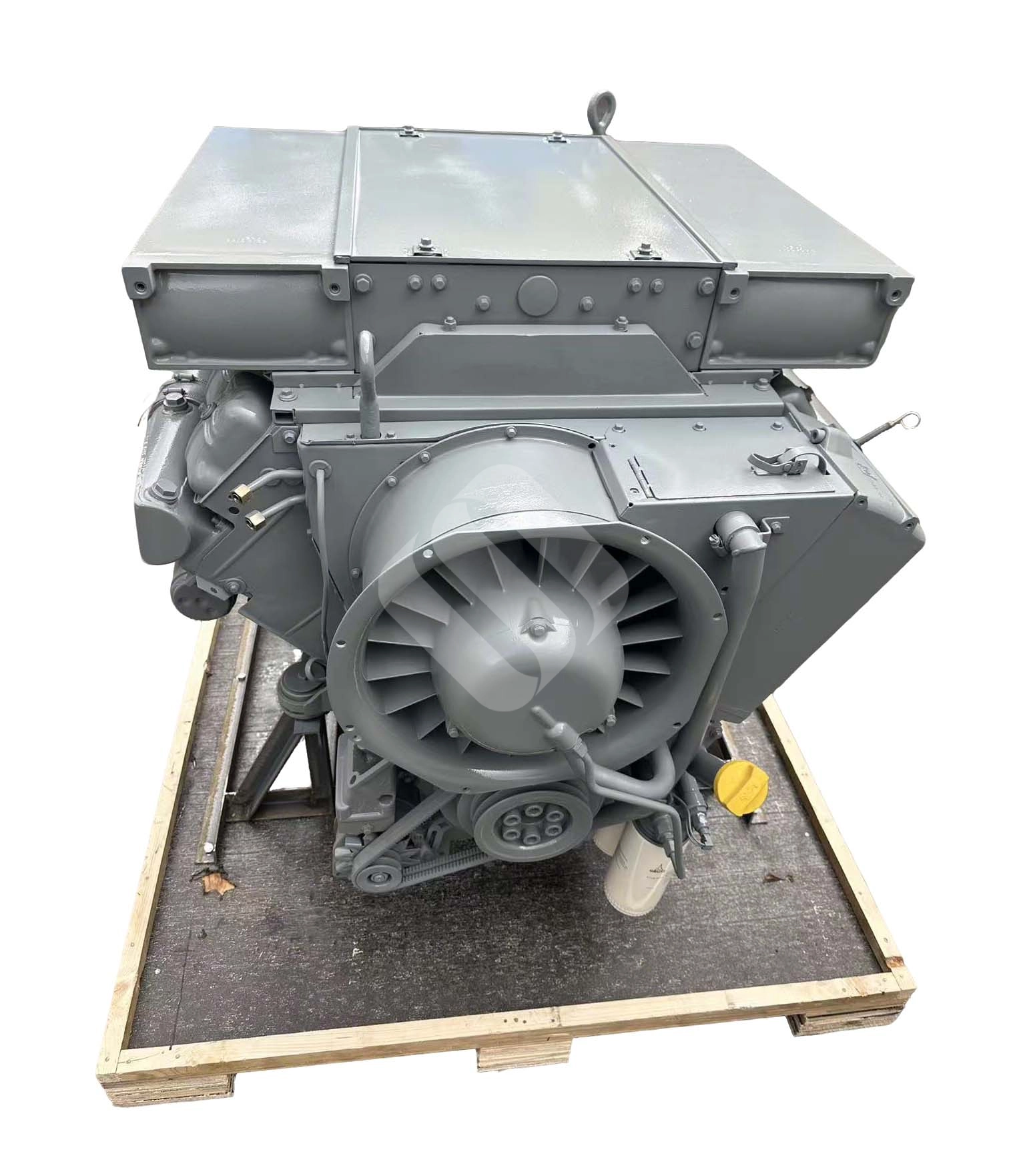

The SPARKLING MACHINERY NEW DEUTZ F8L413FW V8 air‑cooled diesel engine Photo:
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
· Mining Optimized (FW): Specialized combustion chamber reduces toxic exhaust gases, critical for enclosed underground environments.
-
· Air-Cooling Advantage: Eliminates the "No. 1 cause of engine failure" (the cooling circuit). Reliable operation in ambient temperatures from -30°C to +50°C.
-
· Modular Cylinder Design: Each cylinder and head is separate. If one cylinder fails, it can be replaced individually without removing the entire engine block.
-
· Robust Mechanical Injection: Highly resistant to poor fuel quality and easy to maintain without complex diagnostic computers.
-
· Integrated Oil Cooling: High-capacity oil cooler ensures the engine maintains stable core temperatures even under 100% load.
-
-
-
-
-
-
-
-
-
-
Feature Details Engine Model F8L413FW Configuration Air-Cooled V8 ($90^\circ$ Angle) Combustion System Two-Stage (Low Emission for Mining) Displacement 12.76 Liters Bore / Stroke 120 mm / 125 mm Aspiration Naturally Aspirated Max Power Output 136 kW (182 hp) @ 2300 RPM Max Torque 665 Nm @ 1500 RPM Cooling Axial Cooling Blower (Air-Cooled) Weight (Dry) Approx. 910 kg
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Common Applications
-
· Underground Mining: LHDs (Load Haul Dumpers), mining trucks, and personnel carriers (e.g., GHH, Sandvik, Atlas Copco).
-
· Military Vehicles: Heavy transport trucks and armored personnel carriers.
-
· Construction: Specialized heavy-duty drills and high-capacity air compressors.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Q&A
-
Q1: What is the main benefit of the "FW" two-stage combustion?
-
A: It allows the engine to be used in underground mines with less complex ventilation systems by significantly lowering the harmful pollutants in the raw exhaust compared to standard direct-injection engines.
Q2: Can I use the F8L413FW in high-altitude locations?
-
A: Yes. Air-cooled engines are naturally less affected by boiling point changes at high altitudes, though power derating may still apply due to thinner air (lack of oxygen).
Q3: How do I maintain an air-cooled engine?
-
A: The most critical task is keeping the cooling fins on the cylinders and the oil cooler clean. Dust or oil buildup on the fins can lead to overheating.
-
-
-
-
-
-
📦 Packing
1. Packaging methods: Carton box + Wooden case/Pallet + Anti-rust treatment
2. Export-standard packaging to ensure safety during transportation
3. Custom packaging available upon request
4. Dimensions and weight can be provided for freight calculation
🚚 Shipping
1. Available shipping methods: Sea freight, Air freight, Express delivery (DHL, UPS, FedEx, etc.)
2. LCL (Less than Container Load) and FCL (Full Container Load) options are supported
3. For Russian clients, we can introduce the forwarder agent to you
4. Delivery time: Ships within 1-3 working days after payment (for items in stock)
💳 Payment
1. Accepted methods: T/T, Bank Transfer, PayPal, Alipay, WeChat Pay, Western Union
2. Deposit + balance payment available for large or custom orders
3. Flexible payment options—feel free to contact us for details
📌 Frequently Asked Questions (FAQs)
Q: Which excavator models is this part compatible with?
A: This product is compatible with major brands such as CAT, KOMATSU, HITACHI, and more. Custom specifications are also available.
Q: How can I make sure I’m selecting the correct part?
A: You can send us a photo of the old part, part number, or your excavator model, and we will help you confirm the right match.
Q: Is there a warranty for this product?
A: Yes, we offer a 6-month quality guarantee under normal use.
