DEUTZ TCD2013L042V Diesel Engine | 4.76L 4-Cylinder Turbocharged Industrial Motor
The DEUTZ TCD2013L042V is a modern, water-cooled 4-cylinder inline diesel engine designed to power the next generation of construction, agricultural, and material handling machinery. This engine represents a significant technological leap forward, utilizing the DEUTZ Common-Rail System (DCR) to achieve superior fuel efficiency, reduced noise, and lower emissions.
Turbocharged and charge-air cooled, the TCD2013L042V is highly compact for its 4.76-liter displacement, offering high power density and reliable performance in demanding load cycles. It is designed to meet stringent Tier 3 / Stage IIIA emission standards.
Dear Valued Partners,
Thank you for choosing SPARKLING MACHINERY, your professional supplier for construction machinery brake and transmission parts.

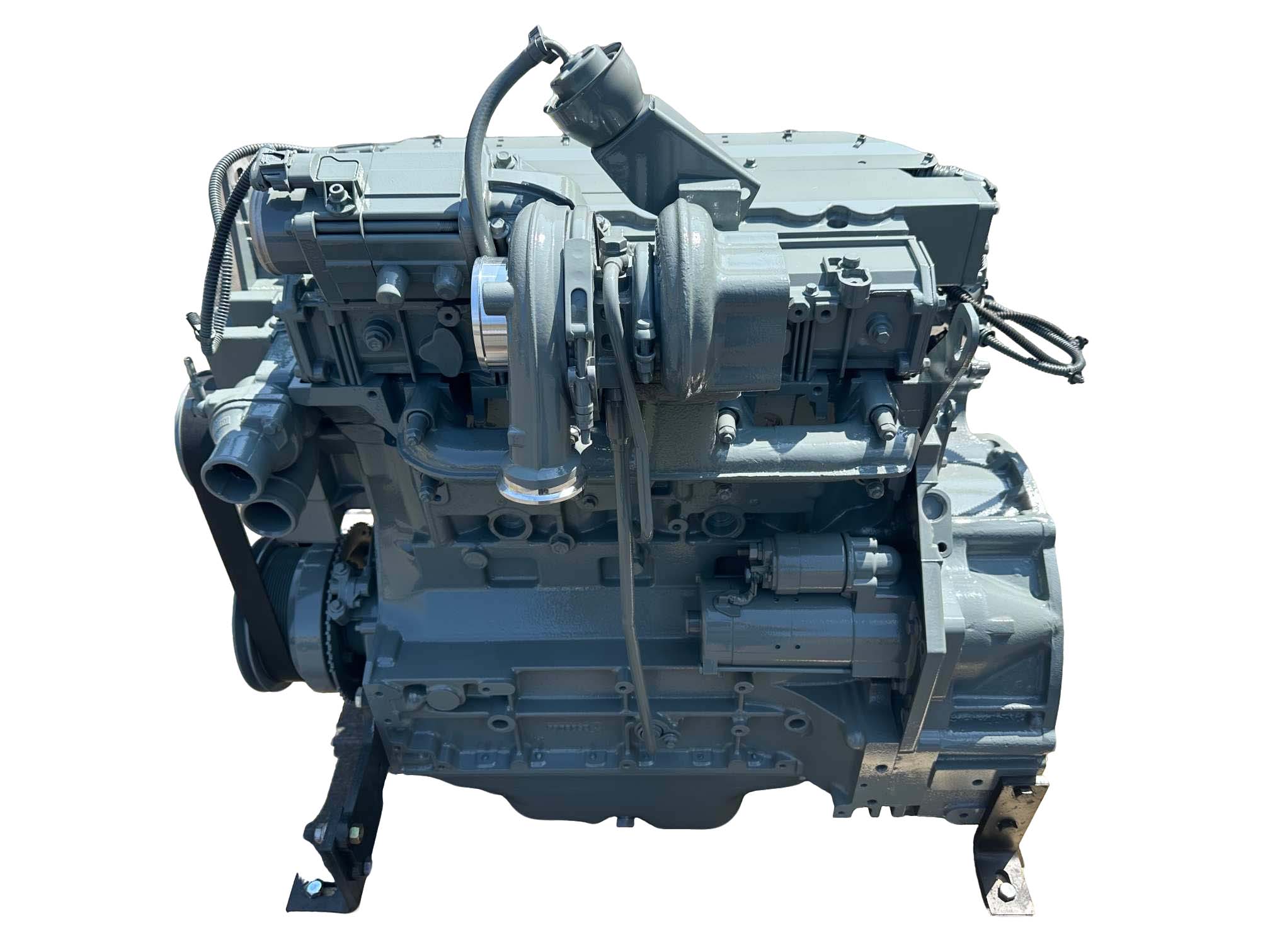

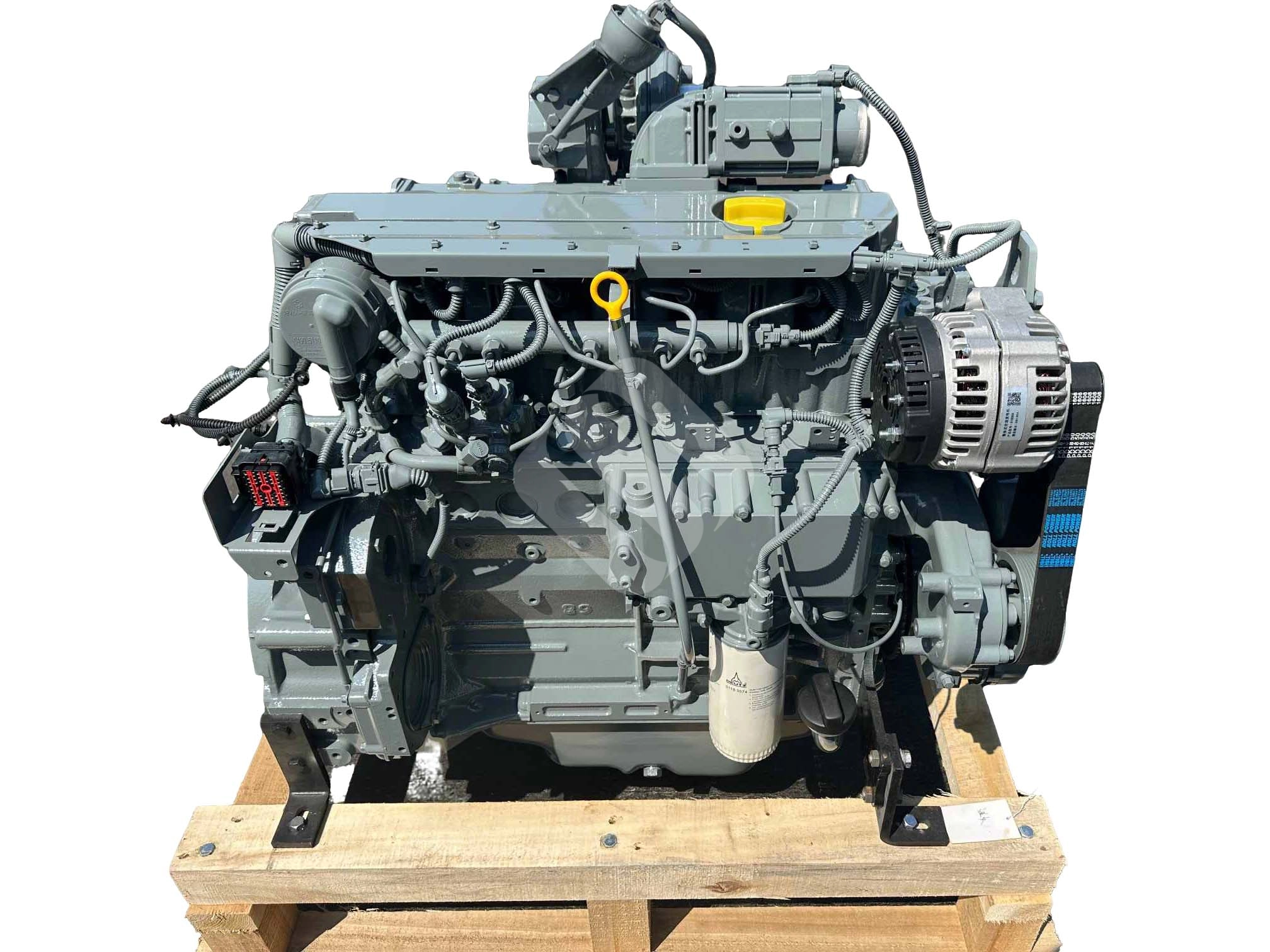

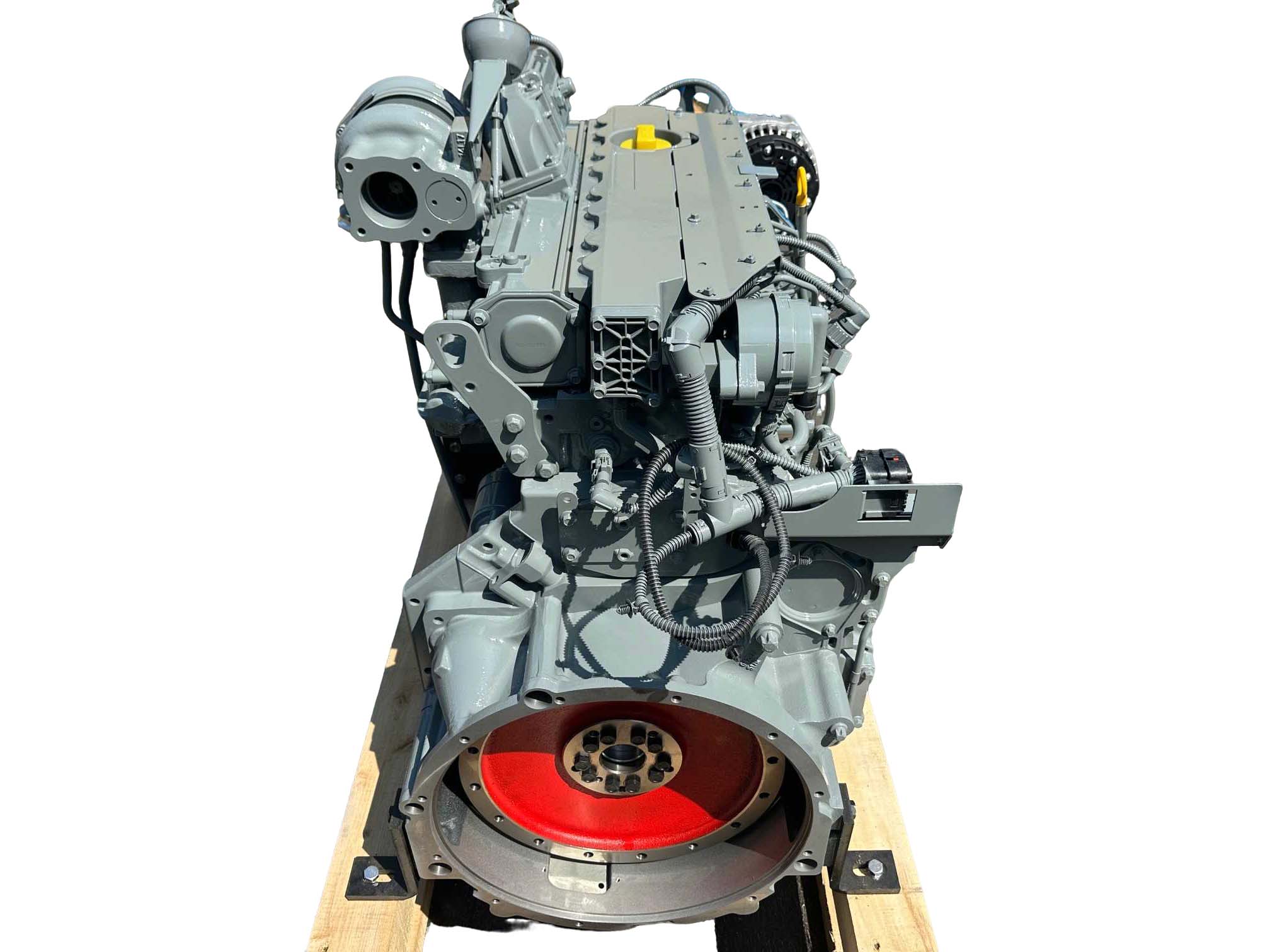

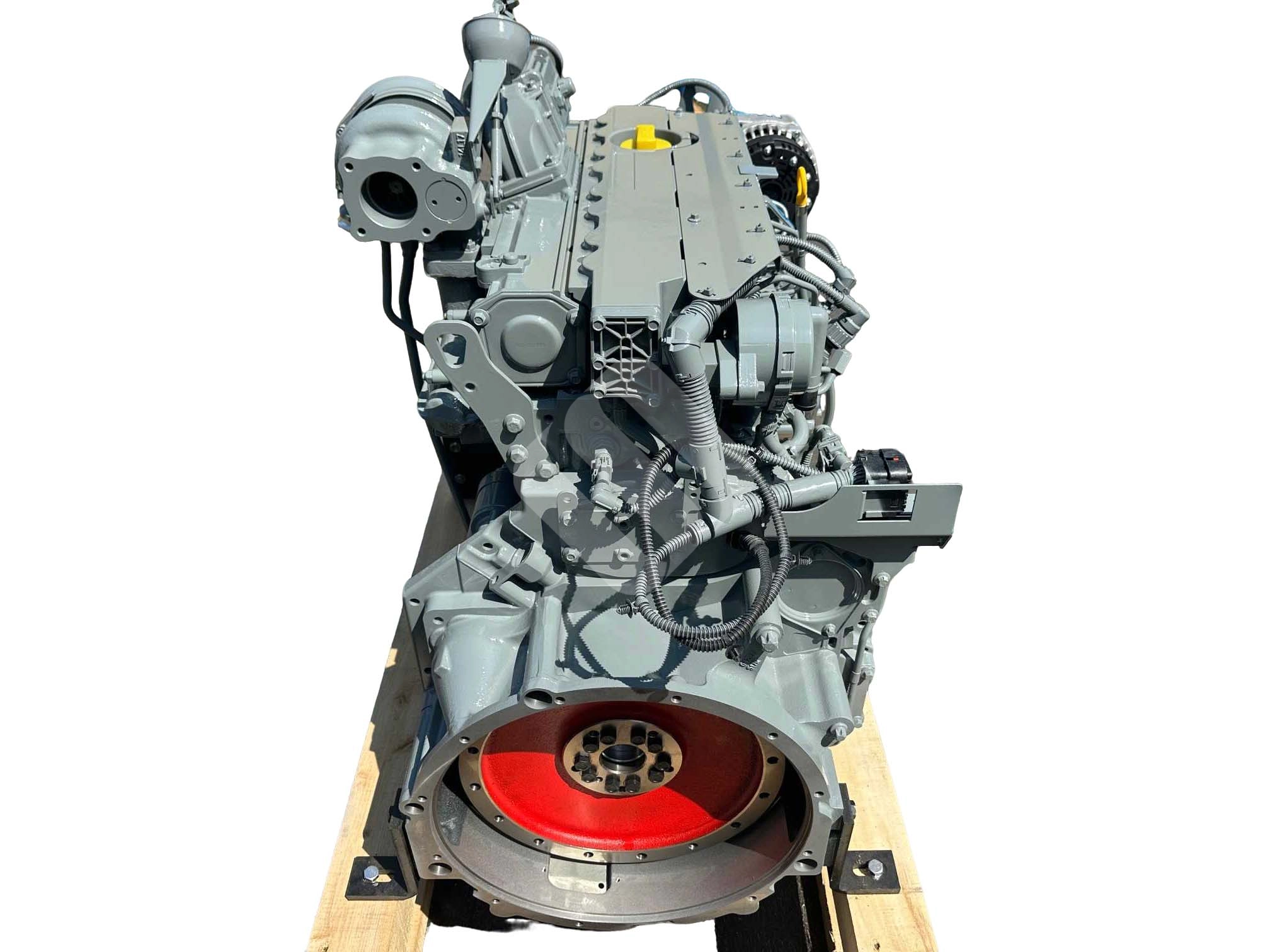

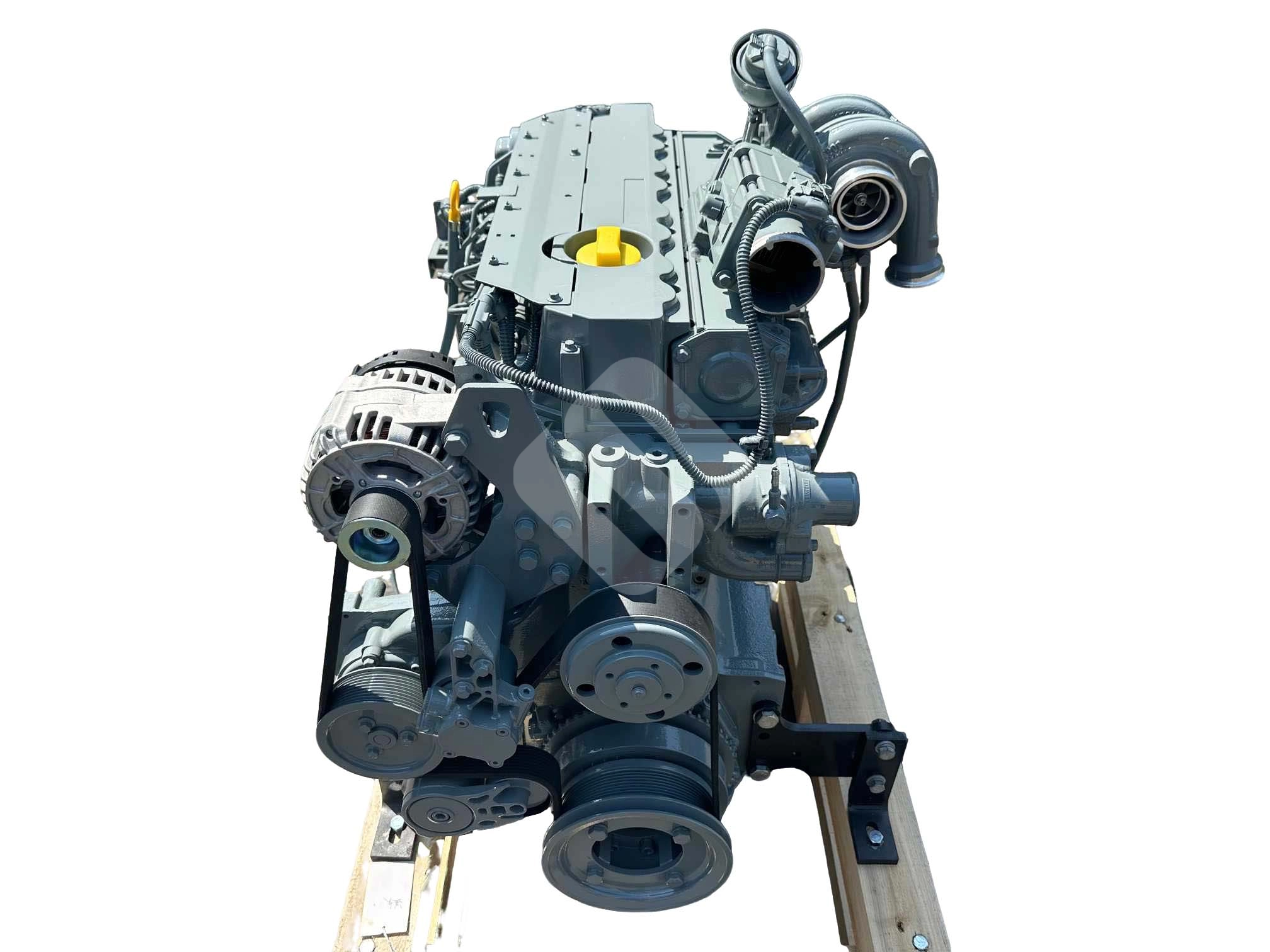

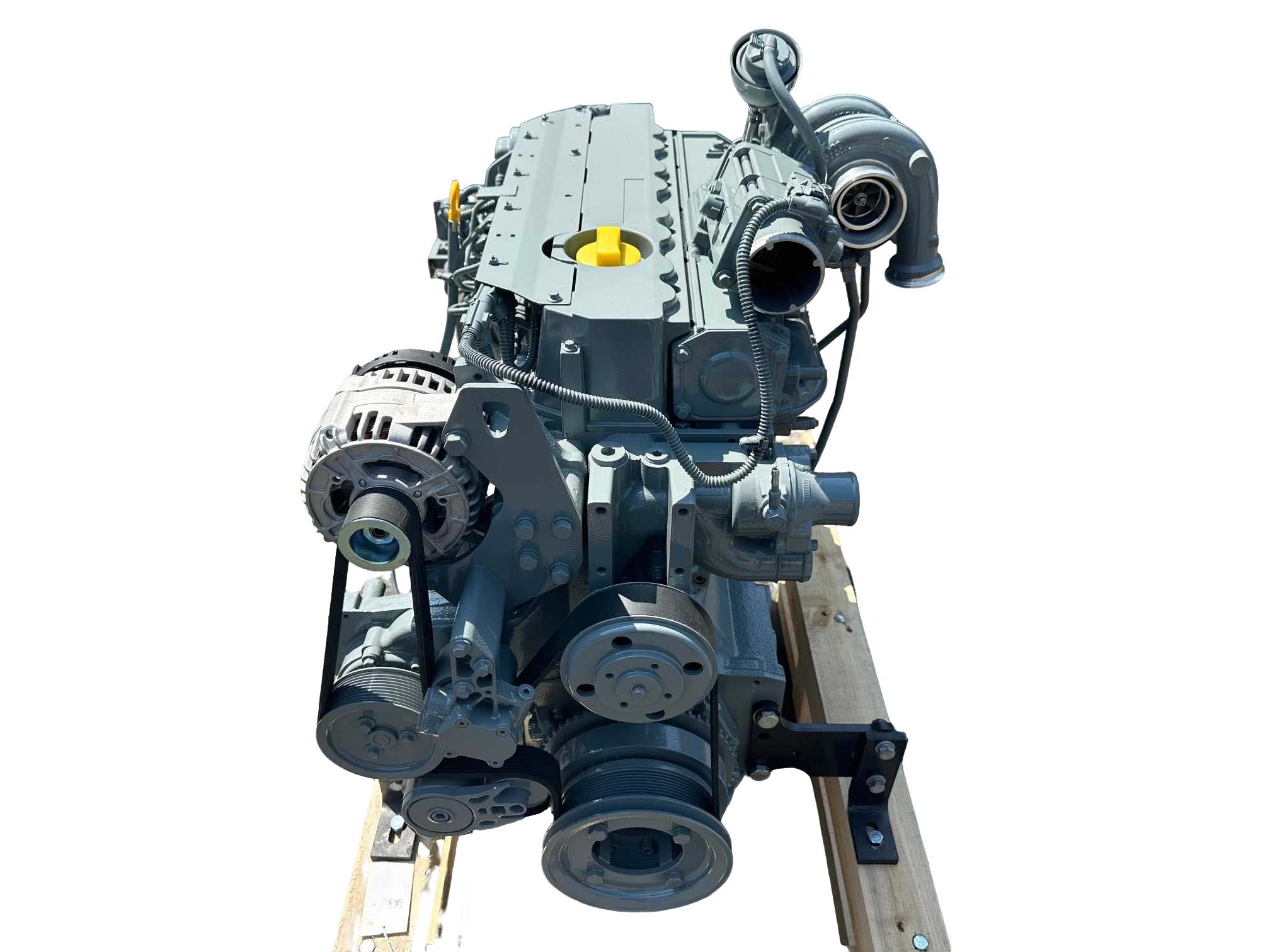

The SPARKLING MACHINERY NEW DEUTZ TCD2013L042V diesel engine Photo:
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
· DEUTZ Common-Rail System (DCR): The electronically controlled high-pressure injection ensures optimal fuel atomization, providing maximum torque at low engine speeds and reducing fuel consumption across the entire RPM range.
-
· Tier 3 Compliance: Meets advanced emission standards without sacrificing performance, utilizing internal engine measures and precise electronic control.
-
· Low Noise Emissions: Advanced injection technology, a rigid engine block design, and acoustically optimized components significantly reduce structural and operational noise.
-
· Compact Design: High power density means a smaller engine footprint, allowing OEMs easier integration into streamlined equipment chassis.
-
· Versatile Application: Designed with power take-off (PTO) options at both the front and rear of the engine.
-
· Serviceability: Long maintenance intervals (500 hours standard oil change) and easy access to all service points on one side of the engine minimize downtime.
-
-
-
-
-
-
-
-
-
-
-
Feature Details Engine Model TCD2013L042V Configuration Inline 4-Cylinder, 4-Stroke Displacement 4.76 Liters Bore / Stroke 108 mm / 130 mm Aspiration Turbocharged & Intercooled Combustion System Direct Injection (Common-Rail) Max Power Output Up to 129 kW (173 hp) @ 2200 RPM Max Torque Approx. 670 Nm @ 1400–1600 RPM Emission Standard US EPA Tier 3 / EU Stage IIIA Weight (Dry) Approx. 430 kg
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Common Applications
-
The TCD2013L042V is the primary power source for mid-range heavy equipment, including:
-
· Construction: Excavators, large soil compactors, pavers, and telehandlers (e.g., Manitou, JCB).
-
· Agriculture: High-horsepower tractors and harvesters.
-
· Power Generation: High-performance G-Drive generator sets (130kVA – 160kVA).
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Q&A
-
Q1: What is the main difference between the 1013 and 2013 series?
-
A: While they share the same base block architecture (4.76L), the 1013 series uses individual unit pumps (UPS). The TCD2013 series upgraded to Common-Rail Injection (DCR) and a fully electronic governor, offering better fuel efficiency, faster response times, and superior emission control (Tier 3 vs Tier 2).
Q2: Does the TCD2013L042V require specific diagnostic tools?
-
A: Yes. Since this engine is electronically controlled (EMR/ECU), diagnostic tools (like DEUTZ SerDia) are required to read fault codes, monitor live data, and program parameters.
Q3: Is this engine compliant with Tier 4 regulations?
-
A: No, this is a Tier 3 / Stage IIIA engine. If you are operating in a regulated Tier 4 market, you would likely need a newer generation DEUTZ engine (such as the TCD 4.1 L4). This engine is primarily used as a replacement in Tier 3 machines or for use in unregulated regions.
-
-
-
-
-
-
📦 Packing
1. Packaging methods: Carton box + Wooden case/Pallet + Anti-rust treatment
2. Export-standard packaging to ensure safety during transportation
3. Custom packaging available upon request
4. Dimensions and weight can be provided for freight calculation
🚚 Shipping
1. Available shipping methods: Sea freight, Air freight, Express delivery (DHL, UPS, FedEx, etc.)
2. LCL (Less than Container Load) and FCL (Full Container Load) options are supported
3. For Russian clients, we can introduce the forwarder agent to you
4. Delivery time: Ships within 1-3 working days after payment (for items in stock)
💳 Payment
1. Accepted methods: T/T, Bank Transfer, PayPal, Alipay, WeChat Pay, Western Union
2. Deposit + balance payment available for large or custom orders
3. Flexible payment options—feel free to contact us for details
📌 Frequently Asked Questions (FAQs)
Q: Which excavator models is this part compatible with?
A: This product is compatible with major brands such as CAT, KOMATSU, HITACHI, and more. Custom specifications are also available.
Q: How can I make sure I’m selecting the correct part?
A: You can send us a photo of the old part, part number, or your excavator model, and we will help you confirm the right match.
Q: Is there a warranty for this product?
A: Yes, we offer a 6-month quality guarantee under normal use.
