DEUTZ TCD2013L064V Diesel Engine | 7.15L 6-Cylinder 4-Valve Common Rail Motor
The DEUTZ TCD2013L064V is a water-cooled, inline engine that combines mechanical durability with sophisticated electronic control. The integration of the 4-valve technology allows for a more centered injector position, leading to optimized combustion and higher peak torque.
This engine is a power-density leader in the 7-liter class, making it ideal for large excavators, mobile cranes, and agricultural harvesters that require a compact yet incredibly powerful prime mover.
Dear Valued Partners,
Thank you for choosing SPARKLING MACHINERY, your professional supplier for construction machinery brake and transmission parts.

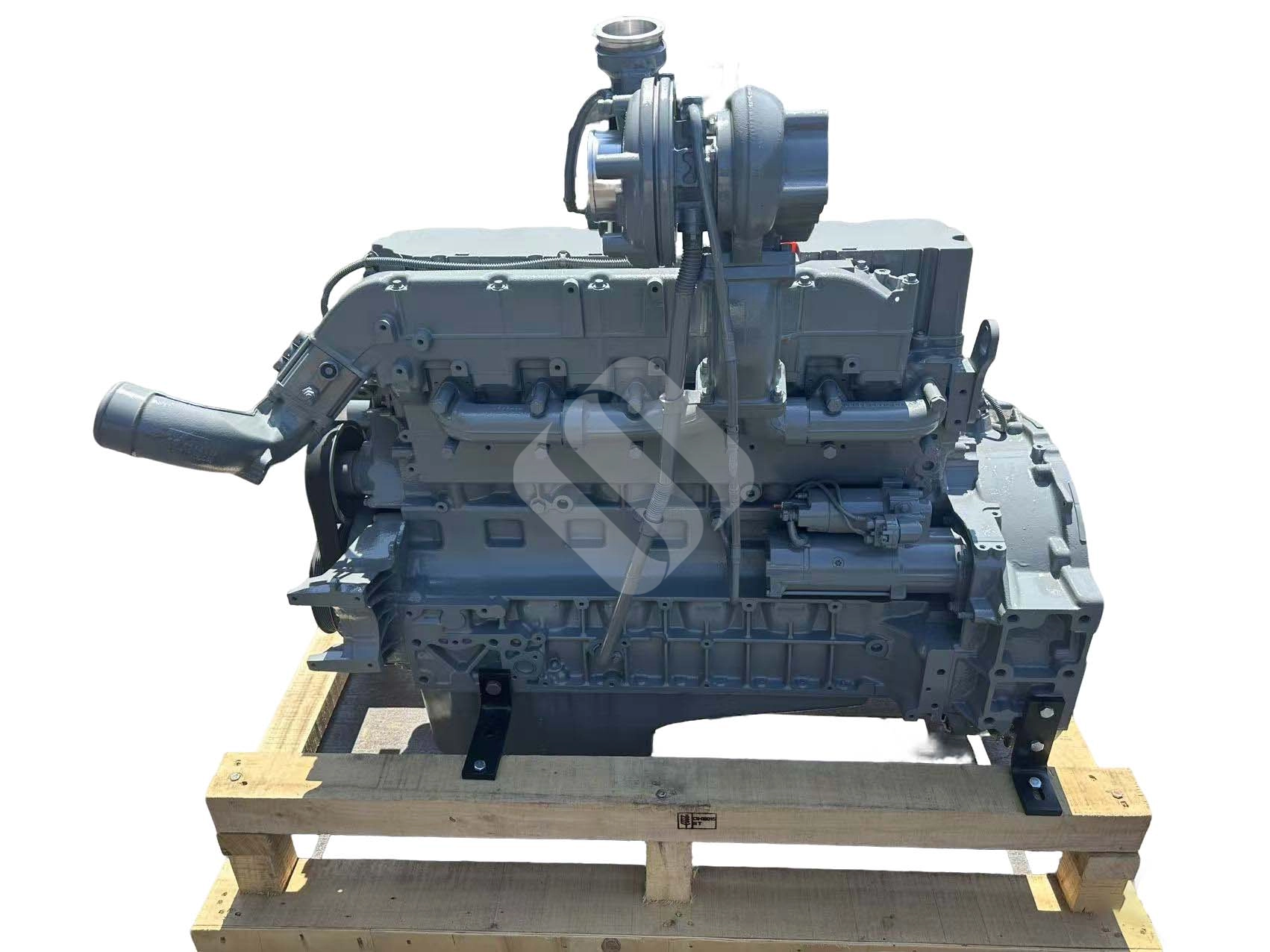

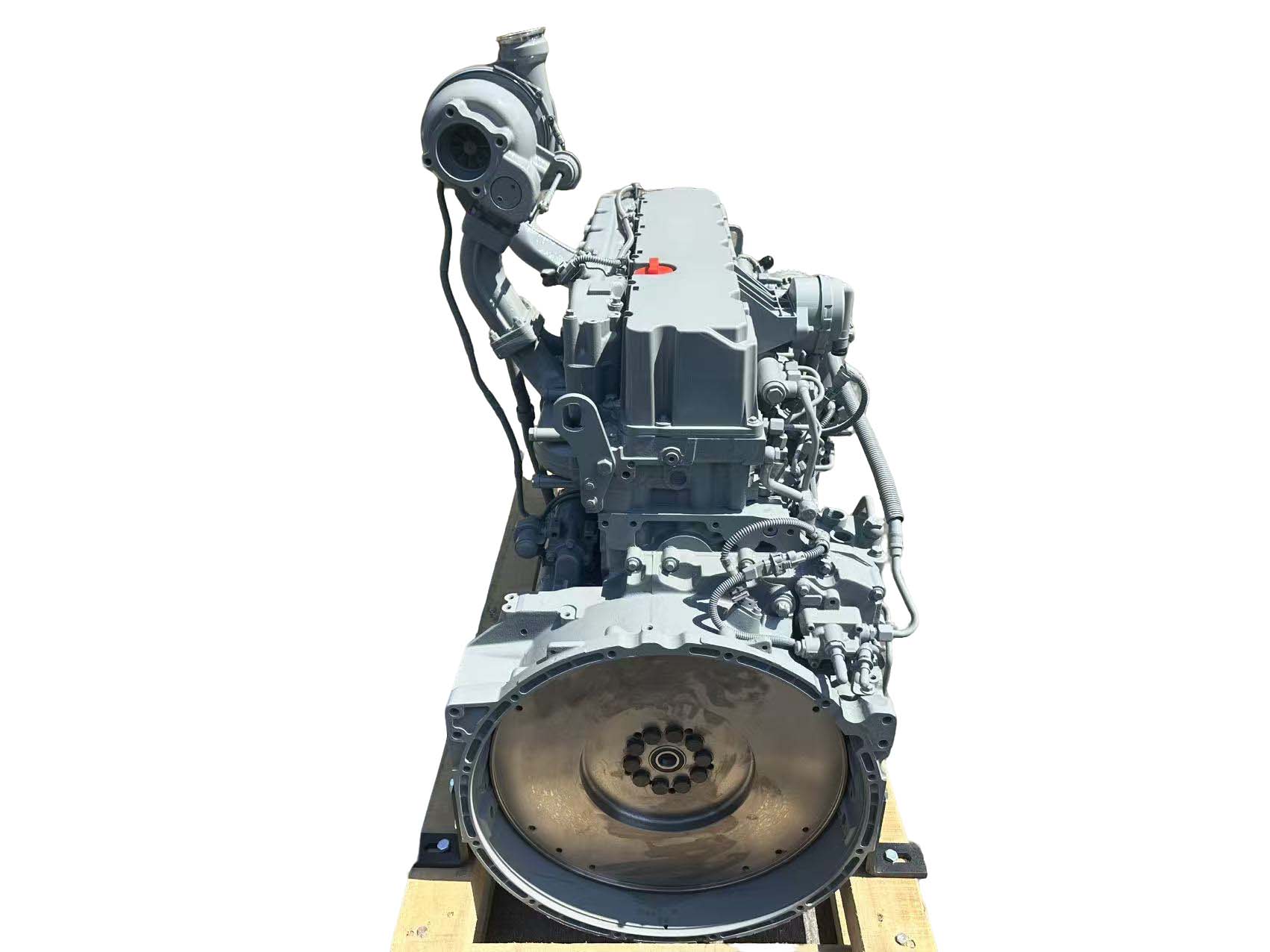

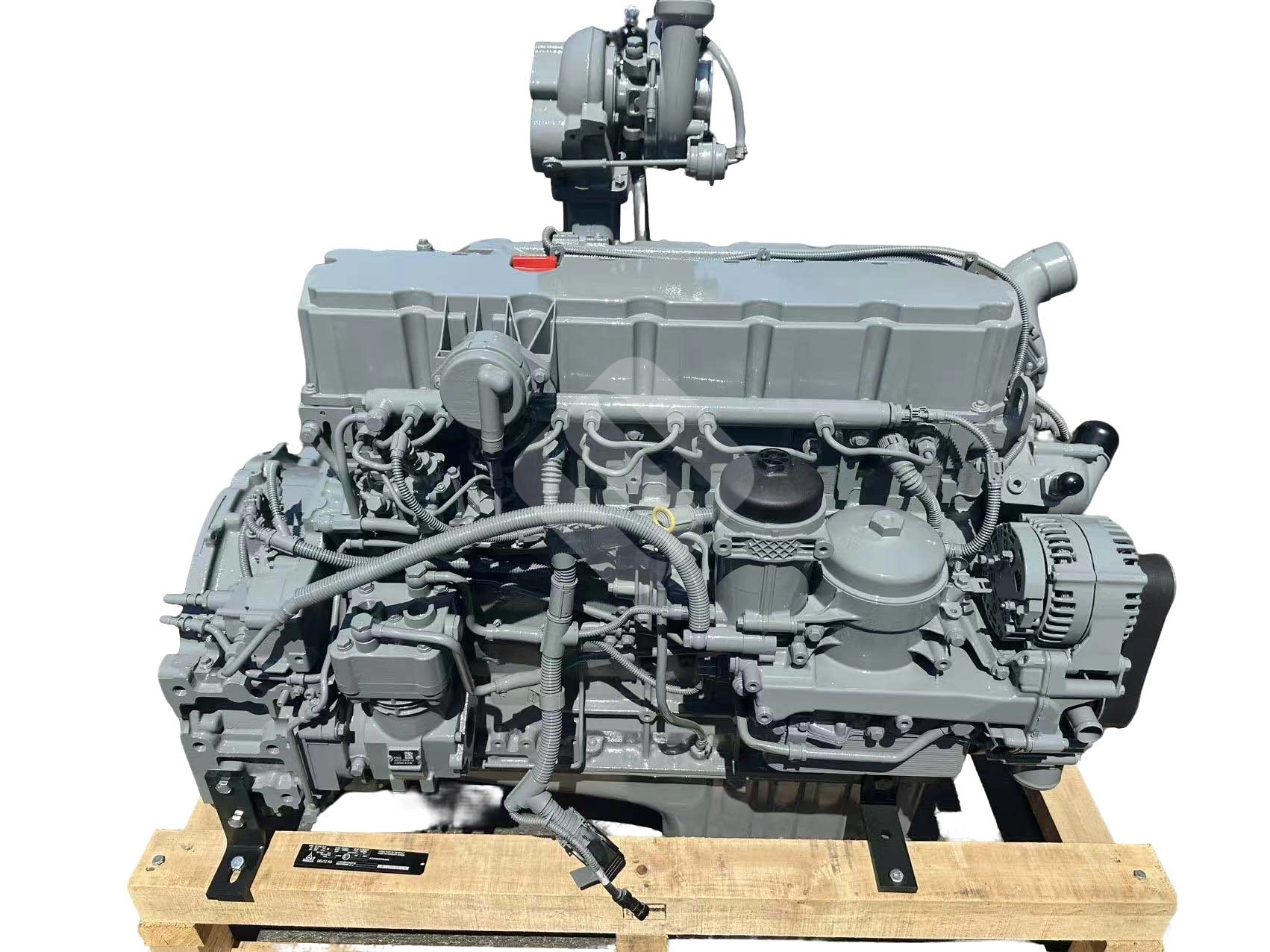

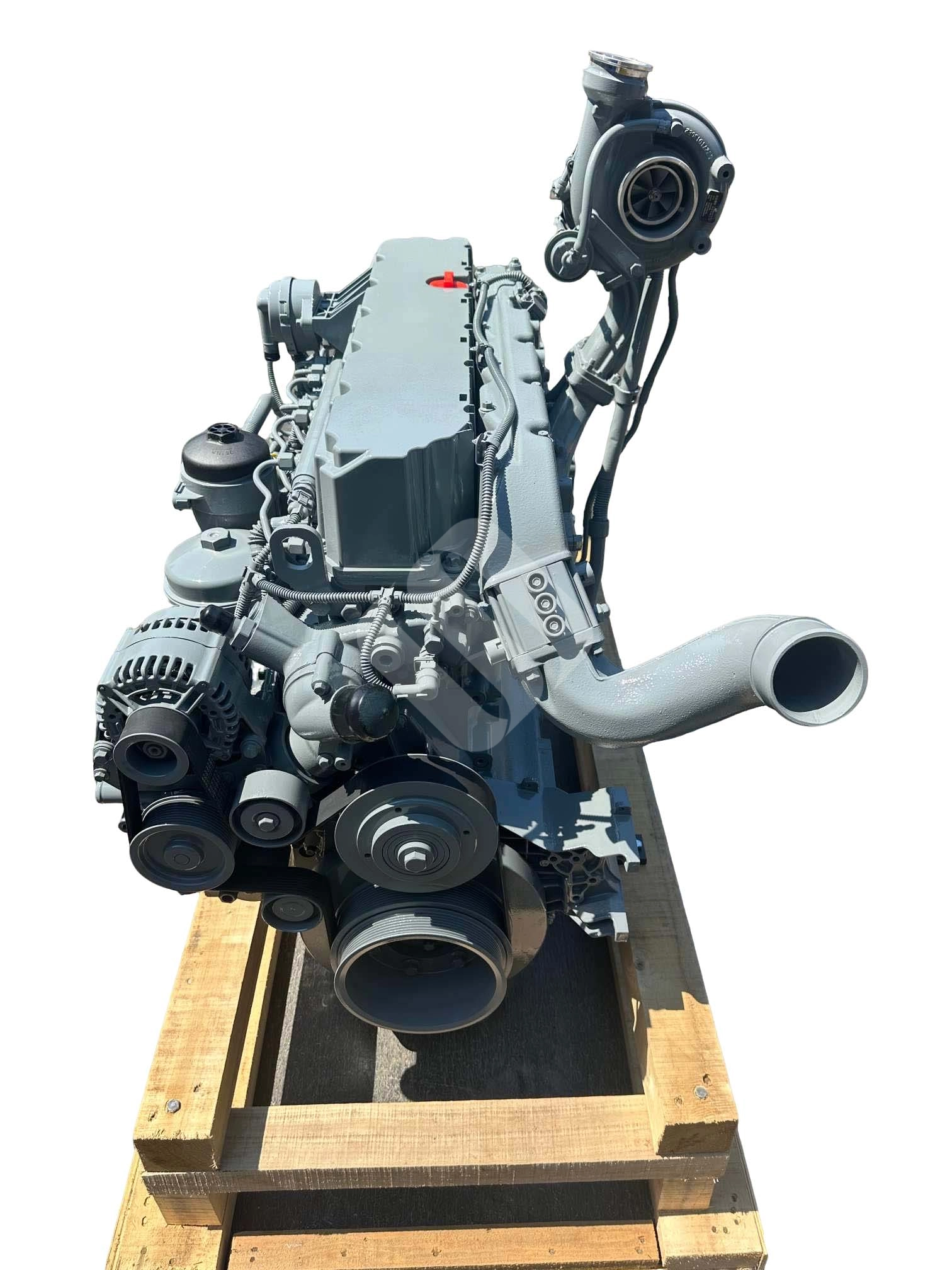

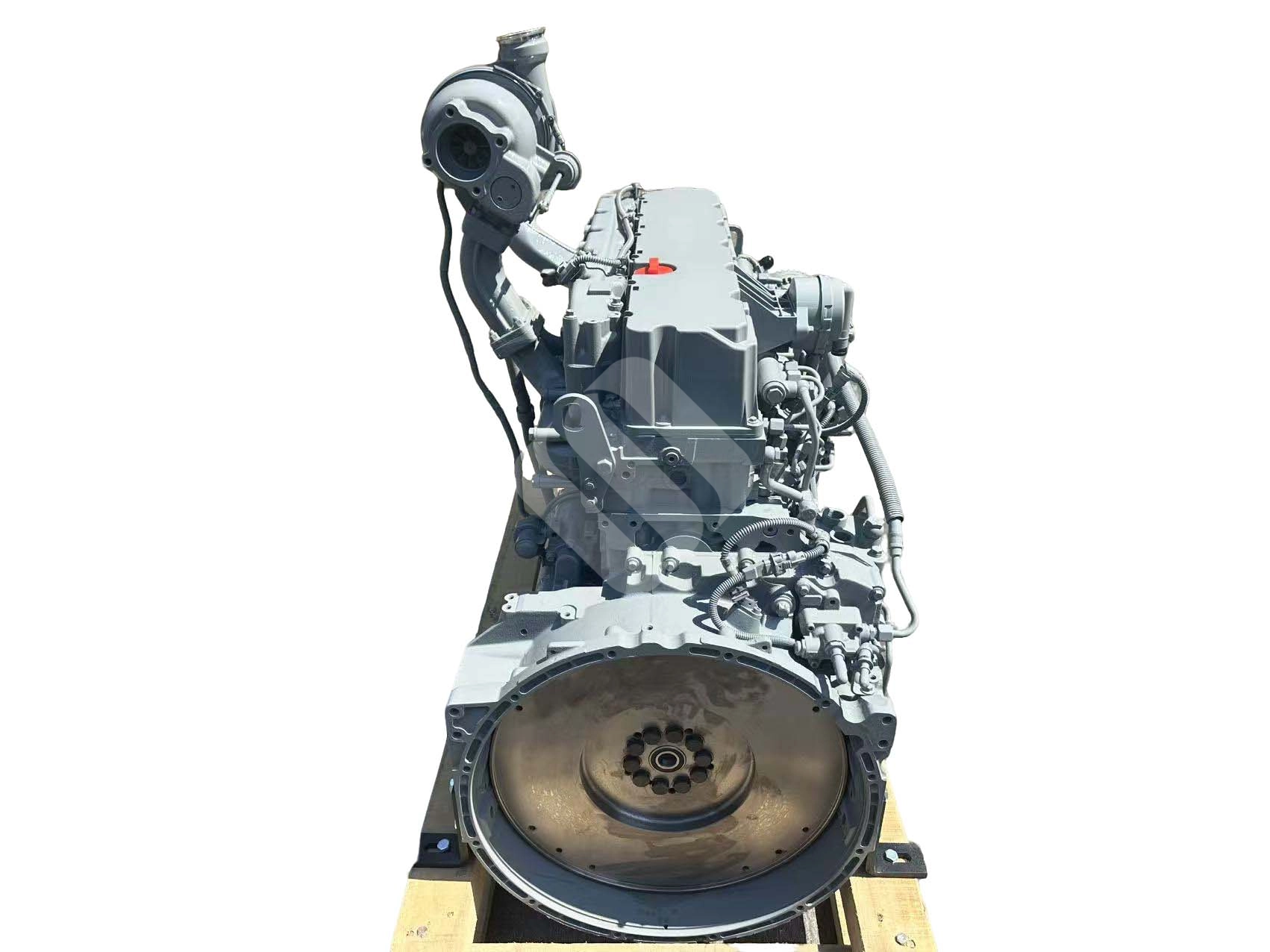

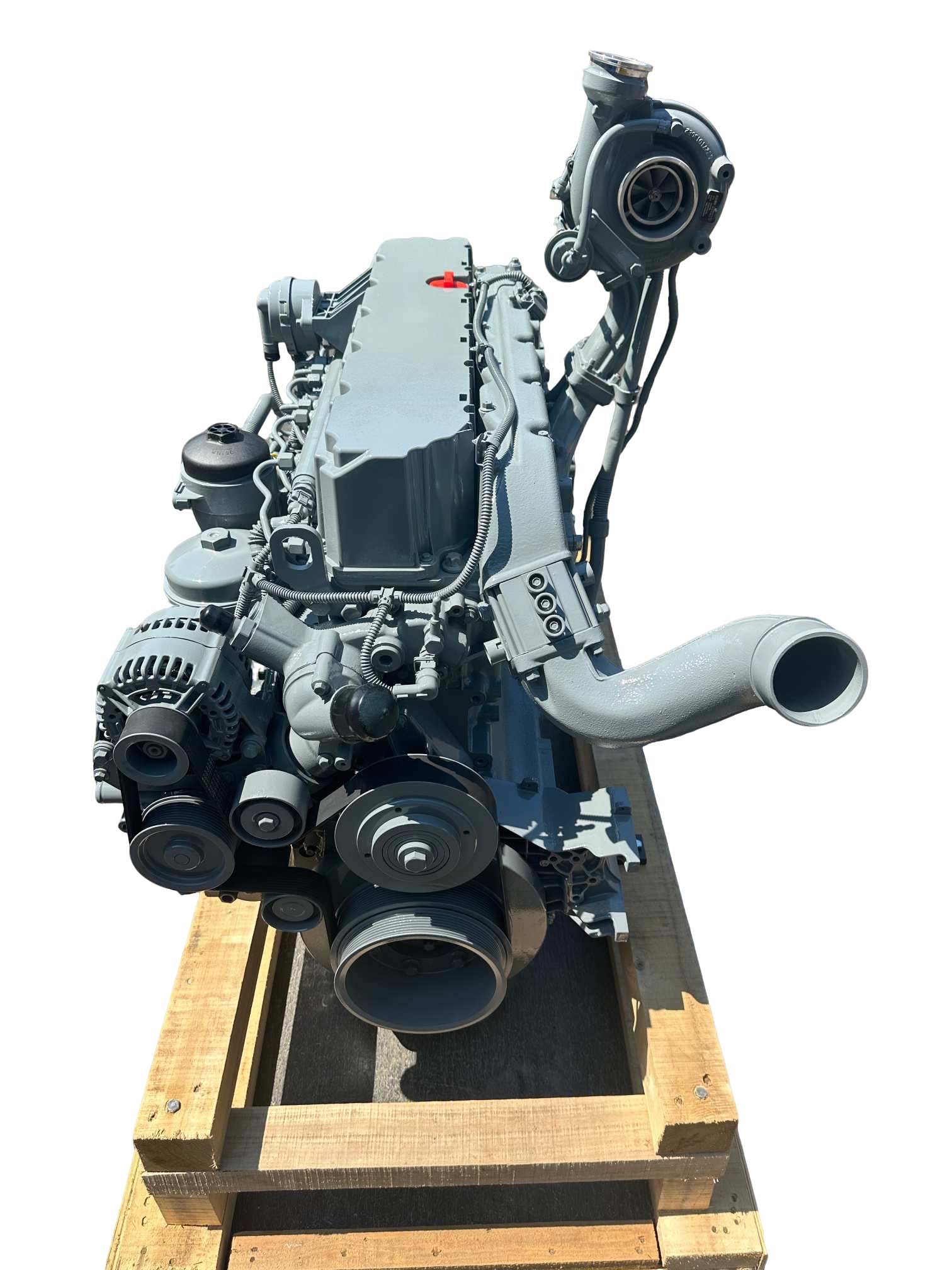

The SPARKLING MACHINERY NEW DEUTZ TCD2013L064V diesel engine Photo:
-
-
-
-
-
-
-
-
-
-
-
-
-
· 4-Valve Technology: Enhances gas exchange and improves thermal efficiency, allowing for higher power ratings compared to the 2V variants.
-
· DEUTZ Common Rail (DCR®): Provides high injection pressure independently of engine speed, resulting in excellent low-end torque and rapid load response.
-
· Electronic Motor Regulator (EMR 3): Offers a high degree of integration with the machine’s electronic system, including advanced engine protection and diagnostics.
-
· Acoustic Optimization: The rigid crankcase and 4-valve design contribute to lower noise levels and reduced vibration compared to previous generations.
-
· Global Reliability: Designed for a long service life with wet cylinder liners and a gear-driven oil pump, ensuring uptime in the most demanding environments.
-
-
-
-
-
Feature Details Engine Model TCD2013L064V Configuration Inline 6-Cylinder, 4-Valve Head Displacement 7.15 Liters Aspiration Turbocharged & Intercooled Bore / Stroke 108 mm / 130 mm Max Power Output Up to 260 kW (348 hp) @ 2300 RPM Max Torque 1310 Nm @ 1450 RPM Fuel System DEUTZ Common Rail (DCR®) Emission Standard US EPA Tier 3 / EU Stage IIIA Weight (Dry) Approx. 620 kg
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Common Applications
-
· Construction: Heavy-duty excavators, pavers, and specialized foundation drilling rigs.
-
· Agriculture: Self-propelled harvesters and high-horsepower tractors.
-
· Material Handling: Heavy-duty reach stackers and mobile cranes.
-
· Industrial: High-output stationary units for water pumps or air compressors.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Q&A
-
Q: What is the main advantage of the "4V" version over the "2V" version?
-
A: The 4-valve design allows the fuel injector to be placed vertically in the center of the combustion chamber. This leads to more uniform fuel distribution, cleaner combustion, and higher power output (up to 260kW vs approx. 243kW in the 2V models).
Q: Can this engine run on high-sulfur fuel?
-
A: The Common Rail system is highly sensitive to fuel quality. While it is robust, Tier 3 engines generally require clean, high-quality diesel. Using a high-quality water separator and primary filter is essential for protecting the high-pressure pumps.
Q: Is the TCD2013L064V interchangeable with a Volvo D7E?
-
A: They share the same base architecture, but the DEUTZ TCD2013L064V uses DEUTZ-specific electronics (EMR3) and software. If you are replacing a Volvo engine, you would likely need to transfer the Volvo sensors, wiring, and ECU to the new block.
-
-
-
-
-
-
📦 Packing
1. Packaging methods: Carton box + Wooden case/Pallet + Anti-rust treatment
2. Export-standard packaging to ensure safety during transportation
3. Custom packaging available upon request
4. Dimensions and weight can be provided for freight calculation
🚚 Shipping
1. Available shipping methods: Sea freight, Air freight, Express delivery (DHL, UPS, FedEx, etc.)
2. LCL (Less than Container Load) and FCL (Full Container Load) options are supported
3. For Russian clients, we can introduce the forwarder agent to you
4. Delivery time: Ships within 1-3 working days after payment (for items in stock)
💳 Payment
1. Accepted methods: T/T, Bank Transfer, PayPal, Alipay, WeChat Pay, Western Union
2. Deposit + balance payment available for large or custom orders
3. Flexible payment options—feel free to contact us for details
📌 Frequently Asked Questions (FAQs)
Q: Which excavator models is this part compatible with?
A: This product is compatible with major brands such as CAT, KOMATSU, HITACHI, and more. Custom specifications are also available.
Q: How can I make sure I’m selecting the correct part?
A: You can send us a photo of the old part, part number, or your excavator model, and we will help you confirm the right match.
Q: Is there a warranty for this product?
A: Yes, we offer a 6-month quality guarantee under normal use.
