Volvo D7E Diesel Engine | 7.2L 6-Cylinder Common Rail Turbo Engine
The Volvo D7E is designed for high productivity and industry-leading fuel efficiency. By utilizing a high-pressure common rail system and electronic engine management, it provides a faster response to hydraulic loads compared to its predecessors.
The D7E is widely praised for its "V-ACT" combustion system, which optimizes the air-to-fuel ratio to reduce emissions and noise without requiring a Diesel Particulate Filter (DPF) in most Tier 3 configurations. It is the heart of Volvo's 24-to-30 ton machine range.
Dear Valued Partners,
Thank you for choosing SPARKLING MACHINERY, your professional supplier for construction machinery brake and transmission parts.

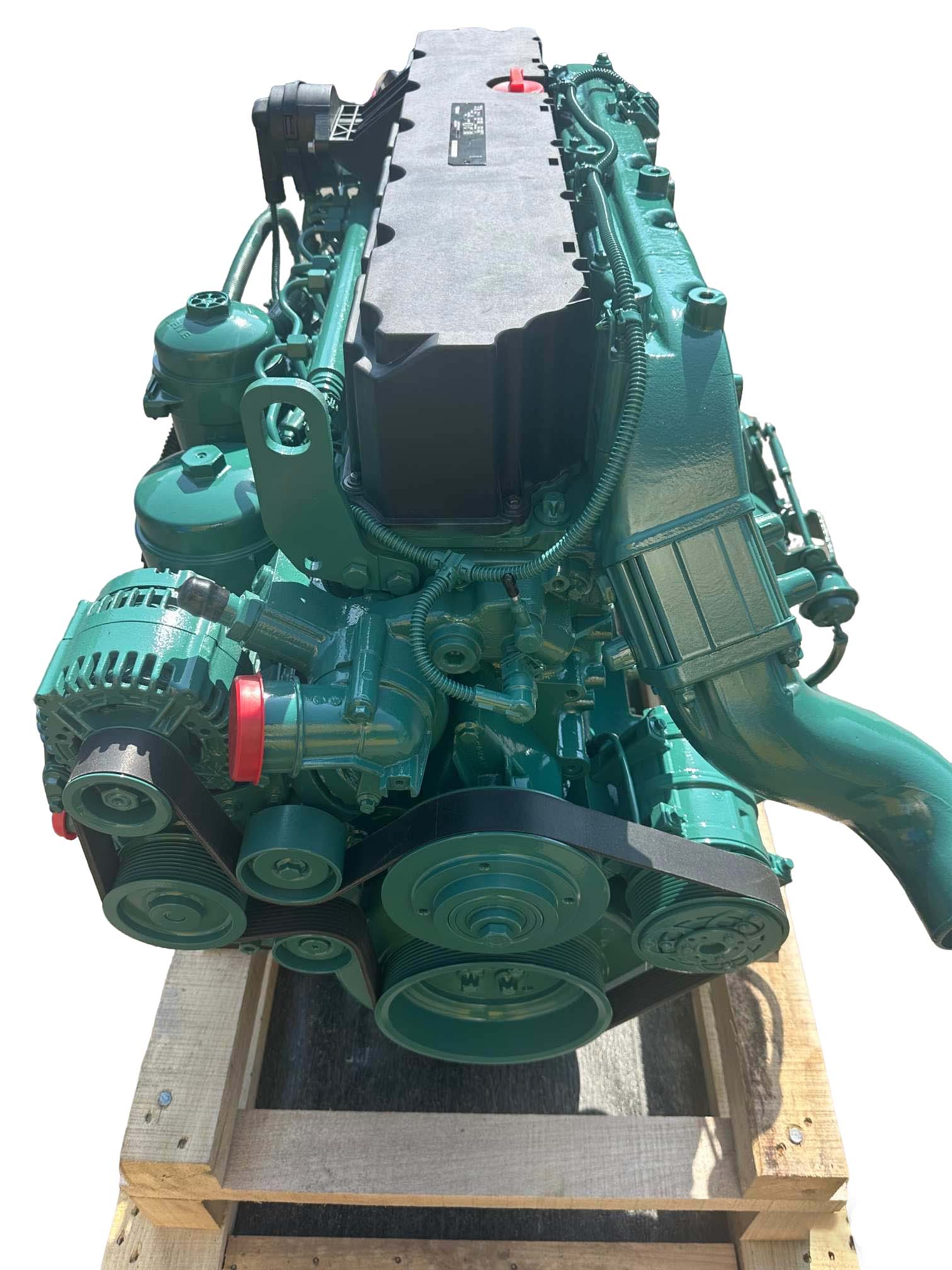

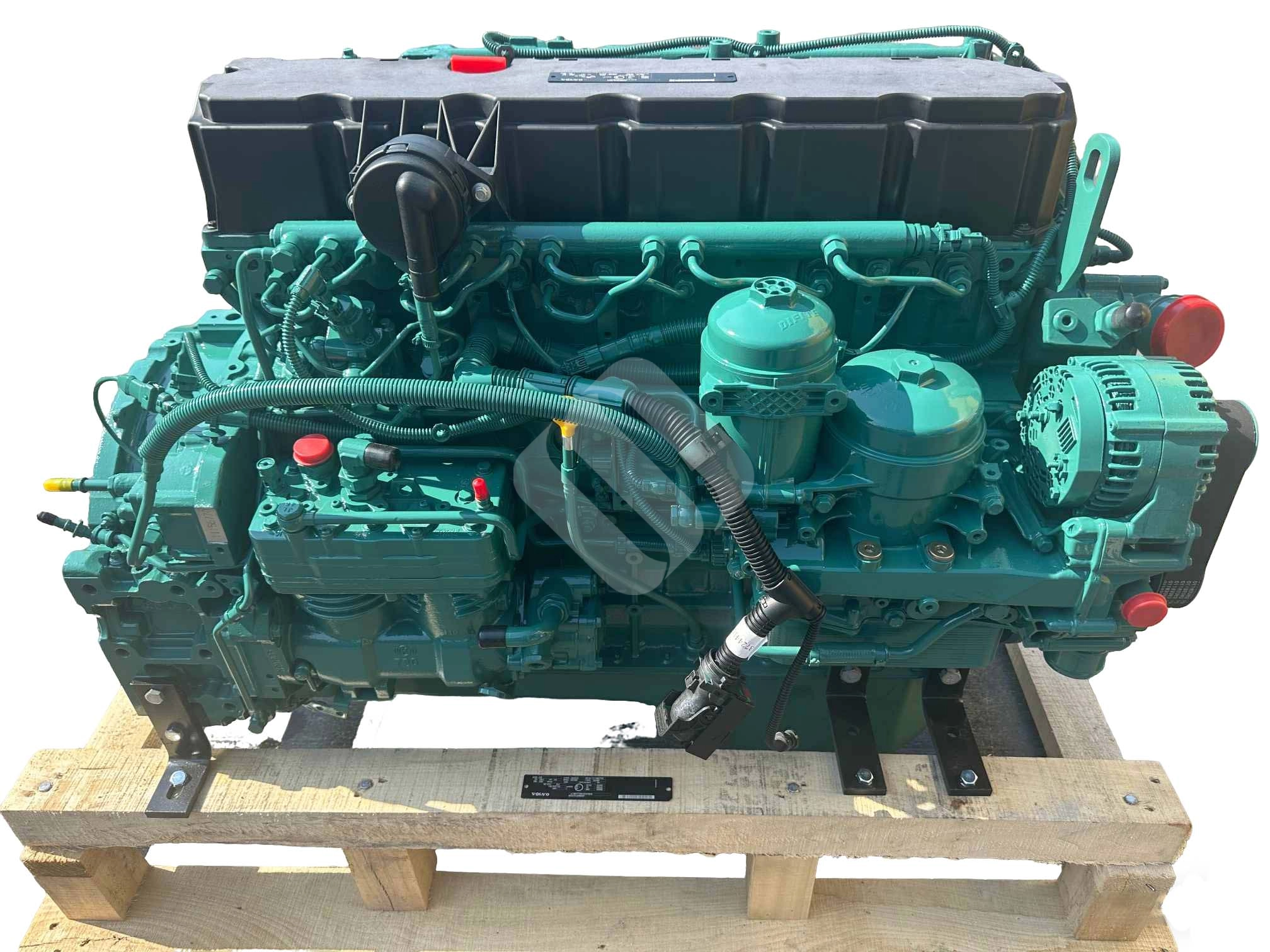

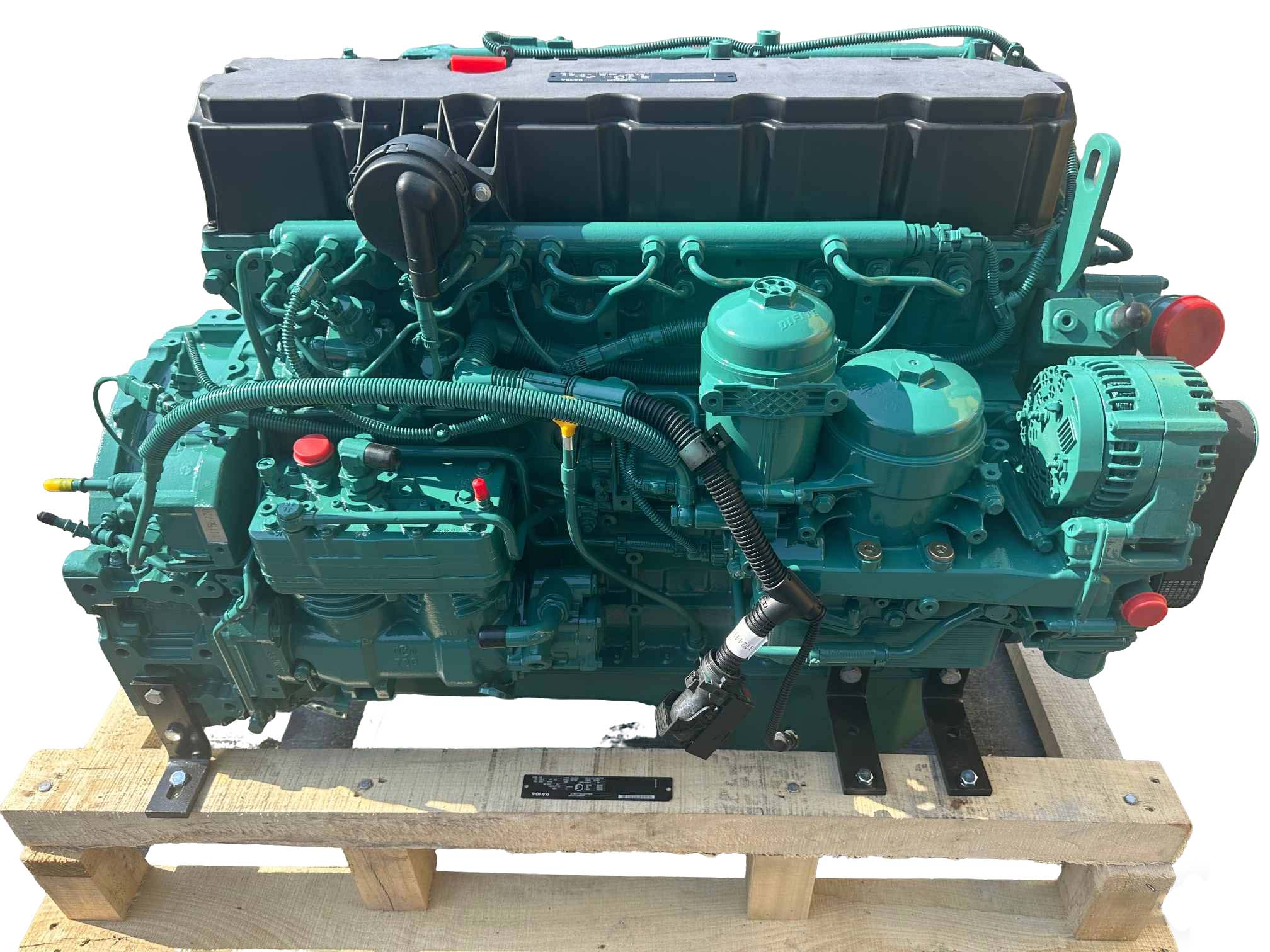

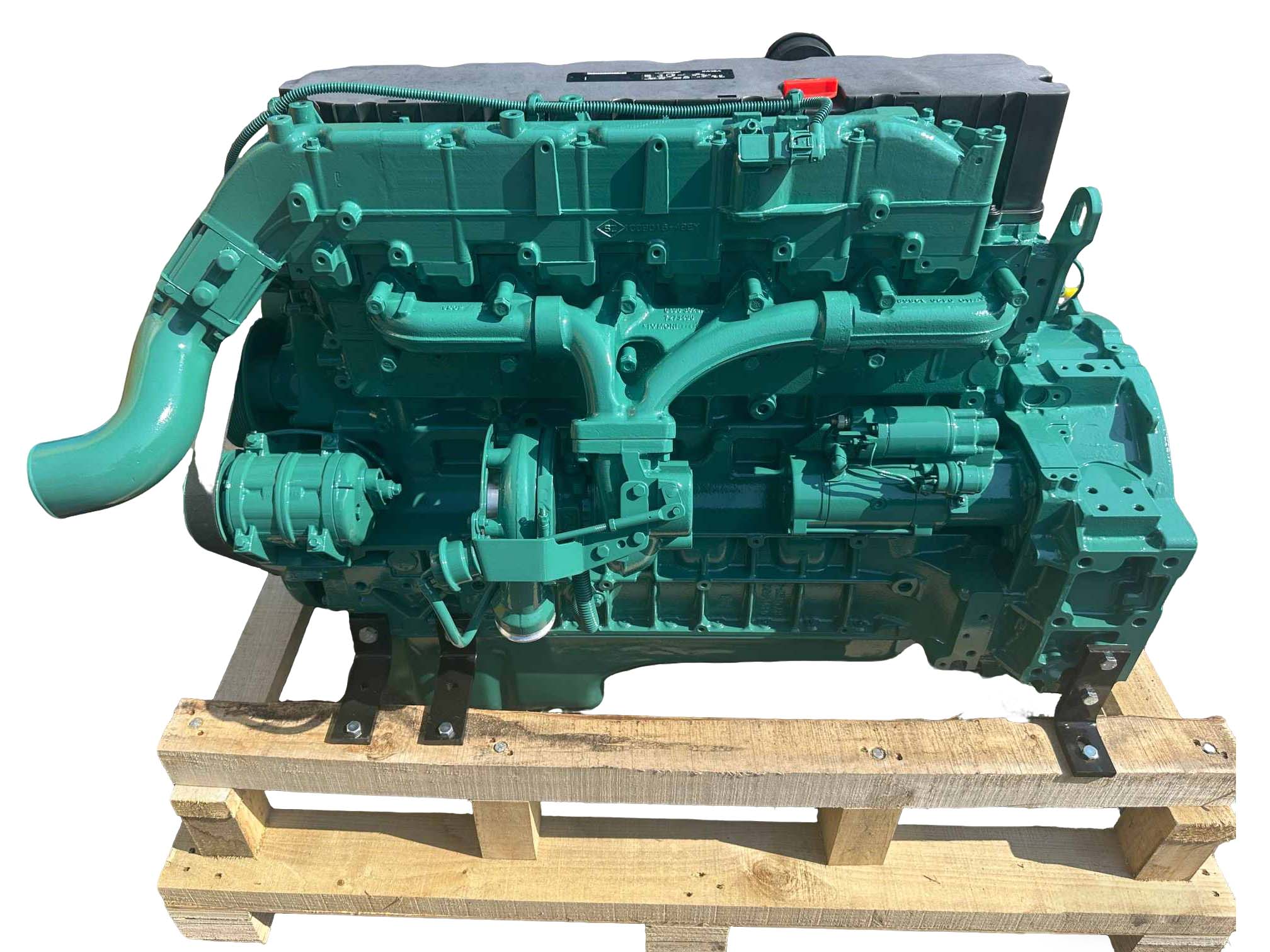

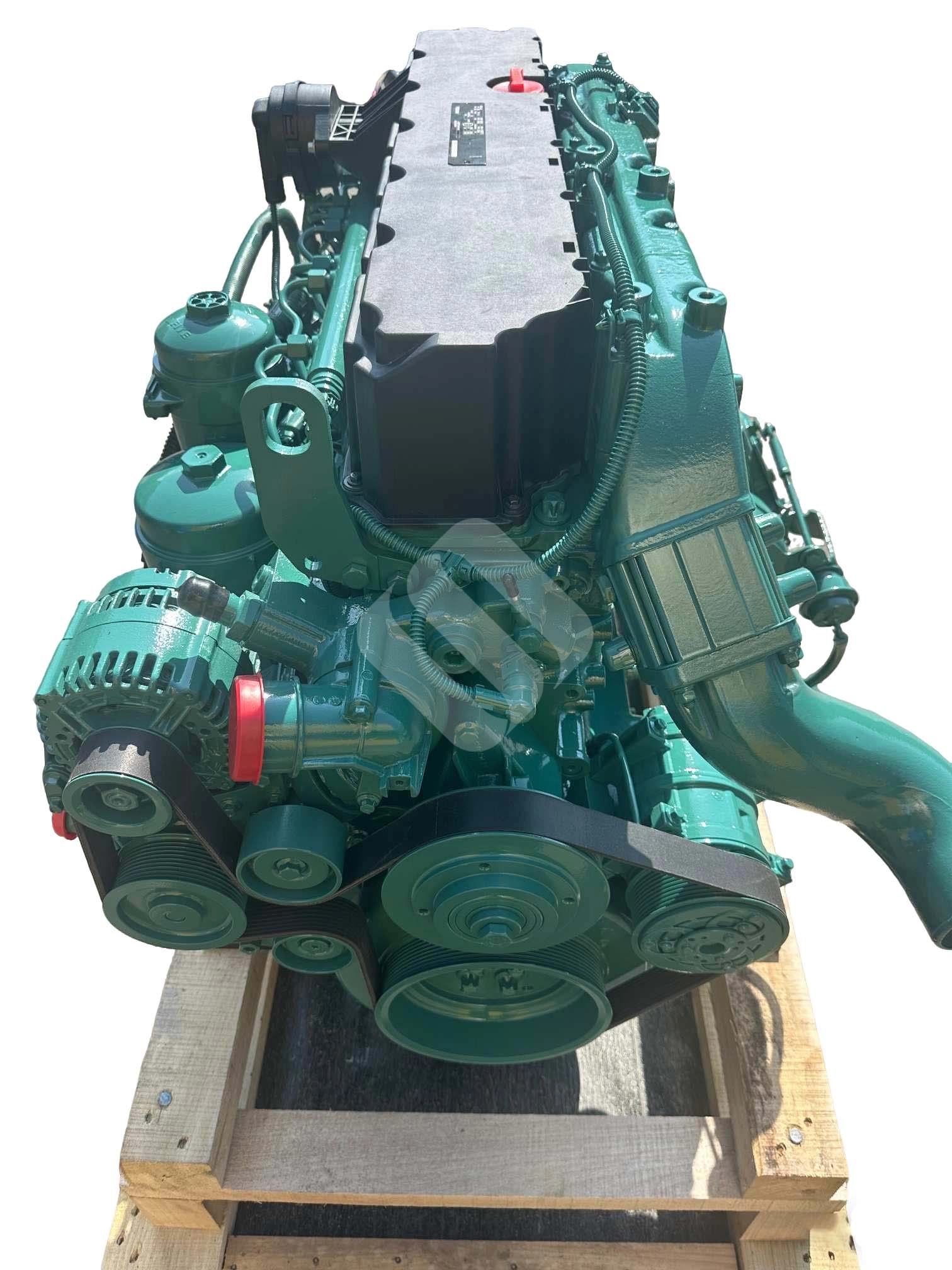

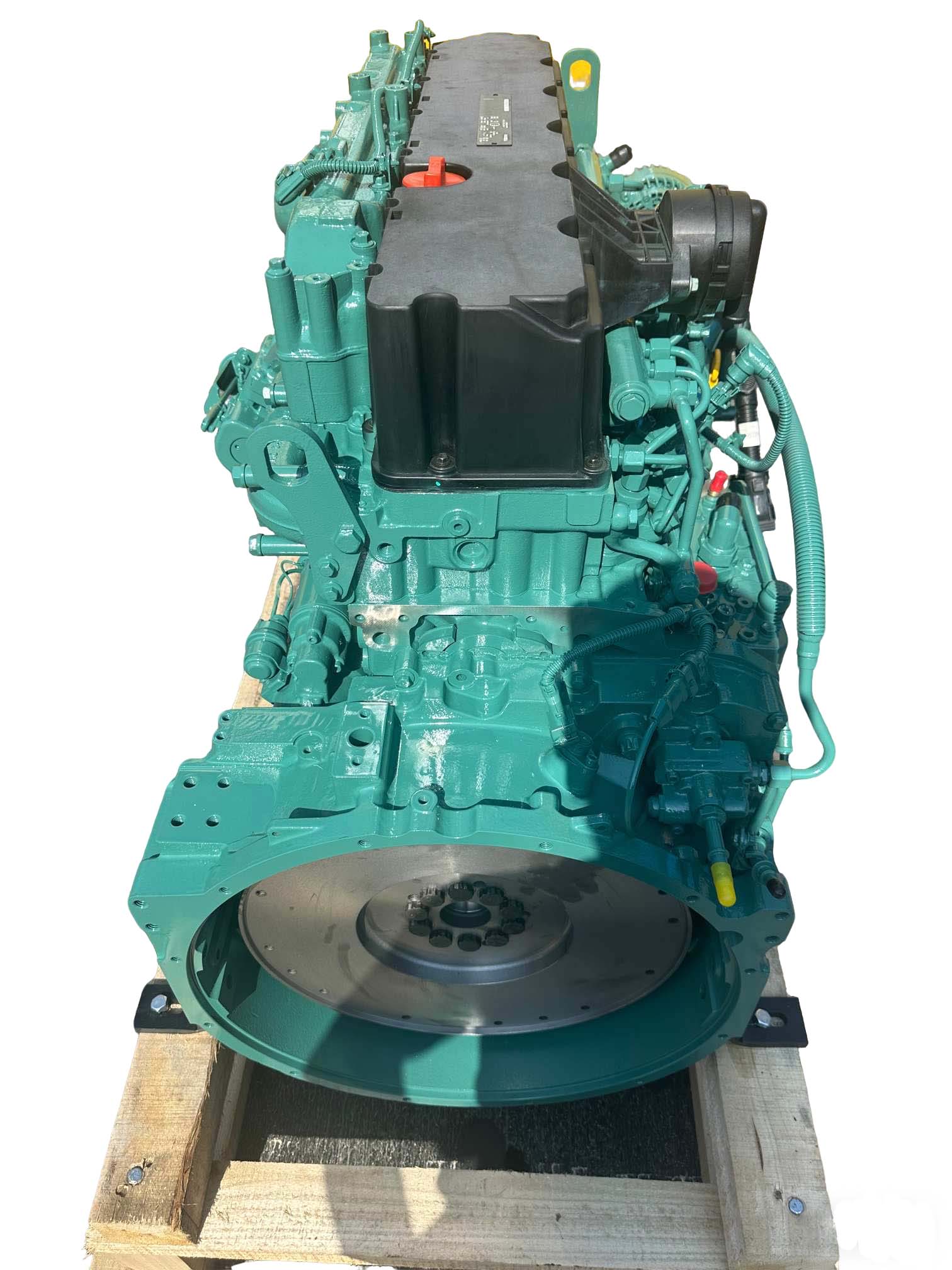

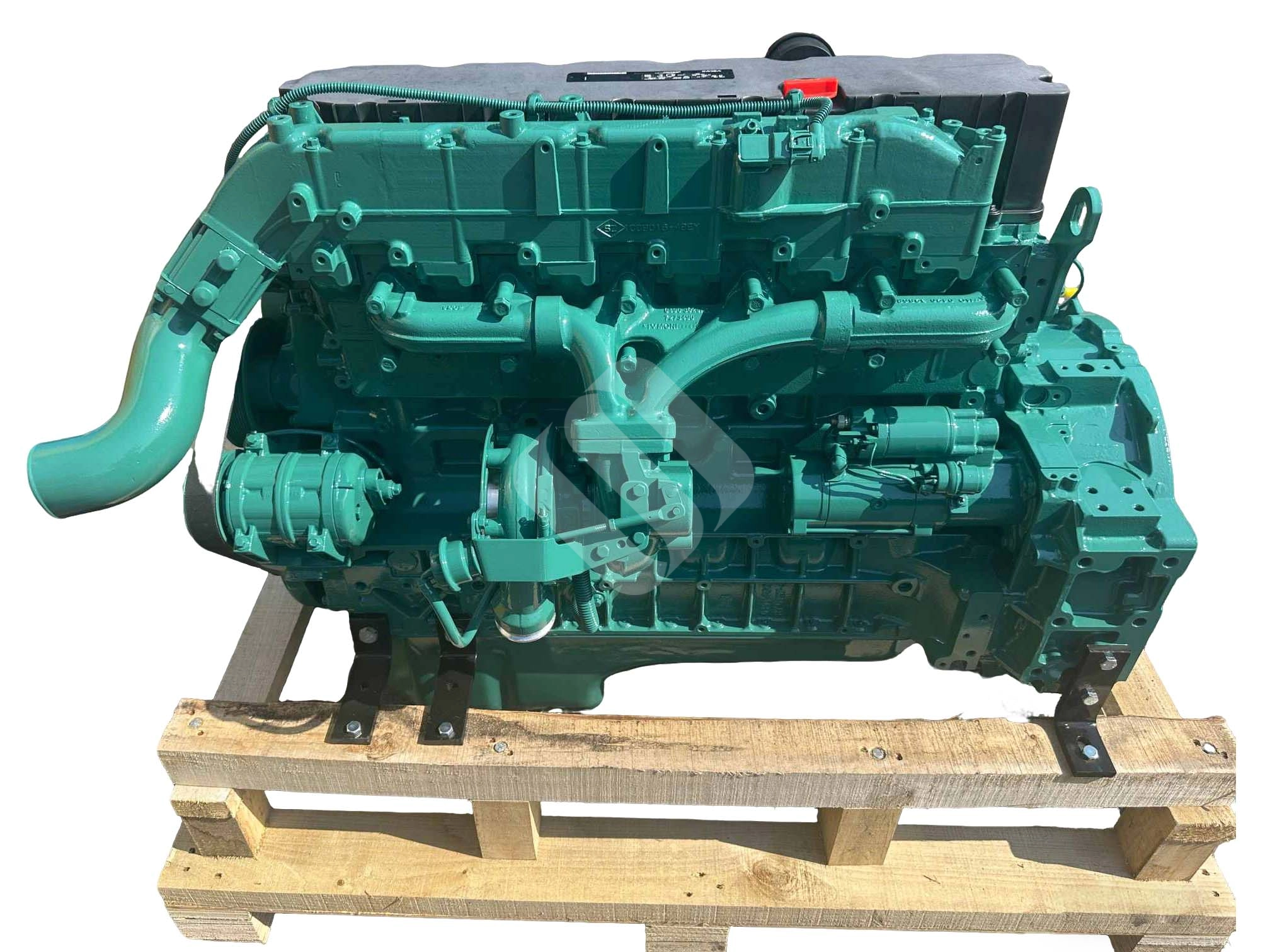

The SPARKLING MACHINERY NEW Volvo D7E diesel engine Photo:
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
· V-ACT Technology: Advanced electronics and fuel injection timing ensure a cleaner burn, providing more power per drop of fuel.
-
· IEGR (Internal Exhaust Gas Recirculation): A smart solution for Tier 3 compliance that keeps the engine package compact by managing emissions within the cylinder head.
-
· Exceptional Low-End Torque: Optimized for digging and lifting, the D7E reaches peak torque at just 1450 RPM, reducing fuel consumption and engine wear.
-
· Durability: Features wet cylinder liners and a ladder-frame block design to handle high internal pressures and reduce vibration.
-
· Intelligent Diagnostics: Fully integrated with Volvo’s electronic monitoring systems, allowing for real-time performance tracking and simplified troubleshooting.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Feature Details Engine Model Volvo D7E Configuration Inline 6-Cylinder, 4-Stroke Displacement 7.15 Liters (7.2L Class) Bore / Stroke 108 mm / 130 mm Aspiration Turbocharged & Intercooled Max Power Output 125 kW – 170 kW (168 hp – 228 hp) Max Torque 1050+ Nm @ 1450 RPM Emission Standard US EPA Tier 3 / EU Stage IIIA Fuel System High-Pressure Common Rail Weight (Dry) Approx. 580 kg
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Common Applications
-
-
The Volvo D7E powers the legendary "F" and "C" series machines:
-
· Excavators: Volvo EC235C, EC240C, EC290C, ECR305C.
-
· Wheel Loaders: Volvo L110F, L120F.
-
· Motor Graders: Volvo G930, G940, G946, G960.
-
· Paving & Compaction: High-capacity ABG pavers and heavy soil compactors.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Q&A
-
Q: What is the main difference between the Volvo D7D and D7E?
-
A: The D7D is a Tier 2 engine using mechanical-style unit pumps. The D7E is a Tier 3 engine that uses a fully electronic Common Rail system, offering significantly better fuel efficiency and lower noise levels.
Q: Can a D7E engine be installed in a D7D machine?
-
A: This is not a direct swap. The D7E requires a different Electronic Control Unit (ECU), a more complex wiring harness, and a revised fuel delivery system. It is best to stick to the original engine model for your machine.
Q: What maintenance is critical for the D7E?
-
A: Because it uses a high-pressure common rail system, fuel filtration is the most critical maintenance item. Always use genuine Volvo fuel filters and high-quality, clean diesel to prevent injector damage.
-
-
-
-
-
-
