How to Diagnose Hydraulic System Failures in Excavators

How to Diagnose Hydraulic System Failures in Excavators

Hydraulic failures are among the most common causes of excavator downtime. Accurately diagnosing the root cause saves time and money, and helps you choose the right Excavator Hydraulic Parts for repair. This guide gives technicians, fleet managers, and owners a clear, practical approach to find and fix hydraulic problems quickly while protecting system components and personnel.

Why correct diagnosis matters for Excavator Hydraulic Parts

Buying parts without a correct diagnosis can lead to repeated failures and higher costs. Matching symptoms to true causes preserves critical parts such as pumps, control valves, cylinders, and hoses. SPARKLING MACHINERY supplies high-quality Excavator Hydraulic Parts and technical support—accurate diagnosis ensures you order the right replacement and reduce machine downtime.

Understand the hydraulic system basics before troubleshooting

Key hydraulic components to check

• Hydraulic pump (main and pilot)
• Control valves and spools
• Hydraulic cylinders and seals
• Hoses, fittings, and quick couplers
• Filters, tanks, and breathers
• Pressure-relief and load-sensing systems
• Hydraulic oil (viscosity, contamination, water)

Typical operating pressures

Excavator hydraulic systems vary by size and design. Typical working pressures range broadly from about 2,000 to 5,000 psi (≈140 to 350 bar). Smaller machines often run near the lower end; heavy-duty units and attachments may operate toward the upper end. Always consult OEM specs for exact values before testing.

Safety first: before you start diagnostics

Essential safety checks

• Park on firm, level ground and chock the tracks.
• Lower attachments and relieve system pressure per manufacturer instructions.
• Use proper PPE: gloves, eye protection, and hearing protection.
• Never loosen fittings while the system is pressurized.
• Be mindful of hot surfaces and hydraulic fluid injection risks.

Step-by-step diagnostic workflow

1. Interview and replicate the symptom

Ask the operator detailed questions: when did it start, under what load, intermittent or constant? Attempt to replicate the fault in a controlled environment. Reproducible symptoms make root-cause diagnosis far easier.

2. Visual inspection

Look for obvious problems: fluid leaks, damaged hoses, loose fittings, bent rods, or external contamination. Check hydraulic oil level and color. Milky or cloudy oil suggests water contamination.

3. Check fluids and filters

Confirm oil meets OEM viscosity and cleanliness specs. Replace or inspect filters—clogged suction or return filters restrict flow and cause pressure anomalies. Always sample the oil for contamination if you see unusual wear or overheating.

4. Measure pressures and flow

Use a calibrated pressure gauge and flow meter on test ports. Compare measured pressures (main relief, pilot, and cylinder) against OEM values. For load-sensing systems, verify the system responds correctly to load changes. Abnormal low pressure or erratic readings can pinpoint pump wear, relief valve misadjustment, or internal leakage.

5. Isolate sections

Isolate the circuit (boom, arm, swing, travel) to narrow the fault location. Operate each section independently to see where the loss occurs. This helps differentiate between a localized valve/cylinder issue and a systemic pump problem.

6. Electrical and controls check

Modern excavators use electro-hydraulic controls. Inspect wiring, connectors, solenoids, and control modules. Use a multimeter to confirm solenoid voltages and continuity. A failed solenoid can mimic hydraulic faults.

7. Thermal and acoustic diagnostics

Infrared cameras reveal overheating components or blocked flow paths. A mechanic’s stethoscope helps find cavitation noise in pumps or valves. Cavitation often indicates suction-line restriction or low fluid level.

Common symptoms and likely causes

The table below helps match observable symptoms to likely causes, diagnostic checks, and Excavator Hydraulic Parts typically involved.

Diagnostic tools every shop should have

• Hydraulic pressure gauges and adapters for test ports
• Portable flow meter
• Digital multimeter and clamp meter (for electro-hydraulic systems)
• Infrared thermometer or thermal camera
• Oil cleanliness test kit (particle counter or patch test)
• Mechanic’s stethoscope and borescope for internal inspection

Component-specific checks and remedies

Pumps

Symptoms: low flow/pressure, cavitation noise, overheating. Check suction line for leaks or collapsed hoses, verify oil level, inspect inlet strainer. If pump shows internal wear (low flow at rpm, metal particles), replacement of the pump or pump elements is required. SPARKLING MACHINERY stocks high-quality hydraulic pumps and replacement parts compatible with major brands.

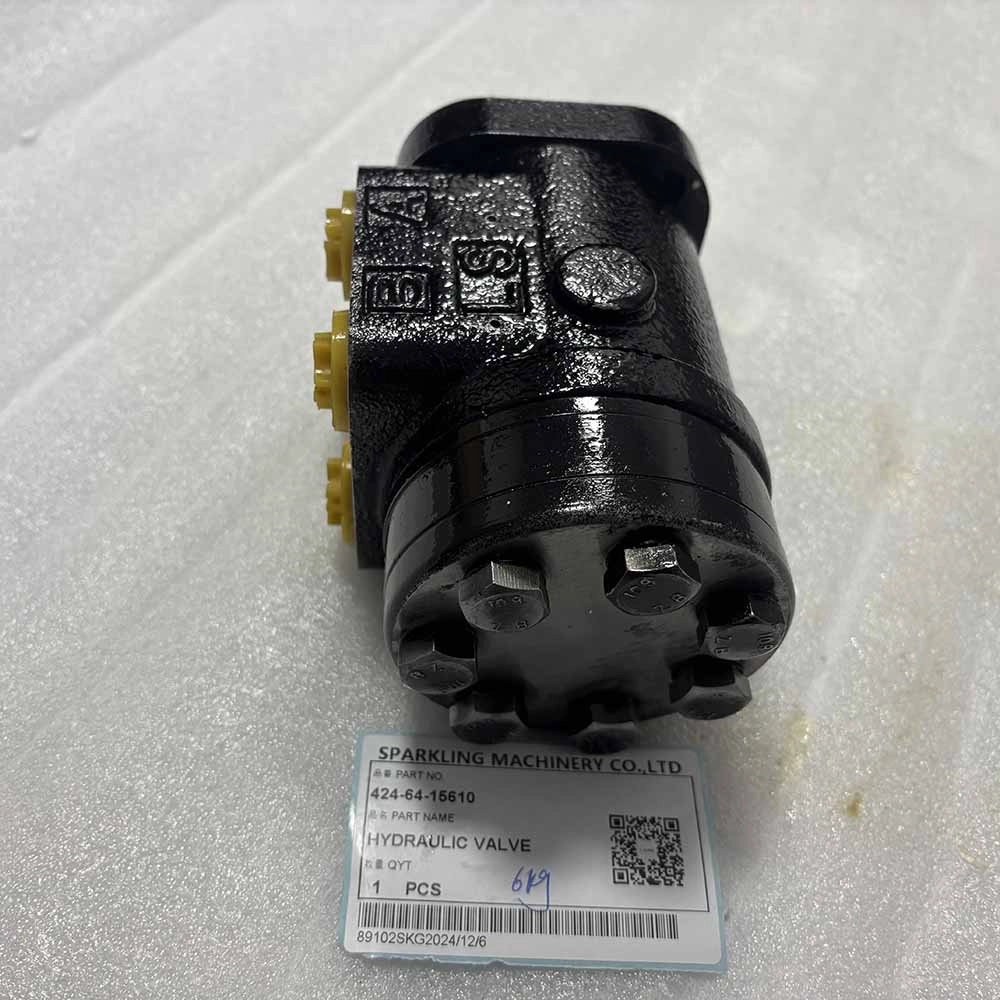

Control valves

Symptoms: sticking, drift, loss of precise motion. Remove and inspect for scoring or contamination. Clean or rebuild valves and replace worn spools or seals. For electro-hydraulic valves, test solenoid coil resistance and voltage.

Cylinders and seals

Symptoms: external leaks, slow return, internal bypass (loss of holding). Inspect rod for scratches or bending, test for internal leakage by applying load and holding pressure. Seal kits are often the remedy; for bent or badly scored rods, cylinder rebuilding or replacement may be necessary.

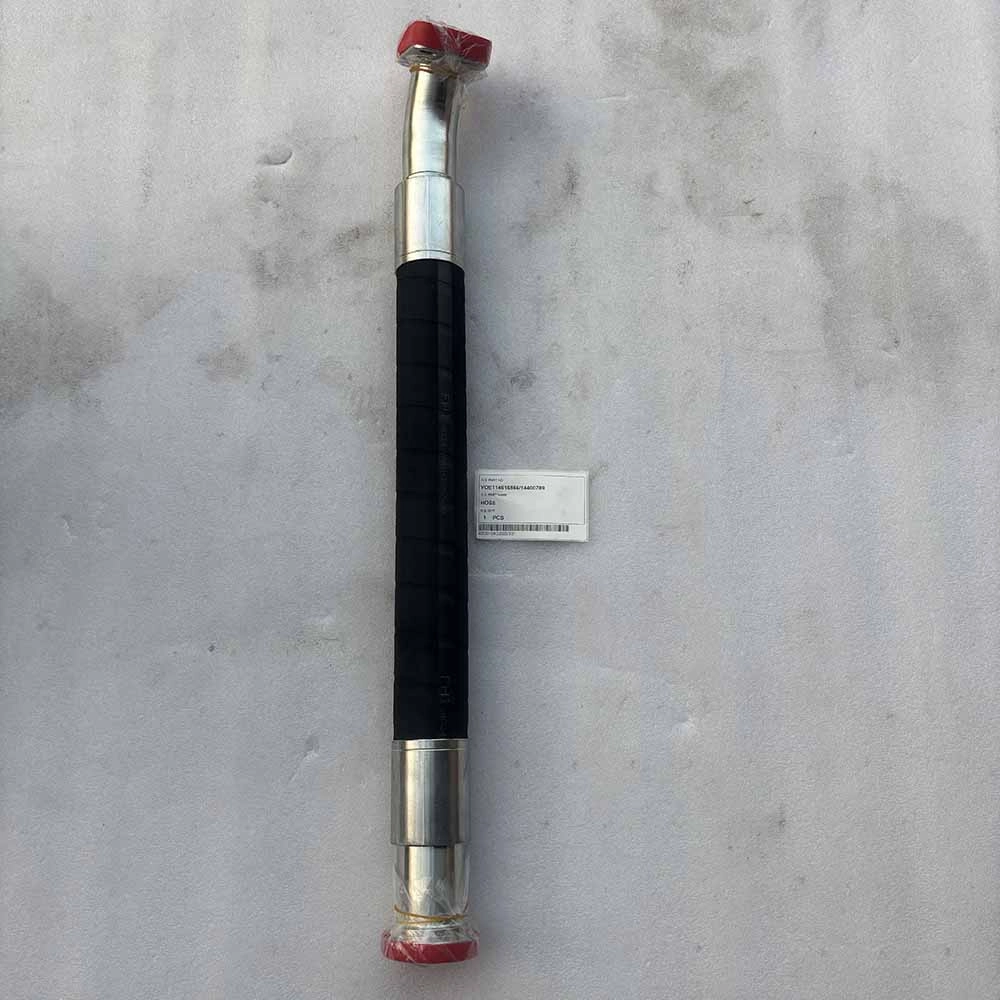

Hoses and fittings

Symptoms: visible leaks, bulging, or blowouts. Hoses should meet OEM pressure and temperature ratings. Replace damaged hoses and tighten or replace fittings. Use crimped fittings rather than field clamps for reliability.

When to repair vs. replace Excavator Hydraulic Parts

Repair is cost-effective when components can be refurbished to OEM tolerances (e.g., replacing seals, spool regrinding). Replace parts when wear is beyond service limits, internal damage exists, or when reliability is critical for safety or uptime. SPARKLING MACHINERY offers both replacement parts and technical consultation to help you choose the best option for lifecycle cost and uptime.

Maintenance practices to prevent hydraulic failures

• Follow scheduled oil and filter change intervals per OEM guidance.
• Maintain proper oil cleanliness (ISO 4406 ratings often recommended by OEMs).
• Use correct hydraulic oil viscosity and additives suited to working temperatures.
• Inspect hoses, fittings, and cylinders regularly for wear and damage.
• Keep the hydraulic tank and breather clean to prevent contamination ingress.
• Train operators to avoid prolonged high-idle or unnecessary load cycles.

How SPARKLING MACHINERY supports diagnostics and repairs

SPARKLING MACHINERY (founded in 2013) focuses on high-quality Excavator Hydraulic Parts and offers components compatible with top brands like Caterpillar, Komatsu, Hitachi, and Volvo. With strict manufacturing and quality control, SPARKLING MACHINERY supplies pumps, valves, cylinders, hoses, and seals that operate reliably under diverse conditions. The company provides customized solutions, technical consultation, and ongoing service to help customers reduce costs and improve uptime. For diagnostic support, SPARKLING MACHINERY can recommend parts, provide technical specifications, and supply kits for common repairs.

Example case: intermittent boom drift diagnosis

Symptom: Boom drifts slowly when holding a load; intermittent. Steps taken: operator interview established that drift happens after long operation. Visual check OK. Pressure test revealed normal pump output but slight pilot pressure fluctuation. Valve removal and inspection showed worn spool seals with contamination traces. Remedy: Clean system, replace valve seals and filters, flush oil, and retest. Result: Drift resolved.

FAQ — Frequently asked questions about excavator hydraulic diagnostics

Q: What is the quickest test to separate electrical and hydraulic issues?

A: Listen and observe controls. If solenoids do not click or display no voltage when actuated, test electrical circuit first with a multimeter. If solenoids energize but the actuator does not respond, proceed with hydraulic pressure/flow tests.

Q: How often should hydraulic oil and filters be changed?

A: Follow OEM schedules; many recommend oil and filter inspection at regular service intervals (often 1,000–2,000 hours depending on operating conditions). High-contamination or severe-duty environments require more frequent changes.

Q: Can adding new hydraulic oil fix slow operation?

A: If old oil is degraded or contaminated, replacing and flushing the system can restore performance. But slow operation may also be caused by worn pumps, valve leaks, or mechanical issues—diagnostic tests are required to confirm.

Q: Is it safe to run an excavator with a small hydraulic leak?

A: Small external leaks should be repaired promptly. They can lead to contamination, loss of oil, fire hazards, and sudden failure. Always address leaks quickly and safely.

Q: How do I know if a pump is salvageable?

A: Pump salvageability depends on measured flow/pressure versus OEM specs, presence of metal particles, and internal noise. If wear exceeds repair limits or contamination has severely damaged components, replacement is recommended.

Q: Where can I source reliable Excavator Hydraulic Parts?

A: Choose reputable suppliers who provide parts compatible with SPARKLING and offer warranties. SPARKLING MACHINERY supplies a broad catalog of hydraulic components, undercarriage and engine parts, and provides technical assistance to help you pick the right parts.

Closing recommendations

Effective hydraulic troubleshooting combines systematic observation, correct tools, and knowledge of system behavior. Start with simple checks (fluid level and filters), use pressure/flow tests to isolate faults, and consult OEM specs before replacing parts. Partnering with a trusted parts supplier like SPARKLING MACHINERY minimizes the risk of ordering incorrect parts and helps restore machine uptime faster.
