Volvo D6E EAE3 Diesel Engine | 5.7L 6-Cylinder Turbocharged Industrial Motor
The Volvo D6E EAE3 is engineered for high-performance applications where fuel efficiency and environmental compliance are paramount. The "EAE3" designation indicates its specific tuning for power density and emission control. By utilizing Internal Exhaust Gas Recirculation (iEGR), this engine achieves Tier 3 compliance without the need for complex external after-treatment filters.
It is the primary power source for Volvo’s popular 20-ton excavators and 10-12 ton wheel loaders, offering a perfect balance of torque at low engine speeds and high-speed reliability.
Dear Valued Partners,
Thank you for choosing SPARKLING MACHINERY, your professional supplier for construction machinery brake and transmission parts.

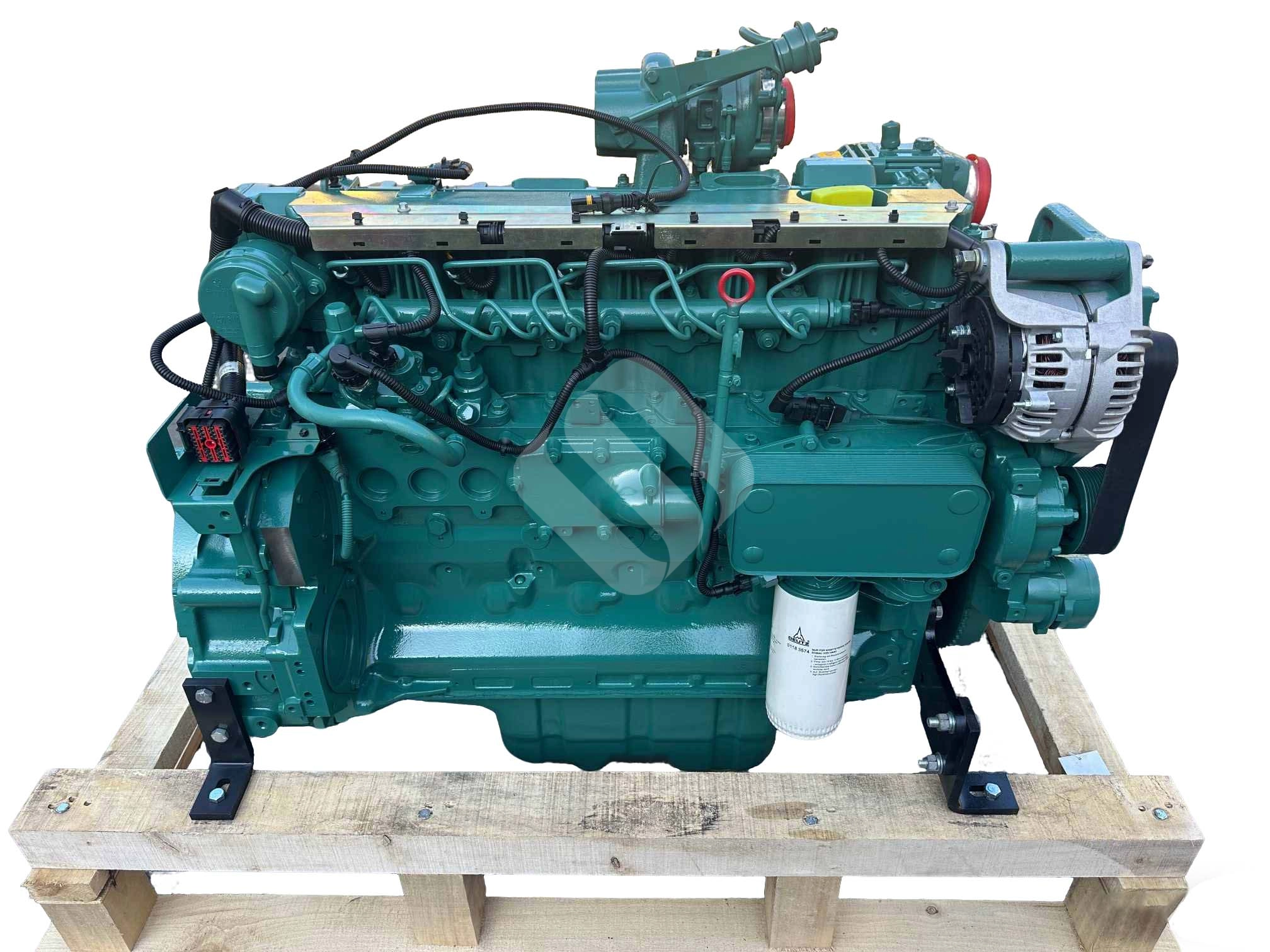

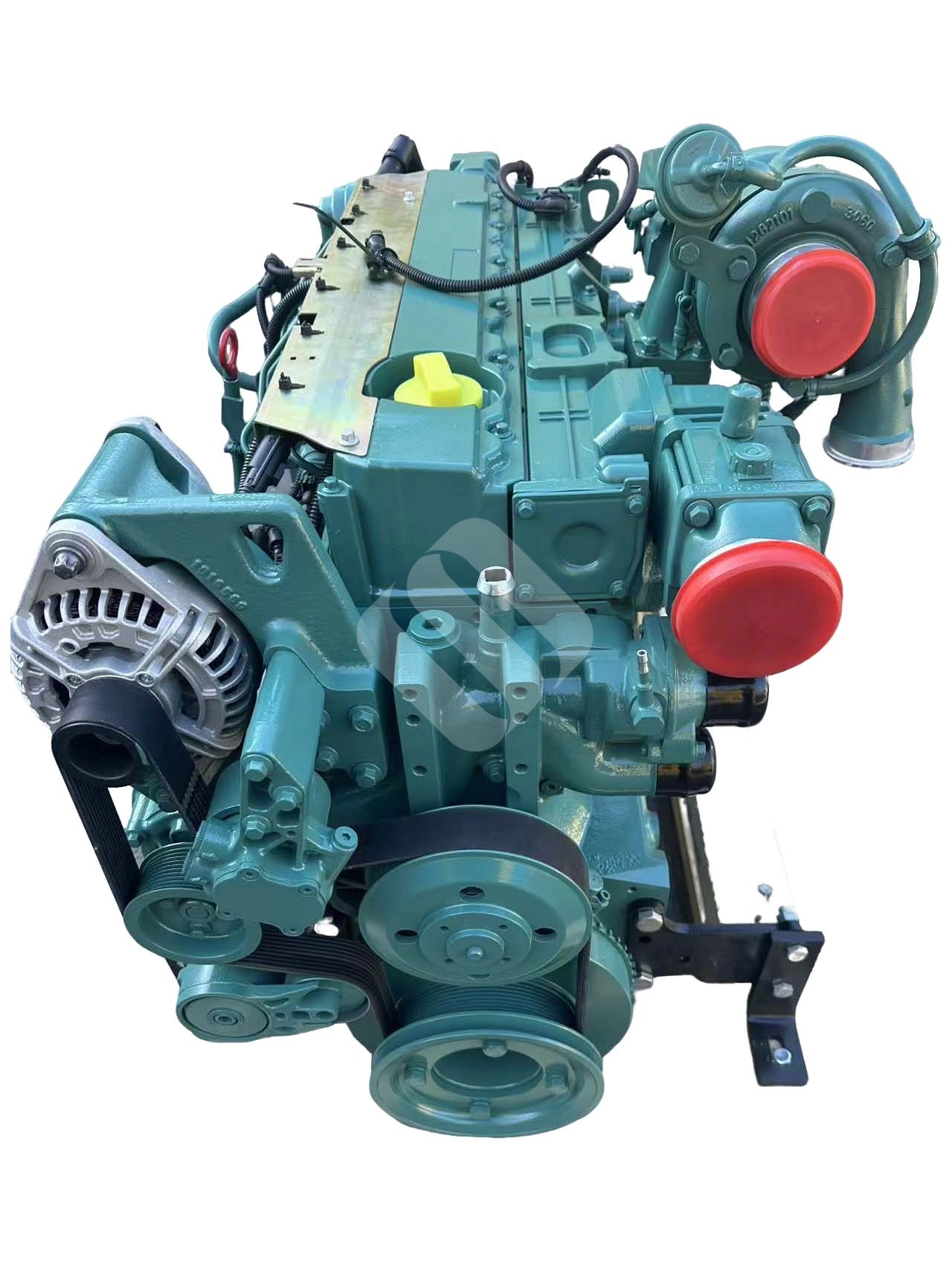

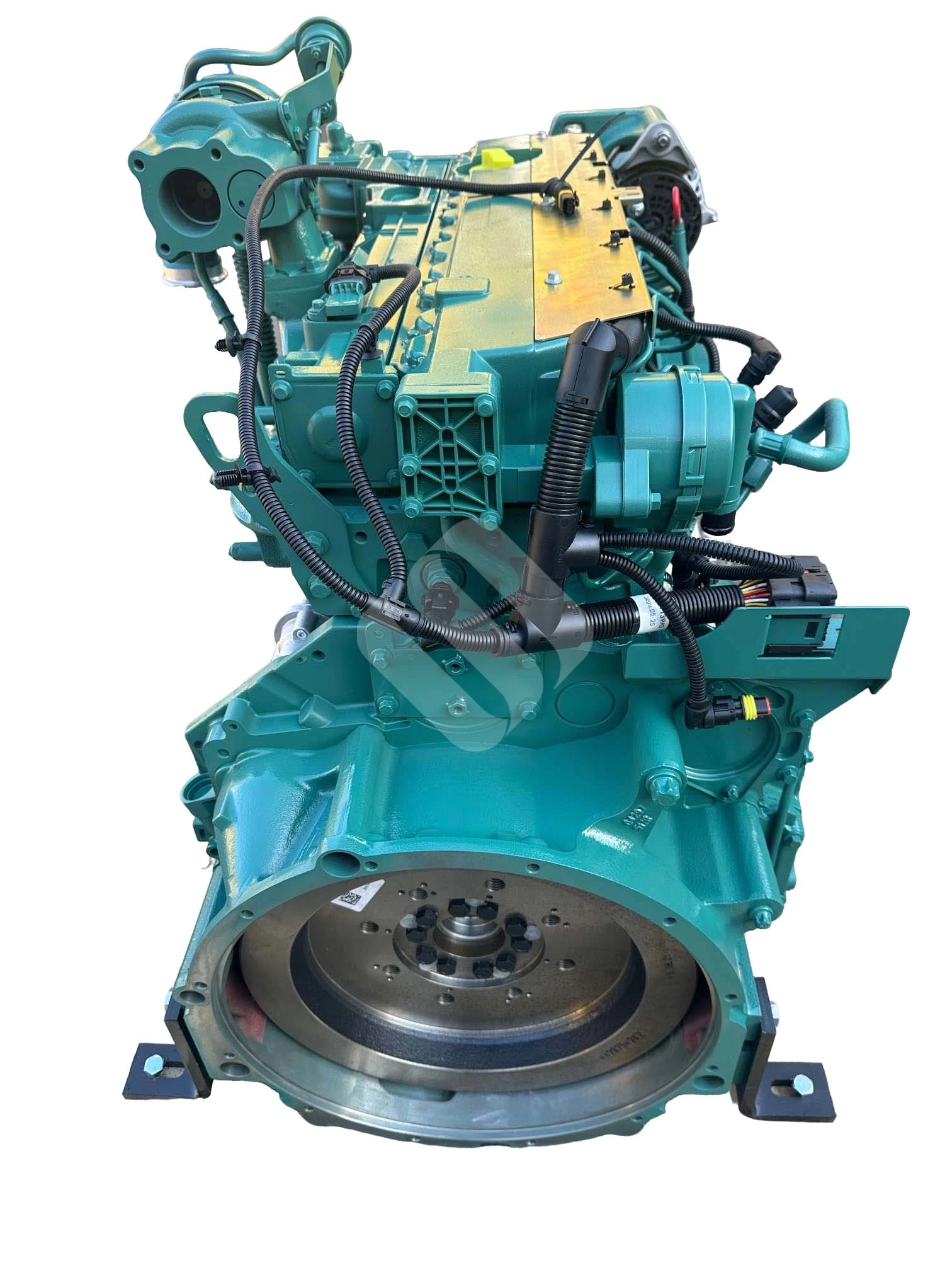

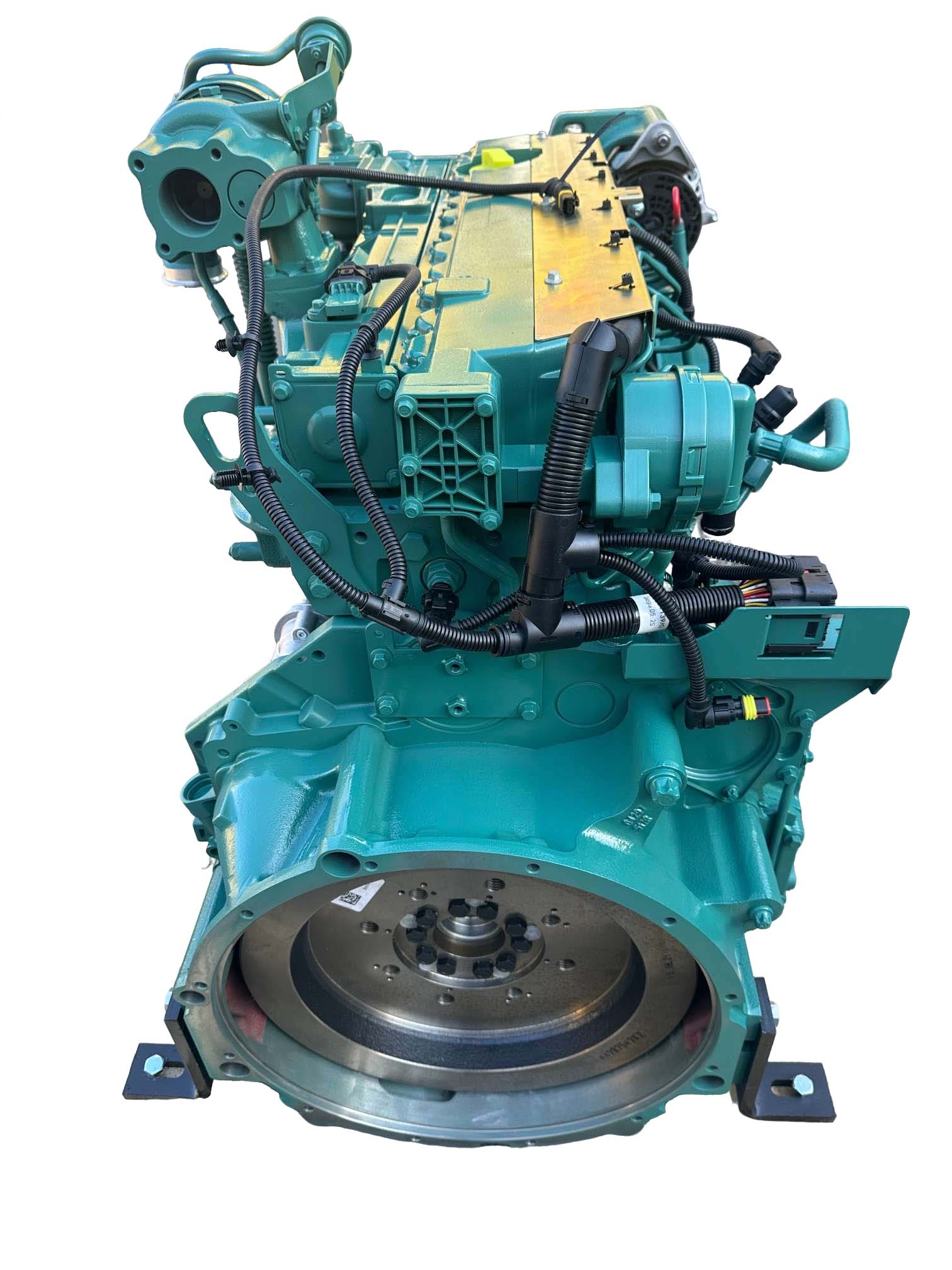

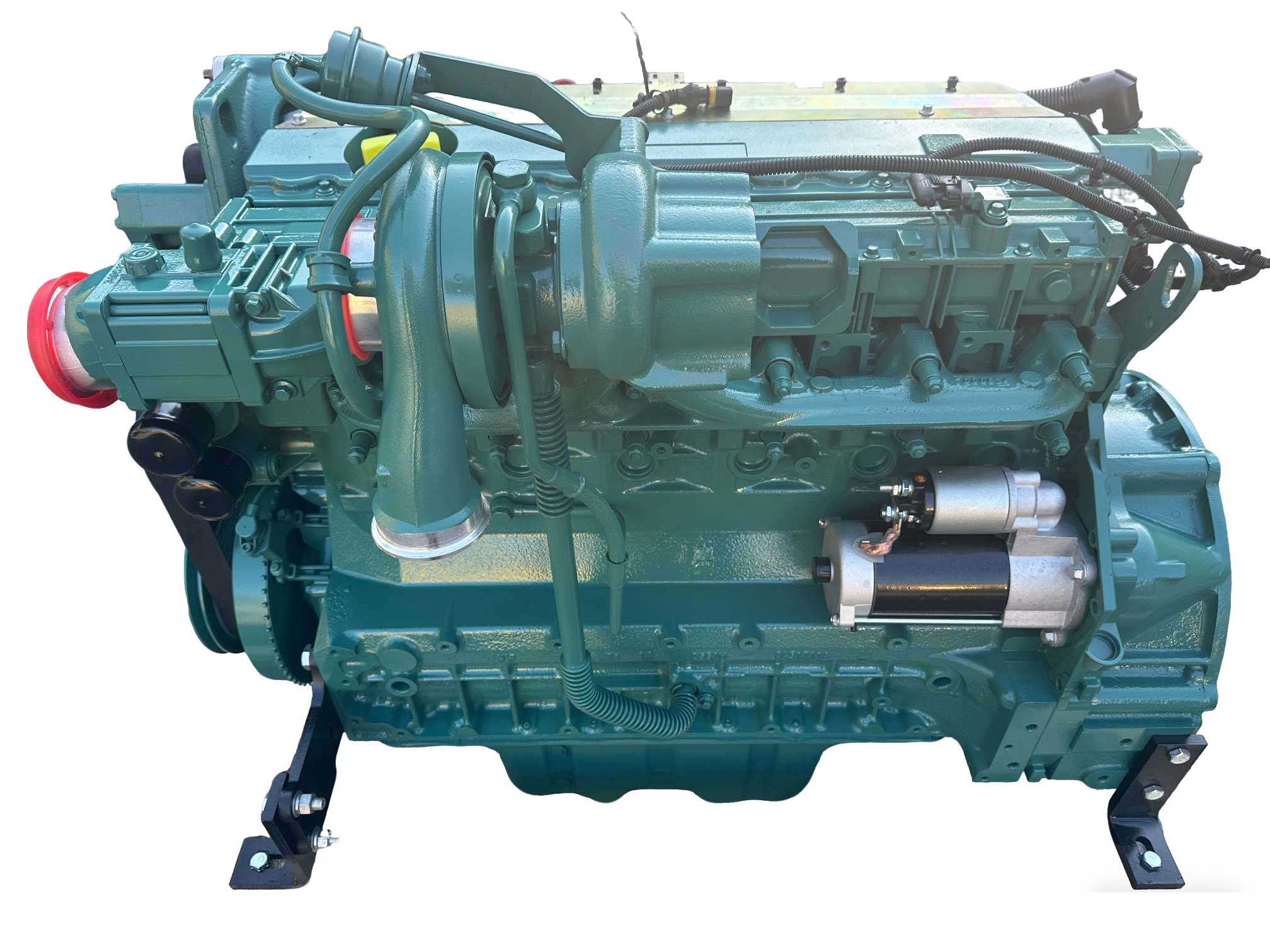

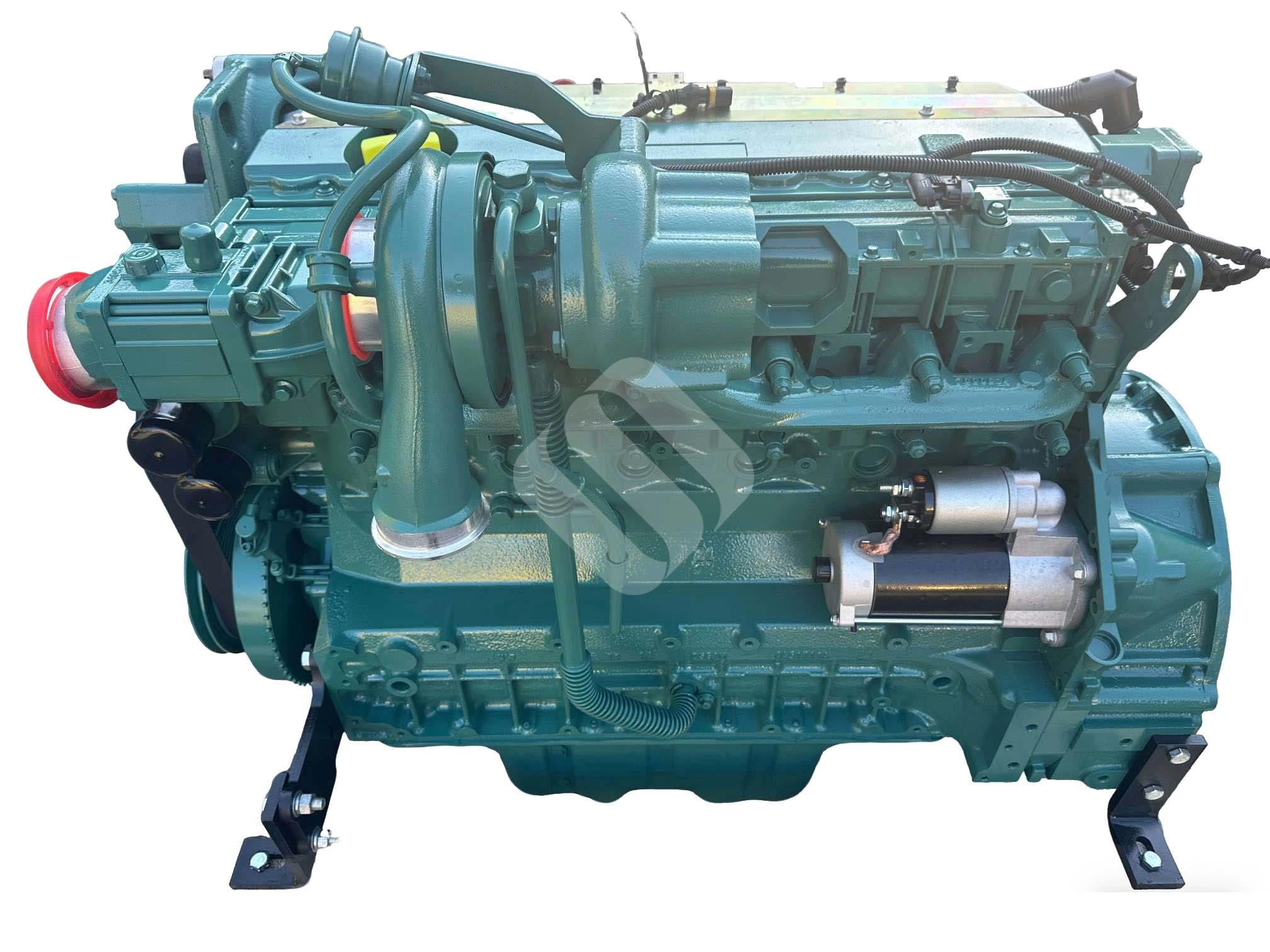

The SPARKLING MACHINERY NEW Volvo D6E EAE3 diesel engine Photo:
Product Features & Advantages
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
· V-ACT Technology: Advanced fuel injection and air management systems work together to ensure a clean burn and high torque rise.
-
· iEGR System: Reduces nitrogen oxide emissions internally, meaning fewer moving parts and easier maintenance compared to external EGR systems.
-
· Electronic Engine Management: The E-ECU provides real-time monitoring and protects the engine from overheating or low oil pressure.
-
· Fuel Efficiency: Optimized for "Eco-mode" operation in Volvo machines, significantly lowering the cost per hour of operation.
-
· Quiet Operation: The stiff engine block and precision injection timing result in a significant reduction in structural vibration and combustion noise.
-
-
-
-
-
-
-
Feature Details Engine Model Volvo D6E EAE3 Configuration Inline 6-Cylinder, 4-Stroke Displacement 5.7 Liters ($5700\text{ cm}^3$) Bore / Stroke 98 mm / 126 mm Aspiration Turbocharged & Intercooled (Air-to-Air) Max Power Output 110 kW – 125 kW (148 hp – 168 hp) Max Torque 730+ Nm @ 1500 RPM Fuel System High-Pressure Common Rail Emission Standard US EPA Tier 3 / EU Stage IIIA Weight (Dry) Approx. 560 kg
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Common Applications
-
The Volvo D6E EAE3 is the standard engine for several high-production machines:
-
· Excavators: Volvo EC210C, EC210C L, ECR235C.
-
· Wheel Loaders: Volvo L60F, L70F, L90F.
-
· Motor Graders: Volvo G900-series mid-range models.
-
· Pipelayers: Volvo PL2101.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Q&A
-
Q: Can I use the D6E EAE3 as a replacement for a D6D engine?
-
A: No. While they are similar in displacement, the D6D is a Tier 2 mechanical/unit pump engine, while the D6E is a Tier 3 Common Rail engine. The electronics, wiring harness, and mounting requirements are substantially different.
Q: Does this engine require ultra-low sulfur diesel (ULSD)?
-
A: For Tier 3 / Stage IIIA compliance and to ensure the longevity of the common rail injectors, high-quality low-sulfur diesel is highly recommended.
Q: How do I access diagnostic information on this engine?
-
A: The D6E is fully compatible with Volvo’s VCADS Pro and MATRIS diagnostic tools, which connect directly to the machine's service port to read fault codes and performance history.
-
-
-
-
-
-
📦 Packing
1. Packaging methods: Carton box + Wooden case/Pallet + Anti-rust treatment
2. Export-standard packaging to ensure safety during transportation
3. Custom packaging available upon request
4. Dimensions and weight can be provided for freight calculation
🚚 Shipping
1. Available shipping methods: Sea freight, Air freight, Express delivery (DHL, UPS, FedEx, etc.)
2. LCL (Less than Container Load) and FCL (Full Container Load) options are supported
3. For Russian clients, we can introduce the forwarder agent to you
4. Delivery time: Ships within 1-3 working days after payment (for items in stock)
💳 Payment
1. Accepted methods: T/T, Bank Transfer, PayPal, Alipay, WeChat Pay, Western Union
2. Deposit + balance payment available for large or custom orders
3. Flexible payment options—feel free to contact us for details
📌 Frequently Asked Questions (FAQs)
Q: Which excavator models is this part compatible with?
A: This product is compatible with major brands such as CAT, KOMATSU, HITACHI, and more. Custom specifications are also available.
Q: How can I make sure I’m selecting the correct part?
A: You can send us a photo of the old part, part number, or your excavator model, and we will help you confirm the right match.
Q: Is there a warranty for this product?
A: Yes, we offer a 6-month quality guarantee under normal use.
