Excavator Undercarriages System Deep Maintenance Guide: Wear Inspection + Full Maintenance Process to Extend Life by 50%

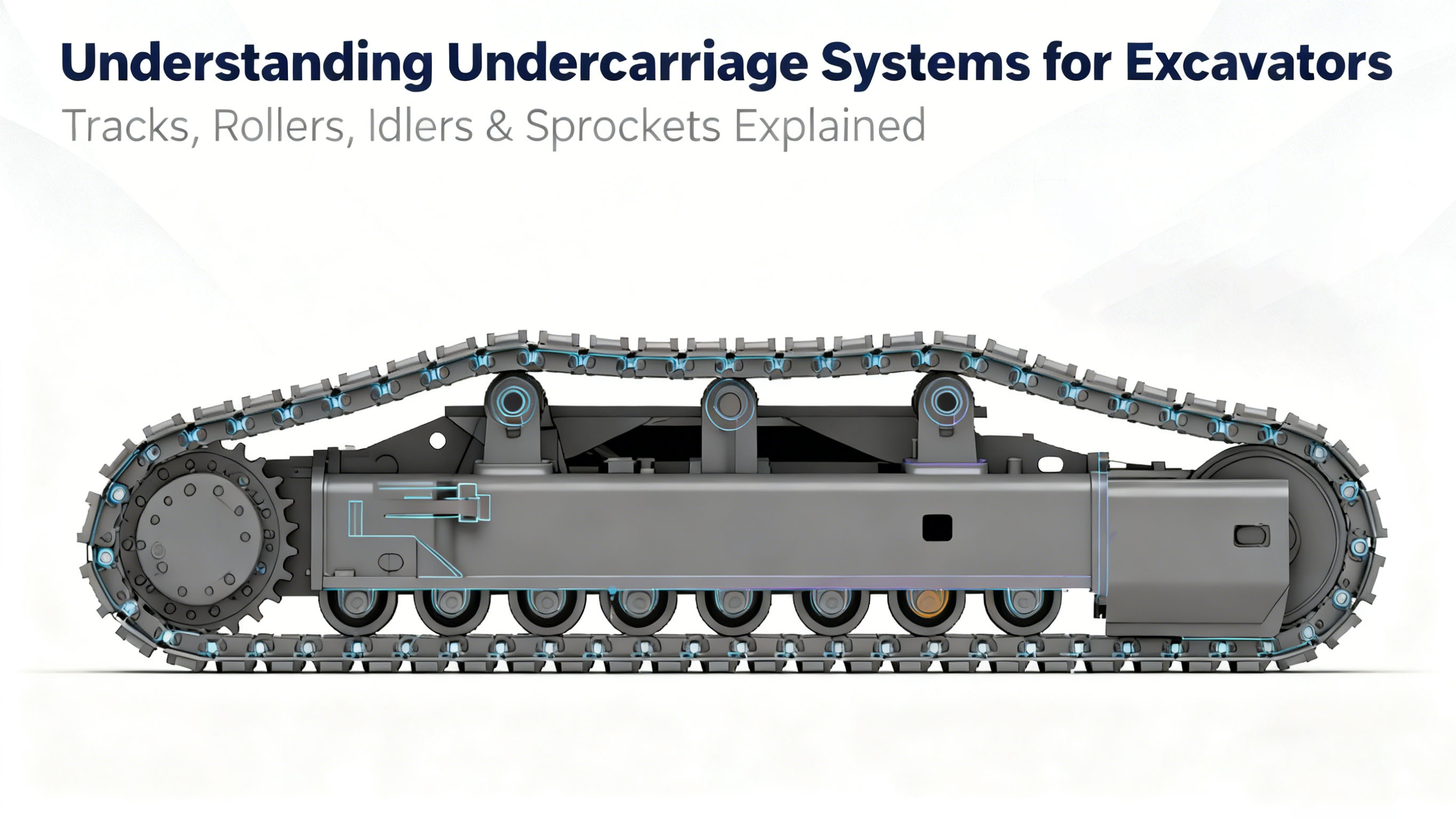

I. Excavator Undercarriages System Composition (with Core Parameters)

III. Undercarriages System Maintenance Tips (By Cycle + Practical Details)

(1) Daily Maintenance (After Daily Operation)

1. Cleaning and Dust Removal: Rinse the track, wheel system, and links with a high-pressure water gun to remove soil and gravel (focus on cleaning gaps between links and around wheel axles) to prevent impurities from entering bearings and seals and accelerating wear;

2. Quick Inspection: Visually check track bolts, wheel system leakage, and track tightness. Address minor issues promptly to avoid accumulation.

(2) Regular Maintenance (By Operating Hours)

1. Every 200 Hours: Lubrication Maintenance

• Inject "lithium-based grease" into track link pins, bushings, and wheel system bearings. Inject until grease overflows at each lubrication point (ensure full lubrication);

• Check the grease level of the tension device and replenish via the grease valve to maintain track tightness within the standard range.

2. Every 500 Hours: In-Depth Inspection + Component Maintenance

• Remove the wheel system end cover and check the lubricating oil quality. Replace the oil and clean the bearings if the oil is turbid or contains metal debris;

• Check the hydraulic oil level of the shock absorber. Replenish with the same type of hydraulic oil if insufficient and replace aging seals;

• Clean rust and impurities in the gaps of track links with a steel wire brush and apply anti-rust grease.

3. Every 1000 Hours: Vulnerable Parts Inspection and Replacement

• Inspect track shoes, pins, and bushings according to wear standards. Replace promptly when reaching the replacement threshold to avoid chain failures caused by single component damage;

• Check the wear of drive sprocket and idler wheel tooth surfaces. Grind or replace if necessary;

• Fully inspect the elasticity of the tension spring. Replace the tension device if elasticity decreases (insufficient tension force).

(3) Working Condition-Adapted Maintenance (Adjust By Operating Environment)

1. Dusty/Gravel Working Conditions (Mines, Sand and Gravel Yards)

• Shorten the cleaning cycle (add one extra cleaning during daily operation) and install dust covers for track links and wheel systems;

• Inspect seals every 100 hours and replace damaged ones promptly to prevent impurity entry.

1. Soft Ground Working Conditions (Farmland, Wetlands)

• Adjust track tightness to the upper limit (sag 30mm) to avoid track getting stuck in soil;

• Rinse soil in track shoe gaps promptly after operation to prevent soil caking and hardening, which accelerates wear.

1. Hard Ground Working Conditions (Concrete, Asphalt Roads)

• Adjust track tightness to the lower limit (sag 15mm) to reduce impact between the track and the ground;

• Avoid long-term high-speed driving to reduce wheel system wear.

IV. Summary

1. Inspection should be "quantitative": Use tools instead of naked eyes to judge wear according to standards, not experience;

2. Maintenance should be "on time": Daily cleaning, regular lubrication, and adjustment according to working conditions—no delay;

3. Replacement should be "decisive": Replace vulnerable parts promptly when reaching the wear threshold to avoid major maintenance caused by minor faults.
