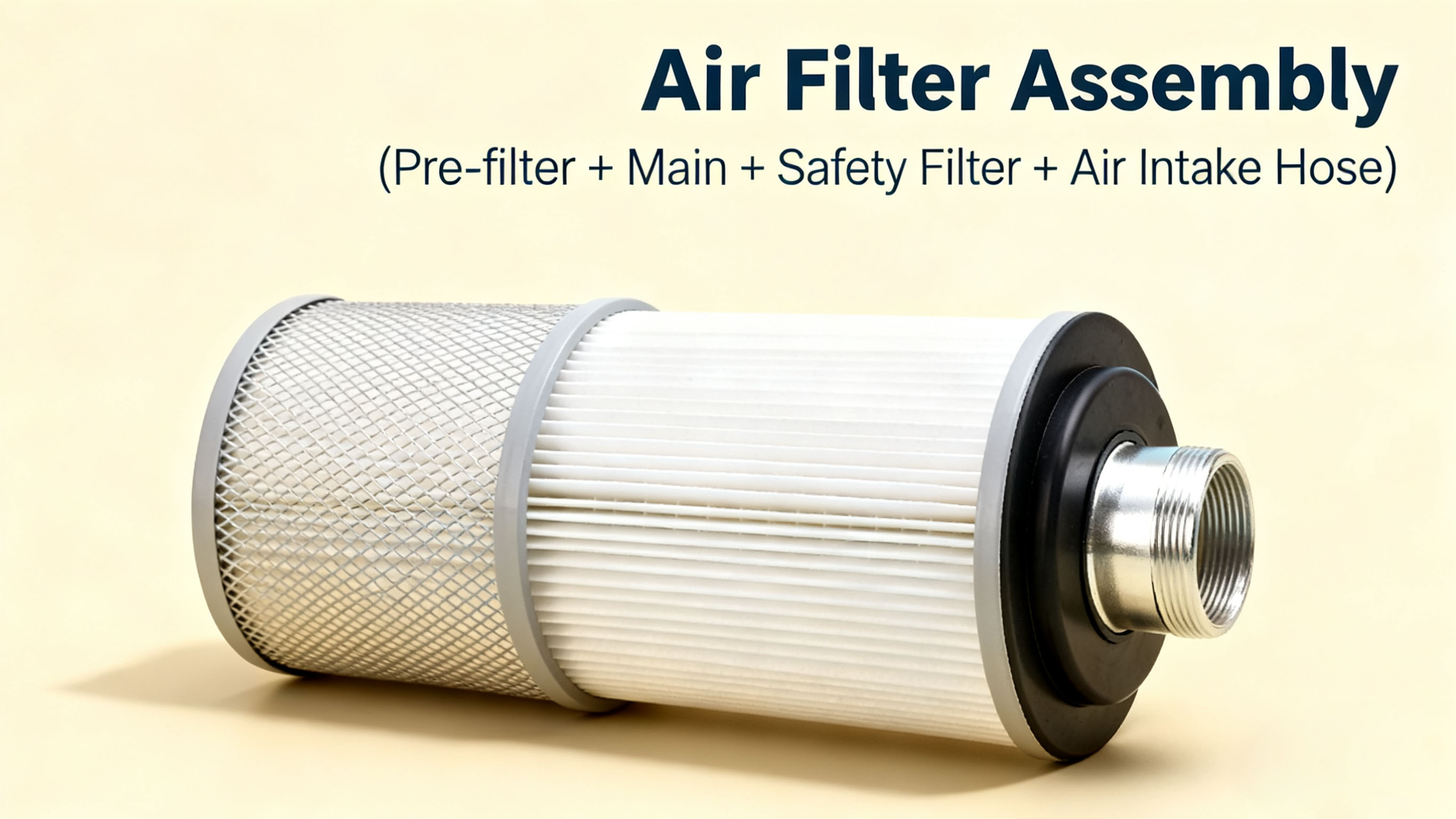

The "Breathing Guardian" of Excavators! A Complete Guide to Air Filter Assembly (Pre-filter + Main Filter + Safety Filter + Air Intake Hose)

I. Understanding the Air Filter Assembly: 4 Components Protect the Engine’s "Breathing"

1. Structure & Core Principle

• Pre-filter: The "first line of rough filtration", mostly cyclone-type or mesh-type, installed on the outermost layer. It first filters out dust and gravel with a diameter of ≥5μm (accounting for 60% of total impurities), reducing the load on the main filter and preventing large particles from scratching the filter element.

• Main filter: The "core of fine filtration", a paper or cotton filter element with a filtration precision of ≥2μm. It filters out tiny impurities missed by the pre-filter, ensuring the dust content of the air entering the engine is ≤0.001g/m³ and preventing cylinder wear.

• Safety filter: The "emergency backup filter", connected in series with the main filter. It immediately takes over when the main filter is damaged, preventing impurities from directly entering the engine—equivalent to the "last line of defense". It does not work normally and is only activated when the main filter fails.

• Air intake hose: The "air channel", made of oil-resistant rubber. It connects the filter to the engine’s intake manifold, delivering filtered clean air while reducing the impact of vibration on the filter.

2. Importance: Without It, the Engine "Inhales Dust and Fails"

• Protects the Engine: Impurities entering the cylinder are like "sand in bearings", accelerating the wear of pistons and cylinders. An engine that should last 10,000 hours may fail after just 5,000 hours;

• Maintains Power: A clogged filter element causes insufficient air intake, leading to incomplete fuel combustion—power decreases by 20%, fuel consumption increases by 10%, and a 20-ton excavator burns an extra 15 liters of diesel per day;

• Reduces Maintenance Costs: Replacing a set of filters only costs USD 41.25 - USD 275, while repairing a worn engine costs USD 2,750 - USD 6,875—a 10-fold difference in cost.

II. 5 Things the Assembly Fears the Most!

1. Overdue Filter Replacement: Using the main filter for more than 500 hours (under heavy working conditions) clogs the filter pores with impurities, causing insufficient air intake, reduced power, and increased fuel consumption. Replacing the filter costs USD 41.25 - USD 110, while engine repair costs tens of thousands of dollars;

2. Missing/Damaged Pre-filter: Omitting the pre-filter or using a pre-filter with holes allows large particles to directly enter the main filter, clogging it within 1 month and shortening its service life by 3 times;

3. Cracked/Detached Air Intake Hose: Aging and cracking of the hose or loose clamps allow unfiltered air to enter the engine through gaps, causing cylinder wear. Replacing the hose costs USD 27.5 - USD 68.75;

4. Long-Term Neglect of the Safety Filter: If the main filter is damaged and not detected, the safety filter will work continuously and become clogged, also causing insufficient air intake. Moreover, the safety filter cannot be cleaned and must be replaced when clogged;

5. Damaging the Filter Element During Maintenance: Touching the filter paper with hands or getting the filter element damp during replacement damages or disables the filter paper, allowing impurities to directly enter the engine. The filter element must be checked for integrity before installation.

III. Cost-Effectiveness Comparison of Assemblies from Domestic & Foreign Brands

IV. 5-Step Maintenance

1. Replace Filters on Time: Under heavy working conditions (e.g., mines), replace the main filter every 500 hours; under light working conditions, replace it every 1000 hours. Clean the pre-filter with compressed air every 200 hours;

2. Check Hoses and Clamps: Weekly, inspect if hoses are cracked and clamps are loose. Replace damaged parts immediately to avoid "air leakage and dust inhalation";

3. Inspect the Safety Filter Annually: After removing the main filter, check the safety filter. If there is dust on the filter paper, the main filter is damaged—replace both the main filter and safety filter simultaneously;

4. Standardize Installation: Do not touch the filter paper when replacing the filter element, install it according to the arrow direction, ensure the sealing rubber ring fits tightly, and do not reverse or omit installation;

5. Protect in Dusty Environments: When working in mines or gravel yards, add a dust cover to the pre-filter to reduce impurity entry and extend the main filter’s service life by 30%.
