The "Hydraulic Cooling Steward" of Excavators! A Complete Guide to Hydraulic Oil Radiator System: Structure, Selection & Maintenance

I. Understanding the Hydraulic Oil Radiator System: The "Cooling Steward" of the Excavator’s Hydraulic System—Without It, the System "Overheats"!

   The hydraulic oil radiator system is the "temperature control core" of the excavator’s hydraulic system. It mainly consists of four components: hydraulic oil radiator, fan motor, temperature control valve, and return oil filter bypass. Simply put, its workflow is: Hydraulic oil cools down through the radiator → Fan motor accelerates heat dissipation → Temperature control valve regulates temperature → Return oil filter bypass ensures oil supply. The entire process is similar to "air conditioning refrigeration"—the radiator acts as the "condenser", the fan as the "cooling fan", and the temperature control valve as the "thermostat". Together, they keep the hydraulic oil within the normal temperature range (45-55℃).

1. Structure & Core Principle: 4 Key Components Work in Synergy—None Is Dispensable

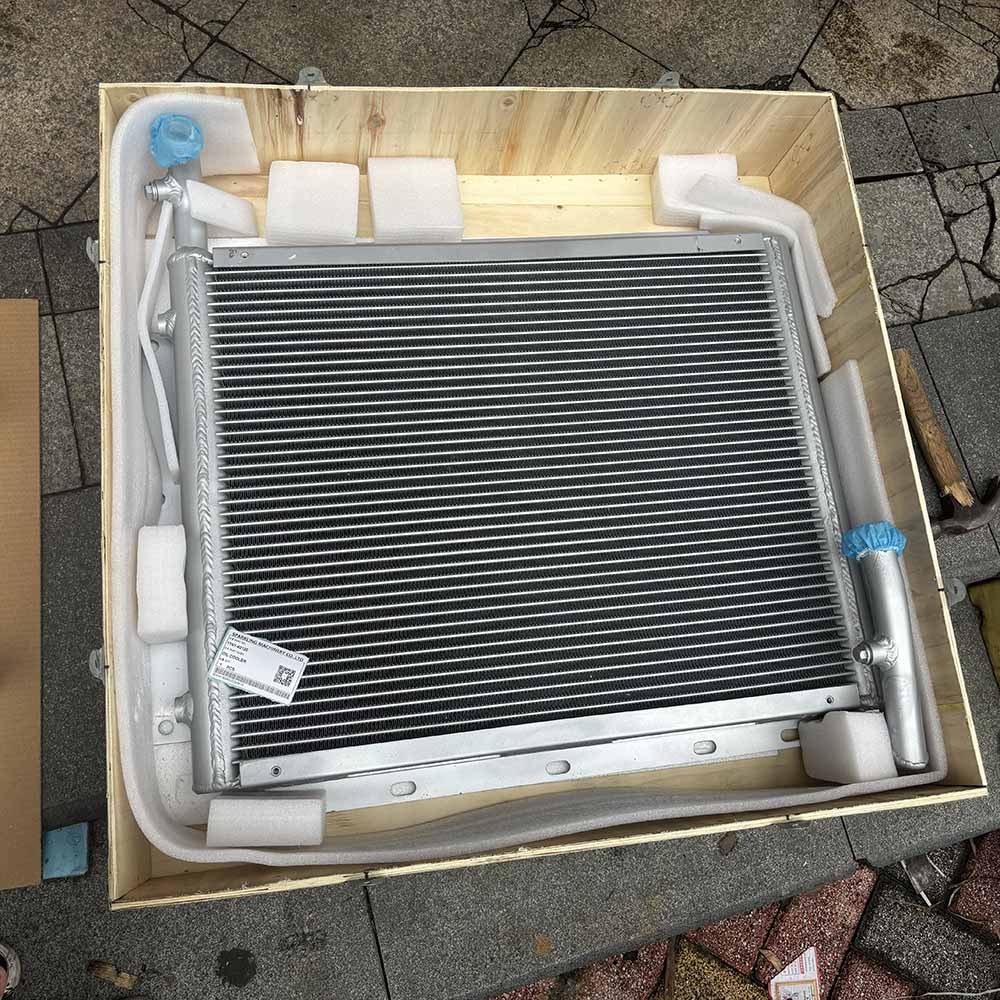

(1) Hydraulic Oil Radiator: The "Core of Hydraulic Oil Cooling" to Dissipate Excess Heat

• Structure: Composed of a metal heat-dissipating core (mostly aluminum or copper, with dense internal oil channels), an oil inlet, and an oil outlet. It is usually installed next to the engine radiator to leverage air flow for auxiliary cooling. The oil channels in the core are "S-shaped" to maximize the contact area between hydraulic oil and air.

• Principle: High-temperature hydraulic oil (above 60℃) from the circulating hydraulic system flows into the radiator through the oil inlet. It moves slowly through the "S-shaped" oil channels, and heat is transferred to the air via the metal core. Meanwhile, air flow from the engine fan or an independent fan blows over the core to speed up heat dissipation. Once the hydraulic oil temperature drops below 55℃, it flows back to the hydraulic oil tank through the oil outlet.

(2) Fan Motor: The "Heat Dissipation Accelerator" to Boost Cooling Efficiency

• Structure: Divided into hydraulic-driven and electric-driven types. Most mainstream excavators use hydraulic-driven motors (powered by high-pressure oil from the hydraulic pump), which consist of a motor body, a connecting shaft, and fan blades.

• Principle: When the hydraulic oil temperature exceeds the set value (usually 55℃), the temperature control valve delivers high-pressure oil to the fan motor. The motor then drives the fan blades to rotate, generating strong air flow that blows over the radiator core to accelerate heat dissipation. If the temperature is below the set value, the fan motor stops running to avoid energy waste.

(3) Temperature Control Valve: The "Thermostat" for Precise Heat Regulation

• Structure: Installed in the radiator’s oil inlet pipeline, it contains a temperature-sensing valve core (controlled by paraffin or electronic components) and an oil channel switching valve.

• Principle: When the hydraulic oil temperature is below 55℃, the valve core closes the oil supply channel to the fan motor—so the fan does not rotate, and hydraulic oil flows directly back to the tank (reducing energy consumption). When the temperature exceeds 55℃, the valve core expands with heat, opening the fan motor’s oil supply channel and adjusting the radiator’s oil intake to keep the hydraulic oil temperature stable at 45-55℃. If the temperature exceeds 65℃, the valve core fully opens to let the fan run at full load, preventing hydraulic oil from overheating.

(4) Return Oil Filter Bypass: The "Oil Supply Safety Valve" to Avoid Oil Cutoff from Filter Blockage

• Structure: Connected in parallel with the return oil filter, it consists of a bypass valve and a spring, and is installed in the pipeline that returns hydraulic oil to the tank.

• Principle: Under normal conditions, the return oil filter removes impurities from the hydraulic oil, and clean oil flows back to the tank through the filter. If the filter is blocked (e.g., by excessive impurities), the return oil pressure rises. When the pressure exceeds the set value (usually 0.3MPa), the bypass valve is pushed open, allowing hydraulic oil to flow back to the tank directly by bypassing the filter—this prevents "oil cutoff" in the hydraulic system due to filter blockage. At the same time, the instrument panel warning light turns on to remind the operator to replace the filter.

2. Importance: Without the Radiator System, the Hydraulic System "Overheats and Fails"!

• Protects Hydraulic Oil Quality: The optimal operating temperature of hydraulic oil is 45-55℃. Exceeding 60℃ accelerates oxidation and deterioration (reduced viscosity, poor lubricity). Hydraulic oil that normally lasts 3,000 hours will be ruined after just 1,500 hours under high temperatures. The radiator system keeps the temperature within a safe range, extending the oil’s service life.

• Prevents Wear of Hydraulic Components: High-temperature hydraulic oil has reduced lubricity, which accelerates wear on the main control valve core, hydraulic cylinder seals, and hydraulic pump. For example, if the hydraulic oil temperature exceeds 70℃, the seal aging rate triples, leading to oil leakage in 3-6 months. Replacing a set of seals costs  688.

• Ensures Smooth Movement & Power: High temperatures reduce hydraulic oil viscosity and pressure transmission efficiency, causing sluggish machine movements and reduced power (e.g., the bucket cannot dig hard soil). In severe cases, the hydraulic pump is damaged by high temperatures—repair costs  11,000, with at least 3 days of downtime.

• Avoids Safety Accidents: If the radiator system completely fails, hydraulic oil may boil under high temperatures, causing hydraulic pipelines to burst. Leaked hydraulic oil can trigger fires or slip accidents, endangering the operator’s safety.

II. 5 Biggest Risks to the Hydraulic Oil Radiator System!

1. Radiator Core Blockage: Heat Dissipation Failure & Sharp Oil Temperature Rise

• Risk Manifestation: Dust, catkins, and gravel on construction sites adhere to the radiator core surface, blocking gaps between cooling fins. This prevents air flow and reduces heat dissipation efficiency. For example, in areas with heavy catkins in summer, the core can become fully blocked in 1-2 weeks, causing the hydraulic oil temperature to soar from 50℃ to over 70℃—leading to sluggish machine movements and warning lights.

• Repair Cost: Cleaning a blocked core costs  138. If the core is deformed by gravel impact, the entire radiator must be replaced (domestic models cost approximately  1,100, imported models  2,750).

2. Fan Motor Oil Shortage or Wear: Fan Failure & Cooling Loss

• Risk Manifestation: Long-term oil shortage (insufficient hydraulic oil) in the fan motor causes dry friction of internal bearings; impurities entering the motor can also jam the blades, preventing normal fan rotation. For example, worn fan motor bearings cause "abnormal noise + slow rotation speed", reducing heat dissipation efficiency by 50% and leading to continuous oil temperature rise.

• Repair Cost: Replacing fan motor bearings costs  206; replacing an entire imported fan motor costs  5,500.

3. Temperature Control Valve Jamming: Temperature Out of Control & Fluctuations

• Risk Manifestation: The temperature-sensing valve core inside the temperature control valve may be jammed by impurities or the paraffin element may age, preventing normal opening/closing. For example, if the valve core is stuck in the "closed" position, the fan never rotates, and oil temperature soars; if stuck in the "open" position, the fan runs continuously, wasting hydraulic oil and increasing fuel consumption.

• Simple Analogy: Like a faulty air conditioner thermostat—it either cools nonstop (wasting electricity) or not at all (room temperature rises).

4. Long-Term Failure to Replace the Return Oil Filter: Frequent Bypass Valve Activation & Impurity Proliferation

• Risk Manifestation: If the return oil filter is not replaced for over 500 hours, it becomes blocked by impurities, causing the bypass valve to open frequently. Hydraulic oil then flows back to the tank directly by bypassing the filter. This unfiltered oil contains large amounts of impurities that wear the radiator core, fan motor, and temperature control valve—triggering "chain failures".

• Repair Cost: Replacing a return oil filter only costs  41, but repairing damage to other components caused by impurities costs  4,125—a poor trade-off.

5. Wrong Hydraulic Oil Type or Insufficient Quantity: System Wear & Poor Heat Dissipation

• Risk Manifestation: Using the wrong hydraulic oil type (e.g., 32# instead of the required 46# anti-wear hydraulic oil) results in improper oil viscosity, reducing heat dissipation efficiency (too low viscosity prevents effective heat transfer to the radiator). Insufficient hydraulic oil means oil channels in the radiator core are not fully filled, reducing the cooling area and causing rapid oil temperature rise.

• Common Scenario: To save money, operators use low-quality hydraulic oil or mix different types—this ultimately causes high oil temperature and requires more money for oil replacement and component repairs.

III. Cost-Effectiveness Comparison of Hydraulic Oil Radiator Systems by Domestic & Foreign Excavator Brands: Choose Wisely to Reduce Repairs & Costs!

IV. Hydraulic Oil Radiator System Maintenance: 5 Steps to Extend Service Life by 3 Years!

1. Clean the Radiator Core Weekly to Prevent Blockage

• Operation Method: Use a high-pressure water gun (pressure ≤0.8MPa to avoid core damage) to flush the radiator core from the front, removing surface dust, catkins, and gravel. For stubborn impurities (e.g., oil stains) in core gaps, gently scrub with a brush dipped in diesel, then rinse with clean water.

• Precautions: Stop the machine and turn off the engine during flushing to prevent water from entering the engine or electrical components. In areas with heavy catkins (summer) or dust (winter), clean every 3 days.

2. Inspect the Fan Motor Regularly to Avoid Jamming & Oil Shortage

• Weekly Inspection: Start the machine and wait for the oil temperature to rise above 55℃. Observe if the fan rotates normally (listen for abnormal noise, check if blade speed is uniform). If the fan does not rotate or rotates slowly, check if the fan motor’s hydraulic oil pipeline is blocked or if bearings are worn.

• Maintenance Every 2,000 Hours: Add grease (butter) to the fan motor bearings. Check if blades are deformed (deformation causes uneven air flow and poor cooling); if so, gently straighten with tools or replace.

3. Inspect the Temperature Control Valve Monthly for Precise Temperature Control

• Operation Method: Start the machine and let the hydraulic oil temperature rise gradually. Use an infrared thermometer to measure the temperature of the radiator’s oil inlet and outlet (under normal conditions, the outlet temperature is 10-15℃ lower than the inlet). If the temperature difference is less than 5℃, the temperature control valve is jammed—disassemble and clean the valve core (with diesel) or replace the valve.

• Precautions: If the machine has a dashboard temperature display, compare the displayed temperature with the actual measured temperature. Calibrate the temperature control valve if the error exceeds 3℃.

4. Replace the Return Oil Filter on Time to Avoid Frequent Bypass Valve Activation

• Replacement Cycle: Replace every 500 hours for heavy work (mines, gravel yards) and every 1,000 hours for light work (municipal projects, rural renovation). Replace immediately if the bypass valve warning light turns on.

• Replacement Method: Stop the machine and turn off the engine, release hydraulic system pressure, remove the old filter, rinse the filter mount with clean diesel, then install the new filter (note the installation direction—do not reverse). After installation, start the machine and run it for 5 minutes to check if the bypass valve warning light turns off.

5. Check Hydraulic Oil Regularly to Ensure Quality & Quantity

• Oil Quality Check: Take a small amount of hydraulic oil every 1,000 hours. Observe its color (normal is light yellow; black indicates deterioration) and smell (a burnt odor indicates high-temperature oxidation). If the oil quality deteriorates, immediately replace it with 46# anti-wear hydraulic oil.

• Oil Quantity Check: Check the hydraulic oil tank level before starting the machine daily. The level must be between "MIN" and "MAX". Add the same type of hydraulic oil if insufficient (avoid mixing brands). If the oil quantity decreases suddenly, check if the radiator or pipelines are leaking.

V. Summary

1. Understand Synergy: The radiator dissipates heat, the fan motor accelerates cooling, the temperature control valve regulates temperature, and the bypass valve ensures oil supply. These 4 components are indispensable—any failure will cause the system to "lose cooling capability".

2. Avoid Risks: Prevent 5 key issues: radiator blockage, fan motor wear, temperature control valve jamming, failure to replace filters, and wrong oil type. This avoids premature system damage or hydraulic failures.

Master Maintenance: Clean the core weekly, inspect the fan and temperature control valve regularly, replace filters on time, and check oil quality/quantity. These 5 steps extend the system’s service life by 3 years, keep hydraulic oil temperature stable, and ensure durable hydraulic components.
