Unlocking the World of Excavators: Classifications, Uses, and Their Great Roles Behind the Scenes

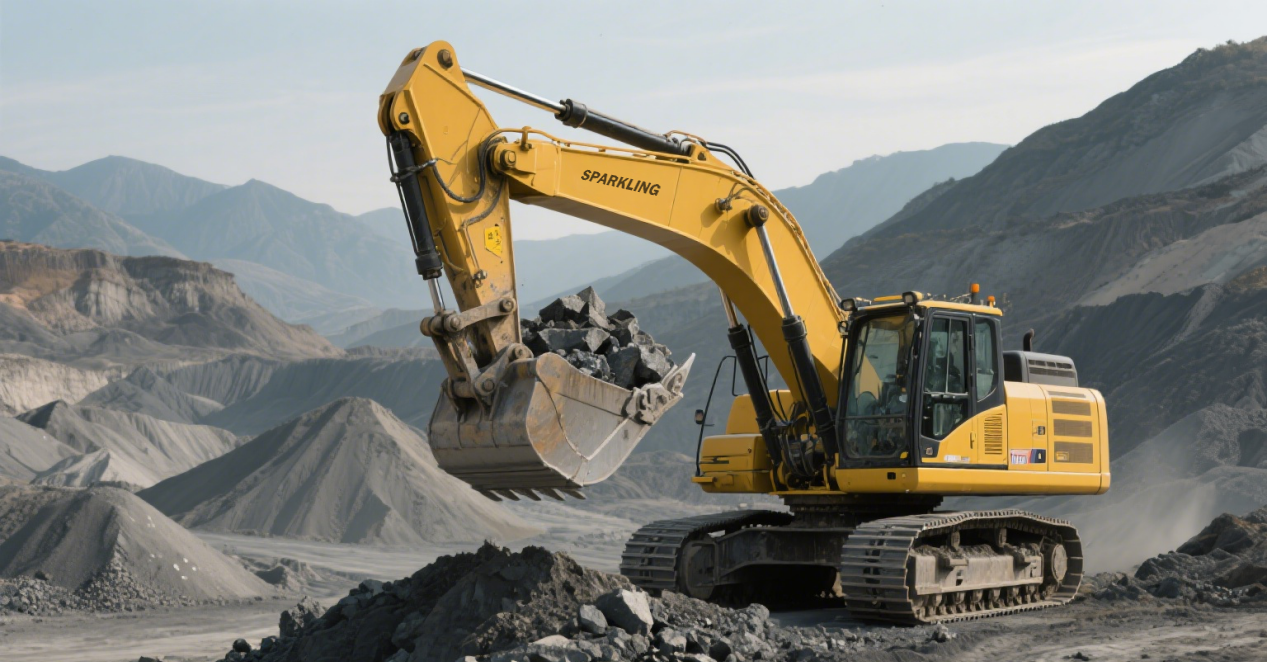

一、Crawler Excavator

1-1.Purpose: Suitable for rough, muddy, or soft terrains, such as mines, construction sites, and large earthwork projects.

1-2.Usage Scenarios: Mine mining sites, earthwork operation areas of large infrastructure construction sites.

1-3.Power Type: Mostly diesel-powered, adapted to field environments without power supply.

1-4.Functions: The crawler chassis provides super stability, can rotate 360°, and with attachments like buckets and breakers, it can easily complete tasks such as excavation, loading, and demolition.

1-5.Working Principle: The crawler movement is driven by a hydraulic system; the boom and stick are linked to realize multi-angle operations. The crawlers increase the ground contact area to reduce the risk of getting stuck.

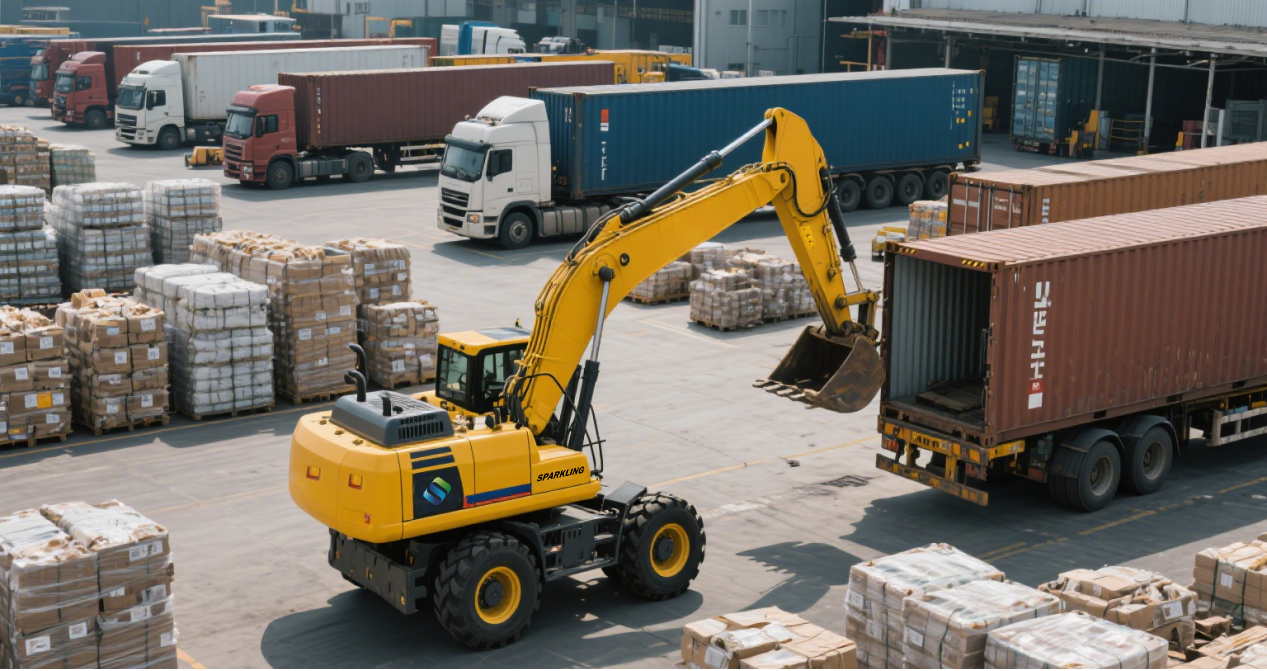

二、Wheeled Excavator

2-1.Purpose: Mainly used for operations on flat and hard ground such as urban road construction and municipal engineering.

2-2.Usage Scenarios: Urban road renovation sites, municipal pipeline laying sites.

2-3.Power Type: Mainly diesel-powered; no additional transportation equipment is needed for movement.

2-4.Functions: The tire chassis design enables faster movement speed, making it suitable for frequent transfers, but its stability is slightly inferior to that of crawler excavators.

2-5.Working Principle: Tire drive reduces damage to hardened roads; the hydraulic pump controls the working device, balancing flexibility and operational efficiency.

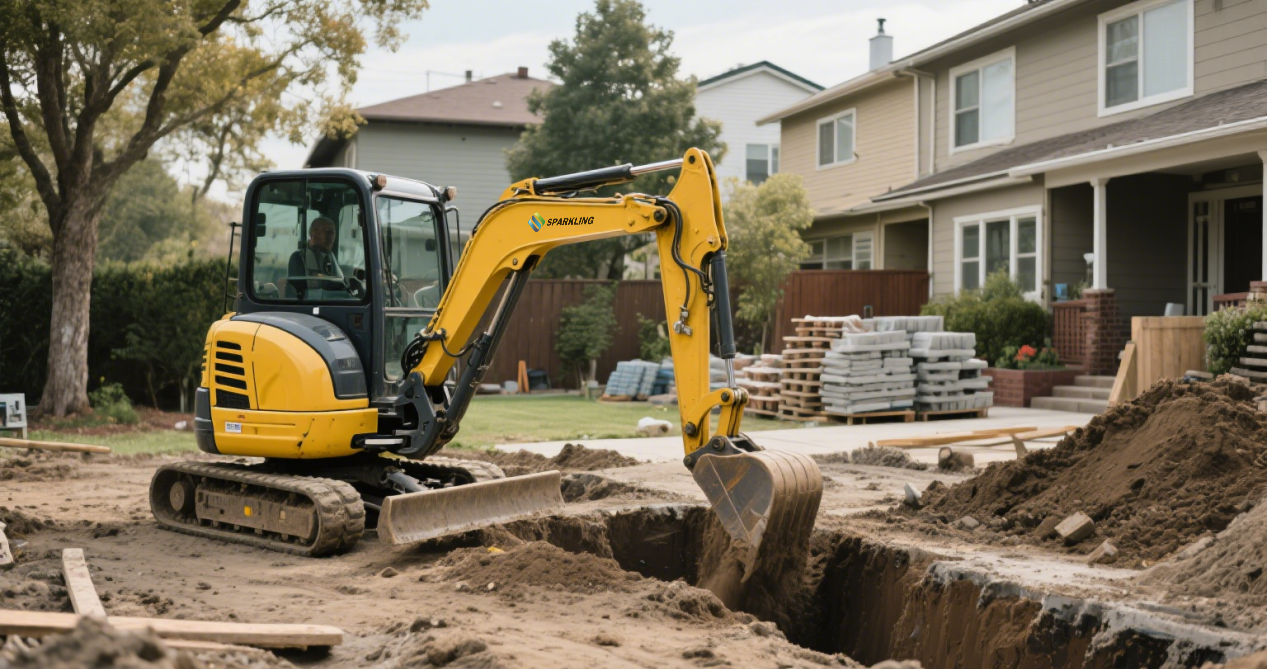

三、Mini Excavator / Compact Excavator

3-1.Purpose: Suitable for operations in narrow spaces, such as landscaping, indoor demolition, and pipeline laying.

3-2.Usage Scenarios: Community courtyard renovation, indoor decoration demolition sites, sidewalk underground pipeline construction.

3-3.Power Type: Available in both diesel and electric models; electric models are suitable for low-noise indoor operations.

3-4.Functions: Small in size (usually weighing < 10 tons) and light in weight, with high flexibility, which can reduce damage to the ground.

3-5.Working Principle: A micro hydraulic system precisely controls movements; a small-power engine is adapted to light-duty operations, and the compact body can pass through narrow passages.

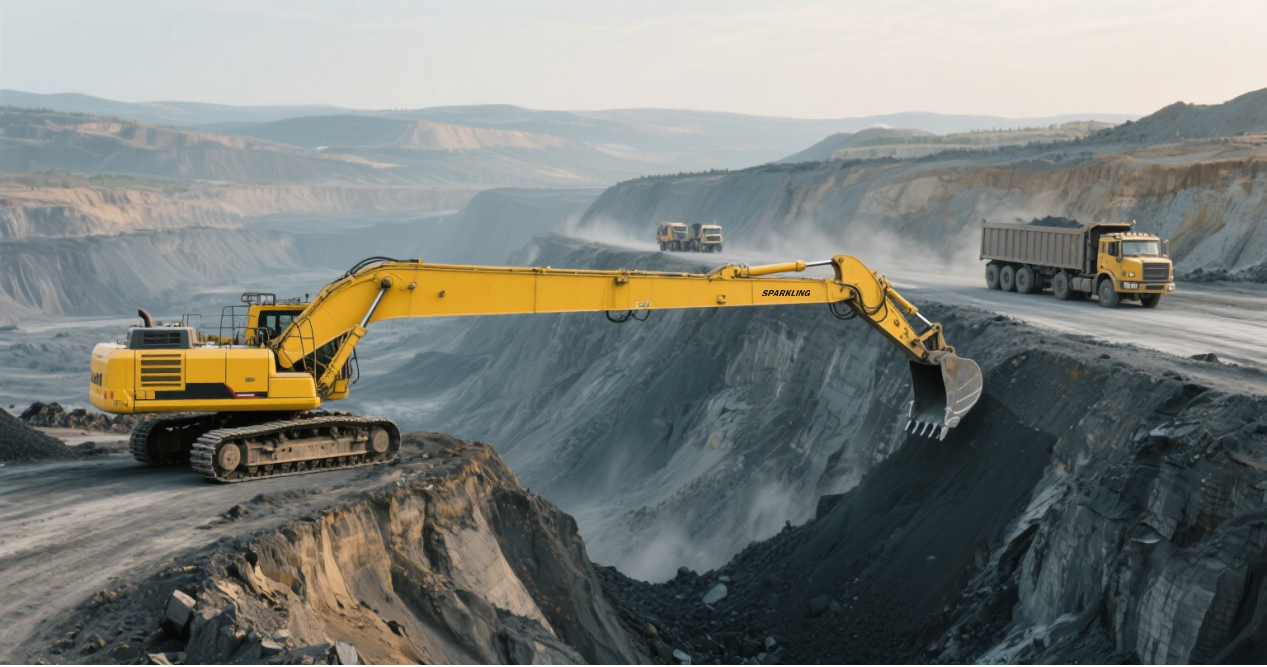

四、Long Reach Excavator

4-1.Purpose: Used in occasions requiring long-distance operations such as deep pit excavation, river dredging, and high-rise building demolition.

4-2.Usage Scenarios: Riverbank dredging sites, high-rise demolition sites.

4-3.Power Type: Diesel-powered, requiring high power to support the operation of the ultra-long arm.

4-4.Functions: Equipped with an extended arm (up to more than 30 meters), it can perform long-distance operations without moving the machine body.

4-5.Working Principle: The reinforced boom structure reduces its own weight while ensuring strength; the hydraulic pipeline maintains stable pressure after extension, realizing a large range of operation coverage.

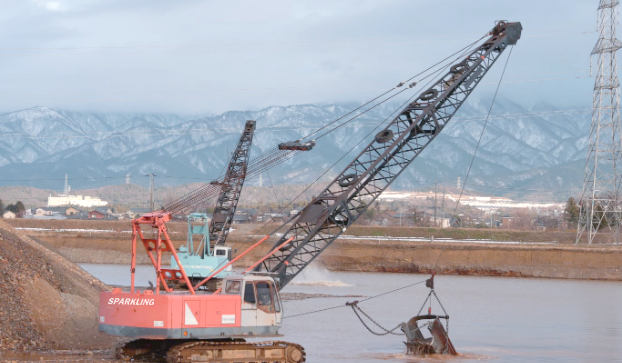

五、Dragline Excavator

4-1.Purpose: Mainly used for open-pit mining, large water conservancy projects, and deep pit excavation.

4-2.Usage Scenarios: Open-pit coal mine overburden stripping sites, large reservoir dam construction sites.

4-3.Power Type: Mostly diesel or electric-driven, adapted to fixed operation scenarios.

4-4.Functions: Adopts a cable and bucket system, suitable for large-scale earth moving, but requires on-site assembly and has low flexibility.

4-5.Working Principle: The bucket is pulled by cables for excavation and transportation; it uses the cooperation of gravity and pulling force to complete heavy-duty operations, suitable for excavating materials lower than the machine body.

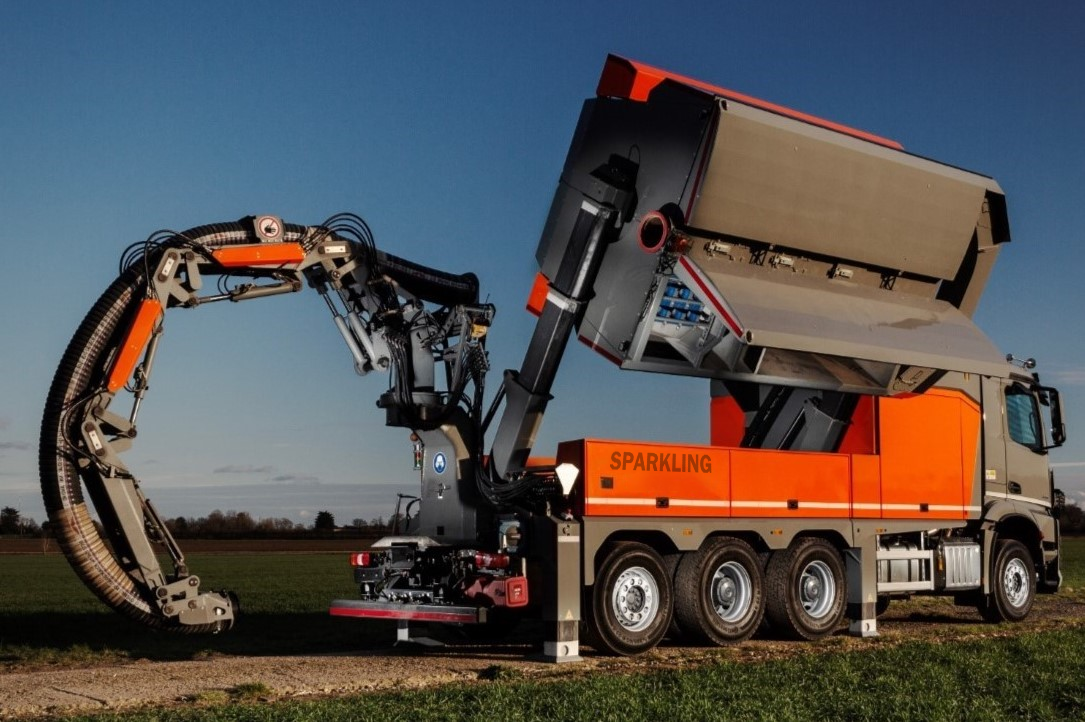

六、Suction Excavator / Vacuum Excavator

6-1.Purpose: Suitable for occasions requiring precise operations such as underground pipeline construction and archaeological excavation.

6-2.Usage Scenarios: Urban underground pipeline renovation sites, archaeological site excavation areas.

6-3.Power Type: Mostly diesel-powered; some are equipped with independent vacuum pump power systems.

6-4.Functions: Uses high-pressure water or air flow to loosen the soil, then sucks the dregs away through vacuum suction to reduce damage to underground facilities.

6-5.Working Principle: The high-pressure device first softens the soil; the vacuum pump generates strong negative pressure to suck the mixture into the storage tank, realizing "non-contact" excavation and protecting underground pipelines.

七、Spider Excavator / Walking Excavator

7-1.Purpose: Suitable for operations in complex terrains such as steep slopes, swamps, and forests.

7-2.Usage Scenarios: Mountain development sites, swamp afforestation sites, forest wood transportation areas.

7-3.Power Type: Diesel-powered, with a sealed body design to adapt to humid environments.

7-4.Functions: Equipped with adjustable outriggers, it can maintain balance on uneven ground and even move through "walking" actions.

7-5.Working Principle: Multiple sets of outriggers independently adjust the height to adapt to inclined ground; the hydraulically driven "walking" structure allows the body to move steadily in complex terrains.

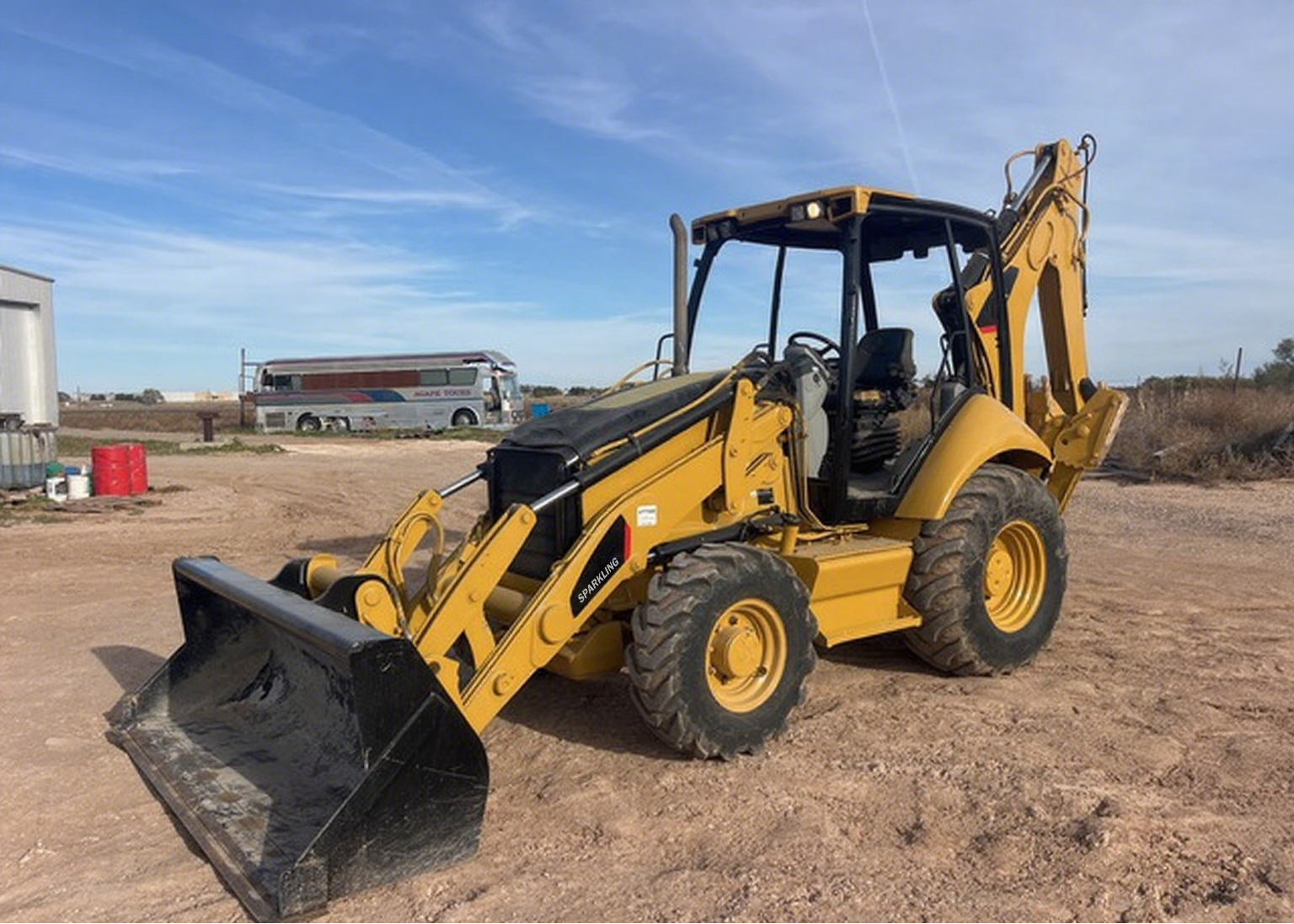

八、Backhoe Excavator / Backhoe Loader

8-1.Purpose: Small earthwork projects, agricultural operations, municipal maintenance, etc.

8-2.Usage Scenarios: Rural homestead leveling, farmland water conservancy transformation, urban sidewalk maintenance.

8-3.Power Type: Diesel-powered, meeting both operational and short-distance movement needs.

8-4.Functions: Front-end loading + rear-end excavation, with strong versatility, suitable for small and medium-sized projects.

8-5.Working Principle: The front bucket is responsible for loading materials; the rear backhoe device realizes excavation. It can quickly switch operation modes, and one machine with multiple uses reduces costs.

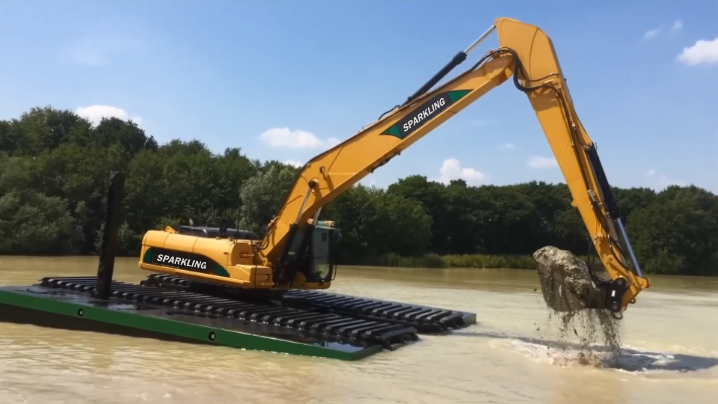

九、Amphibious Excavator

9-1.Purpose: Water operations such as wetland, swamp, and river cleaning.

9-2.Usage Scenarios: Wetland park transformation, swamp development, river sludge cleaning.

9-3.Power Type: Diesel-powered, with the engine undergoing waterproof treatment.

9-4.Functions: Equipped with buoys or special crawlers, it can float and work in water.

9-5.Working Principle: Buoys or widened crawlers provide buoyancy, reduce ground pressure, ensure no sinking in shallow water areas, and the waterproof design of the hydraulic system ensures the safety of underwater operations.

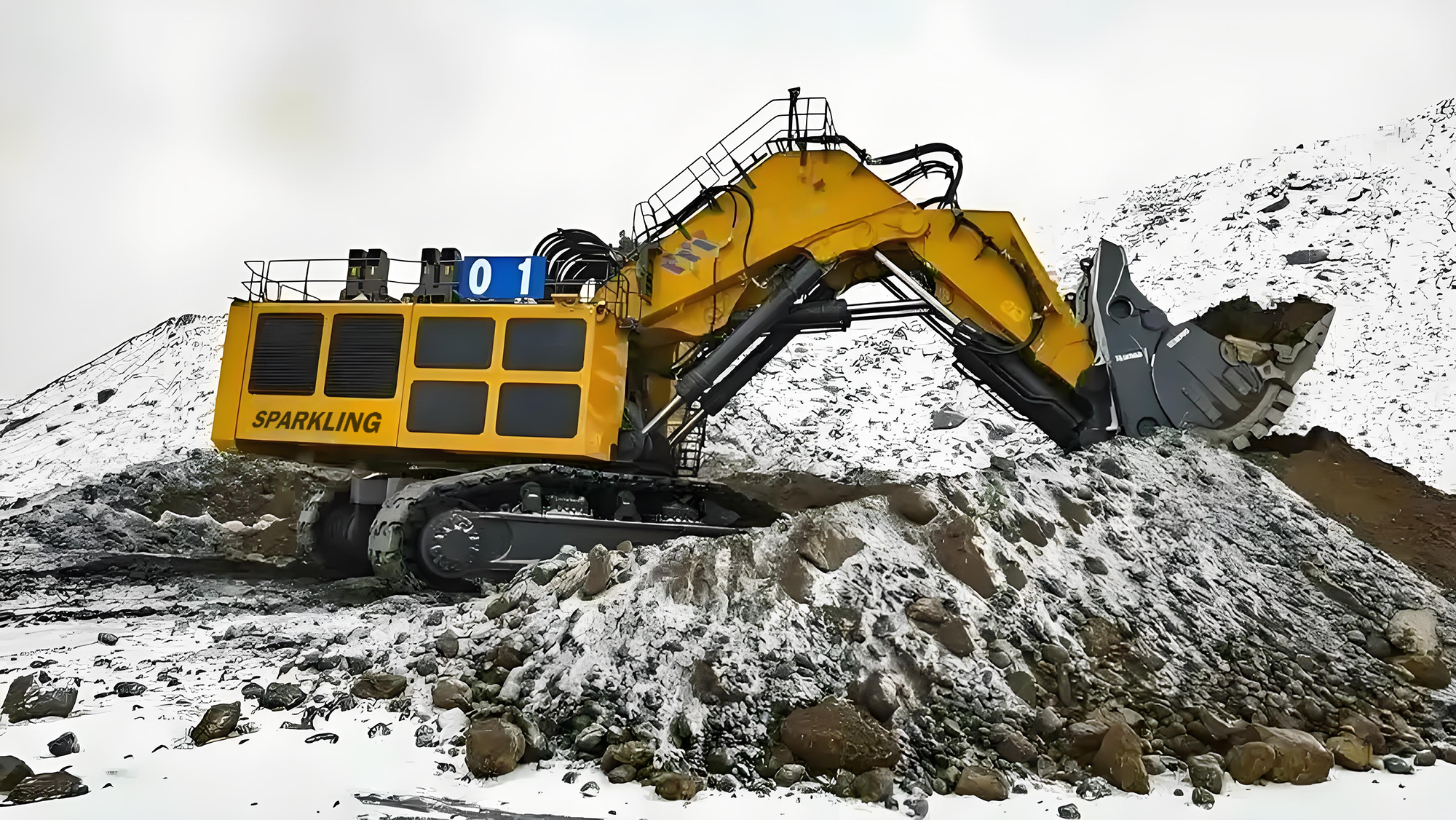

十、Hydraulic Shovel Excavator

10-1.Purpose: Large-scale mine mining, heavy-duty earth moving.

10-2.Usage Scenarios: Large metal mine mining sites, earth moving areas of giant water conservancy projects.

10-3.Power Type: Mostly diesel or electric-driven; ultra-large models often use electric drive to reduce energy consumption.

10-4.Functions: Adopts a large-capacity bucket and a powerful hydraulic system, suitable for high-intensity excavation.

10-5.Working Principle: The dual-pump confluence hydraulic system provides super power; the solid bucket and boom can withstand heavy loads, realizing efficient large-scale material transportation.

The Significance of Excavators

From the rise of urban high-rises to the extension of rural roads; from the development of mine resources to the governance of river environments, excavators are well-deserved "cornerstones of engineering". They not only increase construction efficiency several times and reduce the intensity of manual labor but also turn many complex terrains and high-difficulty projects from "impossible" to "possible", supporting the rapid development of social infrastructure.

Summary

These 10 types of excavators, with their different structural designs and functional characteristics, shine in their respective fields—crawler-type ones conquer rugged terrain, wheeled ones shuttle through cities, mini ones handle narrow spaces... They interpret "each craft has its own specialty" with their "hardcore strength". Next time you pass by a construction site, you might as well pay attention to the figures of these "steel warriors" and feel the wisdom and power behind engineering machinery!
