Volvo D5E Diesel Engine | 4.8L 4-Cylinder Turbocharged Common Rail Motor
The Volvo D5E is a state-of-the-art, 4.8-liter, 4-cylinder inline diesel engine. It was engineered to provide high torque at low engine speeds, which is the hallmark of Volvo’s "V-ACT" (Volvo Advanced Combustion Technology). By optimizing the air-to-fuel ratio through electronic precision, the D5E delivers higher productivity with significantly lower fuel consumption and noise levels.
This engine is a popular choice for mid-sized excavators and soil compactors, offering a robust architecture that handles high-pressure injection and heavy hydraulic loads with ease.
Dear Valued Partners,
Thank you for choosing SPARKLING MACHINERY, your professional supplier for construction machinery brake and transmission parts.

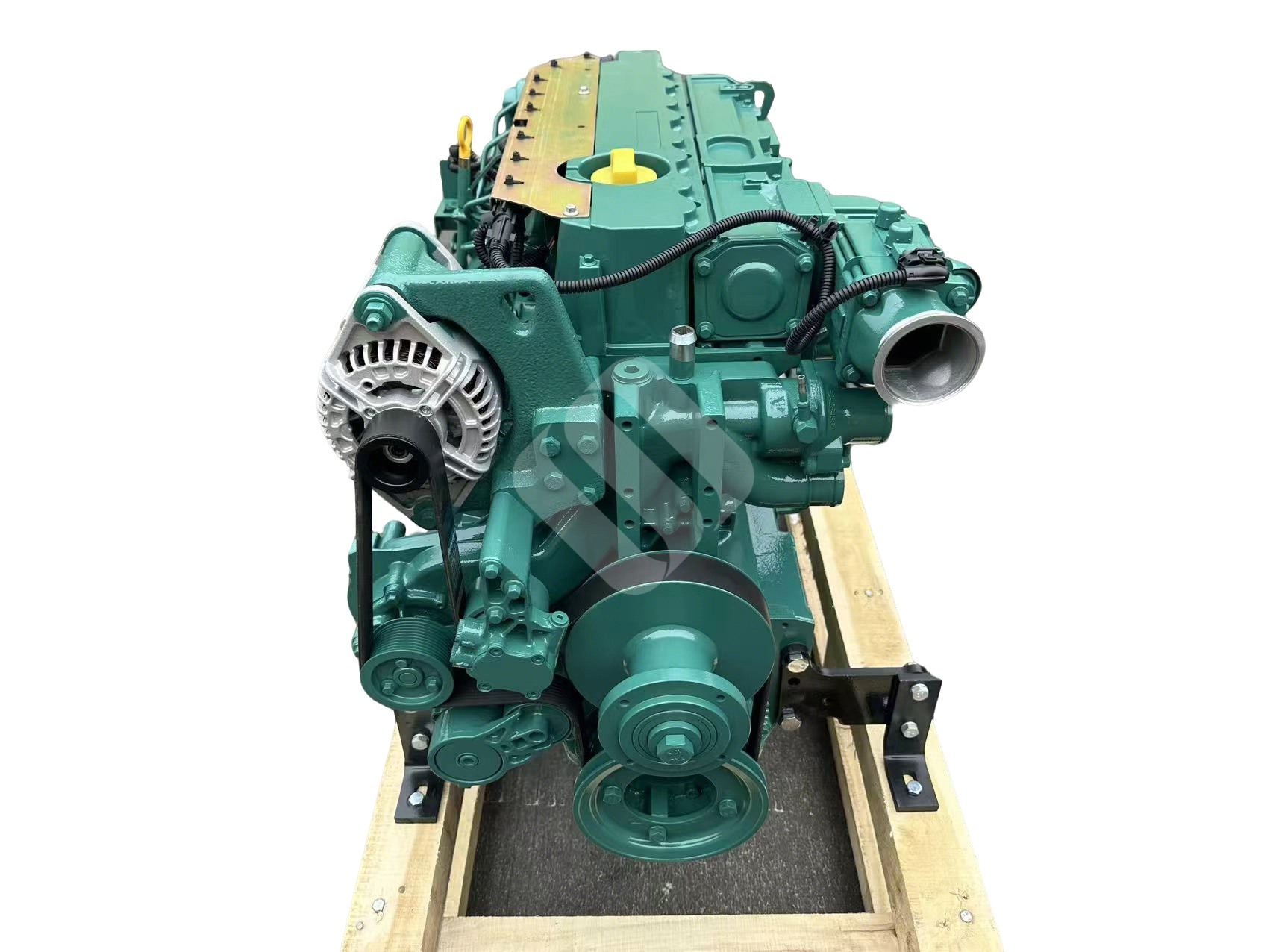

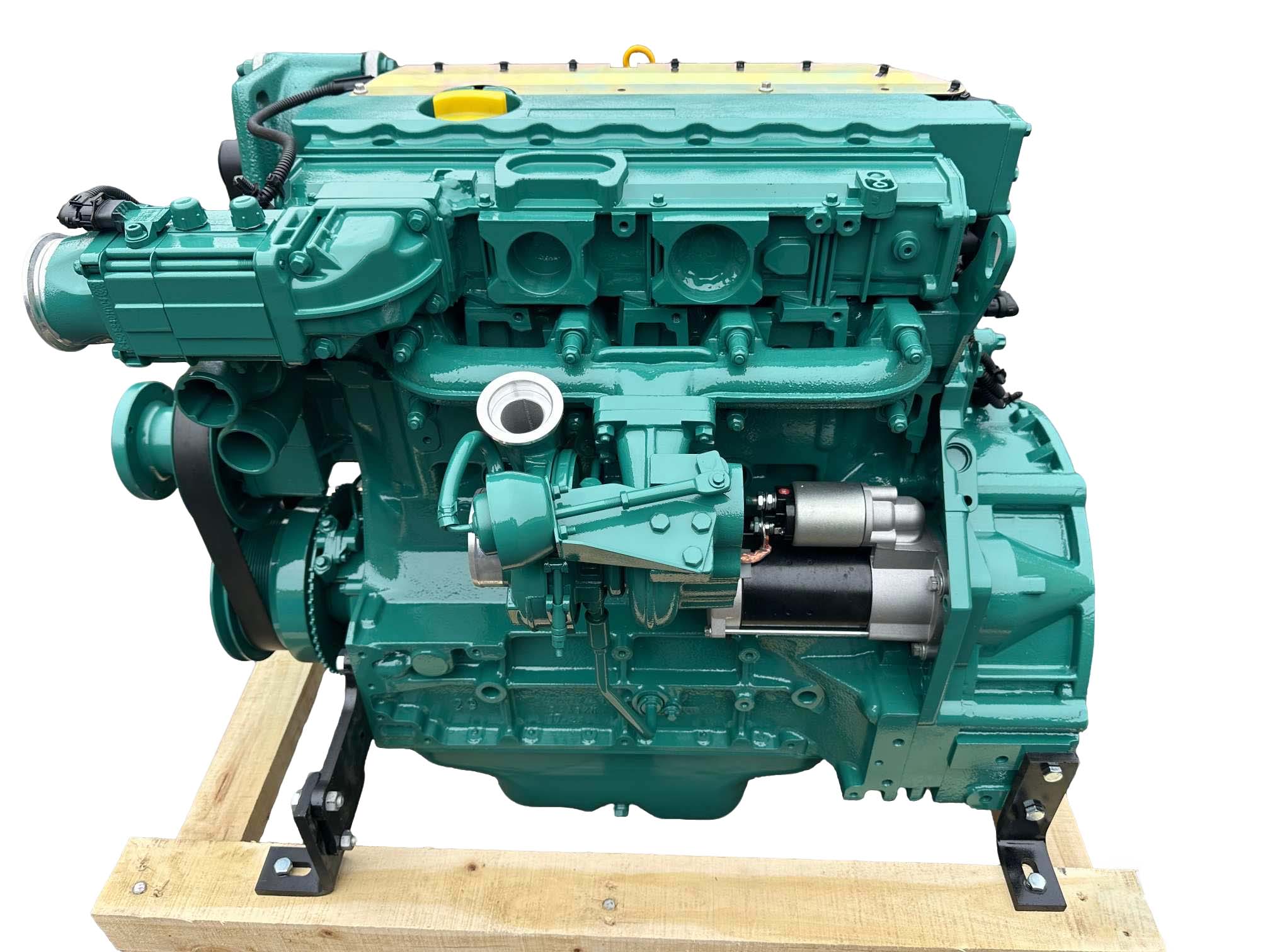

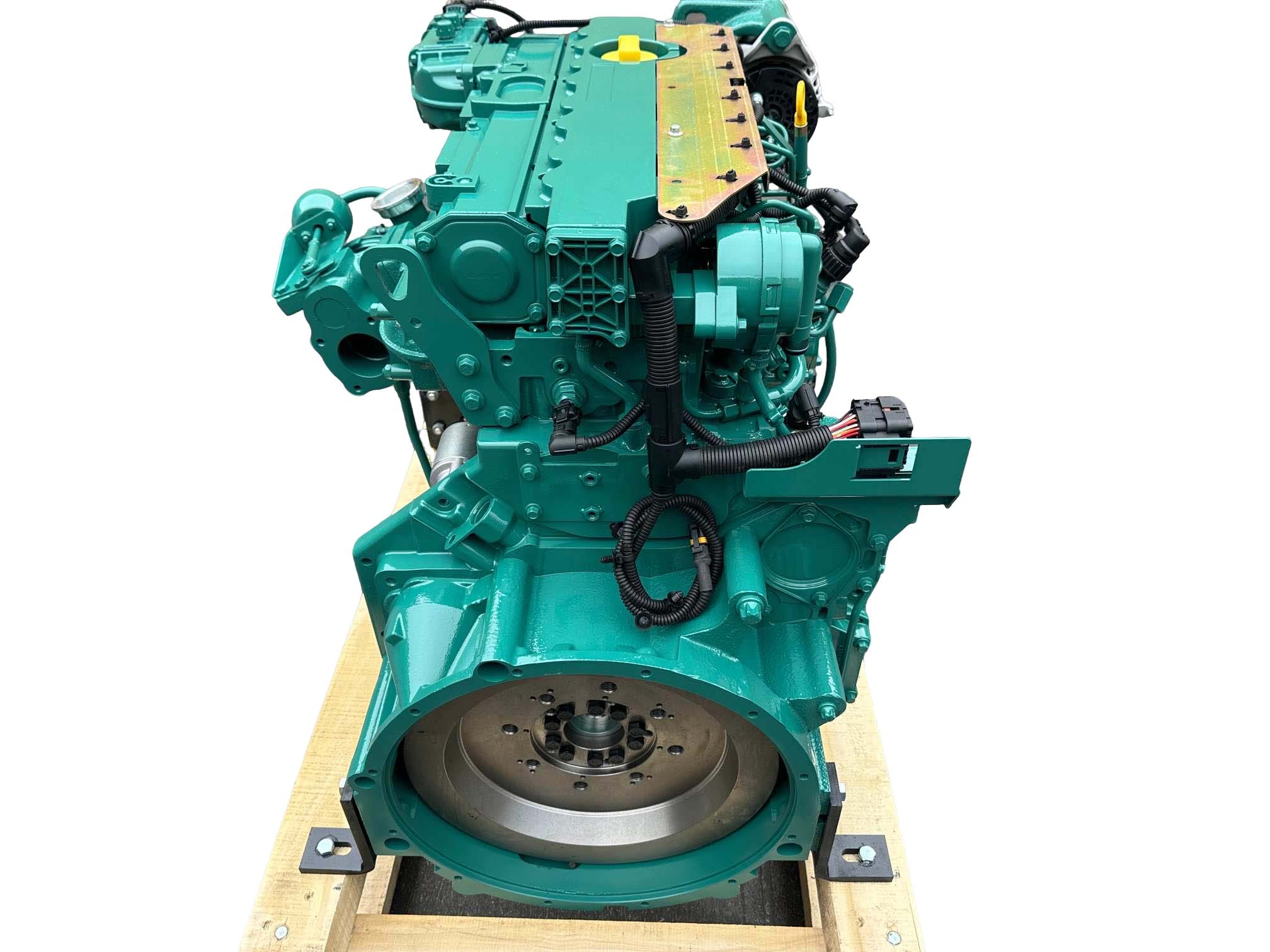

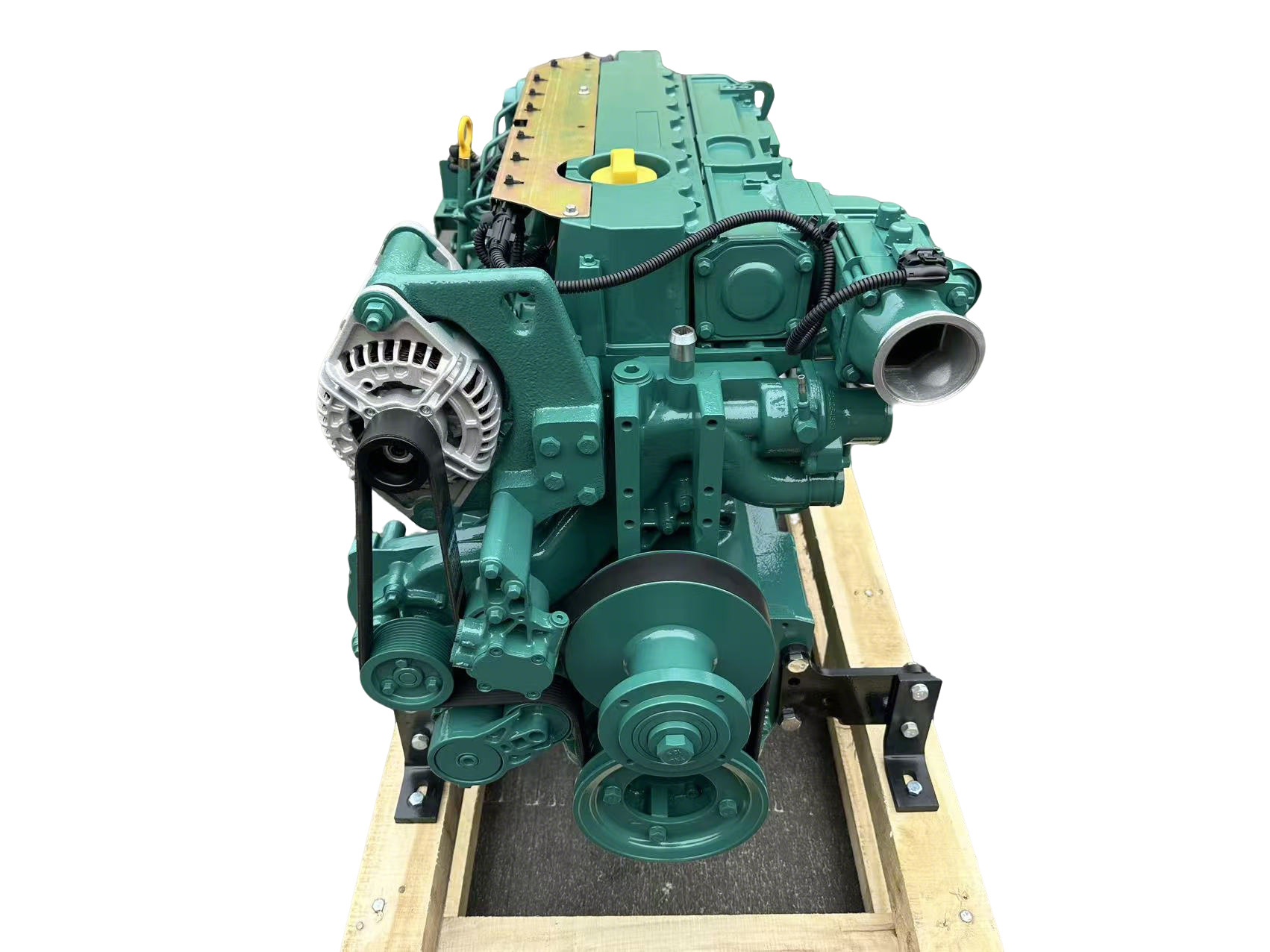

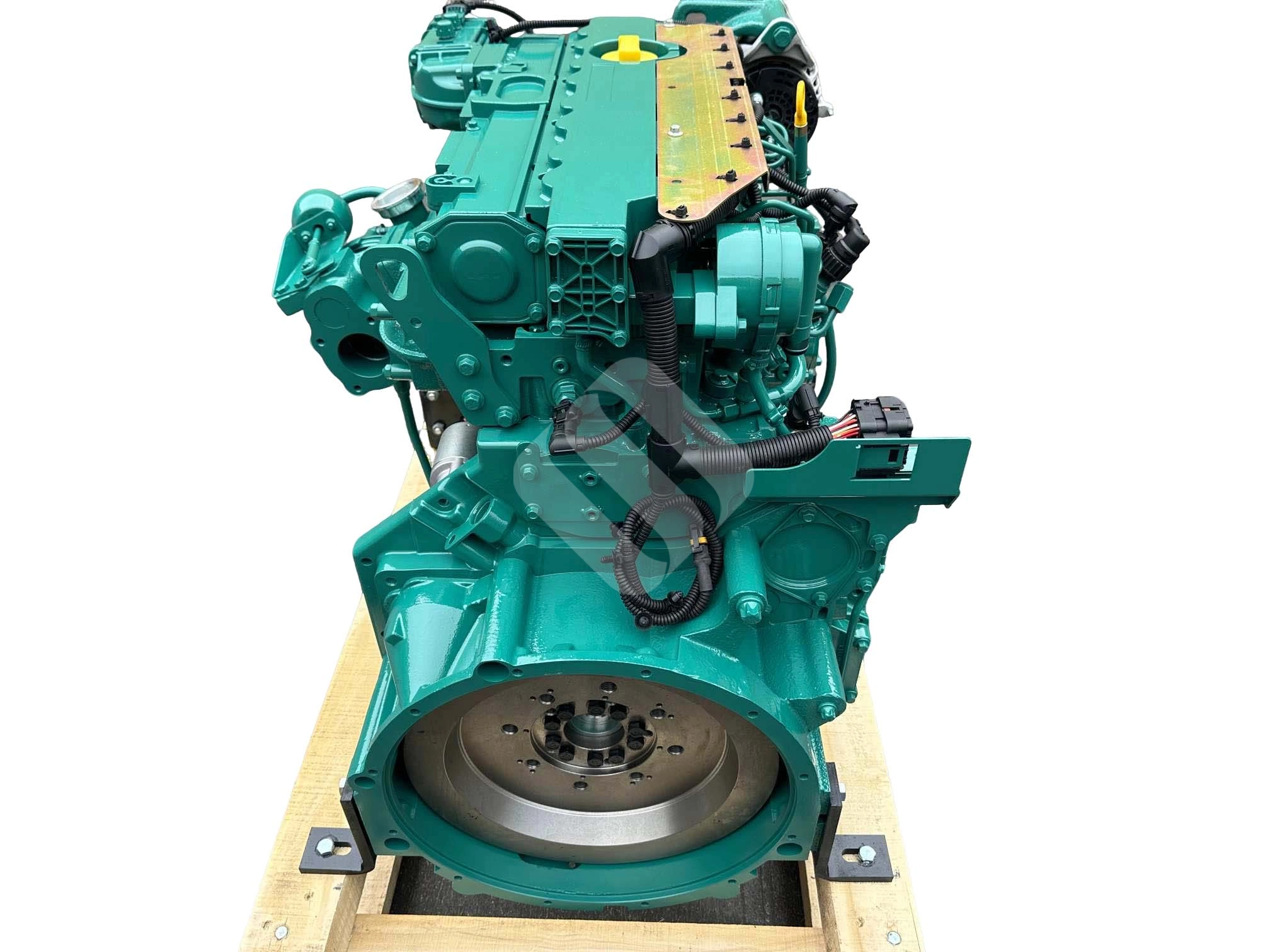

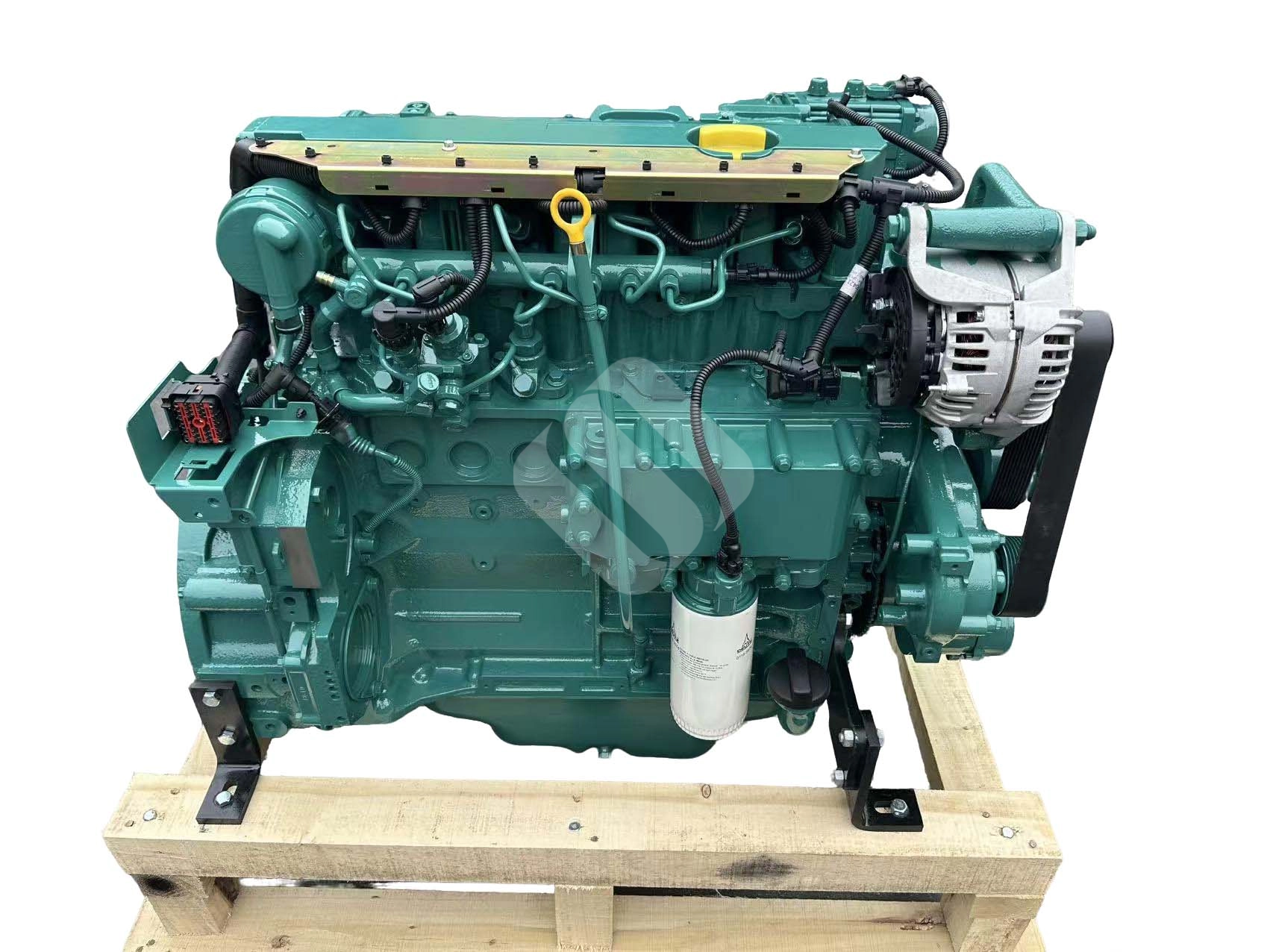

The SPARKLING MACHINERY NEW Volvo D5E 4.8L common rail diesel engine Photo:
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
· V-ACT Technology: Uses an advanced fuel injection system and an electronic engine management system to achieve cleaner exhaust and higher performance.
-
· Internal Exhaust Gas Recirculation (I-EGR): Reduces $NO_x$ emissions by recirculating a portion of the exhaust gas back into the cylinders, meeting Tier 3 standards without a bulky DPF.
-
· Enhanced Cold Start: Electronic heater plugs and optimized injection mapping ensure reliable starting in temperatures as low as -30°C.
-
· Reinforced Durability: Built with a high-strength cylinder block and wet liners for easier maintenance and superior vibration dampening.
-
· Service Intelligence: Fully compatible with Volvo’s MATRIS and VCADS Pro diagnostic systems for rapid troubleshooting.
-
-
-
-
-
-
-
-
-
-
-
-
Feature Details Engine Model Volvo D5E Configuration Inline 4-Cylinder, 4-Stroke Displacement 4.76 Liters (4.8L Class) Bore / Stroke 108 mm / 130 mm Aspiration Turbocharged & Intercooled (Air-to-Air) Max Power Output 110 kW – 121 kW (148 hp – 162 hp) Max Torque 625+ Nm @ 1600 RPM Emission Standard US EPA Tier 3 / EU Stage IIIA Fuel System High-Pressure Common Rail / EUP
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Common Applications
-
The Volvo D5E is the primary power unit for several C-series and late B-series machines:
-
· Excavators: Volvo EC210B (Tier 3), EC210C, ECR235C.
-
· Compactors: Volvo SD115, SD130, SD160 soil compactors.
-
· Forestry: Specialized timber handlers and harvesters.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Q&A
-
Q1: Can I swap a D5D engine with a D5E?
-
A: While the physical block dimensions are similar, the D5E is a Tier 3 engine with significantly more complex electronics and a different fuel system. A direct swap requires changing the ECU, wiring harness, and potentially the cooling package.
Q2: What type of oil should be used in the Volvo D5E?
-
A: Volvo recommends VDS-3 or VDS-4 high-performance diesel engine oil (15W-40) to protect the precision injectors and turbocharger.
Q3: Is the D5E a "DEUTZ" engine?
-
A: The D5E was developed during the period of close collaboration between Volvo and DEUTZ. It shares architecture with the DEUTZ TCD2013 series but features Volvo’s proprietary V-ACT electronics and software.
-
-
-
-
-
-
📦 Packing
1. Packaging methods: Carton box + Wooden case/Pallet + Anti-rust treatment
2. Export-standard packaging to ensure safety during transportation
3. Custom packaging available upon request
4. Dimensions and weight can be provided for freight calculation
🚚 Shipping
1. Available shipping methods: Sea freight, Air freight, Express delivery (DHL, UPS, FedEx, etc.)
2. LCL (Less than Container Load) and FCL (Full Container Load) options are supported
3. For Russian clients, we can introduce the forwarder agent to you
4. Delivery time: Ships within 1-3 working days after payment (for items in stock)
💳 Payment
1. Accepted methods: T/T, Bank Transfer, PayPal, Alipay, WeChat Pay, Western Union
2. Deposit + balance payment available for large or custom orders
3. Flexible payment options—feel free to contact us for details
📌 Frequently Asked Questions (FAQs)
Q: Which excavator models is this part compatible with?
A: This product is compatible with major brands such as CAT, KOMATSU, HITACHI, and more. Custom specifications are also available.
Q: How can I make sure I’m selecting the correct part?
A: You can send us a photo of the old part, part number, or your excavator model, and we will help you confirm the right match.
Q: Is there a warranty for this product?
A: Yes, we offer a 6-month quality guarantee under normal use.
