The Powerhouse of Excavators: The Ultimate Guide to Hydraulic Cylinder Structure, Maintenance & Selection

I. Understanding Hydraulic Cylinders: The "Power Muscles" of Excavators — Without Them, Digging and Lifting Are Impossible!

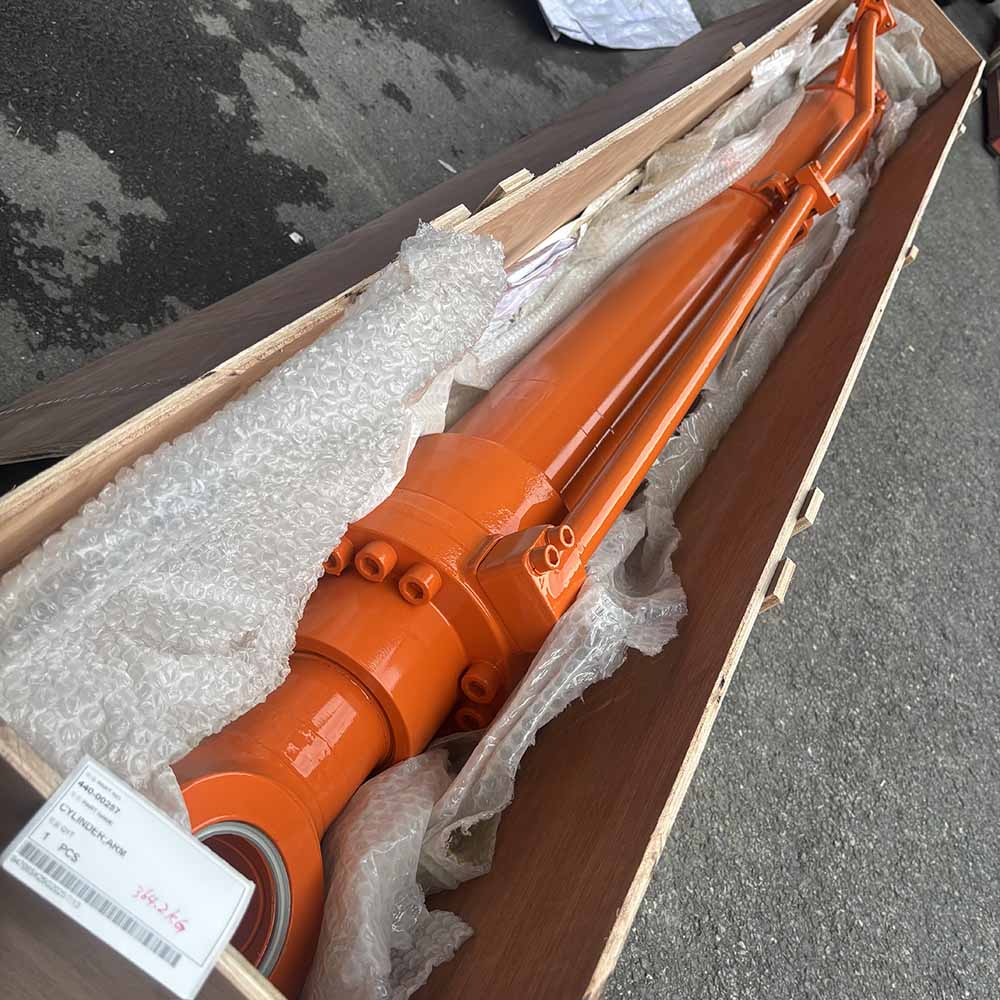

Hydraulic cylinders, also known as "hydraulic rams", are the "power execution components" of excavators. Simply put, they "are driven by hydraulic oil to convert hydraulic energy into mechanical force". Actions such as bucket digging, boom lifting, and arm telescoping all depend on them for power. To understand hydraulic cylinders, just remember the following 3 points:

1. Structure: 3 Core Components, None Can Be Missing

The structure of a hydraulic cylinder is not complicated and mainly consists of 3 parts:

• Cylinder Barrel: A cylindrical metal tube that stores hydraulic oil inside and serves as the "main structure" of the hydraulic cylinder. It can withstand high pressure (usually 30 - 50MPa, which is equivalent to bearing a weight of 300 - 500 kilograms per square centimeter);

• Piston Rod: One end is inside the cylinder barrel, and the other end is connected to components such as the bucket and boom. It extends or retracts under the push of hydraulic oil, thereby driving the movement of related components (for example, when the piston rod extends, the bucket completes the "bucket closing" digging action);

• Seals: Installed at the connection between the cylinder barrel and the piston rod to prevent hydraulic oil leakage. If the seals are damaged, the hydraulic cylinder will experience oil leakage and power loss, which is the most common type of failure for hydraulic cylinders.

2. Core Principle: Driven by the "Pressure Difference" of Hydraulic Oil, Powerful Enough to Lift Cars

The working principle of a hydraulic cylinder is simple, and the core lies in the "pressure difference of hydraulic oil":

1. The main hydraulic pump delivers high - pressure hydraulic oil (with a pressure of not less than 30MPa) to the "rodless chamber" of the hydraulic cylinder (the side of the cylinder barrel where no piston rod is installed);

2. The high - pressure hydraulic oil generates a thrust in the rodless chamber, pushing the piston rod to extend outward and driving the bucket or boom to move (for example, when the piston rod extends, the boom rises);

3. When the piston rod needs to retract, the hydraulic oil is switched to be delivered to the "rod chamber" (the side of the cylinder barrel where the piston rod is installed), pushing the piston rod to move in the opposite direction and resetting the relevant components (for example, the boom lowers).

For example: The bucket cylinder of a 20 - ton excavator has a rodless chamber area of approximately 0.02 square meters. Under a pressure of 30MPa, it can generate a thrust of 60 tons, which is equivalent to being able to lift 12 family cars. This is why it can dig hard soil and load heavy objects.

3. Importance: Without Hydraulic Cylinders, an Excavator Is Like "Powerless Scrap Metal"

• Core Power Source for Digging and Lifting: When the hydraulic cylinder has sufficient power, the bucket can dig 1 - 2 tons of hard rock, and the boom can lift 3 - 5 tons of heavy objects; if the hydraulic cylinder has oil leakage or insufficient power, the bucket will be unable to dig, and the boom will drop halfway during lifting. The daily workload may be less than 1/3 of the normal level;

• Key Factor Affecting Motion Smoothness: When the hydraulic cylinder is well - sealed and the piston rod has no scratches, the movement is smooth. For example, the boom can rise and fall stably when trimming slopes; if the hydraulic cylinder jams, the movement speed will be unstable, and it may also accelerate the wear of other components;

• High Maintenance Costs and Severe Failure Consequences: The unit price of imported hydraulic cylinders is usually 2,750 - 6,875, and domestic ones also cost 1,100 - 2,750. During maintenance, the boom needs to be disassembled and the hydraulic oil replaced, resulting in a downtime of 2 - 3 days. The loss due to work stoppage is often more than the maintenance cost.

II. Hydraulic Cylinders Need to Guard Against These 5 Types of Risks! Triggering Them Requires High - Cost Maintenance

1. Collision and Scratching of the Piston Rod: Inevitably Damages Seals

Debris such as gravel and steel bars at the construction site are likely to collide with or rub against the extended piston rod. If the chrome - plated layer on the surface of the piston rod is scratched, it will directly damage the seals and cause hydraulic oil leakage. For example, after the piston rod of the bucket cylinder is scratched by a stone, oil leakage will occur within 3 - 5 days. Replacing the seals costs 68.75 - 206.25. If the piston rod is deformed, the entire hydraulic cylinder needs to be replaced.

2. Hydraulic Oil Contamination: Causes Comprehensive Wear of the Cylinder Barrel and Piston Rod

If dust and metal debris are mixed into the hydraulic oil (for example, the filter element is not replaced in a timely manner), it is like "impurities entering the hydraulic cylinder". They will flow with the hydraulic oil inside the cylinder barrel, wearing the inner wall of the cylinder barrel and the surface of the piston rod. In the long run, this will lead to "internal leakage" of the hydraulic cylinder. The specific manifestation is that the boom automatically drops after being lifted to the middle of the air. A single maintenance costs 412.5 - 1,375, and in severe cases, the entire hydraulic cylinder needs to be replaced.

3. Long - Term "Cylinder Stalling": The Hydraulic Cylinder Bears Pressure Beyond the Limit

For example, when the bucket is blocked while digging hard rock and forced pressure operation is still carried out, it will cause "cylinder stalling" of the hydraulic cylinder. The pressure borne by the cylinder barrel and piston rod exceeds the design limit, which may cause the piston rod to bend and the cylinder barrel to deform. Taking the arm cylinder of a 20 - ton excavator as an example, after the piston rod bends due to cylinder stalling, the replacement cost of a single rod is 1,100 - 2,062.5, and a 3 - day shutdown is required for maintenance.

4. Operation in Low - Temperature Environments Without Preheating: Accelerates Seal Aging

When the ambient temperature is lower than - 10℃, if the hydraulic cylinder is operated directly without preheating, the viscosity of the hydraulic oil will increase, and the seals will become hard and lose elasticity due to low temperature, which is prone to "cold leakage". For example, if the boom is lifted immediately after starting the equipment in the morning, the seals may crack due to low temperature and cause oil leakage. Replacing the seals requires waiting for the equipment to warm up, delaying the operation time by 1 - 2 hours.

5. Long - Term Idle Without Maintenance: The Piston Rod Is Prone to Rust

When the excavator is idle for more than 1 month, the piston rod is exposed to the air (especially in rainy or humid environments) and is prone to rust. The rusty piston rod will scratch the seals, and oil leakage will occur when it is used again. For example, after the construction site is shut down for half a month, rust spots appear on the piston rod, and oil leakage will occur 3 days after starting the equipment. Rust removal and seal replacement cost 137.5 - 275.

III. Cost - Effectiveness Comparison of Hydraulic Cylinders from Domestic and Foreign Excavator Brands

IV. Hydraulic Cylinder Maintenance: Do These 4 Things to Extend Its Service Life by 3 Years!

1. "Check 2 Points" Daily: Detect Hidden Dangers in Advance

• Check the Piston Rod: Before starting the equipment, observe whether there are scratches, rust, or oil leakage marks on the surface of the piston rod. If there is dust, wipe it clean with a clean cloth. If scratches are found, contact maintenance personnel for treatment in a timely manner;

• Check the Hydraulic Oil: Open the oil tank cap, observe whether the hydraulic oil is clear (if it is turbid, it indicates pollution), and whether the oil level is between "MIN" and "MAX". If the oil level is insufficient, add 46# anti - wear hydraulic oil in a timely manner.

2. Operate "Smoothly": Avoid Violent Operation and Cylinder Stalling

• When operating the control lever, "push and release slowly" to ensure that the hydraulic cylinder extends or retracts smoothly. Avoid pushing the control lever suddenly to cause "sudden stop and start" of the hydraulic cylinder and prevent the piston rod from bearing impact;

• When digging hard soil is blocked, avoid forced pressure application to cause "cylinder stalling". Instead, move backward to adjust the angle and try again. If digging is still not possible, use a breaker for assistance to prevent the hydraulic cylinder from bearing pressure beyond the limit.

3. Regularly Change Oil and Filters: Ensure Hydraulic Oil Cleanliness

• Change Hydraulic Oil: For heavy working conditions (such as mine operation), change the hydraulic oil every 2,000 hours; for light working conditions (such as municipal operation), change it every 3,000 hours. Do not wait until the oil turns black and produces an odor to replace it;

• Change Filters: Every time the hydraulic oil is changed, the "main hydraulic oil filter" and "return oil filter" must be replaced simultaneously. Check the filters every 500 hours daily. If they are dirty, replace them in a timely manner to prevent impurities from entering the hydraulic cylinder.

4. "Protect" During Long - Term Idle: Prevent Piston Rod Rust

When the excavator is idle for more than 1 month, fully retract the piston rod into the cylinder barrel (to avoid rust caused by exposure); if it cannot be retracted, apply a layer of grease on the surface of the piston rod, then wrap it with plastic cloth for protection. Start the equipment once every 10 days and operate the hydraulic cylinder to extend and retract 2 - 3 times to prevent seal aging.

V. Summary

1. Avoid Risks: Prevent the hydraulic cylinder from being damaged in advance by avoiding 5 types of risks such as piston rod collision, hydraulic oil contamination, and cylinder stalling;

2. Daily Maintenance: Check the piston rod and hydraulic oil daily, operate smoothly, and change oil and filters regularly. Doing these 4 things can extend the service life of the hydraulic cylinder by 3 years and reduce maintenance costs.
